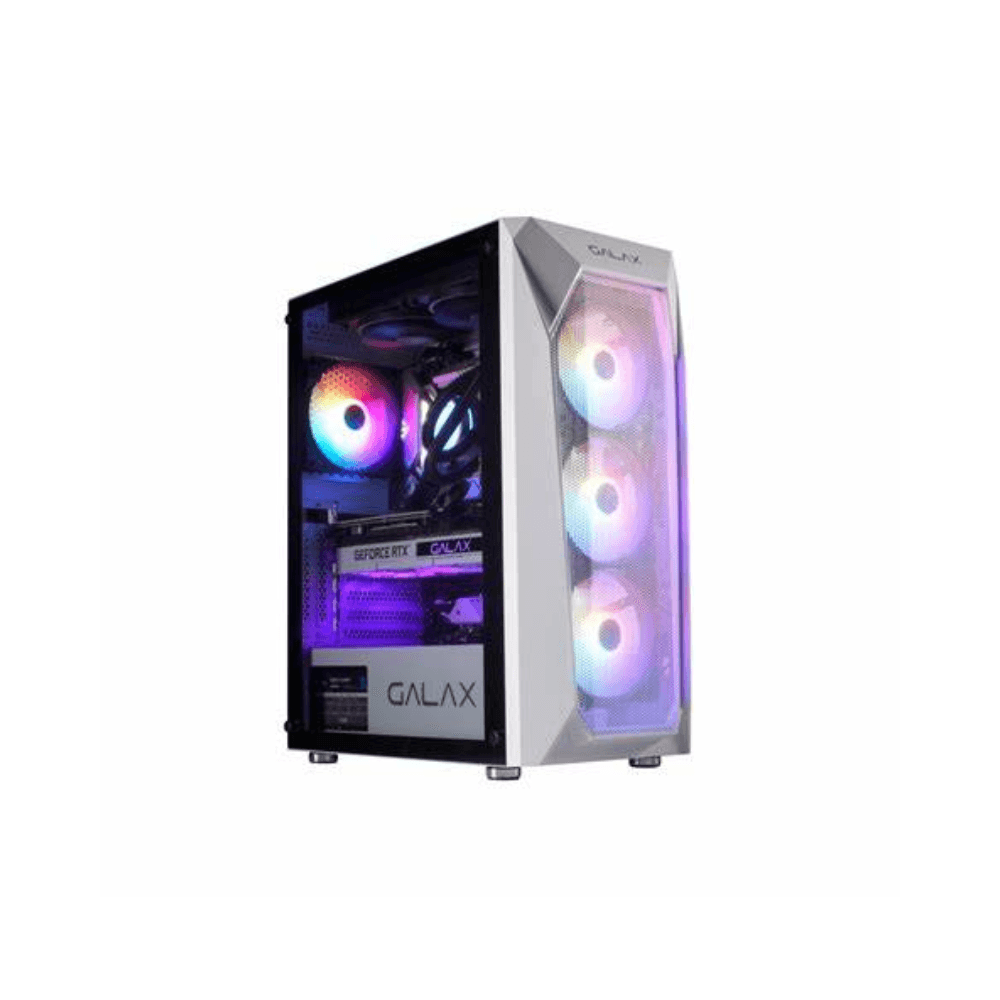

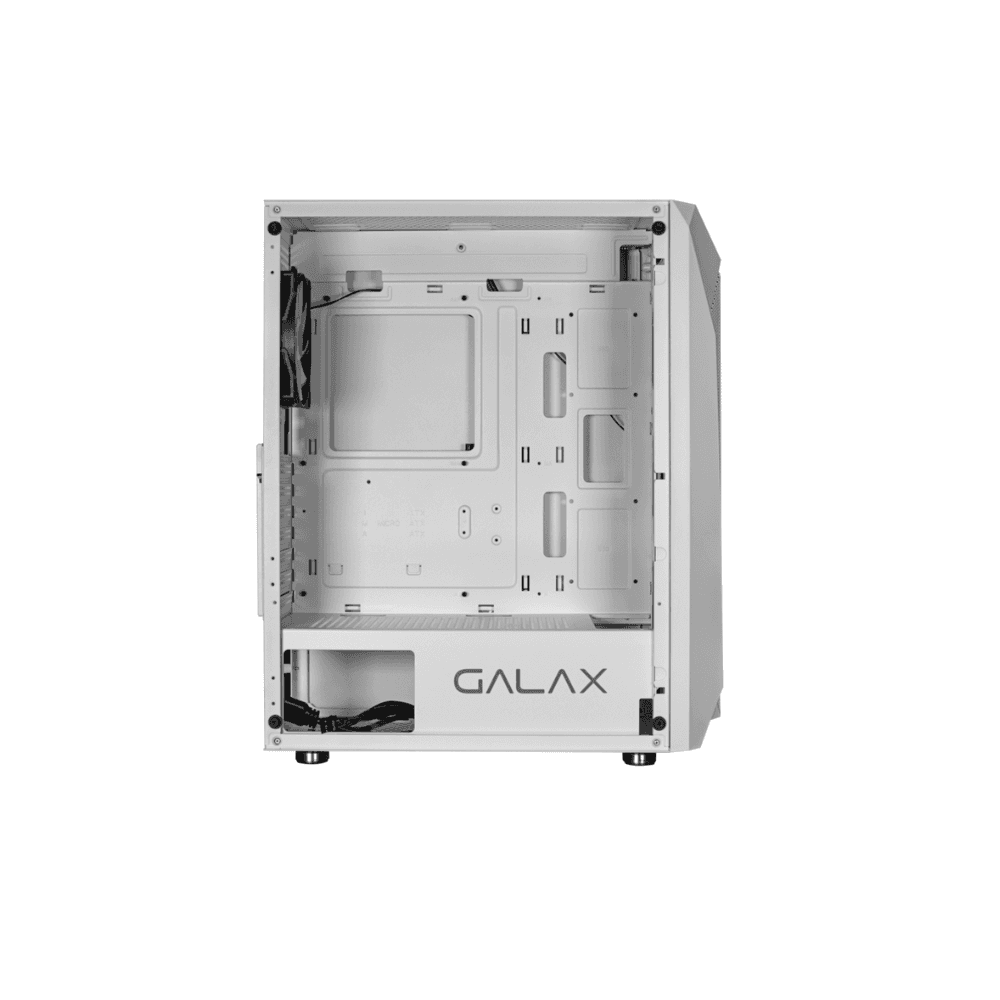

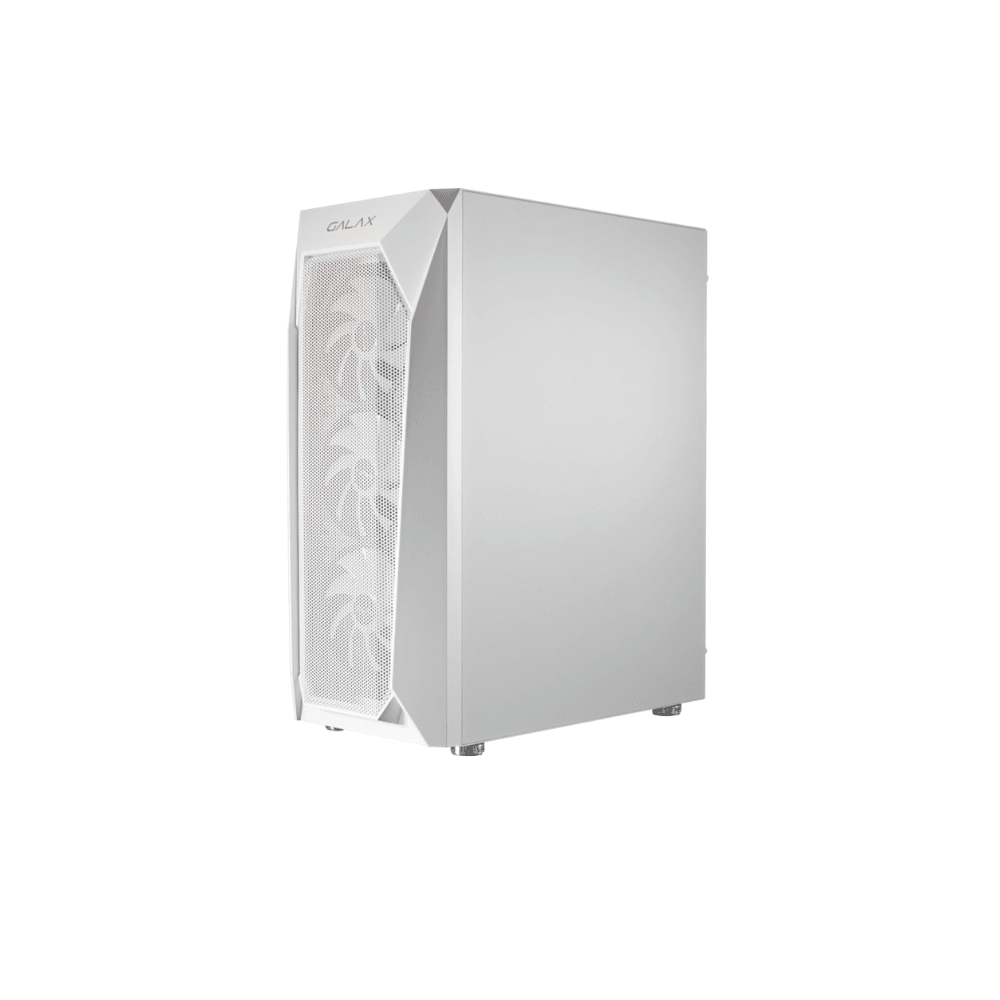

GALAX REVOLUTION-05 RGB CASE 4 FAN WHITE

General

• Brand: GALAX
• Model: REVOLUTION 05
• Product Type: Mid-Tower PC Case
• Color: White
• Motherboard Support: ATX / Micro-ATX / Mini-ITX
• PSU Support: ATX
• Case Material: SPCC + Tempered Glass
• Side Panel: Left Tempered Glass / Right Metal
• Front Panel: ABS + Mesh
• Top Panel: Metal

Cooling & Fans

• Pre-Installed Fans: 4 × 120mm RGB Fans
• Front Fan Support: 3 × 120mm
• Top Fan Support: 2 × 120mm / 2 × 140mm
• Rear Fan Support: 1 × 120mm
• Bottom Fan Support: 2 × 120mm
• Side Fan Support: Not Supported
• Front Radiator Support: 240mm / 280mm / 360mm
• Top Radiator Support: 240mm / 280mm
• Rear Radiator Support: 120mm

Storage

• 3.5″ HDD Bays: 2
• 2.5″ SSD Bays: 3
• 5.25″ Drive Bays: 0

GPU & CPU Compatibility

• Maximum GPU Length: Up to 330mm
• Maximum CPU Cooler Height: 160mm
• GPU Mounting: Horizontal / Vertical support
• Cable Management Depth: 18mm

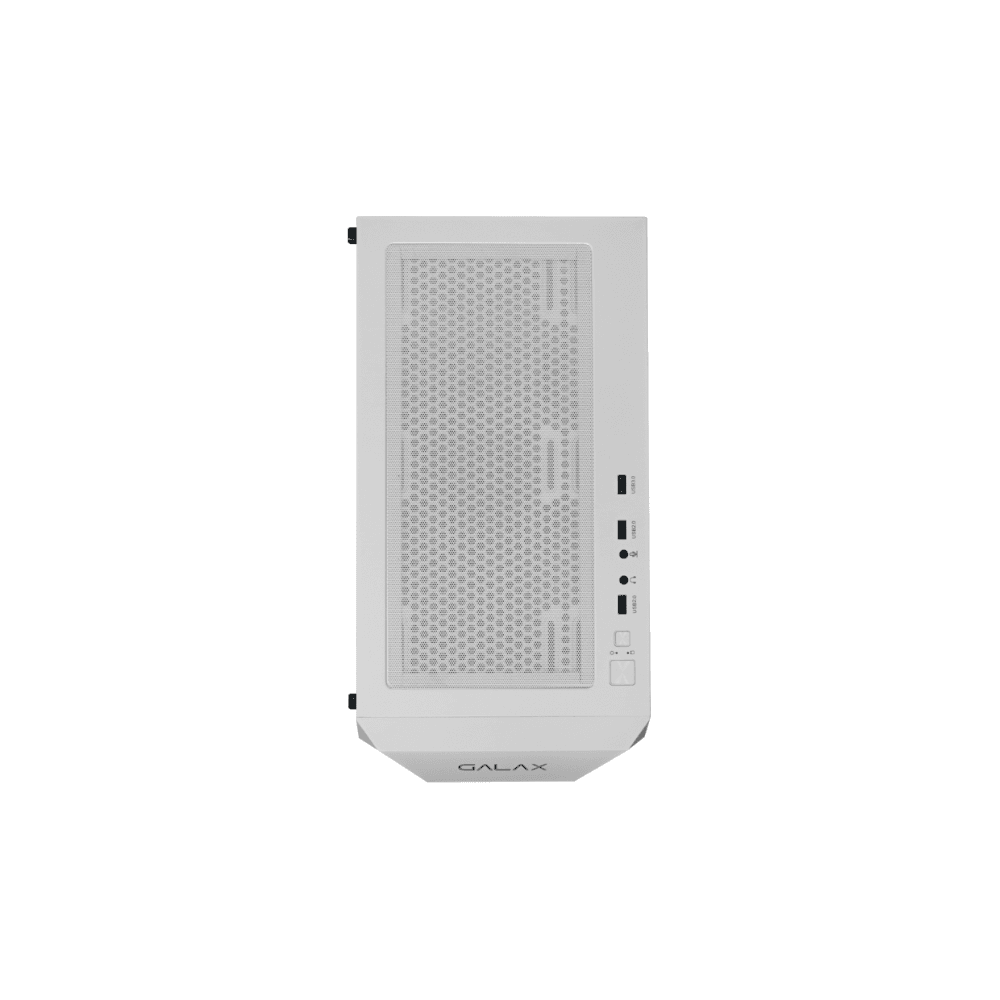

Front I/O

• USB 2.0: 2
• USB 3.0: 1
• HD Audio: 1
• Buttons: 2
• USB 3.1: 0
• Card Reader: No

Dimensions & Weight

• Chassis Dimensions: 350 × 205 × 470mm
• Full Case Dimensions: 400.6 × 205 × 481.5mm
• Net Weight: 4.3kg
• Gross Weight: 4.95kg
