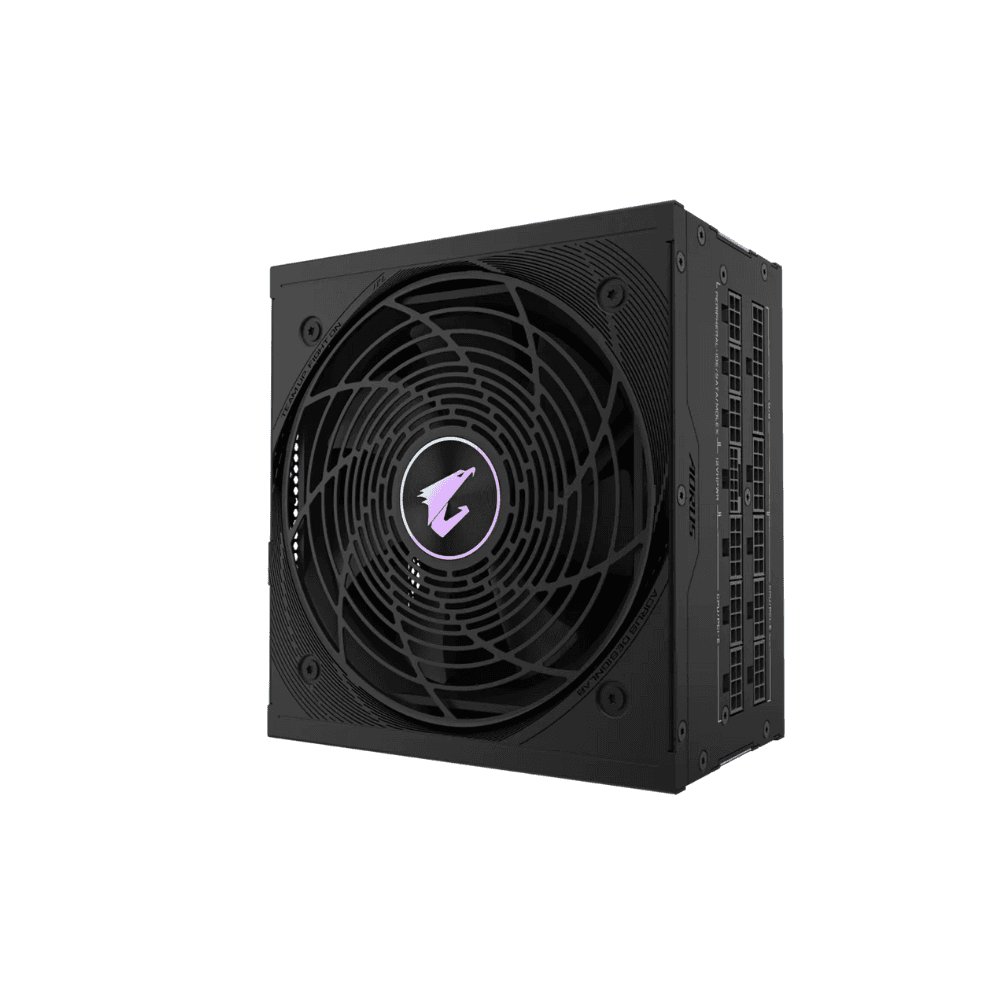

GIGABYTE AORUS ELITE GP-AE850PM 850W 80+ PLATINUM BLACK Power Supply

Key Specifications

• Power Output: 850W

• Efficiency Certification: 80 PLUS® Platinum

• Form Factor: ATX

• ATX Standard: ATX 3.1

• PCIe Support: PCIe 5.0 Ready

• 12V-2×6 Connector: Included

• Modular Design: Fully Modular

• Cooling Fan: 120mm Fluid Dynamic Bearing (FDB) Fan

• Input Voltage: 100-240V AC

• PFC Type: Active PFC (>0.9 Typical)

• 12V Rail: Single +12V Rail

• Capacitors: 100% Japanese Capacitors

• Efficiency: Up to 92% at Typical Load

• MTBF: >100,000 Hours

• Protection Features: OVP, OPP, SCP, UVP, OCP, OTP, NLO, SIP

• Power Good Signal: 100-150ms

• Hold Up Time: >16ms

• Cable Type: Embossed, All Black

• Color: Black

• Dimensions: 150 × 140 × 86 mm

• Warranty: 1 Years

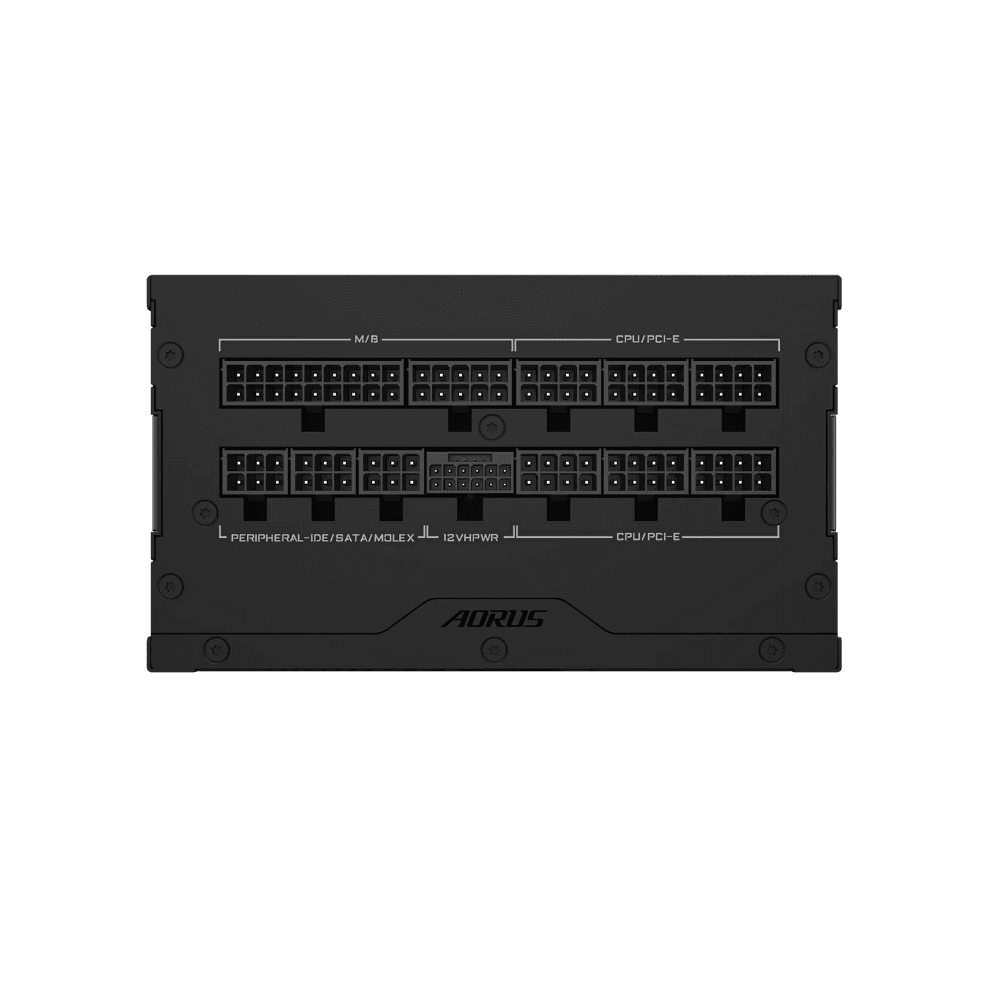

Connector Configuration

• 1 × 20+4-Pin ATX/MB

• 2 × 4+4-Pin EPS/CPU

• 1 × 16-Pin PCIe

• 6 × PCIe 6+2 Pin

• 8 × SATA

• 4 × 4-Pin Peripheral (Molex)
