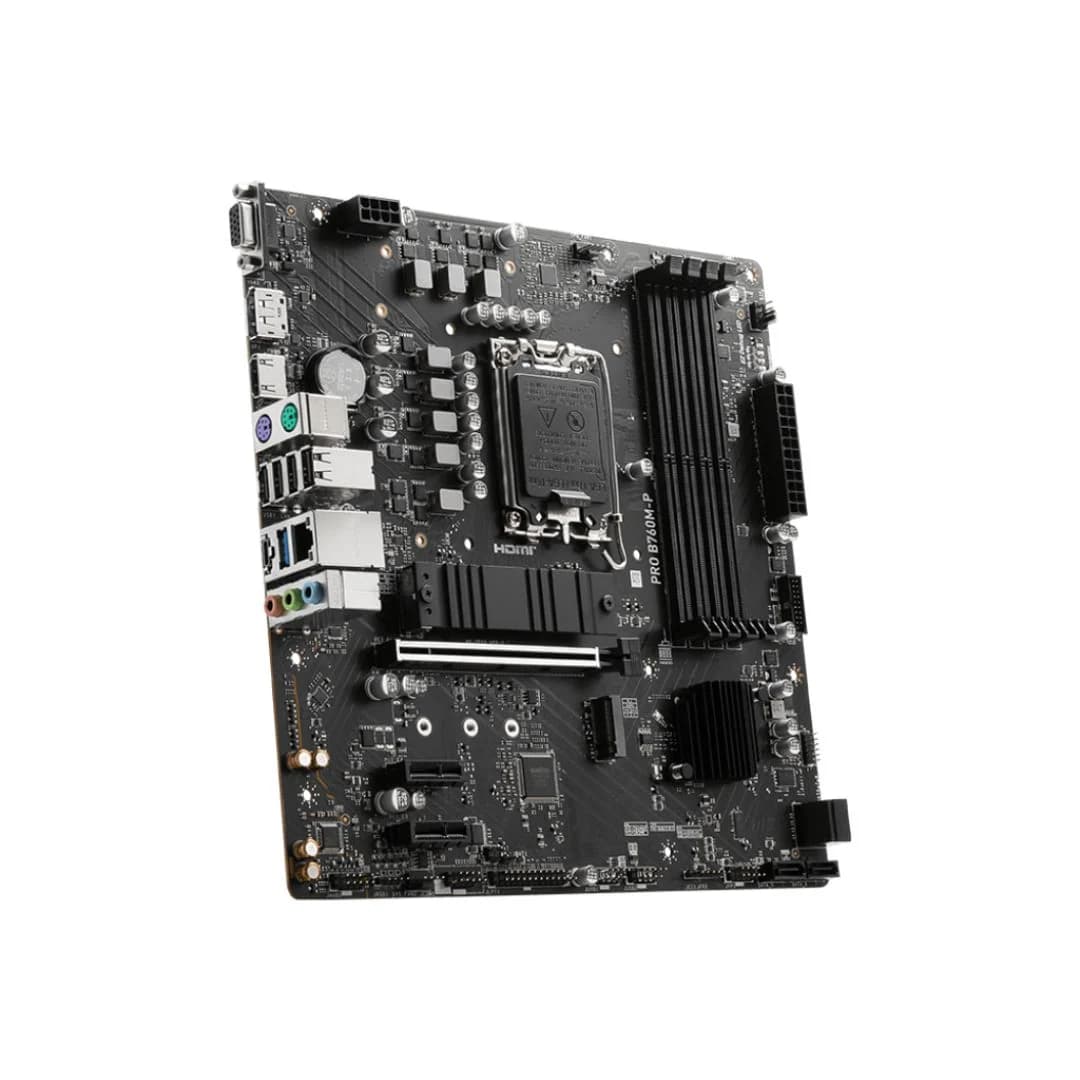

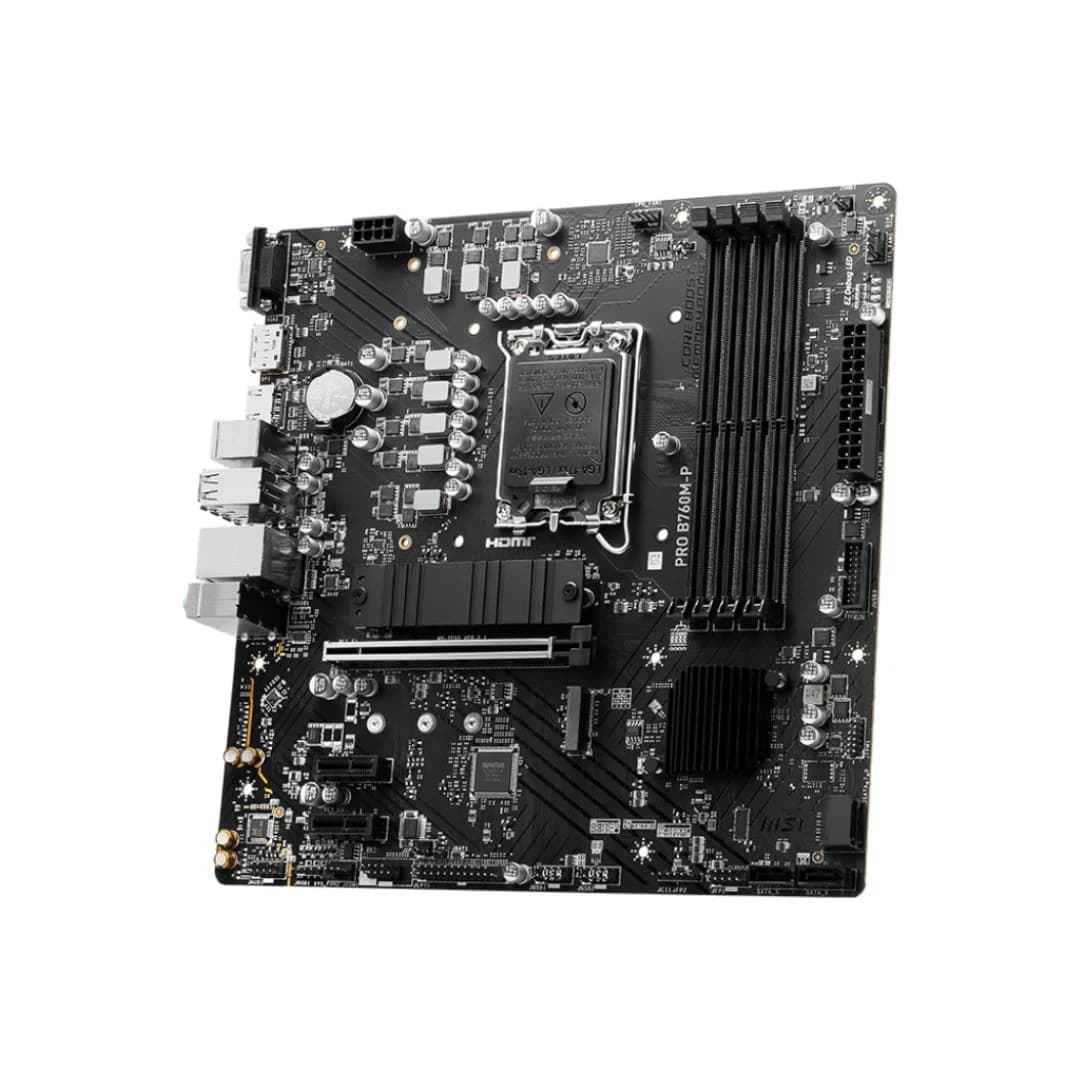

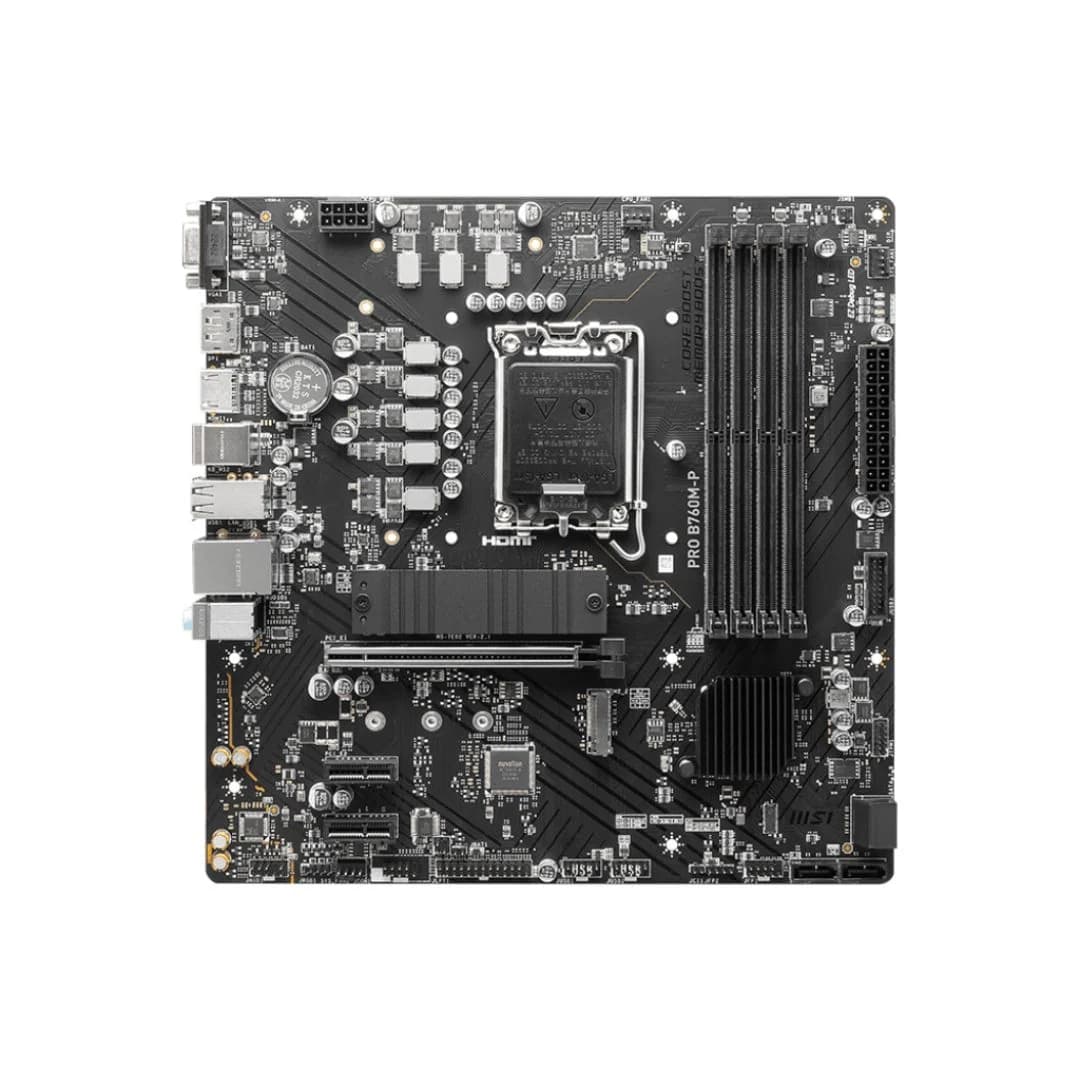

MSI PRO B760M-P D5, Motherboard

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors)
• Chipset: Intel® B760
• Form Factor: Micro-ATX (9.6 in x 9.6 in / 24.4 cm x 24.4 cm)
• Memory Support: DDR5 (Supports DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz, Non-ECC, Un-buffered, Dual-Channel, Intel® XMP 3.0)
• Memory Slots & Max Capacity: 4x DIMM slots, Up to 256 GB (Supports single 48GB/64GB DIMMs)
• PCIe Expansion Slots:
  ◦ 1x PCIe 4.0 x16 slot (PCI_E1; supports x16 mode from CPU, Steel Armor)
  ◦ 2x PCIe 4.0 x1 slots (PCI_E2 & PCI_E3; from B760 Chipset)
• M.2 Storage Slots:
  ◦ 1x M.2_1 slot (Key M, type 2242/2260/2280 from CPU) — supports up to PCIe 4.0 x4, includes M.2 Shield Frozr
  ◦ 1x M.2_2 slot (Key M, type 2242/2260/2280 from B760 Chipset) — supports up to PCIe 4.0 x4 & SATA modes
• SATA Ports: 4x SATA 6Gb/s (SATA5 disabled when using an M.2 SATA SSD in M2_2 slot)

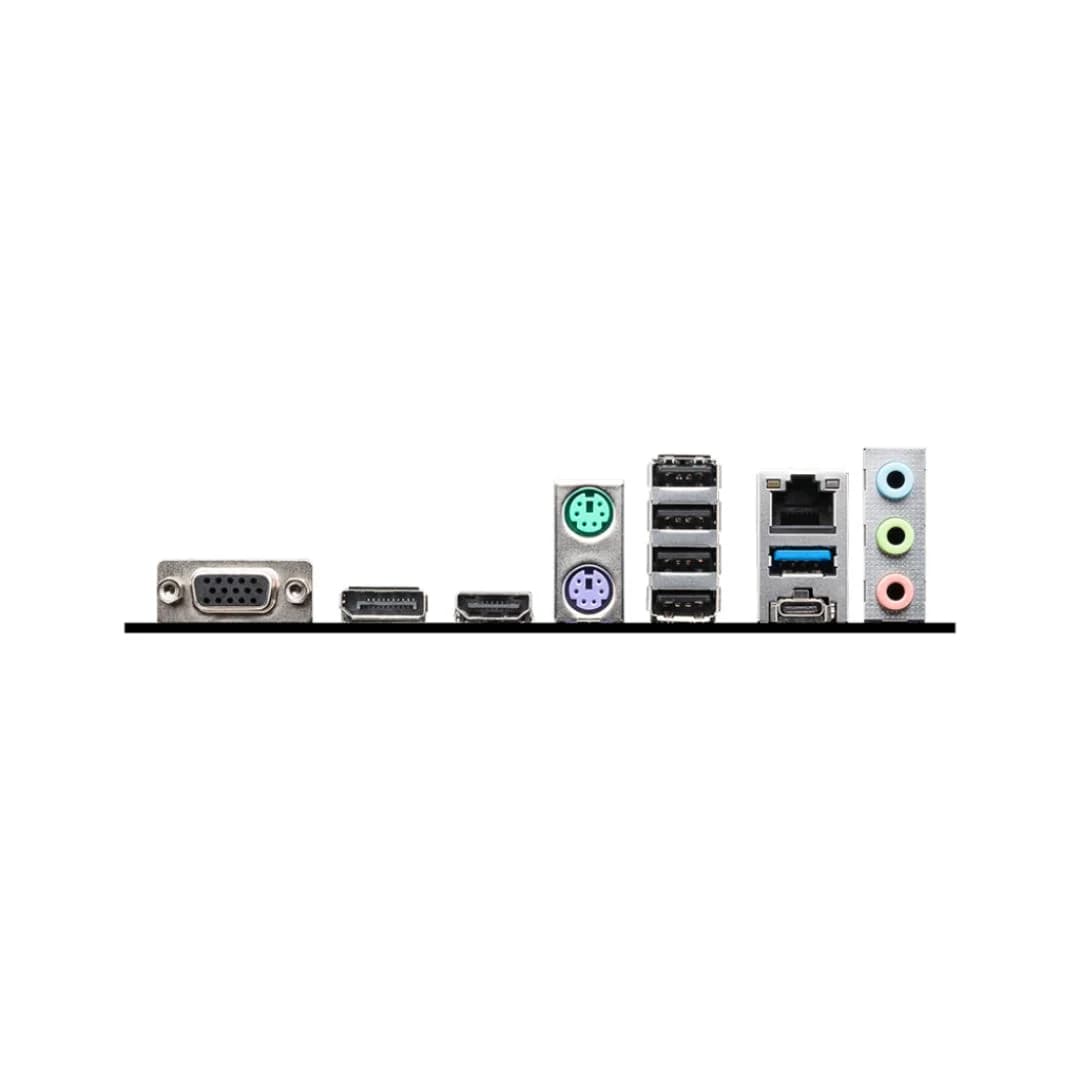

• Rear I/O USB Ports:
  ◦ 1x USB 3.2 Gen 2 Type-C (10Gbps)
  ◦ 1x USB 3.2 Gen 1 Type-A (5Gbps)
  ◦ 4x USB 2.0 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 Type-A ports)
  ◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & Connectivity: Realtek® RTL8111H 1Gbps LAN (No onboard Wi-Fi / Bluetooth)
• Display Outputs:
  ◦ 1x DisplayPort 1.4 (supports up to 4K @ 60Hz)
  ◦ 1x HDMI 1.4 (supports up to 4K @ 30Hz)
  ◦ 1x VGA (supports up to 2048x1536 @ 50Hz / 2048x1280 @ 60Hz)
• Audio Codec: Realtek® ALC897 7.1-Channel High Definition Audio CODEC (with 3x Audio jacks)
• Power Delivery / Power Connectors: Core Boost digital power design, 1x 24-pin ATX Main Power connector, 1x 8-pin ATX 12V Power connector
• RGB & Fan Headers:
  ◦ 1x 4-pin CPU Fan header
  ◦ 2x 4-pin System Fan headers
  ◦ 1x 4-pin RGB LED header (12V JRGB)
• Special Features: 4x EZ Debug LEDs (CPU, DRAM, VGA, BOOT), Steel Armor PCIe slot, M.2 Shield Frozr heatsink, PS/2 Combo port, TPM 2.0 header, Serial (COM) port header, Parallel (LPT) printer port header
