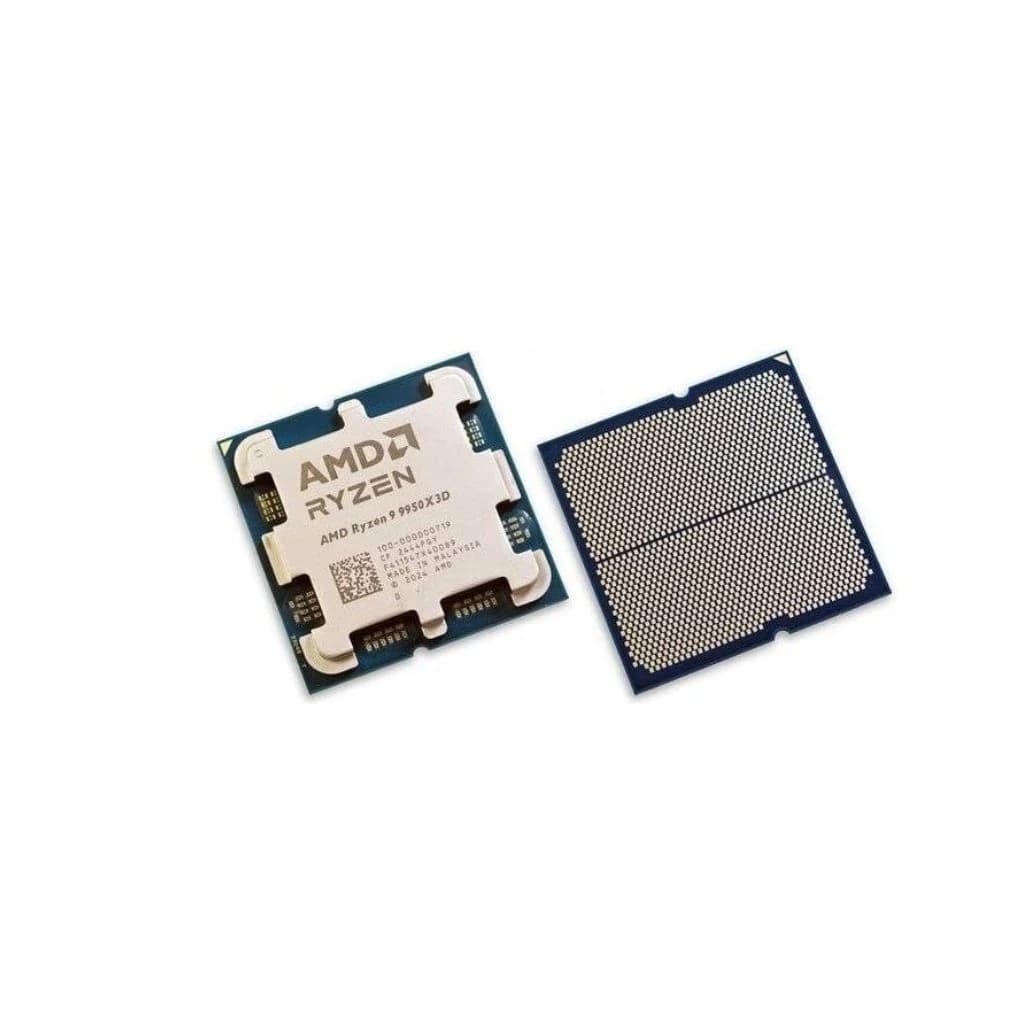

AMD Ryzen 9 9950X3D Processor - BOX

Processor Specification

• Sockets Supported: Socket AM5
• Architecture / Code: Zen 5 (Granite Ridge)
• Total Cores: 16 Cores
• Core Breakdown: N/A (All Full-Performance Cores)
• Total Threads: 32 Threads
• Multithreading: Enabled (AMD Simultaneous Multithreading / SMT)
• Max Turbo / Boost Frequency: Up to 5.7 GHz
• Base Frequency: Base: 4.3 GHz
• L3 Cache: 128 MB (3D V-Cache)
• L2 Cache: 16 MB
• L1 Cache: 1280 KB
• Processor Power: Base Power (Default TDP): 170 W | Max Power (PPT): 230 W
• Max Temperature (TjMax): 95 °C
• System Memory Support: Up to DDR5-5600 MT/s
• Max Memory Capacity: 256 GB
• Memory Channels: Dual-Channel (2 Channels)
• PCI Express Revision & Lanes: PCIe 5.0 (28 Total Lanes / 24 Usable)
• Processor Graphics: AMD Radeon Graphics (2 Cores)
• NPU / AI Acceleration: No dedicated NPU (Supports AVX-512 for AI workloads)
• Unlocked for Overclocking: Yes (Fully unlocked for multiplier OC, PBO, Curve Optimizer, and EXPO)
