NZXT H5 FLOW RGB (2023) ATX Mid-Tower Case – Black

Product Type: Compact ATX Mid-Tower Case
Series: H5 Flow RGB (2023)
Color: Black
Model Number: CC-H51FB-R1

General

• Enclosure Type: Mid-Tower
• Materials: SGCC Steel, Dark Tinted Tempered Glass
• Dimensions (H × W × D): 464 × 227 × 446 mm
• Weight: 7.36 kg

Motherboard Compatibility

• ATX
• Micro-ATX
• Mini-ITX

Component Clearance

• Maximum CPU Cooler Height: 165 mm
• Maximum GPU Length: 365 mm
• Maximum PSU Length: 185 mm
• Front Radiator Clearance: 45 mm

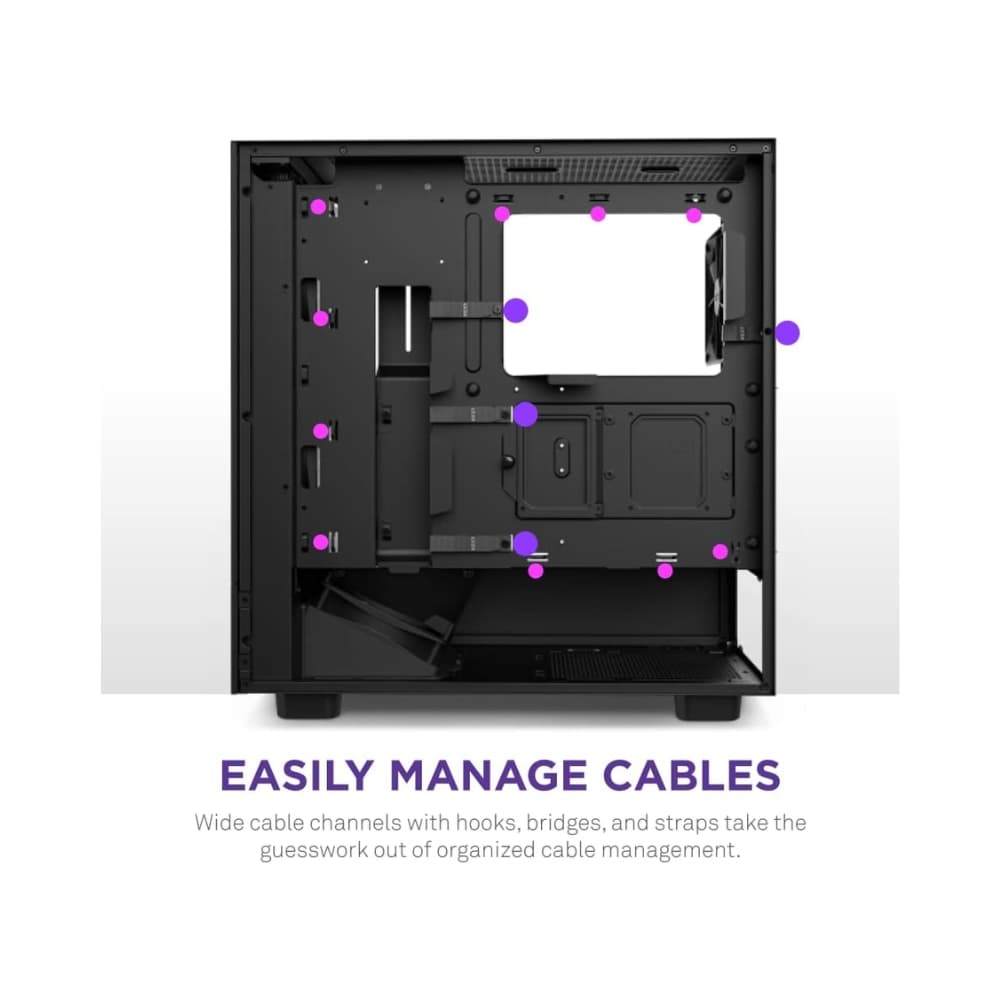

• Cable Management Clearance: Up to 23 mm

Cooling Support

Front:

• 2 × 120 mm
• 2 × 140 mm
• Includes 2 × F140 RGB Core Fans

Top:

• 2 × 120 mm

Rear:

• 1 × 120 mm
• Includes 1 × F120Q Airflow Fan

Bottom:

• 1 × 120 mm
• Includes 1 × F120Q Airflow Fan

Radiator Support

• Front: Up to 280 mm
• Top: Up to 240 mm
• Rear: Up to 120 mm

Included Fans

F140 RGB Core – Case Version

• Quantity: 2
• Fan Size: 140 mm
• Speed: 1,200 ± 120 RPM
• Airflow: 61.74 CFM
• Static Pressure: 2.06 mm-H₂O
• Noise Level: 29.05 dBA
• Connector: 3-Pin DC

F120Q Airflow – Case Version

• Quantity: 2
• Fan Size: 120 mm
• Speed: 1,200 ± 120 RPM
• Airflow: 62.18 CFM
• Static Pressure: 1.05 mm-H₂O
• Noise Level: 25.1 dBA
• Connector: 3-Pin DC

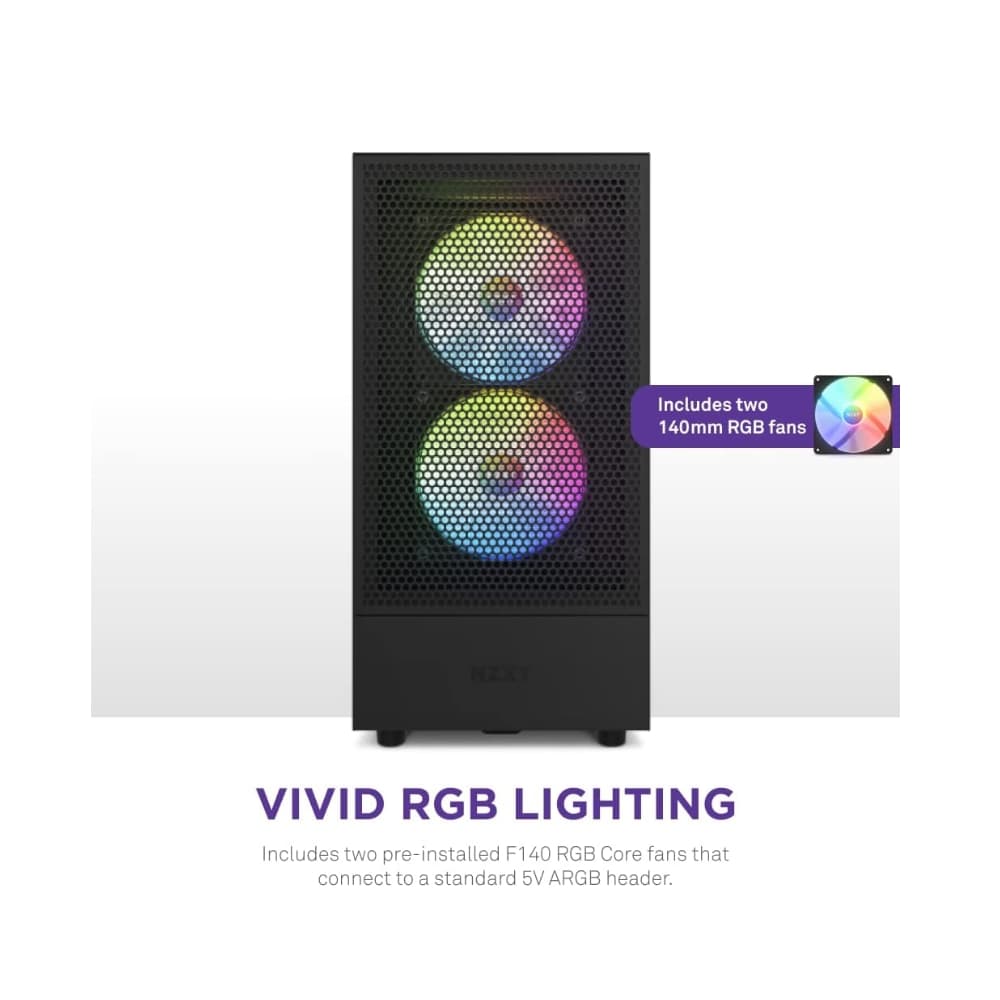

RGB Lighting

• RGB Fans: 2 × F140 RGB Core
• LEDs: 8 LEDs per fan
• RGB Connector: 4-Pin NZXT RGB / 3-Pin 5V Addressable RGB
• RGB Controller: Not Included
• Control: Connects directly to compatible motherboard RGB header

Front I/O

• USB 3.2 Gen 1 Type-A: 1
• USB 3.2 Gen 2×2 Type-C (20 Gbps): 1
• 3.5 mm Headset Audio Jack: 1

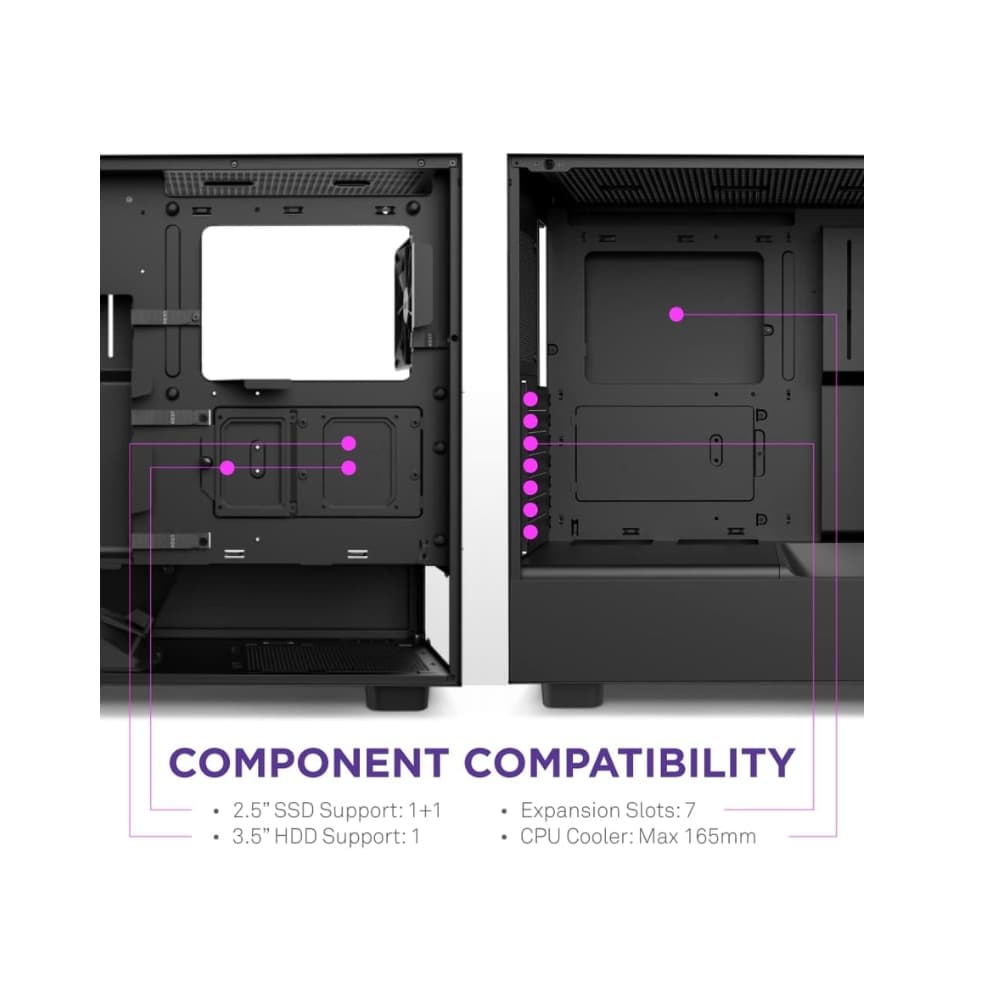

Expansion & Storage

• Standard Expansion Slots: 7
• Vertical Expansion Slots: 0
• 2.5″ Drive Bays: 2 (1 + 1)
• 3.5″ Drive Bays: 1
