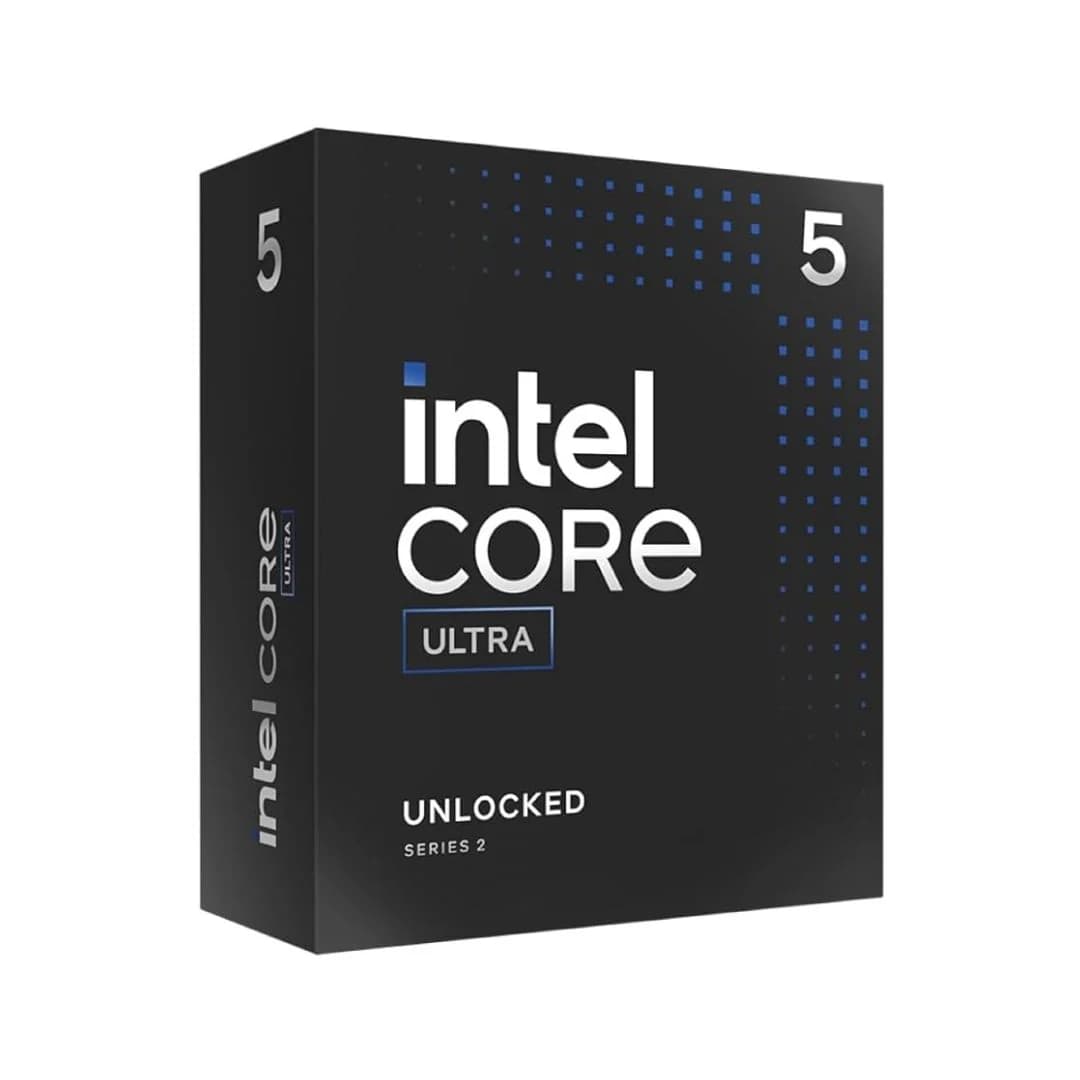

Intel® Core™ Ultra 5 225F Processor - Try

General

• Model: Intel Core Ultra 5 225F
• Codename: Arrow Lake‑S
• Socket: LGA 1851
• Process: TSMC 3 nm
• Launch Date: January 2025

CPU Specs

• Cores / Threads: 10 cores / 10 threads
• P‑Cores: 6 (Lion Cove) – 3.3 GHz base, up to 4.9 GHz boost
• E‑Cores: 4 (Skymont) – 2.7 GHz base, up to 4.4 GHz boost
• Base Frequency: 3.3 GHz
• Max Turbo Frequency: 4.9 GHz
• Multiplier: Locked
• TDP: 65 W

Cache

• L2 Cache: 22 MB
• L3 Cache: 20 MB Smart Cache

Memory Support

• Types: DDR5‑5600, DDR4‑3200
• Channels: Dual‑channel
• Max Capacity: 192 GB
• ECC Support: No

I/O & Expansion

• PCIe Version: PCIe 5.0 ×16 (graphics) + PCIe 4.0 ×4 (storage)
• Connectivity: Supports NVMe SSDs, fast GPUs

Integrated Graphics

• Graphics: None (F‑series CPU, requires discrete GPU)

Physical

• Transistors: ~17.8 billion
• Die Size: ~260 mm²

Package Contents

• Processor Unit × 1
• Documentation × 1
