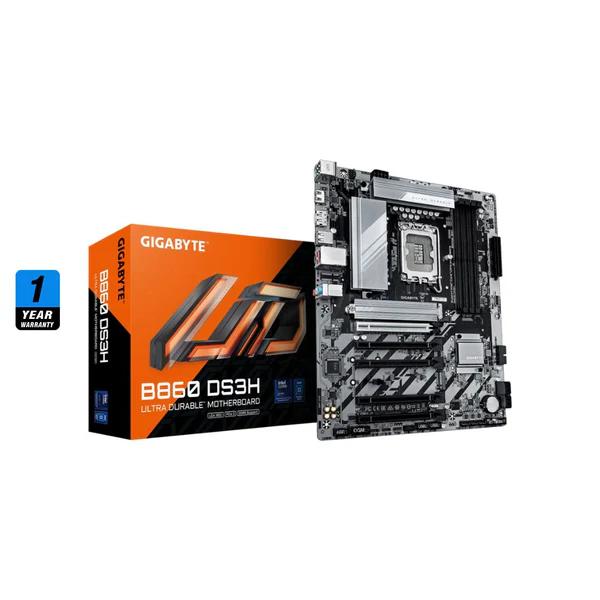

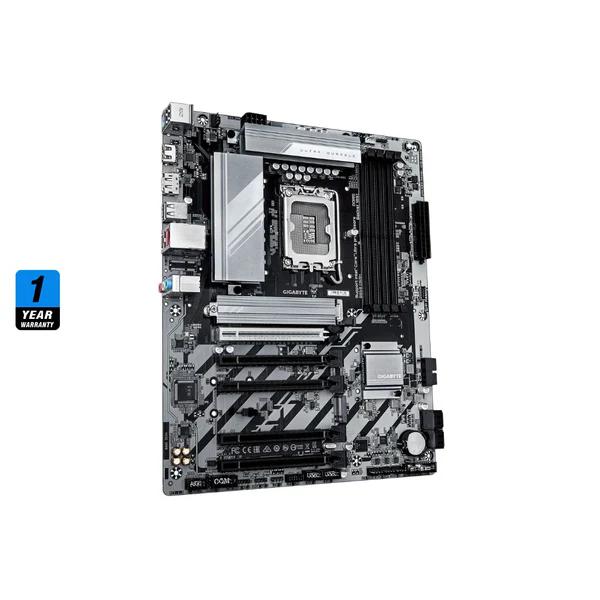

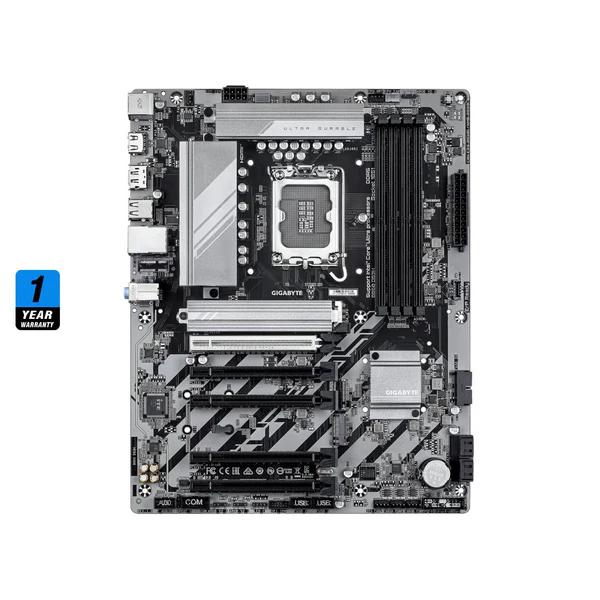

Gigabyte B860 DS3H , Motherboard

Motherboard Specification

• Model: Gigabyte B860 DS3H

• Socket: Intel LGA 1851 – supports Intel® Core™ Ultra (Series 2) processors

• Chipset: Intel® B860 Express

• Form Factor: ATX

Power & Performance

• 8+1+2 Hybrid VRM design

• 6-layer PCB with Ultra Durable components

• D5 Bionic Corsa AI Overclocking (auto tuning for CPU & DDR5)

Memory Support

• 4 × DDR5 DIMM slots (up to 256GB)

• Speeds: up to DDR5-9066 MT/s (OC)

• Dual-channel architecture

• Supports ECC/non-ECC unbuffered DIMMs and XMP 3.0 profiles

Expansion Slots

• 1 × PCIe 5.0 x16 slot (CPU)

• 4 × PCIe 4.0 x1 slots (chipset)

Storage Interface

• 2 × M.2 slots:

– 1 × PCIe 5.0 x4 (CPU)

– 1 × PCIe 4.0 x4 (chipset)

• 4 × SATA 6Gb/s ports

• Supports RAID 0, 1, 5, 10

Networking

• Realtek 2.5GbE LAN

USB Ports

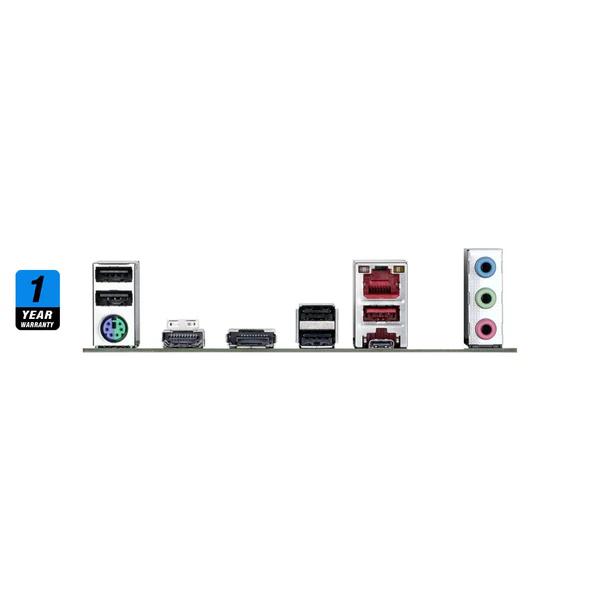

• Rear I/O:

– 1 × USB 3.2 Gen 2x2 Type-C

– 1 × USB 3.2 Gen 2 Type-A

– 4 × USB 2.0

• Internal Headers:

– USB 3.2 Gen 1 Type-C

– USB 3.2 Gen 1 & USB 2.0 headers

Display Outputs

• 1 × HDMI 2.1 (4096×2160 @60Hz)

• 1 × DisplayPort 2.1 (3840×2160 @144Hz)

Audio

• Realtek HD Audio codec

• 2/4/5.1/7.1-channel support

• S/PDIF Out

Cooling & DIY Features

• EZ-Latch PCIe slot

• Q-Flash BIOS update utility

• Smart Fan 6 with multiple temperature sensors
