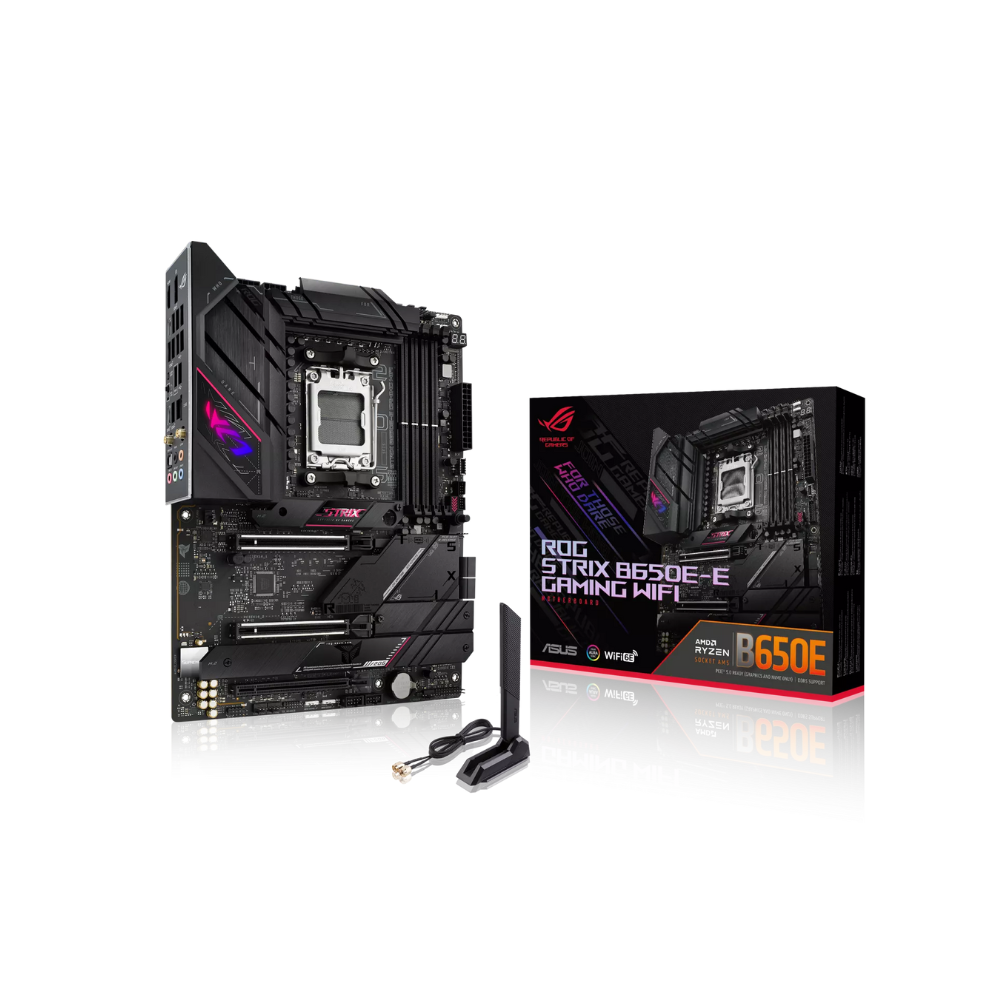

Name: ASUS ROG STRIX B650E-E WIFI AM5 AMD
Brand: ASUS
SKU: FW 030646
Availability: InStock

CPU	AMD Socket AM5 for AMD Ryzen™ Desktop Processors; Refer to www.asus.com for CPU support list.
Storage	Total supports 4 x M.2 slots* and 4 x SATA 6Gb/s ports; AMD Ryzen™ Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); AMD B650 Chipset; M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); ASMedia ASM1061 Controller*; 4 x SATA 6Gb/s ports; AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10.; **RAID configuration is not supported on the SATA6G_E1-4 ports.
OS	Windows® 10 64-bit, Windows® 11 64-bit
Model	ROG STRIX B650E-E GAMING WIFI
Chipset	AMD B650
Memory	4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO™); OptiMem II; Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.; * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics	1 x DisplayPort; 1 x HDMI® port; Supports max. 8K@60Hz as specified in DisplayPort 1.4.; **Supports max. 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ Desktop Processors; 2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes); AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
Ethernet	1 x Intel® 2.5Gb Ethernet; ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E; 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band; Bluetooth v5.2; * WiFi 6E 6GHz regulatory may vary between countries.
USB	Rear USB (Total 12 ports); 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®); 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®); 4 x USB 2.0 ports; Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; Impedance sense for front and rear headphone outputs; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; Supports up to 32-Bit/384 kHz playback; Audio Features: Audio Shielding, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover
Back Panel I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x Type-C®); 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C®); 4 x USB 2.0 ports; 1 x DisplayPort; 1 x HDMI® port; 1 x Wi-Fi Module; 1 x Intel® 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button; 1 x Clear CMOS button; The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors	Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers; Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector; Storage related: 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports; USB: 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4®) header
Special Features	Extreme Engine Digi+: 5K Black Metallic Capacitors; ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot; ASUS Thermal Solution: M.2 heatsinks, M.2 heatsink backplate, VRM heatsink design; ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM; Aura Sync: Aura RGB header, Addressable Gen 2 headers
Software Features	ROG Exclusive Software: GameFirst VI, ROG CPU-Z, Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion, Sonic Radar III, DTS® Sound Unbound, Anti-virus software; ASUS Exclusive Software: Armoury Crate (AIDA64 Extreme 60 days free trial, Aura Creator, Aura Sync, Fan Xpert 4, Power Saving, Two-Way AI Noise Cancellation), AI Suite 3, TPU, DIGI+ VRM, Turbo app, PC Cleaner, MyAsus, WinRAR; UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode), Dynamic OC Switcher, FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables: 2 x SATA 6Gb/s cables; Additional Cooling Kit: 1 x Thermal pad for M.2; Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 2 x Rubber Packages for M.2; Documentation: 1 x User guide
Form Factor	ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS ROG STRIX B650E-E WIFI AM5 AMD
