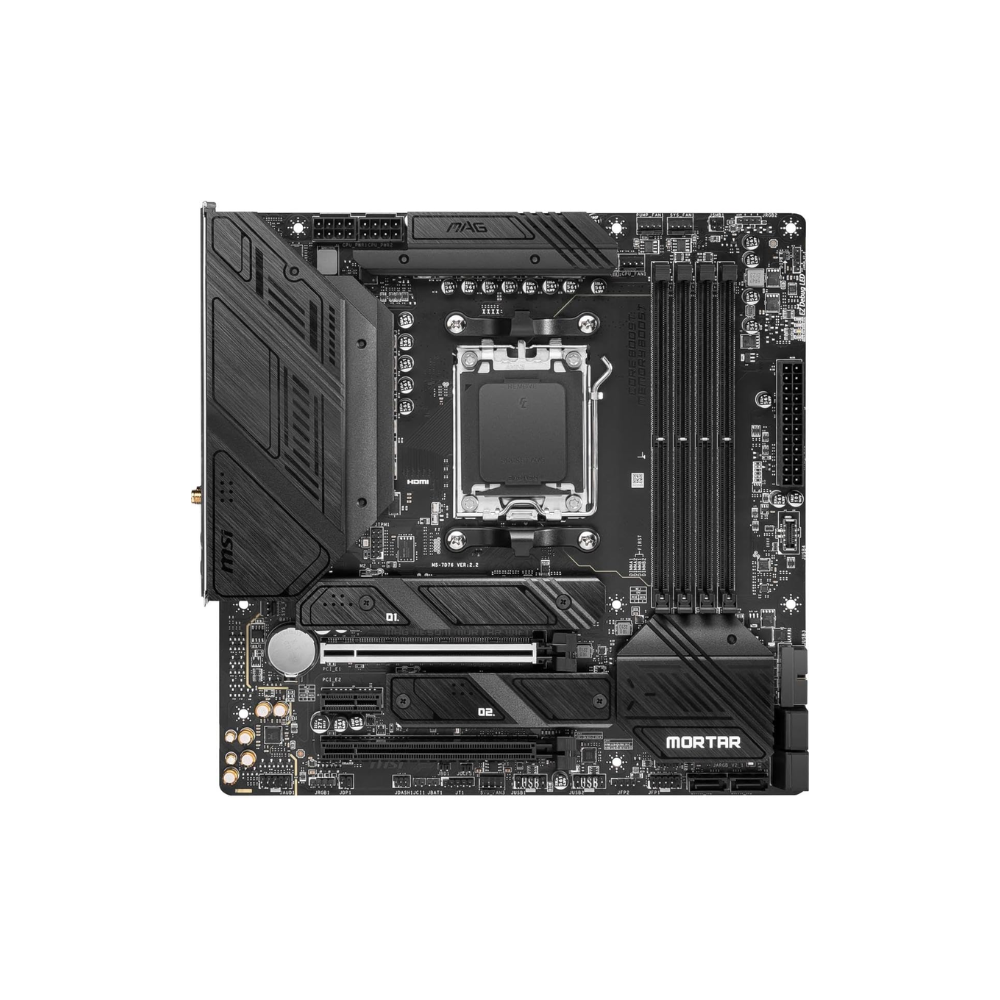

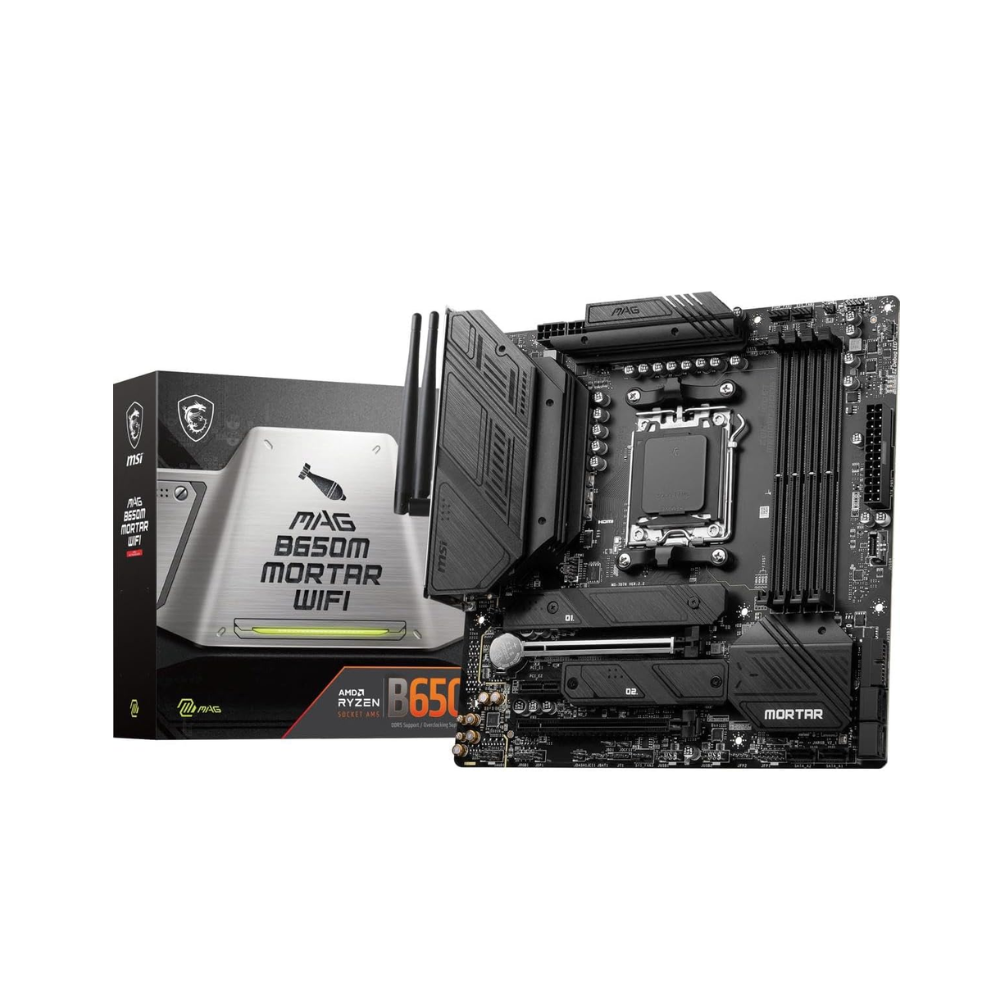

Name: MSI MAG B650M-MORTAR WIFI AM5 AMD
Brand: MSI
SKU: FW 030605
Availability: InStock

CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
Storage	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices; 6x SATA 6G; The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
Chipset	AMD B650
Memory	4x DDR5, Maximum Memory Capacity 256GB; Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency: 1DPC 1R Max speed up to 7600+ MHz; 1DPC 2R Max speed up to 6400+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics	1x HDMI™; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*; Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot; Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors); Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors); Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors); 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek® ALC4080 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices; SATA_A1_A2 do not support RAID function.

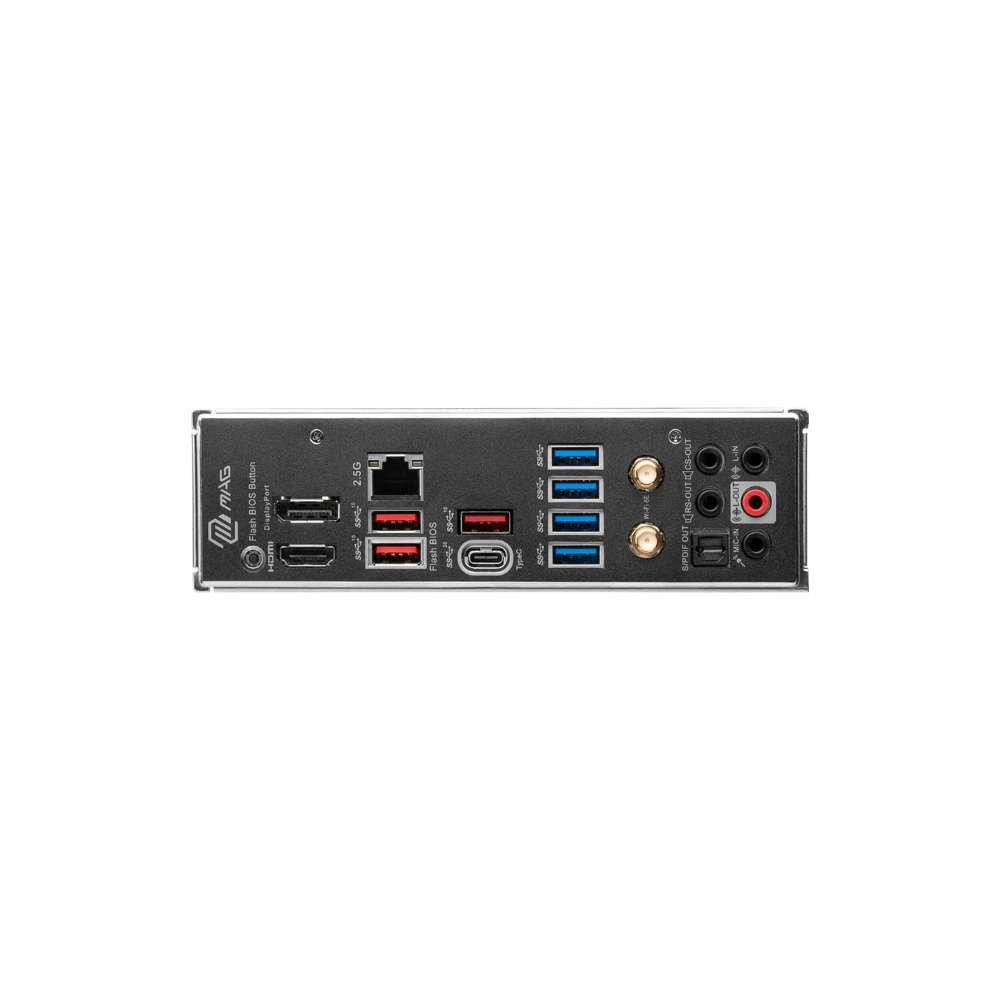

USB	4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear)
LAN	Realtek® RTL8125B 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Wireless Lan & Bluetooth	AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax

MSI MAG B650M-MORTAR WIFI AM5 AMD
