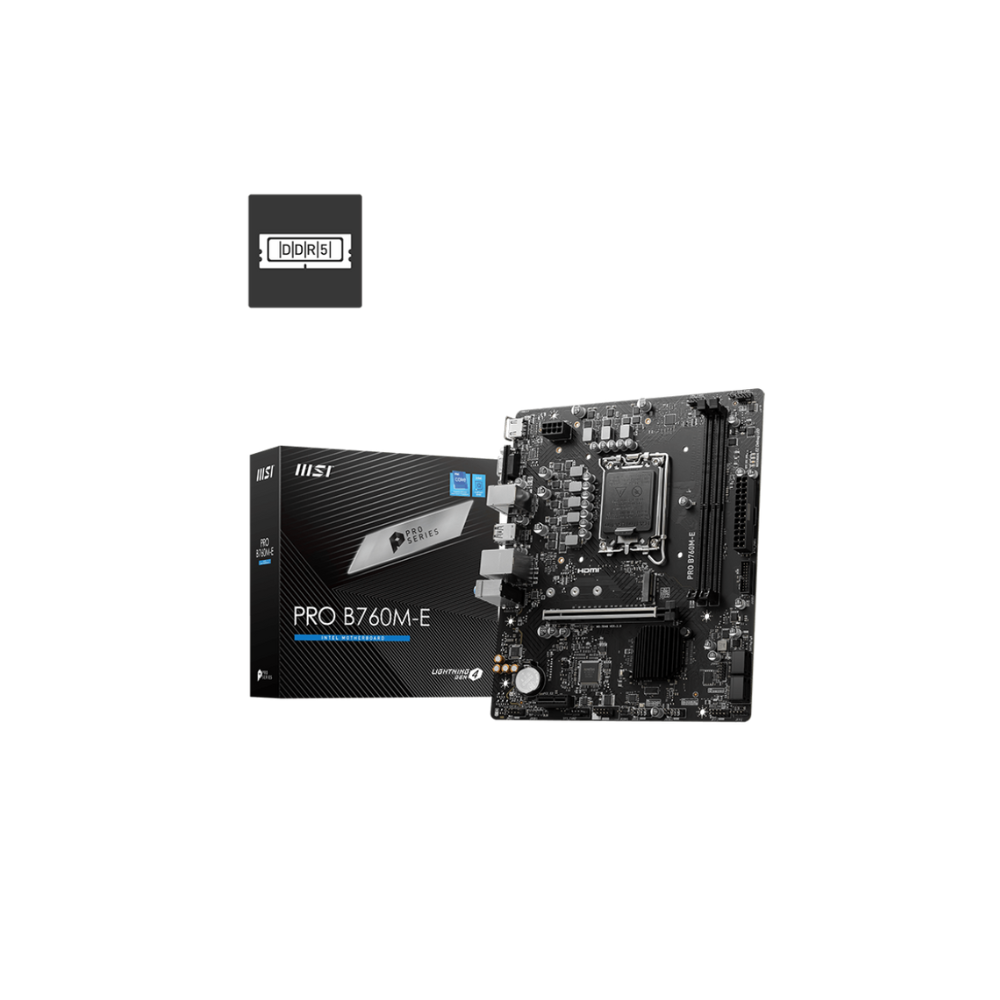

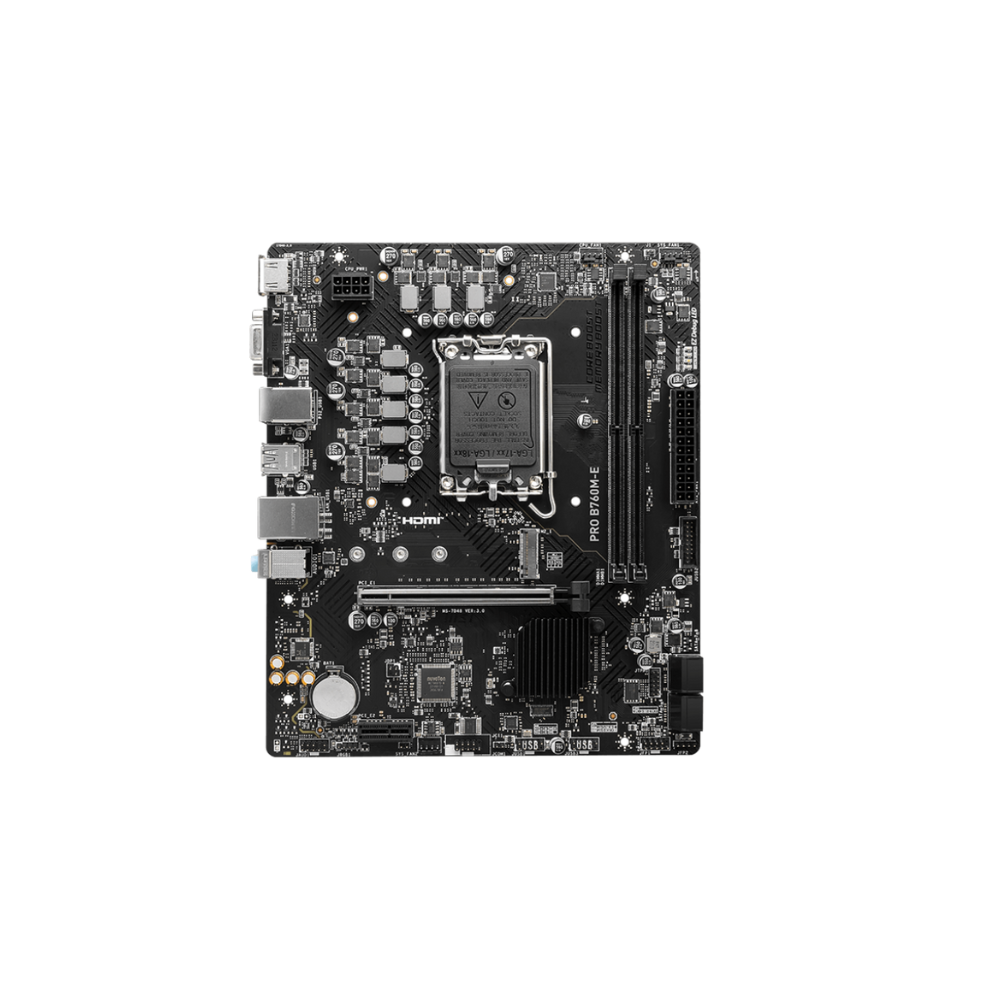

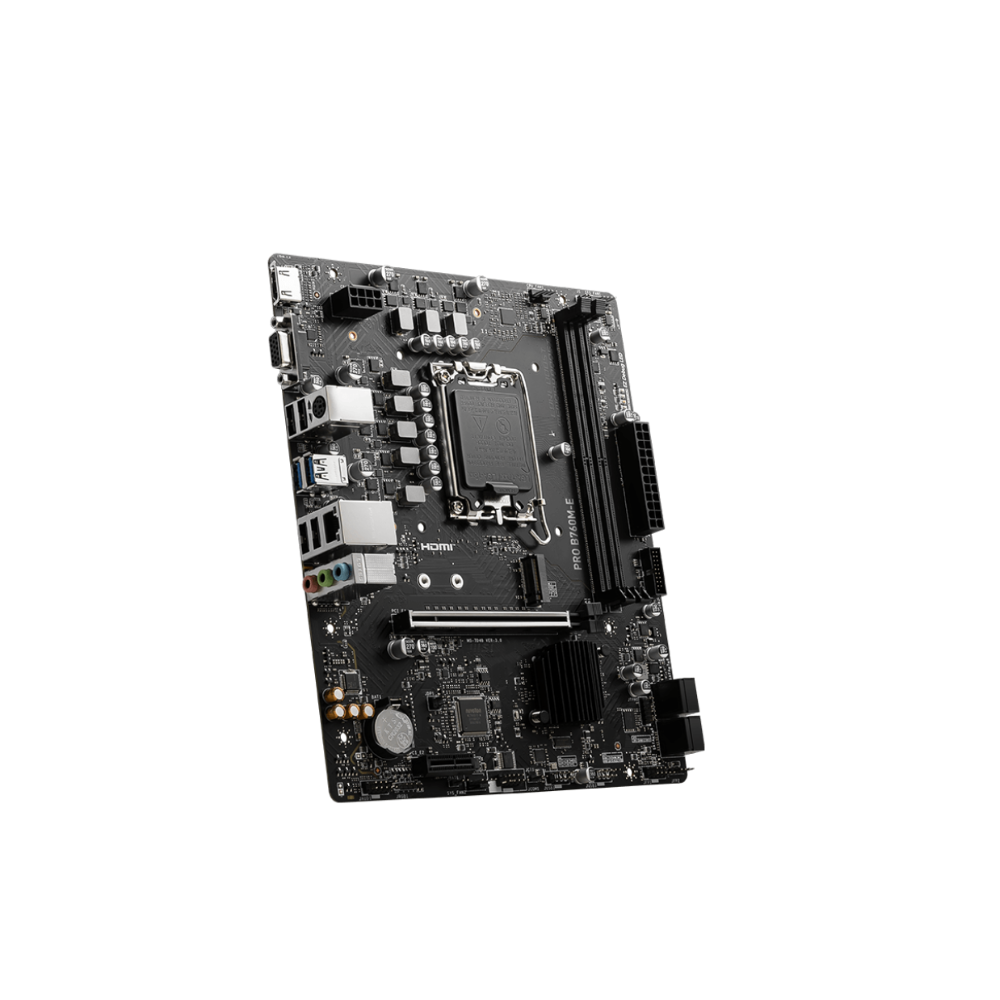

Name: MSI B760M-E PRO 1700 LGA
Brand: MSI
SKU: FW 030602
Availability: InStock

CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700
Chipset	INTEL B760
Memory	2x DDR5, Maximum Memory Capacity 128GB; Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Max. overclocking frequency: 1DPC 1R up to 6400+ MHz, 1DPC 2R up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™, Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz; 1x VGA, Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz (available only on processors featuring integrated graphics)
Slot	1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage	1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G (SATA5 unavailable when installing M.2 SATA SSD in the M2_1 slot)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

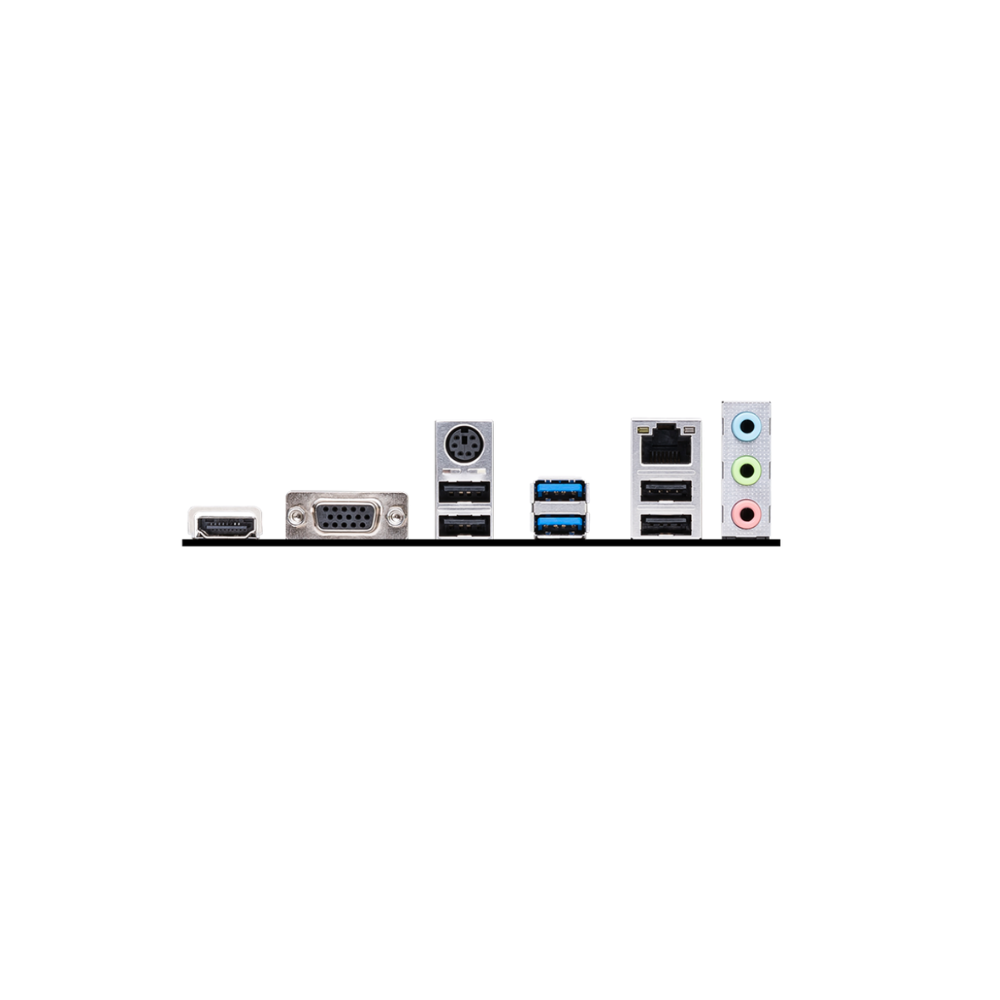

USB	4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front)
LAN	Realtek® RTL8111H Gigabit LAN
Internal IO	1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x RGB LED connector(JRGB), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports
Led Feature	4x EZ Debug LED

MSI B760M-E PRO 1700 LGA
