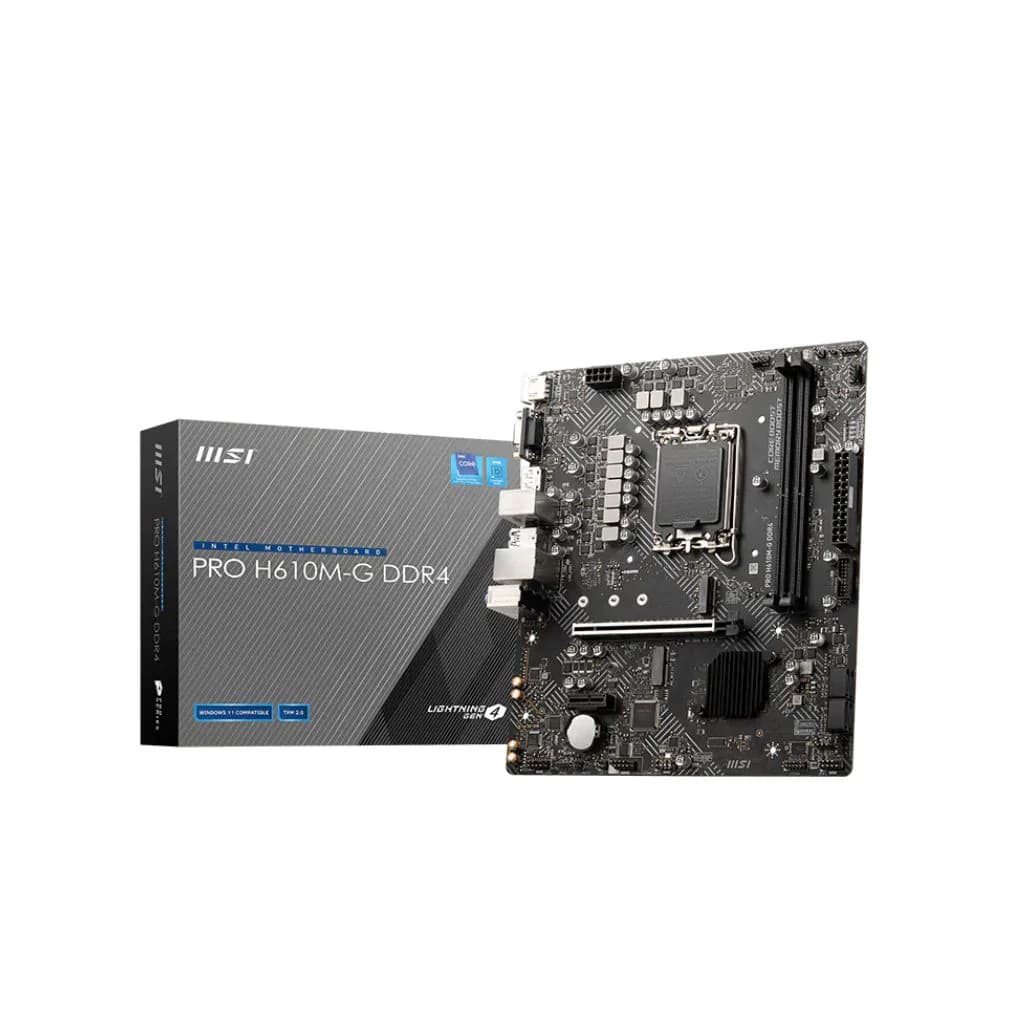

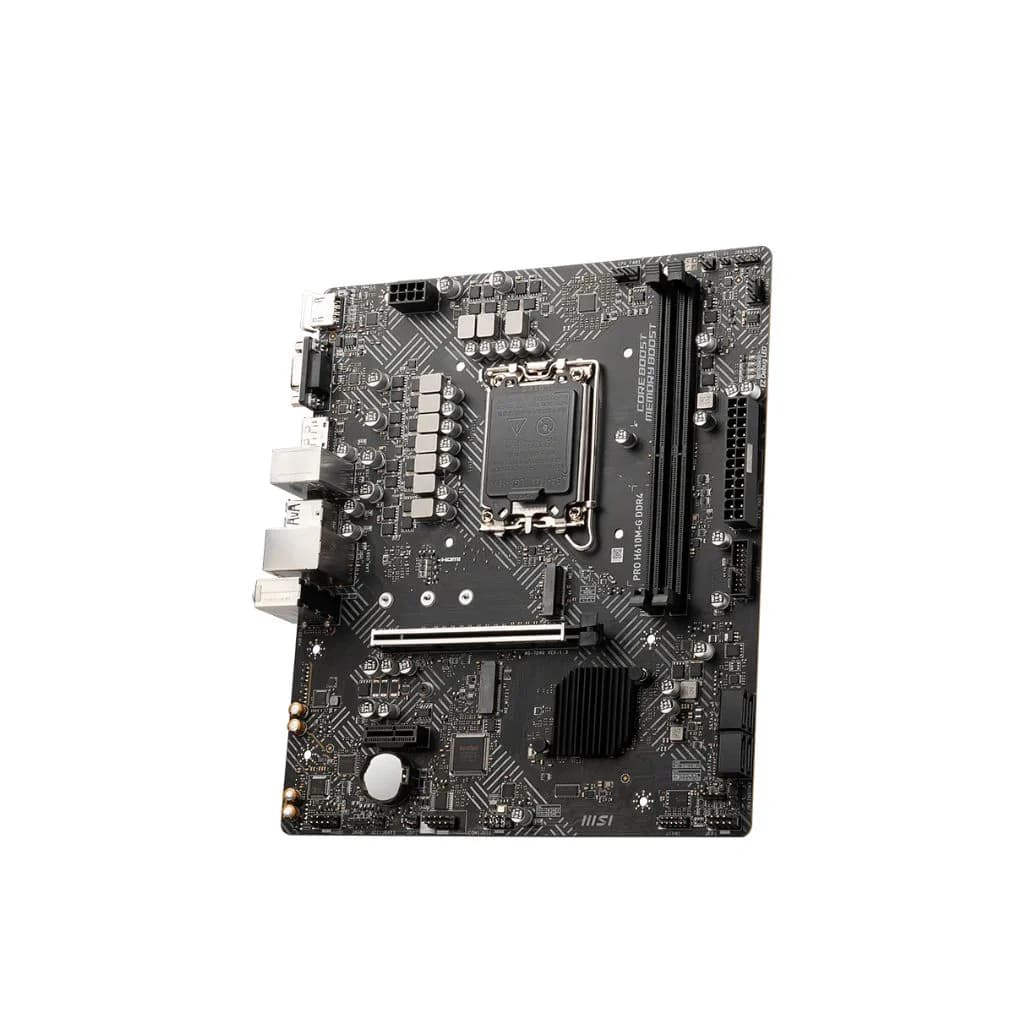

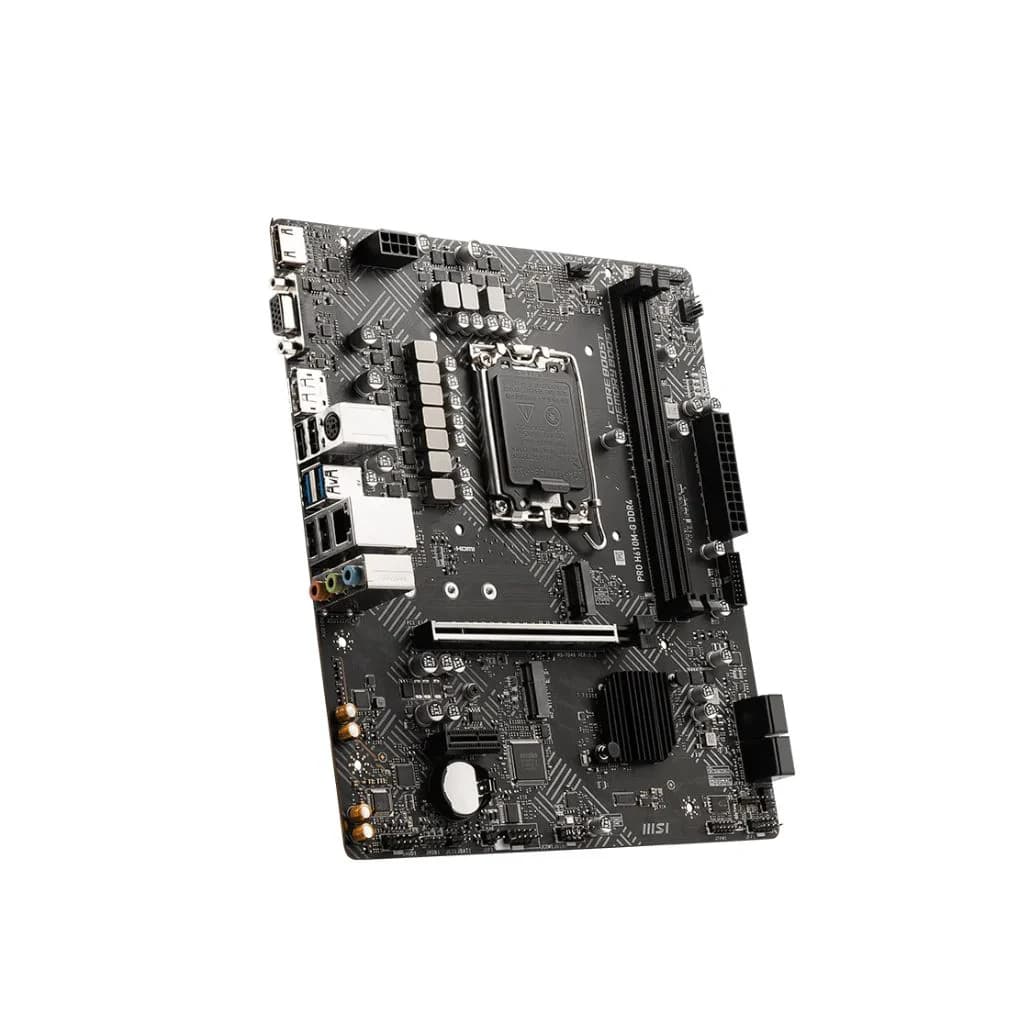

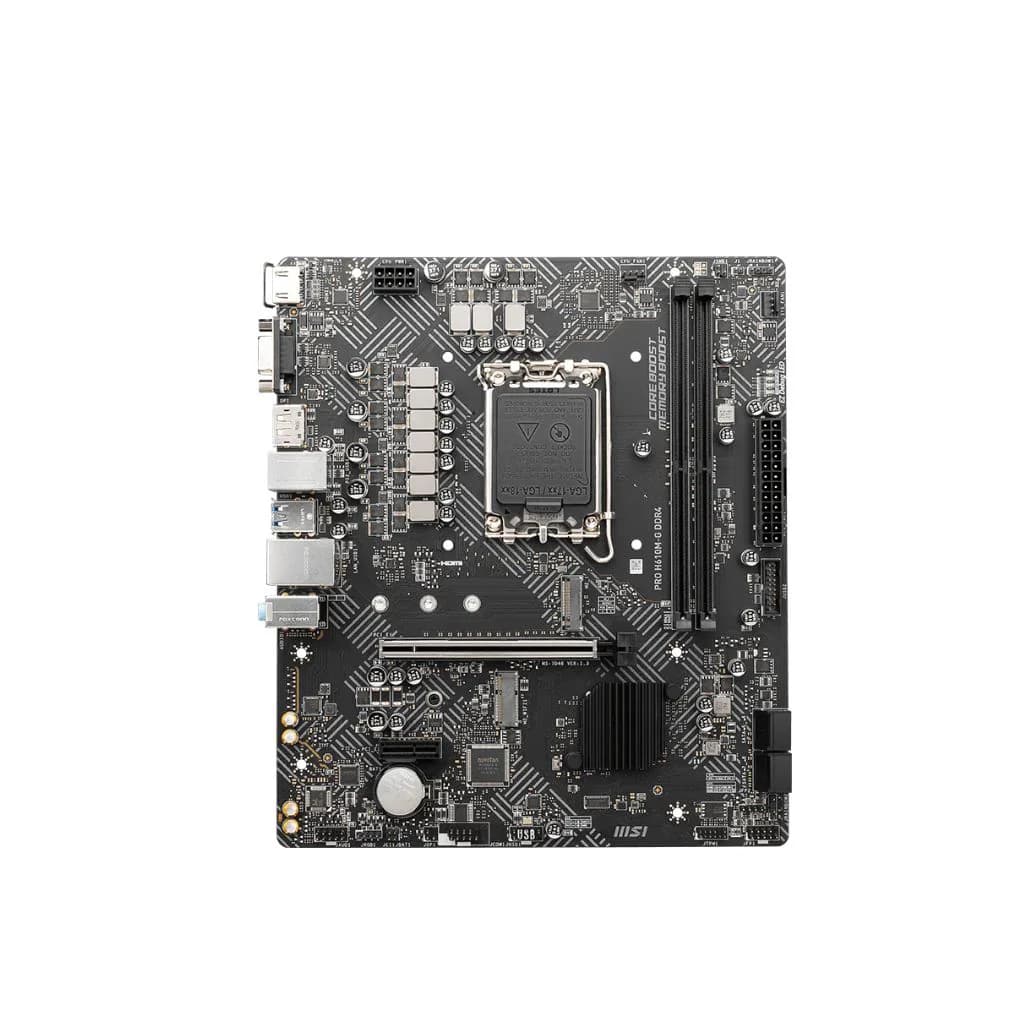

Name: MB MSI PRO H610M-G D4 Motherboard
Brand: MSI
SKU: GL 108395
Price: 105000 IQD
Availability: InStock

MB MSI PRO H610M-G D4 Motherboard

(0 Reviews)

Brand: MSI

IQD 105,000

In Stock

Brand	MSI
Model	PRO H610M-G DDR4
Product Type	Motherboard
Form Factor	Micro-ATX
Chipset	Intel H610
CPU Socket	LGA 1700
Dimensions	24.4 × 21.1 cm
Supported Processors	Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron
Maximum CPU Support	Up to Intel Core i9
Processor Graphics Output	Requires CPU with integrated graphics
Memory Slots	2 × DDR4 DIMM
Maximum Memory Capacity	64 GB
Memory Speed	Up to DDR4-3200 MHz
Memory Channel	Dual Channel
Memory Type	Non-ECC, Unbuffered DDR4
PCIe x16 Slot	1 × PCIe 4.0 x16
PCIe x1 Slot	1 × PCIe 3.0 x1
Wi-Fi M.2 Slot	1 × M.2 E-Key for PCIe Wi-Fi Module
M.2 Slot	1 × M.2 Key M
M.2 Interface	PCIe 3.0 x4 / SATA 6Gb/s
M.2 Sizes Supported	2242 / 2260 / 2280
SATA Ports	4 × SATA 6Gb/s

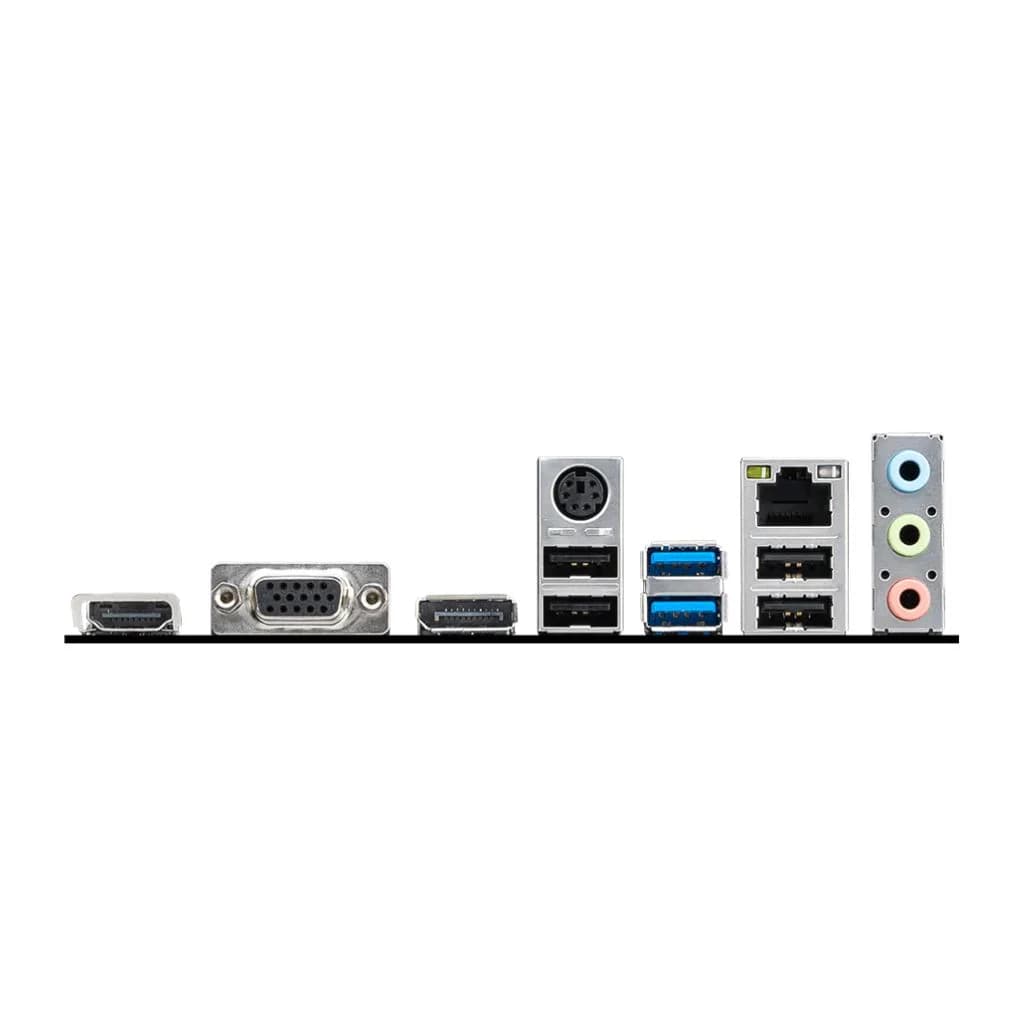

HDMI	1 × HDMI 2.1
HDMI Resolution	Up to 4K @ 60Hz
DisplayPort	1 × DisplayPort 1.4
DisplayPort Resolution	Up to 4K @ 60Hz
VGA	1 × VGA
VGA Resolution	Up to 2048 × 1536 @ 50Hz
LAN	Intel I219V Gigabit LAN
USB 3.2 Gen 1	4 × USB 5Gbps
Rear USB 3.2 Gen 1	2 × Type-A
Front USB 3.2 Gen 1	2 × Internal Header
USB 2.0	6 × USB 2.0
Rear USB 2.0	4 × Type-A
Front USB 2.0	2 × Internal Header
Audio Codec	Realtek ALC892 / ALC897
Audio Channels	7.1-Channel HD Audio
Rear Audio Ports	3
Main Power Connector	1 × 24-Pin ATX
CPU Power Connector	1 × 8-Pin ATX 12V
CPU Fan Connector	1 × 4-Pin
System Fan Connector	1 × 4-Pin
RGB Connector	1 × 4-Pin RGB
ARGB Connector	2 × 3-Pin RAINBOW
TPM Header	1
Serial Port Header	1
Clear CMOS Jumper	1
Core Boost	Supported
Memory Boost	Supported
Lightning Gen4	Supported
EZ Debug LED	Supported
TPM 2.0 Support	Supported
DirectX Support	DirectX 12
OS Support	Windows 11 64-bit
Package Contents	MSI PRO H610M-G DDR4 Motherboard × 1; SATA Cable × 1; I/O Shield × 1; User Documentation × 1
