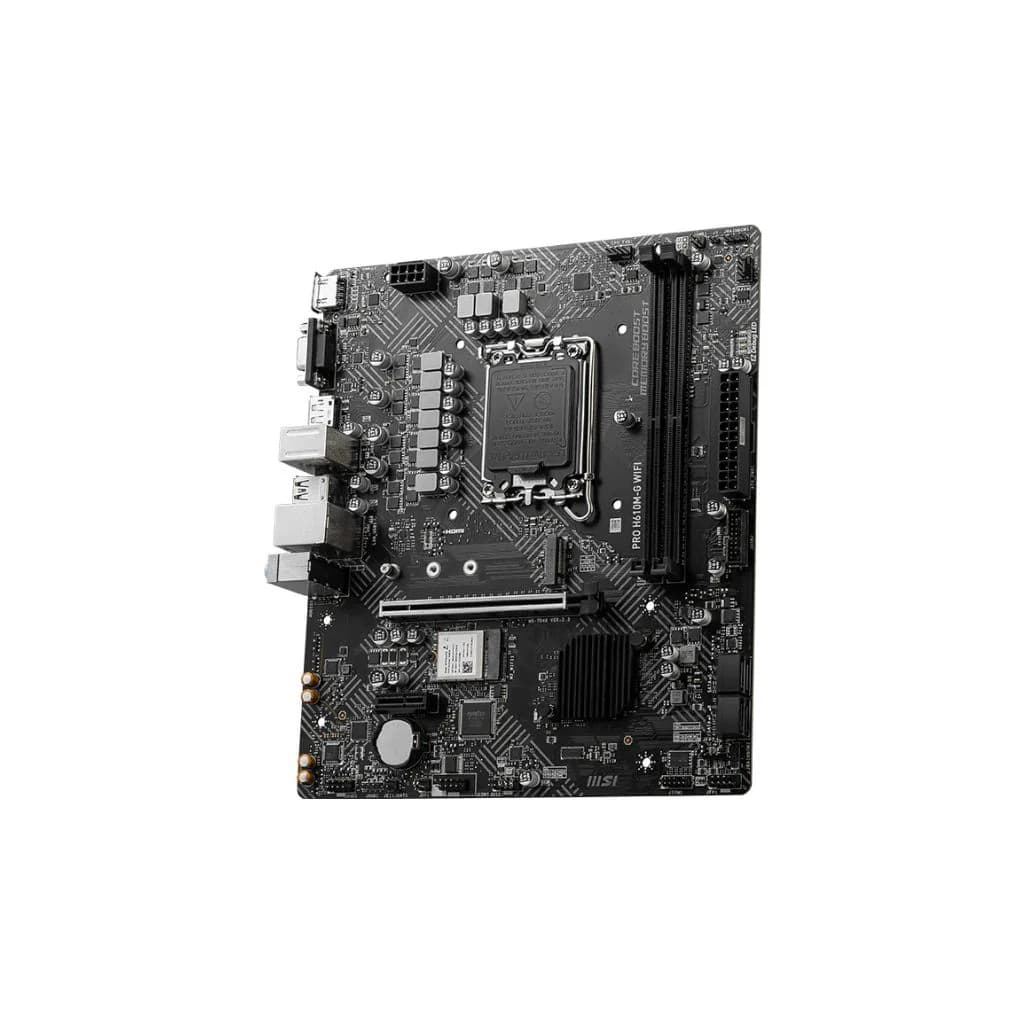

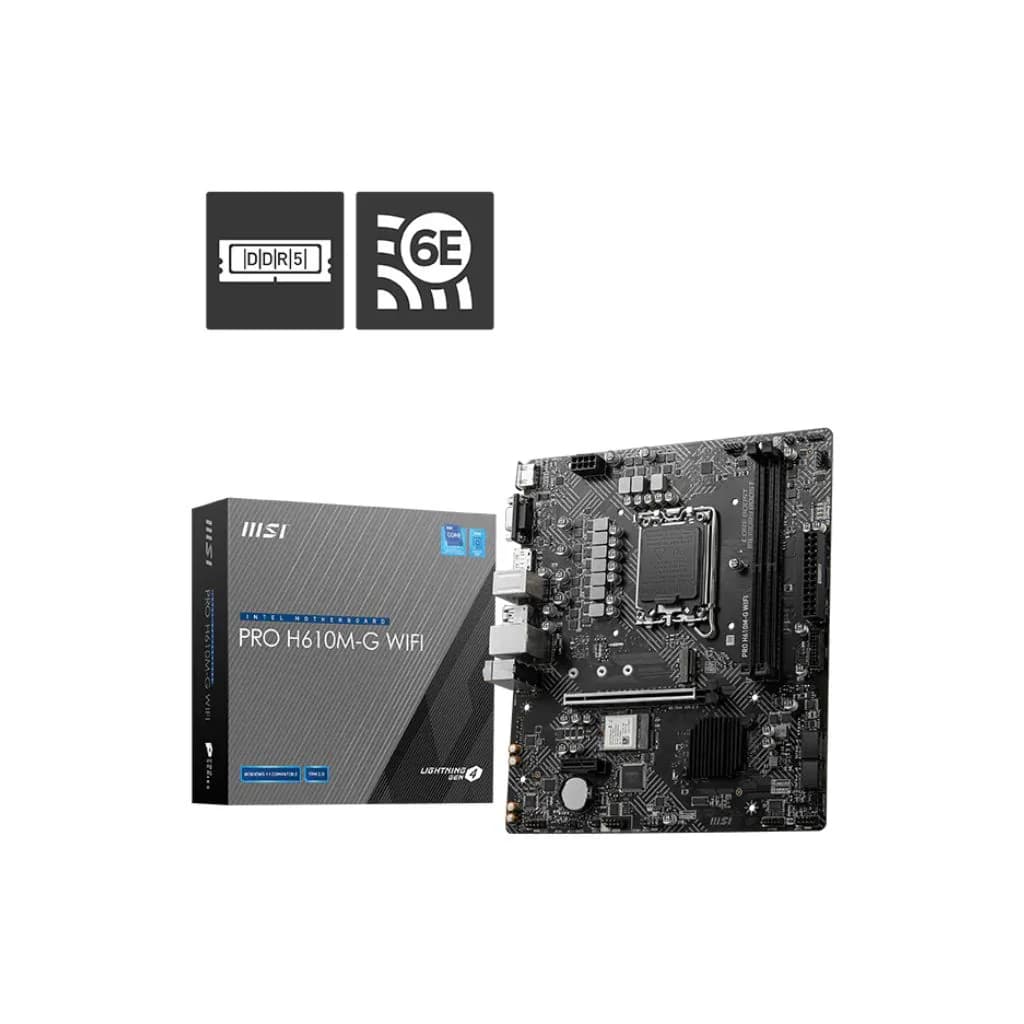

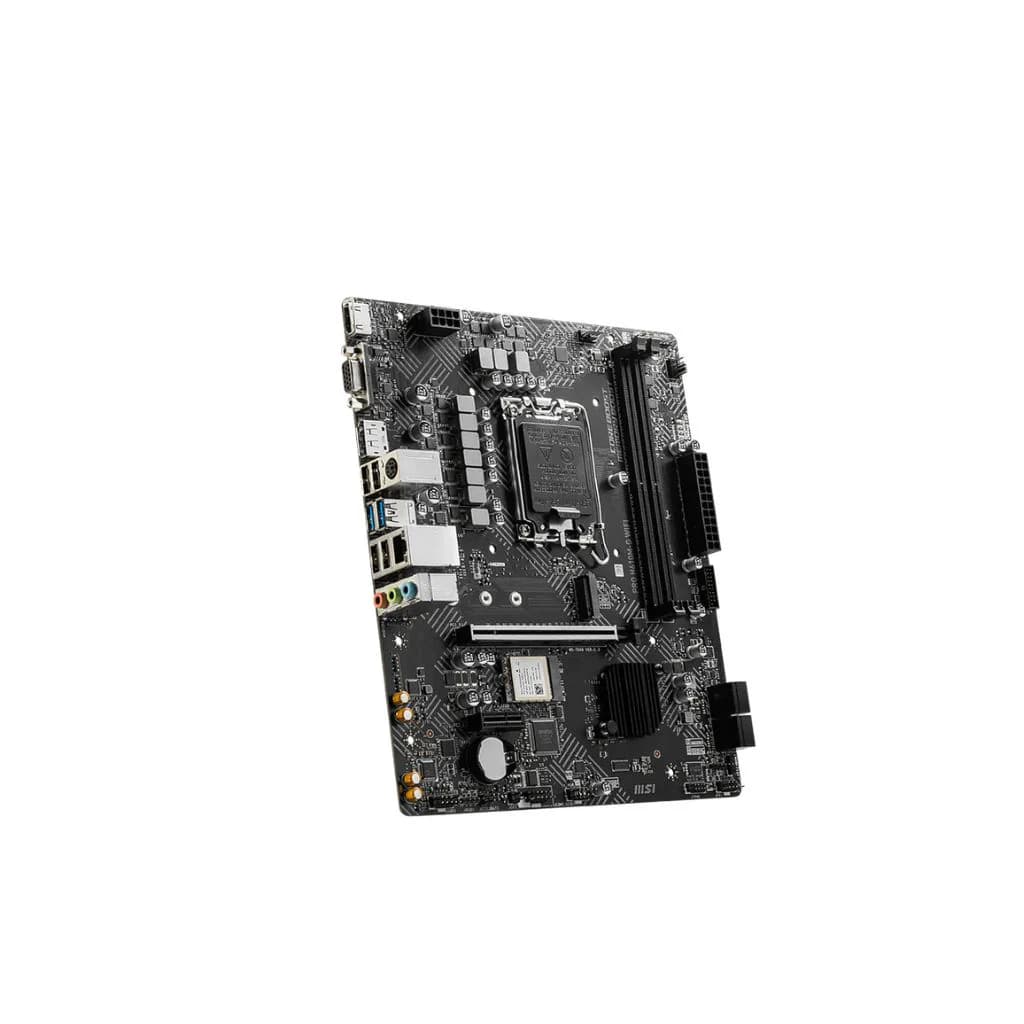

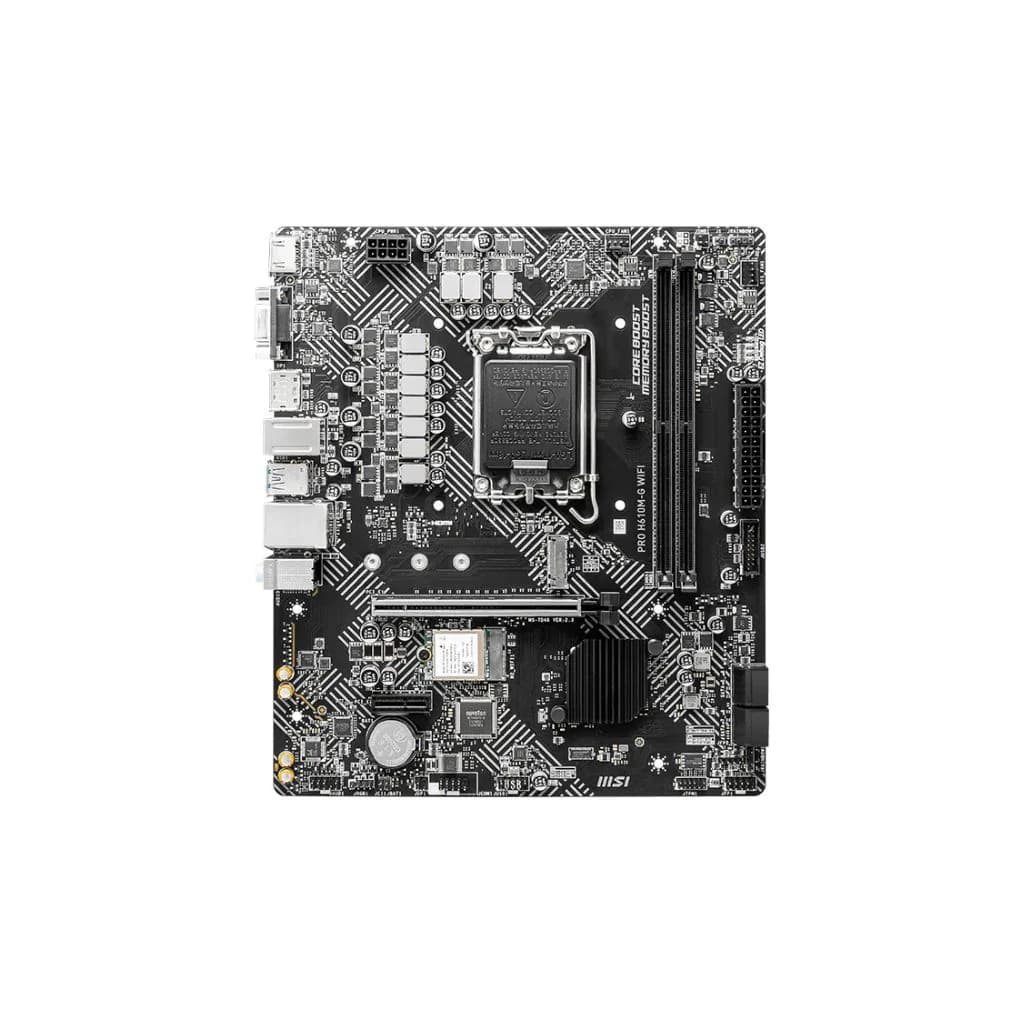

Name: MB MSI PRO H610M-G WIFI D5 Motherboard
Brand: MSI
SKU: GL 111215
Price: 125000 IQD
Availability: InStock

MB MSI PRO H610M-G WIFI D5 Motherboard

(0 Reviews)

Brand: MSI

IQD 125,000

In Stock

Brand	MSI
Model	PRO H610M-G WIFI
Product Type	Motherboard
Form Factor	Micro-ATX
Chipset	Intel H610
CPU Socket	LGA 1700
Dimensions	24.4 × 21.1 cm
Supported Processors	Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron
Processor Graphics Output	Requires CPU with integrated graphics
Memory Slots	2 × DDR5 DIMM
Maximum Memory Capacity	96 GB
Memory Speed	Up to DDR5-5600 MHz
Memory Channel	Dual Channel
Memory Type	Non-ECC, Unbuffered DDR5
PCIe x16 Slot	1 × PCIe 4.0 x16
PCIe x1 Slot	1 × PCIe 3.0 x1
Wi-Fi M.2 Slot	1 × M.2 E-Key with pre-installed wireless module
M.2 Slot	1 × M.2 Key M
M.2 Interface	PCIe 3.0 x4 / SATA 6Gb/s
M.2 Sizes Supported	2242 / 2260 / 2280
SATA Ports	4 × SATA 6Gb/s
HDMI	1 × HDMI 2.1
HDMI Resolution	Up to 4K @ 60Hz
DisplayPort	1 × DisplayPort 1.4
DisplayPort Resolution	Up to 4K @ 60Hz
VGA	1 × VGA
VGA Resolution	Up to 2048 × 1536 @ 50Hz
LAN	Intel I219-V Gigabit LAN
Wi-Fi	Wi-Fi 6E
Wi-Fi Standards	802.11 a/b/g/n/ac/ax
Wi-Fi Bands	2.4GHz / 5GHz / 6GHz
Maximum Wireless Speed	Up to 2.4Gbps
Bluetooth	Bluetooth 5.3
USB 3.2 Gen 1	4 × USB 5Gbps Type-A
Rear USB 3.2 Gen 1	2 × Type-A
Front USB 3.2 Gen 1	2 × Internal Header
USB 2.0	6 × USB 2.0
Rear USB 2.0	4 × Type-A
Front USB 2.0	2 × Internal Header
Audio Codec	Realtek ALC897
Audio Channels	7.1-Channel HD Audio
Audio Feature	Audio Boost
Rear Audio Ports	3
Main Power Connector	1 × 24-Pin ATX
CPU Power Connector	1 × 8-Pin ATX 12V
CPU Fan Connector	1 × 4-Pin
System Fan Connector	1 × 4-Pin
RGB Connector	1 × 4-Pin RGB
ARGB Connector	2 × 3-Pin RAINBOW
TPM Header	1
Serial Port Header	1
Clear CMOS Jumper	1
Core Boost	Supported
Memory Boost	Supported
Lightning Gen4 PCIe	Supported
PCIe Steel Armor	Supported
EZ Debug LED	Supported
Frozr AI Cooling	Supported
TPM 2.0 Support	Supported
DirectX Support	DirectX 12
OS Support	Windows 11 64-bit, Windows 10 64-bit
Package Contents	MSI PRO H610M-G WIFI DDR5 Motherboard × 1; Wi-Fi Antenna × 2; SATA Cable × 1; User Documentation × 1

Product Page

MB MSI PRO H610M-G WIFI D5 Motherboard
