AORUS AC500G CASE GLASS

Description

Product Type: Mid-Tower PC Case
Series: AORUS C500 GLASS
Model: GB-AC500G ST
Color: Black

General

Case Material: Steel, Plastic & Tempered Glass
Case Type: Mid-Tower

Motherboard Support:

• Mini-ITX

• Micro-ATX

• ATX

• E-ATX

Storage Support

Drive Bays:

• 2 × 3.5″/2.5″ Combo Bays

• 2 × Dedicated 2.5″ SSD Bays

Expansion

Expansion Slots:

• 8 × Horizontal

• 3 × Vertical (PCIe Riser Cable Required)

Front I/O

USB Ports:

• 1 × USB 3.1 Gen2 Type-C

• 2 × USB 3.0 Type-A

Audio:

• HD Audio In / Out

Cooling Support

Front:

• 3 × 120mm Fans

• 3 × 140mm Fans

Top:

• 3 × 120mm Fans

• 2 × 140mm Fans

Rear:

• 1 × 120mm Fan

• 1 × 140mm Fan

Pre-Installed Fans

Front:

• 3 × 120mm ARGB PWM Fans

Rear:

• 1 × 120mm ARGB PWM Fan

Radiator Support

Front:

• Up to 420mm

Top:

• Up to 360mm

Rear:

• Up to 140mm

RGB Lighting

Lighting: Addressable RGB (ARGB)

Controller: Built-in ARGB & PWM Hub

Software Support: GIGABYTE RGB Fusion 2.0

Power Supply

PSU Type: Standard ATX (Not Included)

Clearance

Maximum CPU Cooler Height: 190mm

Maximum Graphics Card Length: 420mm

Maximum Power Supply Length: 220mm

Vertical GPU Mount: Supported (73mm Standard Clearance / 160mm with VGA Holder Bracket)

Dust Protection

Removable Dust Filters:

• Front

• Top

• Bottom

Panels

Front Panel: High-Airflow Mesh Design

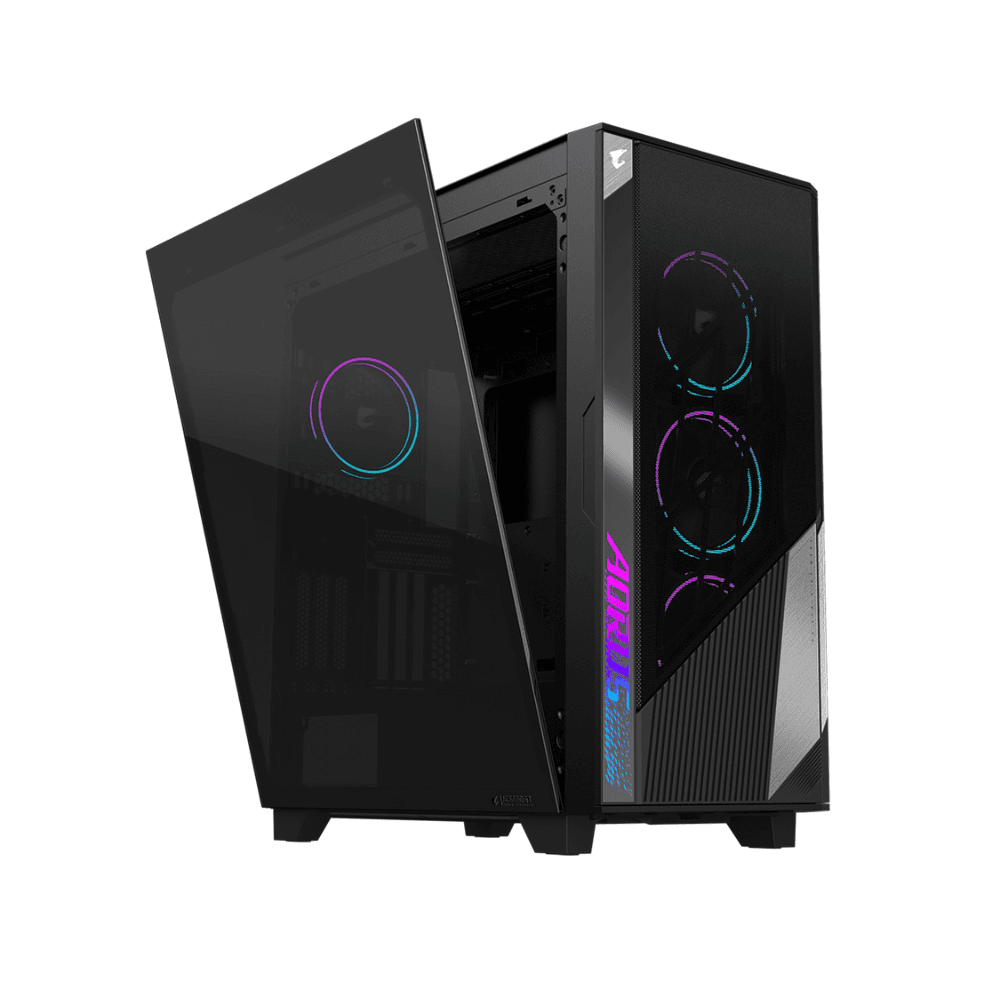

Left Side Panel: 4mm Full-Size Tempered Glass

Dimensions & Weight

Dimensions (H × W × D): 548 × 250 × 482mm

Net Weight: 13.4kg

Package Contents

• User Manual

• Accessories Kit
