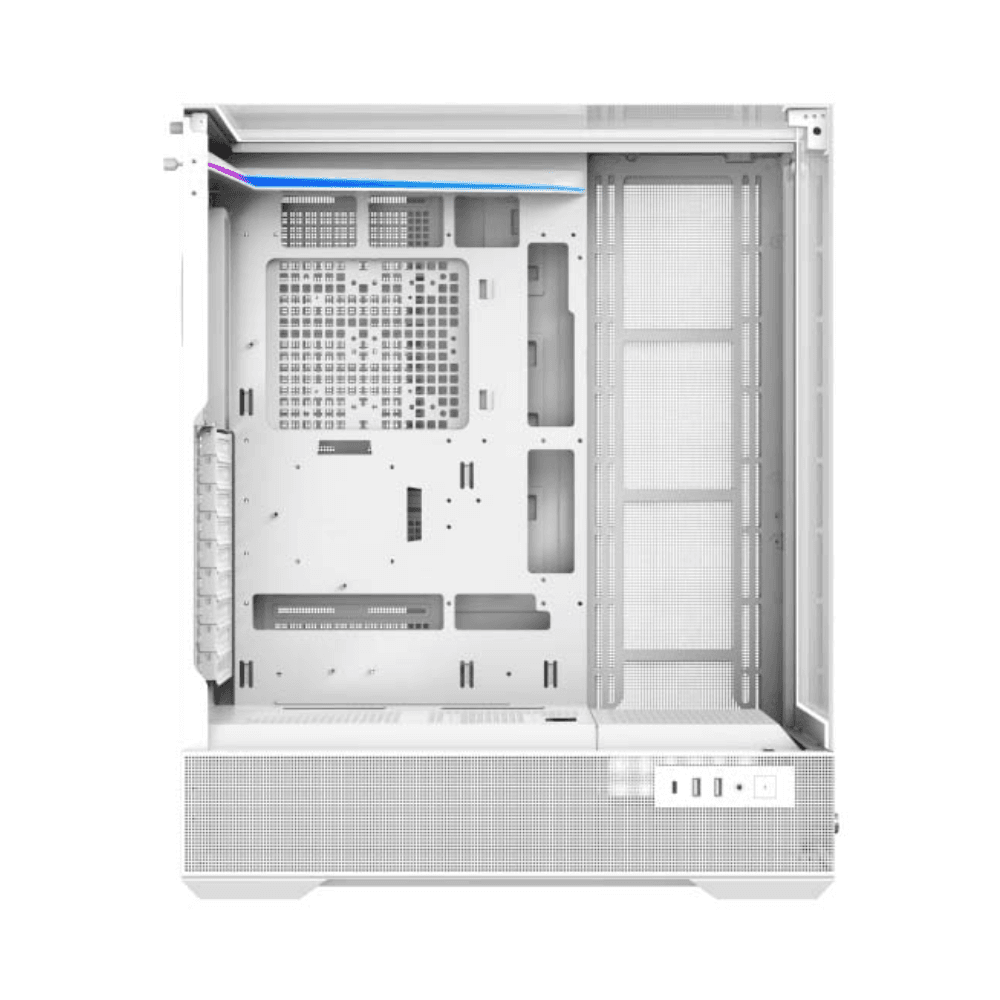

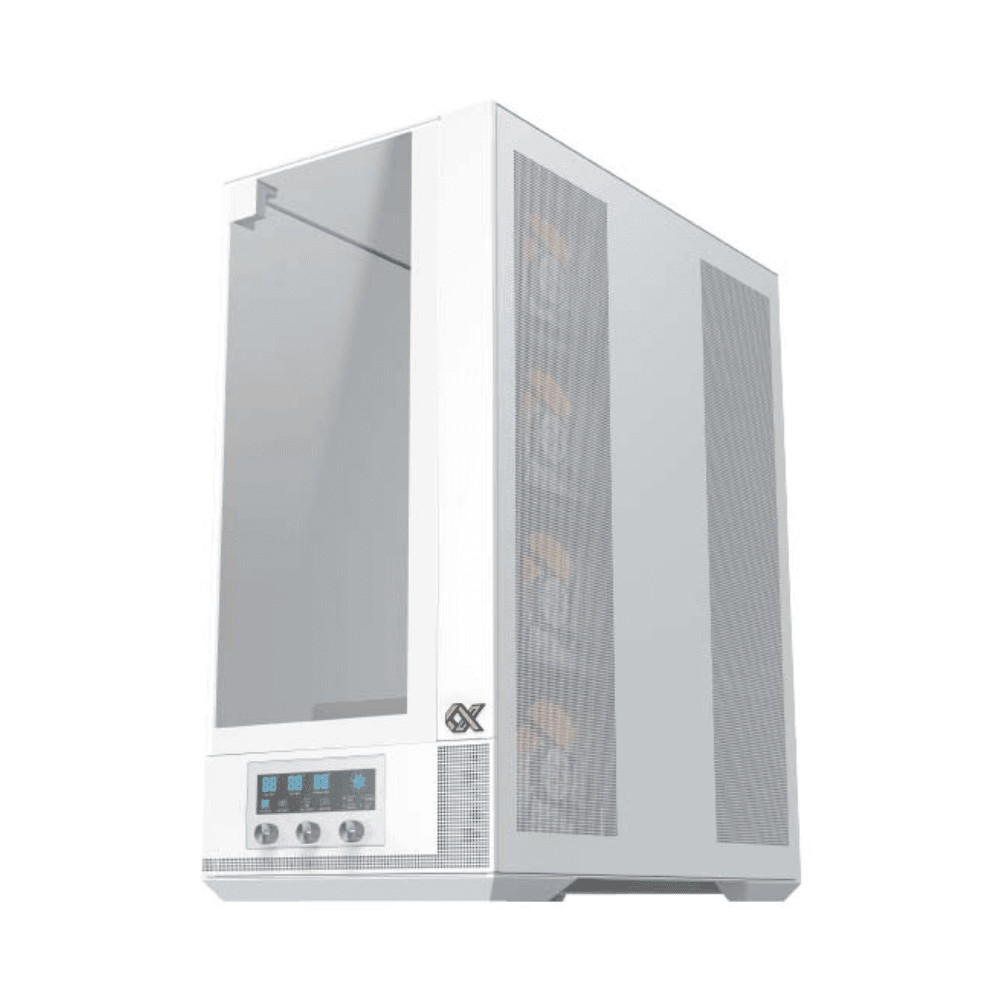

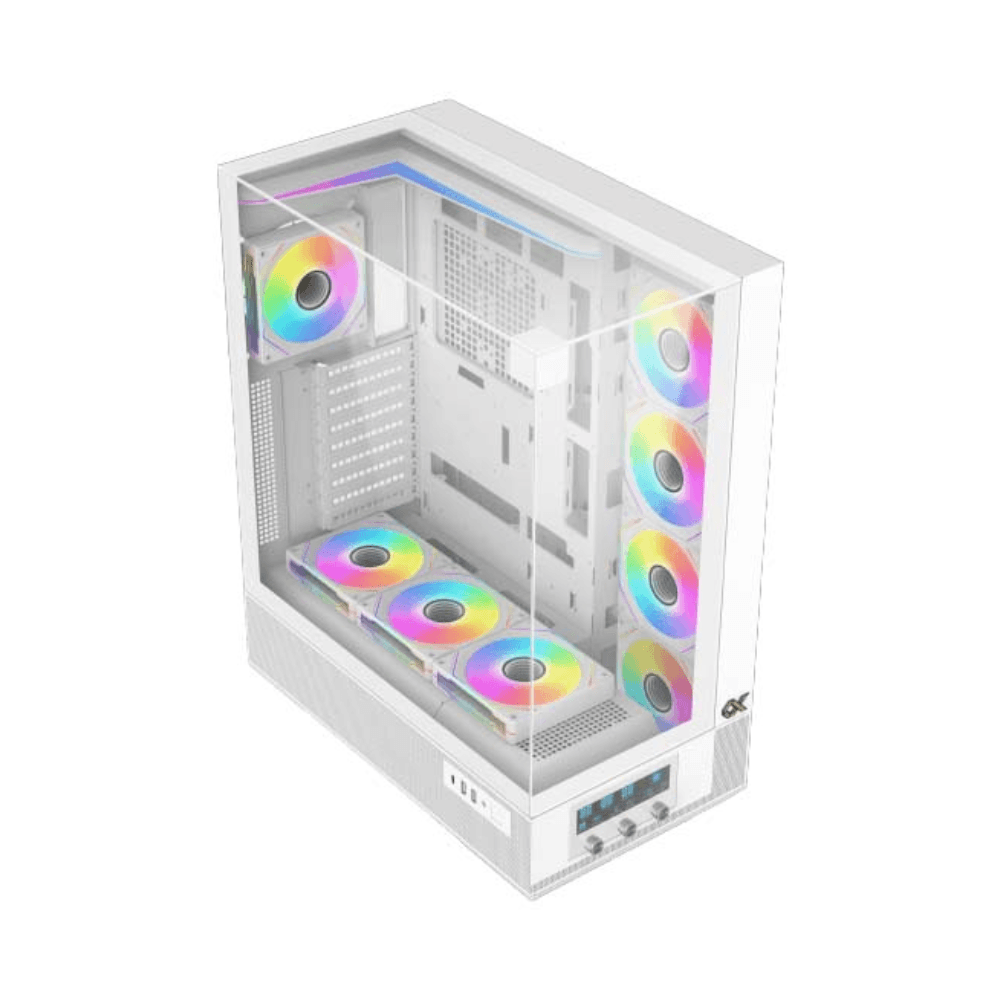

XIGMATEK VISION – E-ATX Mid-Tower PC Case – White

Product Type: E-ATX Mid-Tower PC Case
Series: Vision
Color: White
Material: Steel

General

• Dimensions (L × W × H): 450 × 258 × 476 mm

• Power Supply Type: Standard PS2 ATX PSU

• Maximum PSU Length: 220 mm

Motherboard Compatibility

• E-ATX

• ATX: Supports Back-Plug Motherboards

• Micro-ATX

• **Mini-ITX

• E-ATX Width: Up to 290 mm

Component Clearance

• Maximum CPU Cooler Height: 180 mm

• Maximum GPU Length: 420 mm

• GPU Installation: Horizontal / Vertical

Cooling Support

Motherboard Side:

• 3 × 120 mm

• 3 × 140 mm

PSU Shroud:

• 3 × 120 mm

Rear:

• 1 × 120 mm

• 1 × 140 mm

SSD/HDD Mounting Bracket:

• 1 × 120 mm

Radiator Support

Motherboard Side:

• 240 / 280 / 360 mm

• E-ATX Motherboard Width ≤ 290 mm

Storage Support

Rear Motherboard Panel – SSD/HDD Mounting Bracket:

• 1 × 3.5″ HDD

• or 2 × 2.5″ SSD

SSD/HDD Mounting Flip Cover – Option A:

• 3 × 3.5″ HDD

• or 2 × 3.5″ HDD + 1 × 2.5″ SSD

• or 1 × 3.5″ HDD + 2 × 2.5″ SSD

• or 3 × 2.5″ SSD

• When SSD/HDD Mounting Bracket is installed without 3.5″ HDD or 120 mm Fan

SSD/HDD Mounting Flip Cover – Option B:

• 2 × 3.5″ HDD

• or 1 × 3.5″ HDD + 1 × 2.5″ SSD

• or 2 × 2.5″ SSD

• When SSD/HDD Mounting Bracket is installed with 3.5″ HDD or 120 mm Fan

Expansion Slots

• Standard Expansion Slots: 7

• GPU Installation: Horizontal / Vertical

Front I/O

• USB 3.0 Type-A: 2

• USB Type-C: 1

• HD Audio: 1
