NZXT H9 FLOW RGB DUAL-CHAMBER MID TOWER Airflow Black CASE

Product Type: Dual-Chamber Mid-Tower PC Case
Series: NZXT H9 Flow RGB
Model: H9 Flow RGB
Color: Black

---

General

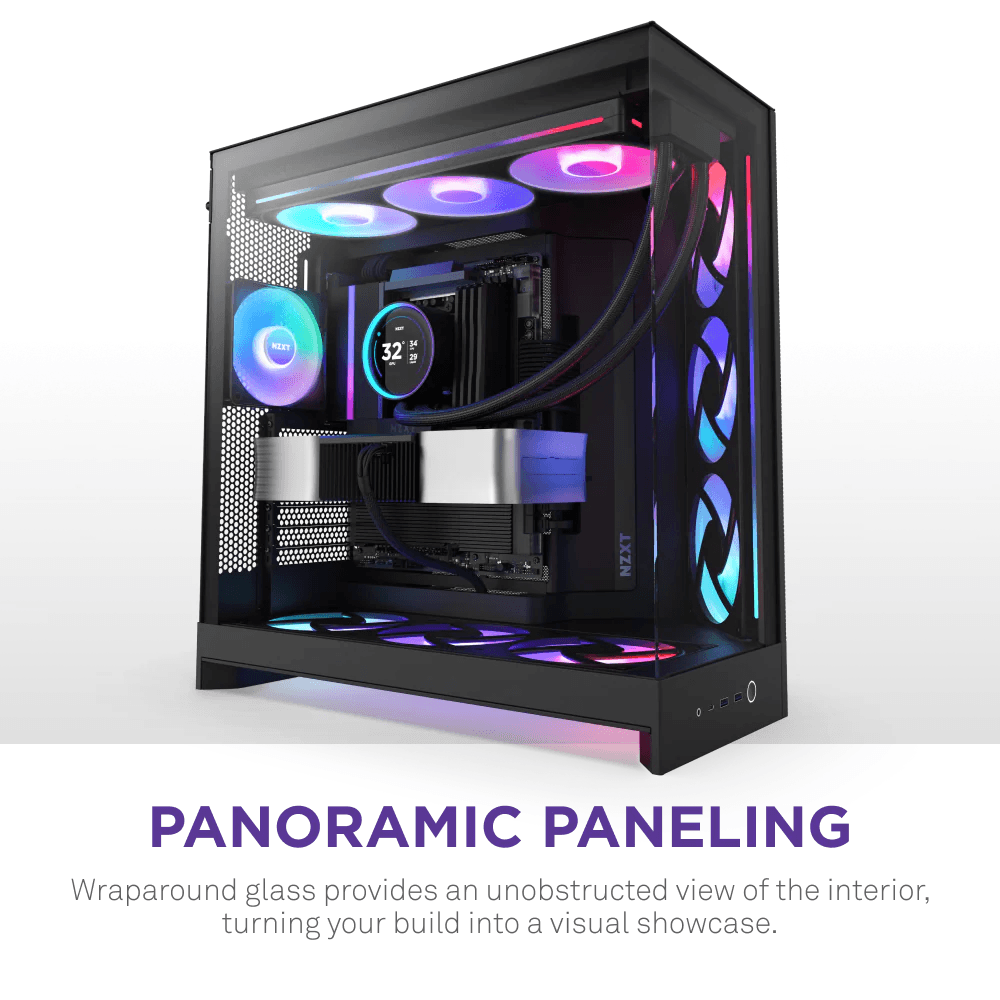

Case Material: SGCC Steel & Tinted Tempered Glass

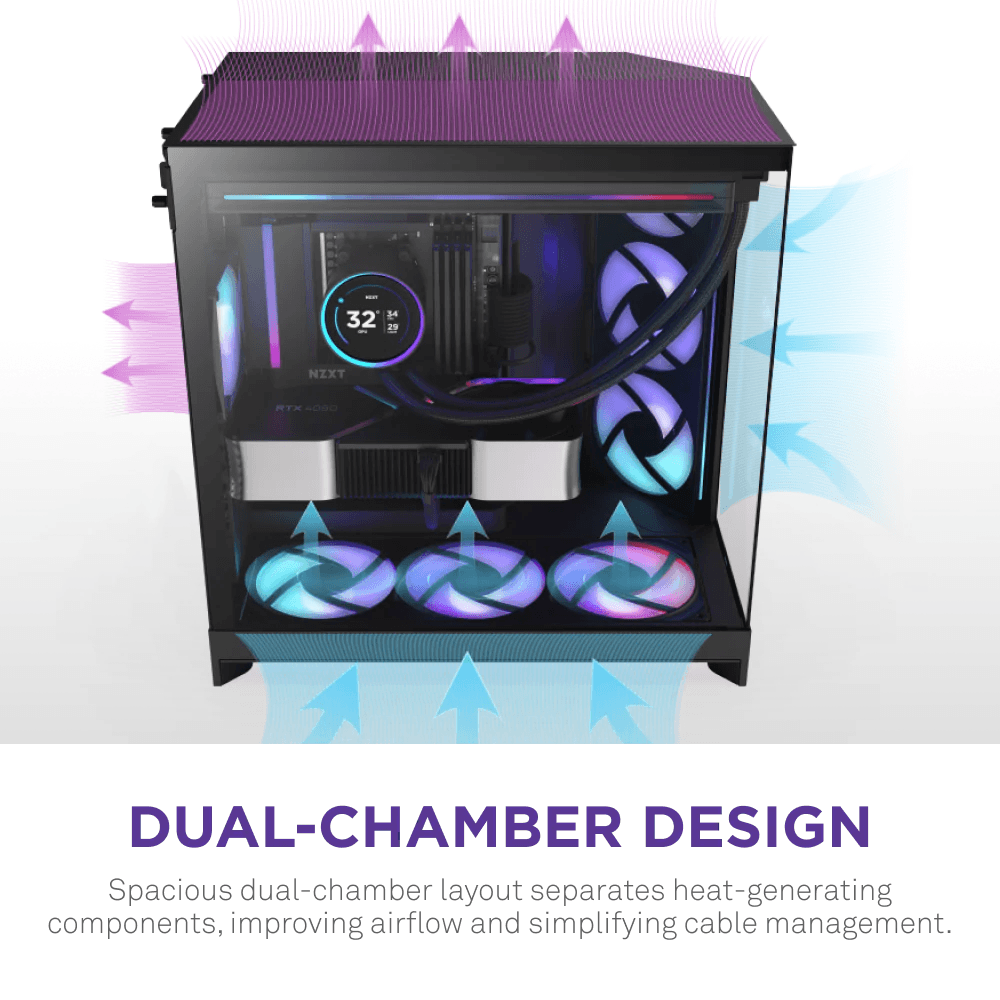

Case Type: Dual-Chamber Mid-Tower

Motherboard Support

• E-ATX (Up to 277mm Wide)
• ATX
• Micro-ATX
• Mini-ITX

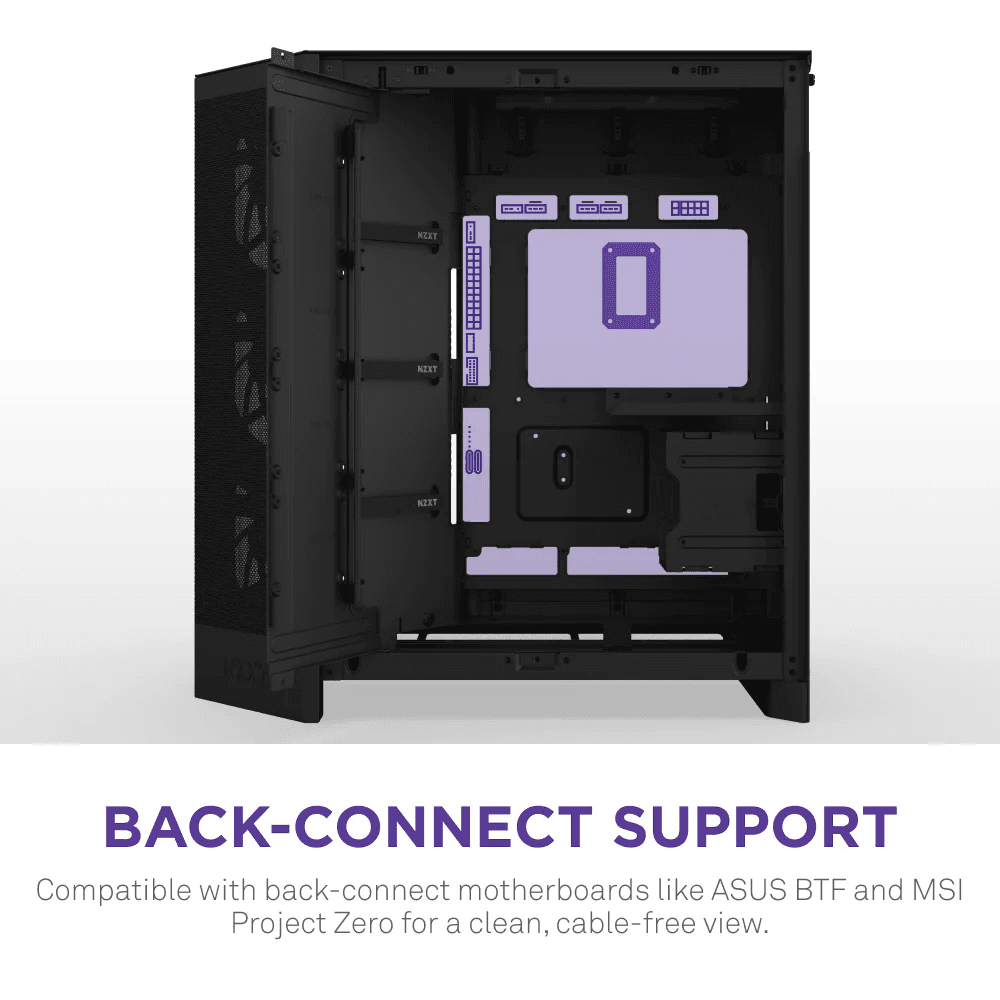

Rear-Connect Motherboard Support

• ASUS BTF
• MSI Project Zero
• Compatible Back-Connect ATX Motherboards

---

Storage Support

Drive Bays

• 2 × 3.5″ HDD
• 4 + 2 × 2.5″ SSD

---

Expansion

Expansion Slots: 7

---

Front I/O

USB Ports

• 1 × USB 3.2 Gen 2×2 Type-C
• 2 × USB 3.2 Type-A

Audio

• 3.5mm Headset Jack

Controls

• Power Button

---

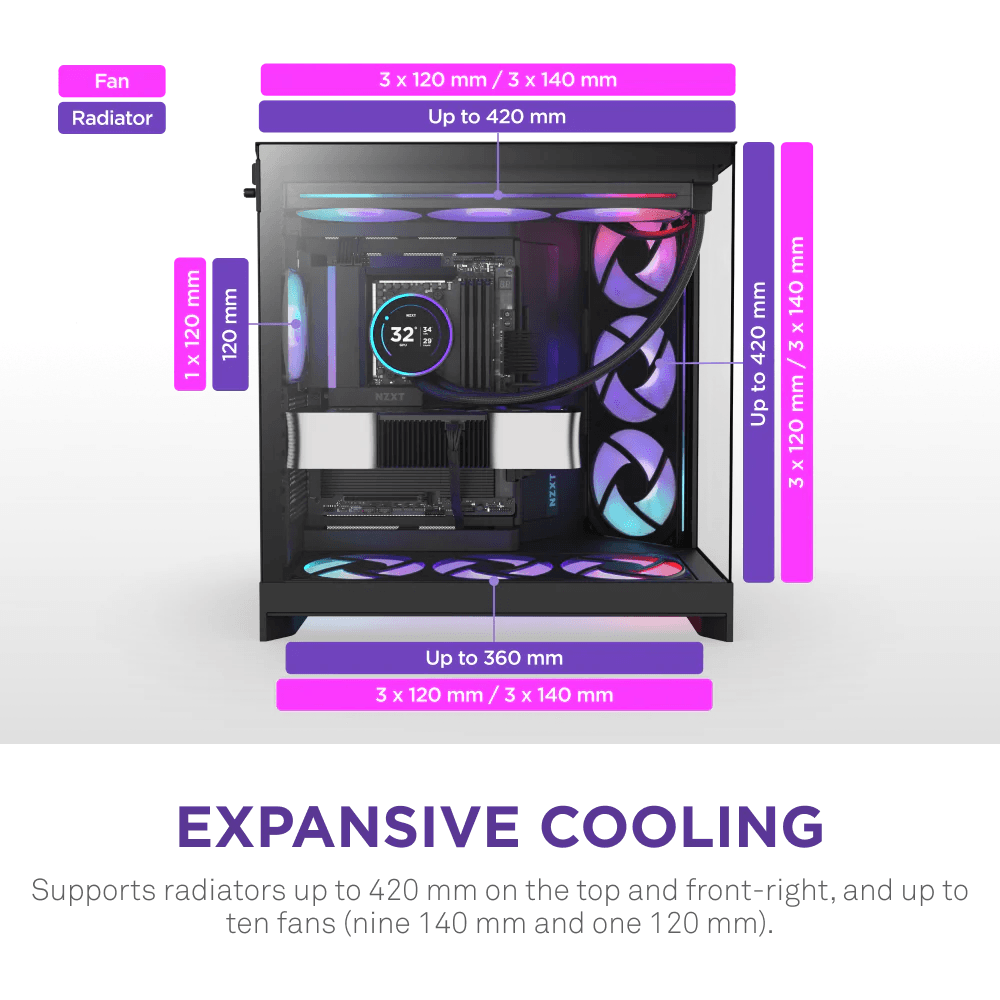

Cooling Support

Front-Right

• 3 × 120mm Fans
• 3 × 140mm Fans

Top

• 3 × 120mm Fans
• 3 × 140mm Fans

Bottom

• 3 × 120mm Fans
• 3 × 140mm Fans

Rear

• 1 × 120mm Fan

---

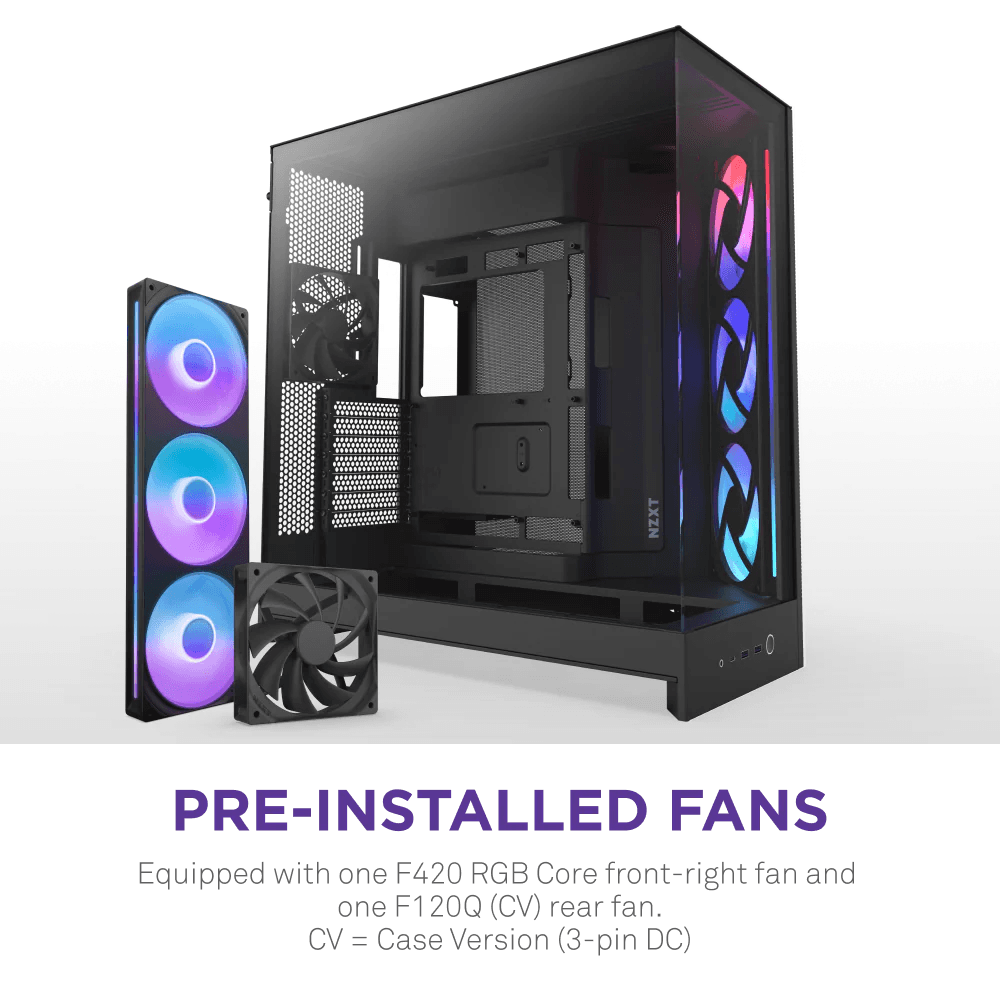

Pre-Installed Fans

Front-Right

• 1 × F420 RGB Core Fan

Rear

• 1 × F120Q (CV) Fan

---

Radiator Support

Front-Right

• Up to 420mm

Top

• Up to 420mm

Bottom

• Up to 360mm

Rear

• Up to 120mm

---

RGB Lighting

Lighting: Addressable RGB (ARGB)

Control: 5V ARGB Connection

Software Support: Compatible with NZXT CAM software and standard 5V ARGB motherboard synchronization. (NZXT)

---

Clearance

Maximum CPU Cooler Height: 165mm

Maximum Graphics Card Length:

• Up to 459mm (Standard Fan Configuration)
• Up to 410mm (With 420mm Radiator Installed)

Maximum Power Supply Length: 200mm

---

Dust Protection

Integrated Dust Protection:

• Front-Right Mesh Panel
• Top Mesh Panel
• Bottom Removable Dust Filter

---

Dimensions & Weight

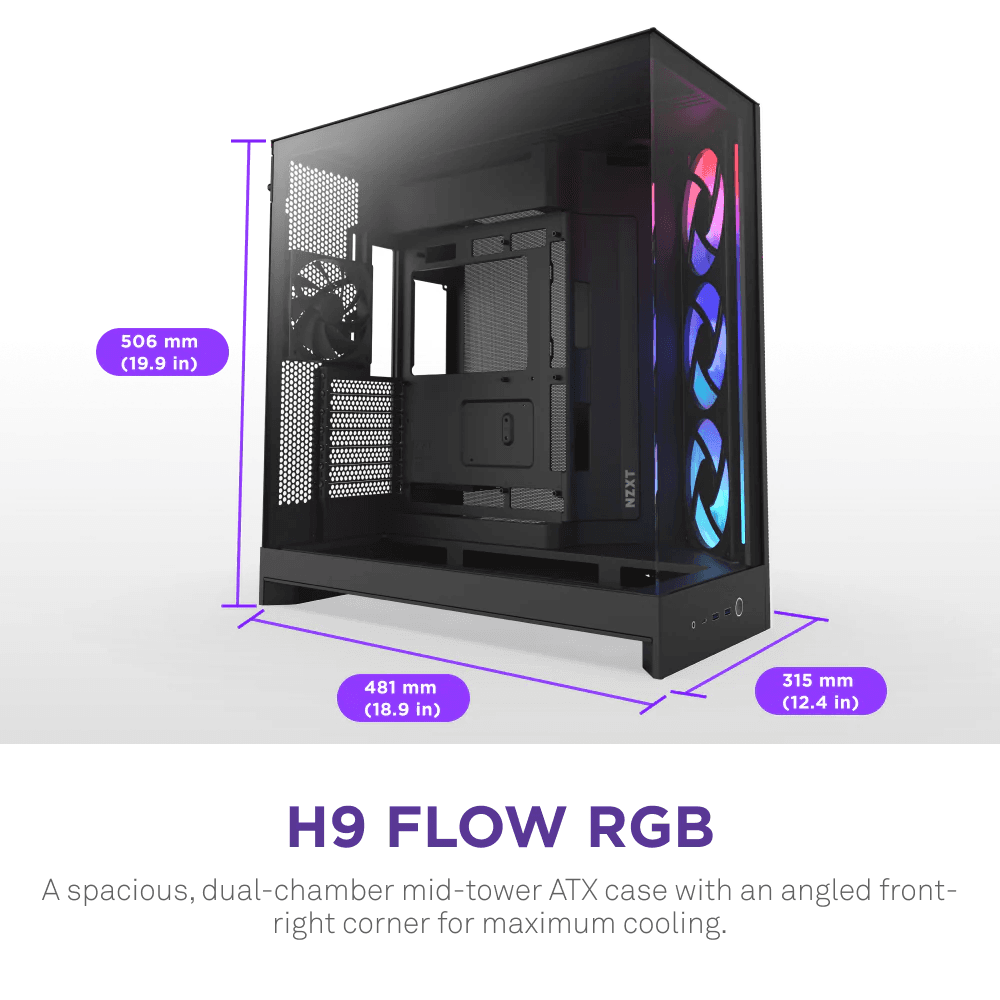

Dimensions (H × W × D): 506 × 315 × 481mm

Net Weight: 12.6kg

---

Package Contents

• NZXT H9 Flow RGB Black Case
• 1 × F420 RGB Core Fan
• 1 × F120Q (CV) Rear Fan
• Installation Accessories
• User Guide (NZXT)
