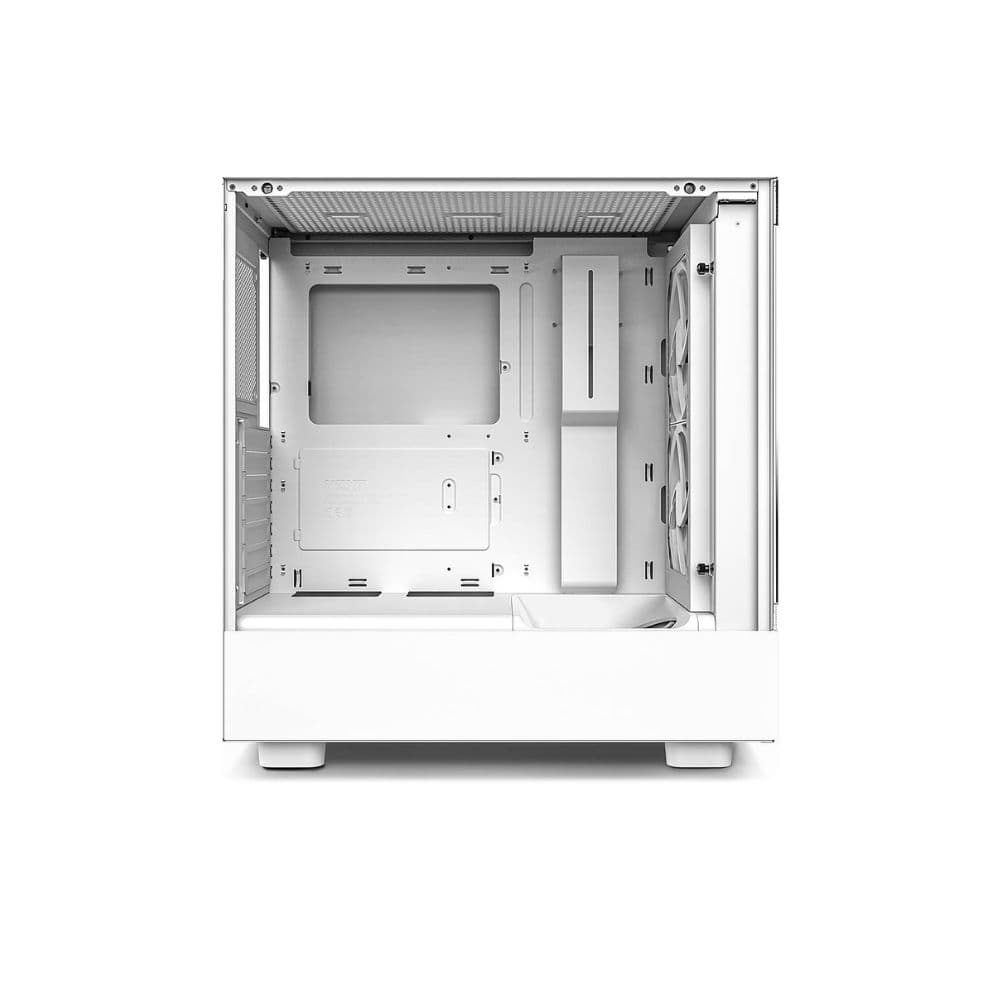

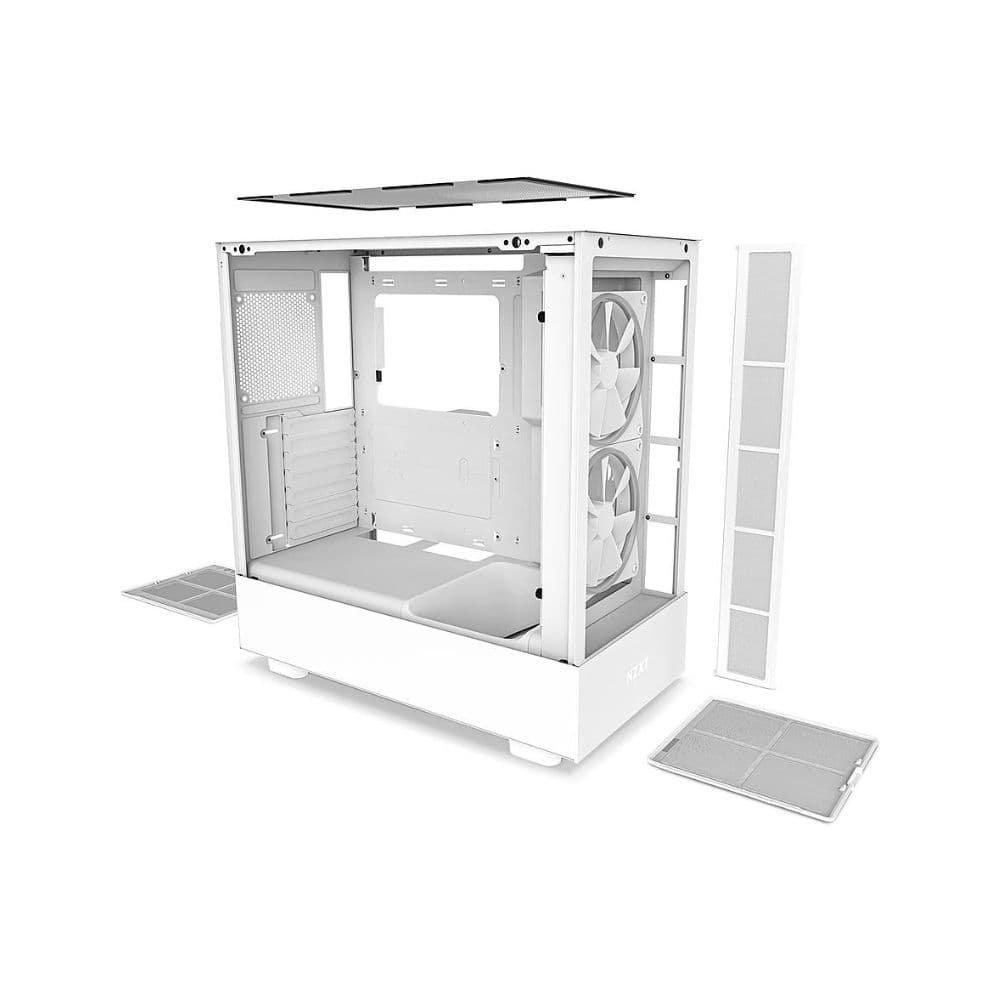

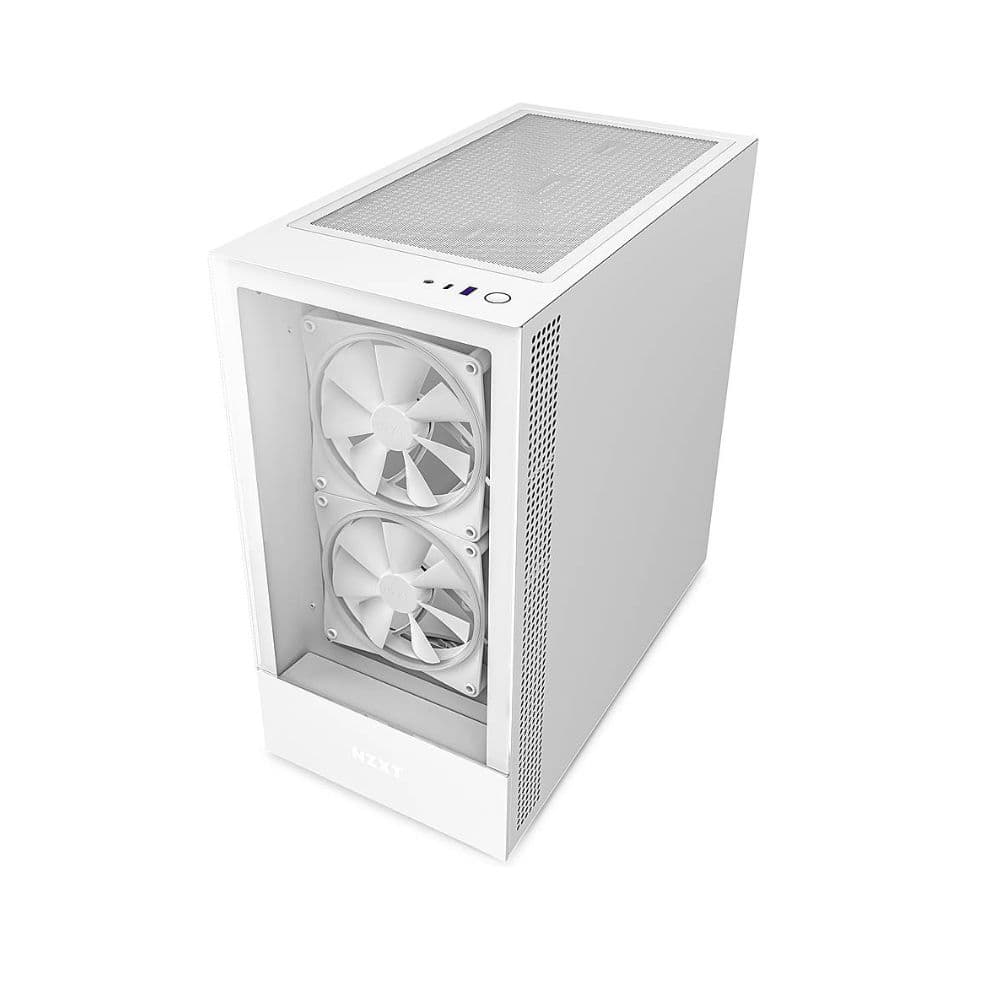

NZXT H5 ELITE (2023) ATX Mid-Tower Case – White

Product Type: Compact ATX Mid-Tower PC Case
Series: H5 Elite (2023)
Color: White
Model Number: CC-H51EB-01

General

• Enclosure Type: Compact Mid-Tower

• Case Material: SGCC Steel

• Side Panel: Dark Tinted Tempered Glass

• Front Panel: Tempered Glass

• Dimensions (H × W × D): 464 × 227 × 446 mm

• Weight: 8.1 kg

Motherboard Compatibility

• ATX

• Micro-ATX

• Mini-ITX

Component Clearance

• Maximum CPU Cooler Height: 165 mm

• Maximum GPU Length: 365 mm

• Front Radiator Clearance: 45 mm

• Cable Management Clearance: Up to 23 mm

Cooling Support

Front:

• 2 × 140 mm

• 2 × 120 mm

Top:

• 2 × 120 mm

Rear:

• 1 × 120 mm

Bottom:

• 1 × 120 mm

Radiator Support

• Front: Up to 280 mm

• Top: Up to 240 mm

• Rear: Up to 120 mm

Included Fans

F140 RGB – Case Version

• Quantity: 2

• Fan Size: 140 mm

• Speed: 500–1,800 RPM

• Airflow: 24.85–89.48 CFM

• Static Pressure: 0.94–3.39 mm-H₂O

• Noise Level: 20–32.5 dBA

• Connector: 3-Pin DC

• RGB Connector: 4-Pin NZXT RGB

F120Q Airflow – Case Version

• Quantity: 1

• Fan Size: 120 mm

• Speed: 1,200 ± 240 RPM

• Airflow: 62.18 CFM

• Static Pressure: 1.05 mm-H₂O

• Noise Level: 25.1 dBA

• Connector: 3-Pin DC

RGB Lighting

• RGB Fans: 2 × F140 RGB

• RGB Controller: Included

• RGB Channels: 3

• RGB Capacity: Up to 120 LEDs

• RGB Connection: 4-Pin NZXT RGB

• Power Connection: SATA

• Data Connection: Internal USB 2.0

Front I/O

• USB 3.2 Gen 1 Type-A: 1

• USB 3.2 Gen 2×2 Type-C (20 Gbps): 1

• 3.5 mm Headset Jack: 1

Expansion & Storage

• Standard Expansion Slots: 7

• Vertical Expansion Slots: 0

• 2.5″ Drive Bays: 2 (1 + 1)

• 3.5″ Drive Bays: 1
