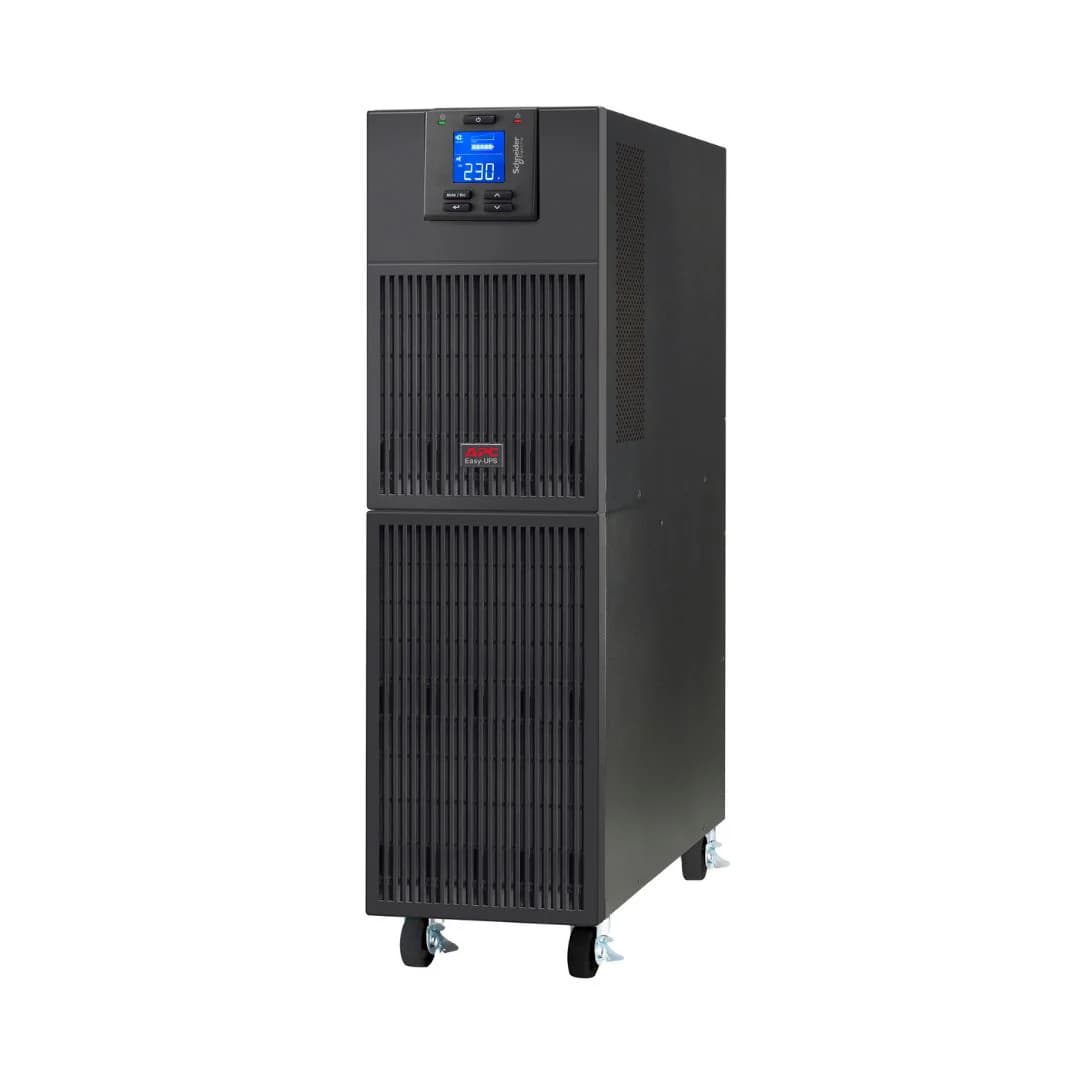

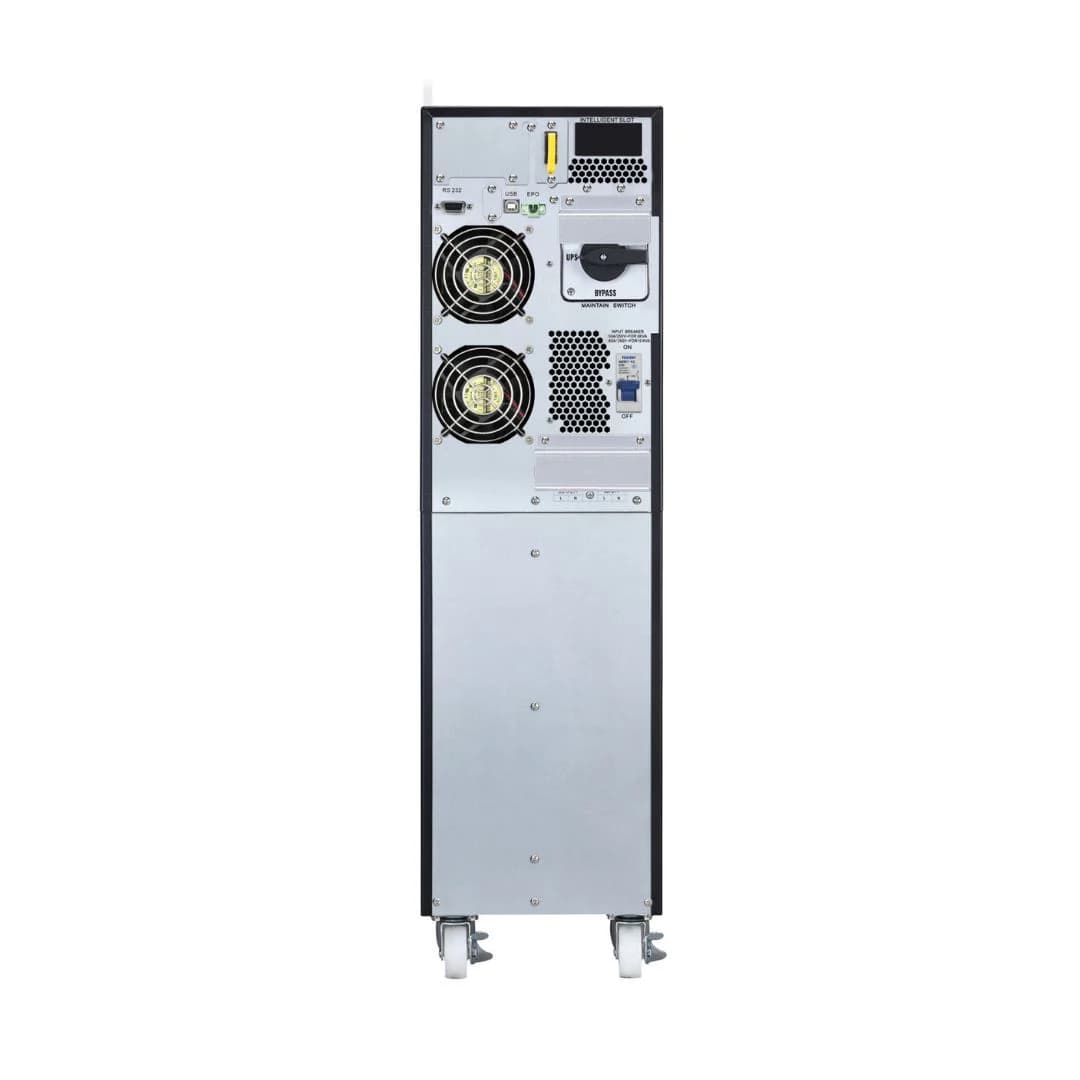

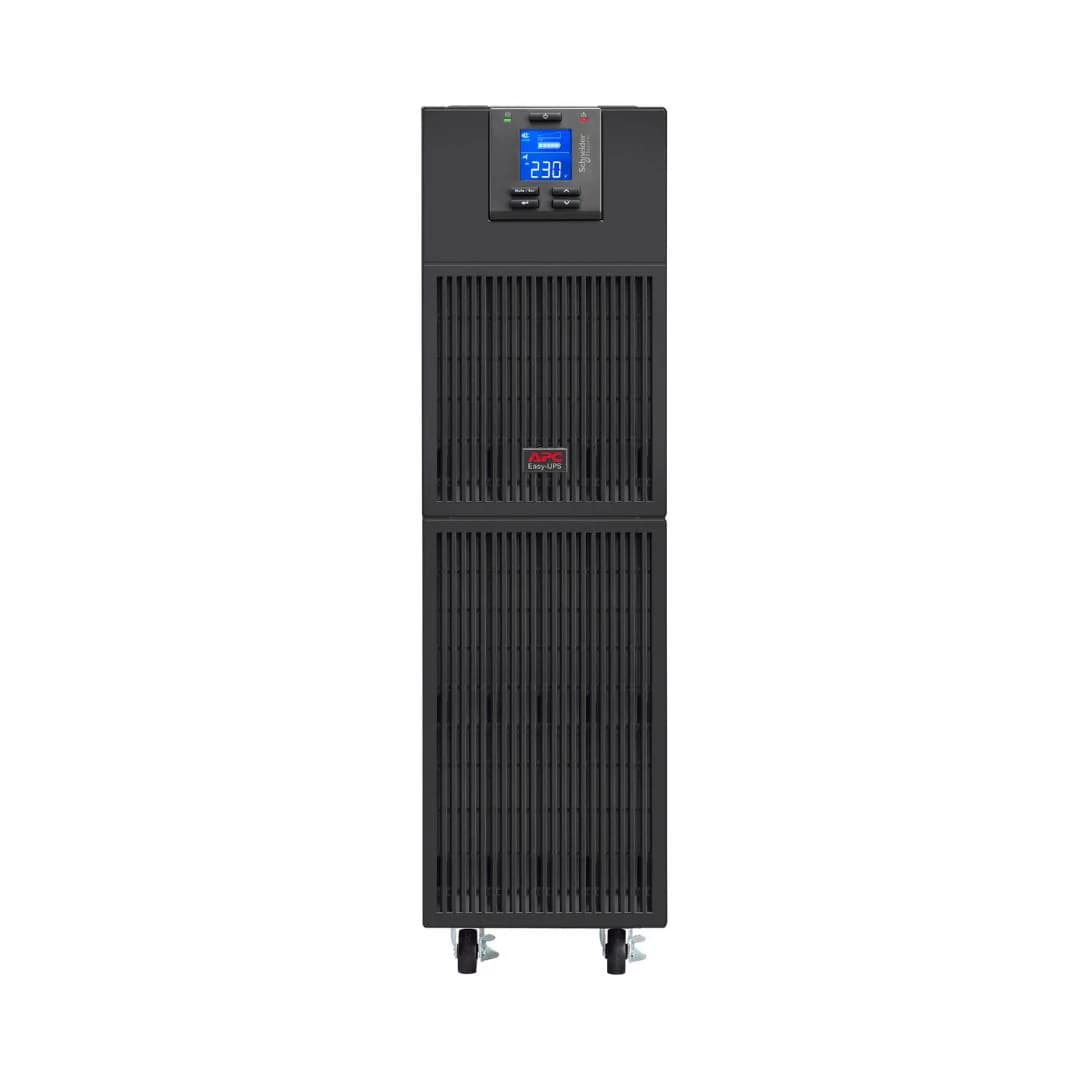

UPS APC Easy Online SRV 10000VA 10KV 230V
(0 Reviews)
Brand: APC
IQD 3,750,000
In Stock
1
- • Model: APC Easy Online SRV 10000VA 230V
- • Type: Online Double‑Conversion UPS
- • Capacity: 10000 VA / 10000 W
- • Input Voltage: 230 V (single‑phase)
- • Input Voltage Range: 110 – 300 V
- • Input Frequency: 40 – 70 Hz (auto‑sensing)
- • Output Voltage: 230 V ± 1%
- • Output Frequency: 50/60 Hz ± 0.1 Hz (synchronized with mains)
- • Output Waveform: Pure Sine Wave
- • Efficiency: Up to 94% (online mode)
- • Power Factor: 1.0 (unity)
- • Battery Type: Sealed Lead‑Acid, maintenance‑free
- • Battery Voltage: 240 V DC
- • Backup Time: Scalable with external battery packs
- • Recharge Time: ~5 hours to 90% capacity
- • Interfaces: RS‑232, USB, Smart Slot (optional SNMP card)
- • Display: LCD panel with status indicators
- • Protection: Overload, short circuit, surge, and battery deep discharge protection
- • Dimensions: 455 × 190 × 337 mm (tower)
- • Weight: ~65 kg
- • Noise Level: < 55 dB at 1 meter
- • Features:
- – Online double‑conversion technology for consistent power quality
- – Hot‑swappable battery design
- – Scalable runtime with external battery packs
- – Intelligent battery management for extended lifespan
- – Compatible with APC management software for monitoring and control
