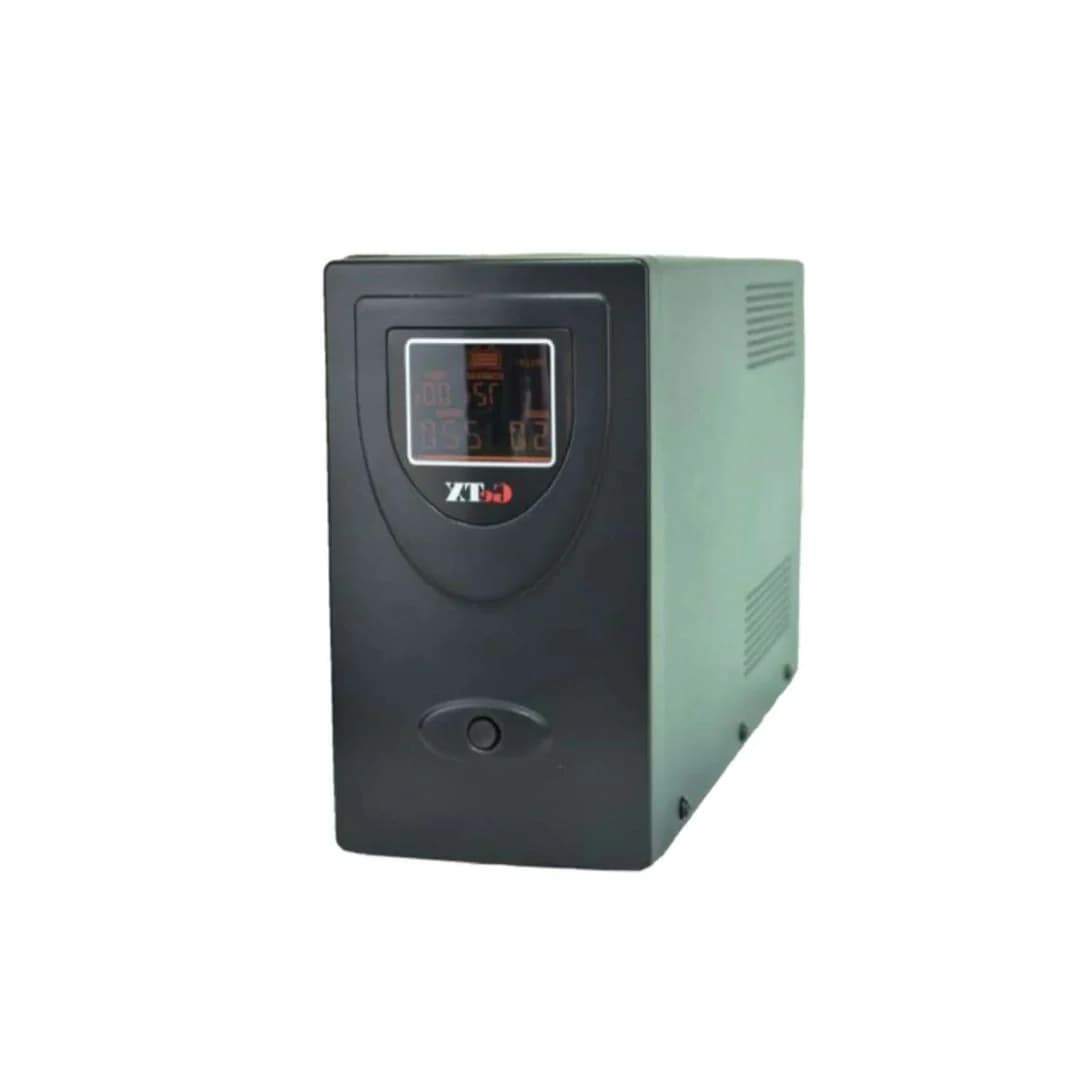

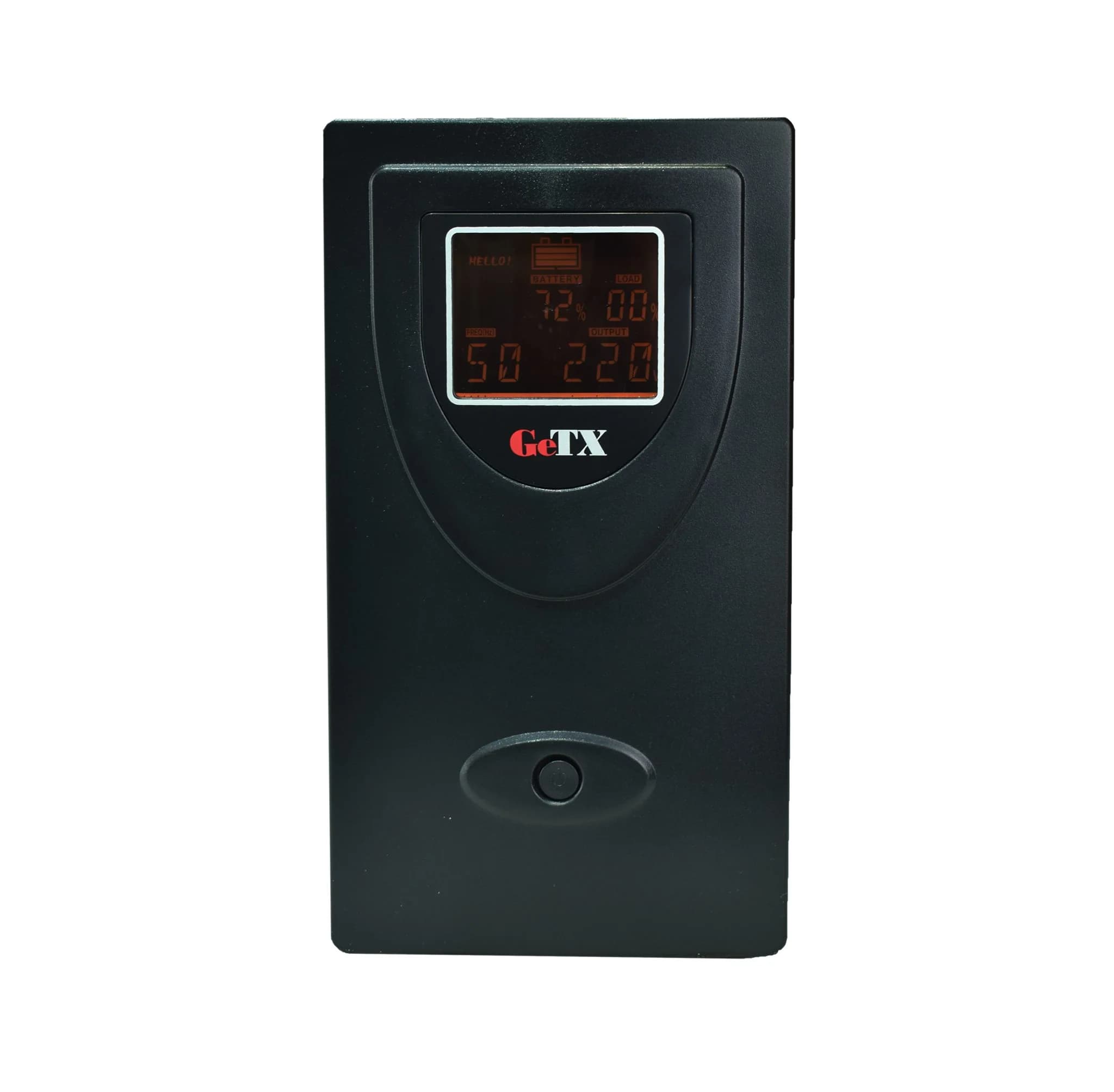

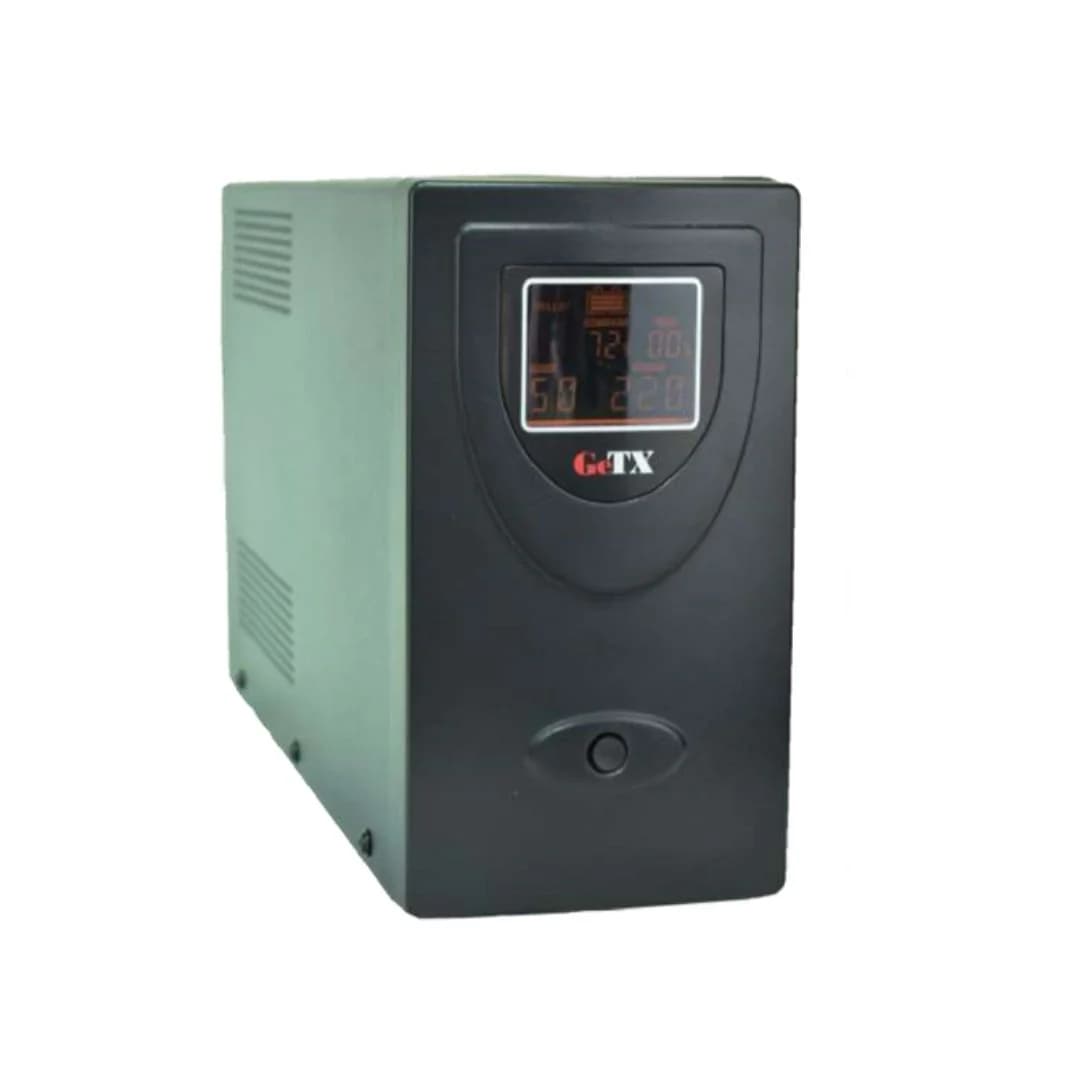

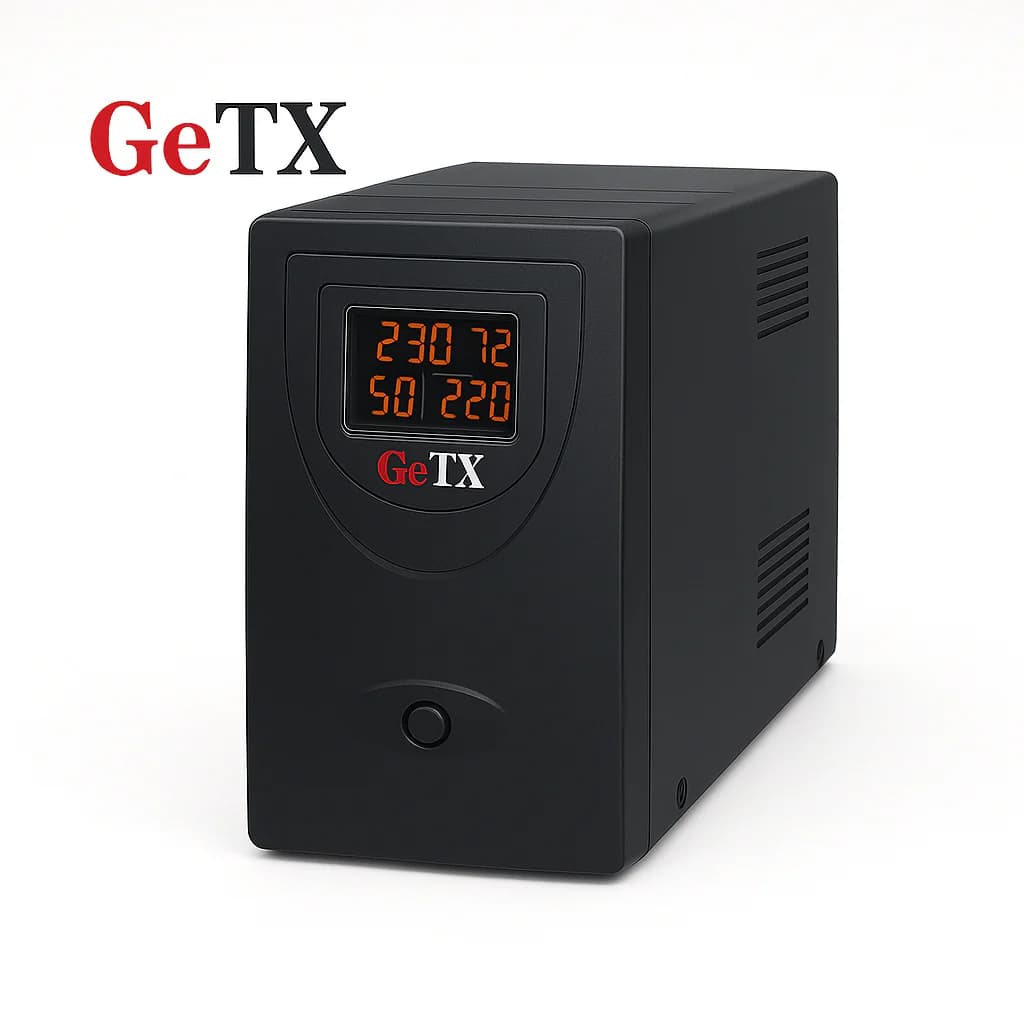

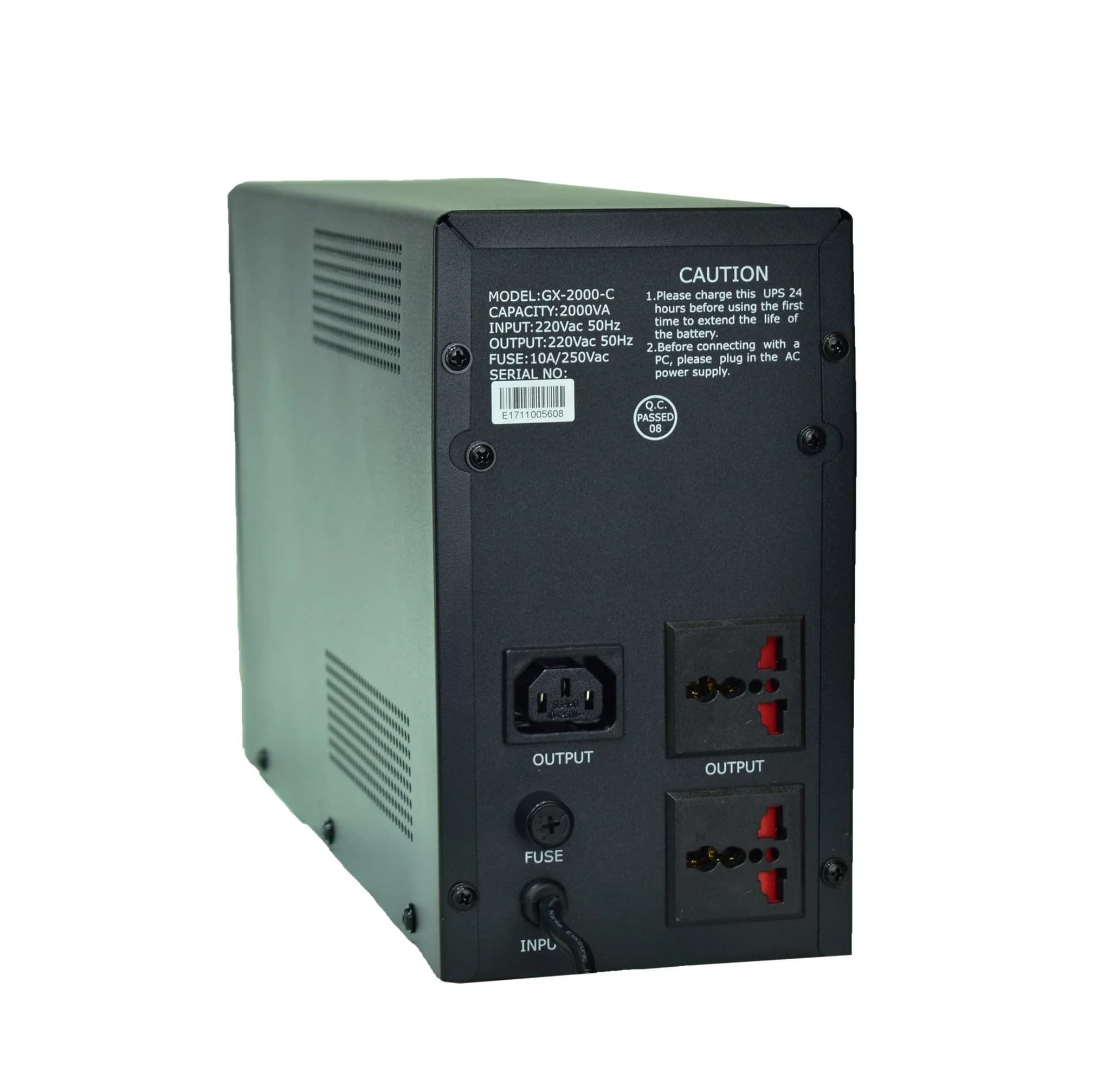

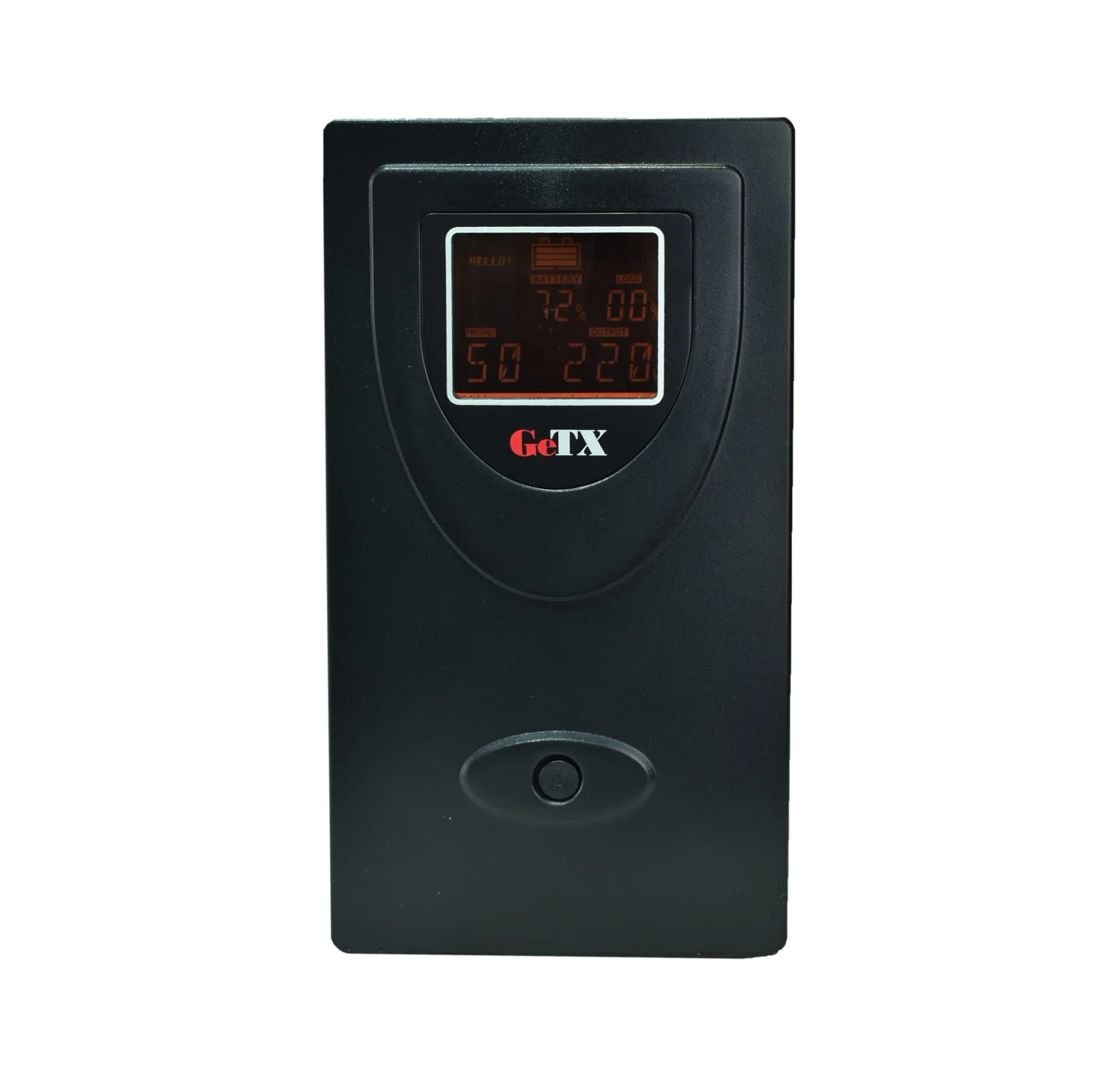

UPS GeTX GXK-2000-C (2000VA, 2KV) Line interactive , 12V9Ax2 Battery - Yellow Box

Specification

Model: GX-2000-C

Capacity: 2000 VA / 1200 W

Input:

Voltage: 100V/110V/120V: 80–150 Vac, 220V/230V/240V: 162–265 Vac (220V: 145–295 Vac optional)

Frequency: 50/60 Hz ±10% (auto-sense)

Output:

Voltage: 100V/110V/120Vac ±10% or 220V/230V/240Vac ±10%

Frequency: 50/60 Hz ±1% (auto-sense)

Transfer Time: Typical 2–7ms; Max 10ms

Waveform: Mains mode: pure sine wave; Battery mode: simulated sine wave

Batteries:

DC Voltage: 24V

Configuration: 12V / 9.0 Ah × 2

Recharge Time: 6–8 h

Communications:

USB/RS232 (Optional): Supports Windows® 98/2000/2003/XP/Vista/2008/Windows® 7/8/10

Others:

Protections: Short circuit, battery overcharge/overdischarge, overload, surge

Humidity: 20–90% RH @ 0–40℃ (non-condensing)

Noise Level: ≤45dB (1m)

Physical:

Net/Gross Weight (kg): 9.5 / 10.0

Dimensions (W×D×H) (mm): 125 × 380 × 225

Packaged Dimensions (W×D×H) (mm): 180 × 450 × 295

Additional Features:

AVR Surge Protection: Yes

Cold Start: Yes

Self-Detection on Startup: Yes

CPU Controlled: Intelligent

Battery Charging in Off Mode: Automatic

Front Panel Options: Multiple colors and designs

Over/Under Voltage Protection: Full

Generator Compatibility: Strong, supports any brand

Electromagnetic Compatibility: No interference to load

Input Voltage Switching: Auto-detects 120V (90V–148V) and 220V (166V–276V)

Output Voltage Control: Fixed or adjustable 120V/220V @ 60Hz

Software Communication Options: RS232 / USB / SNMP card

Additional Ports (Optional): RJ11 / RJ45
