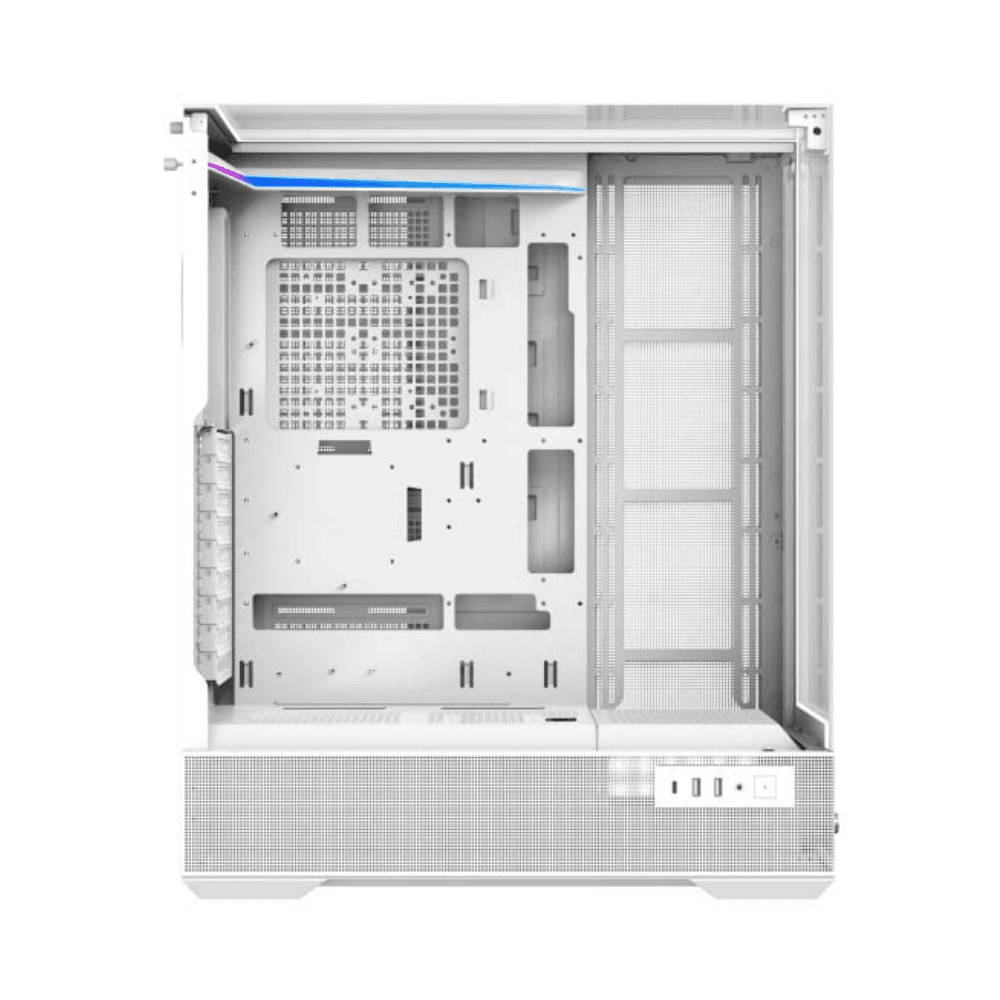

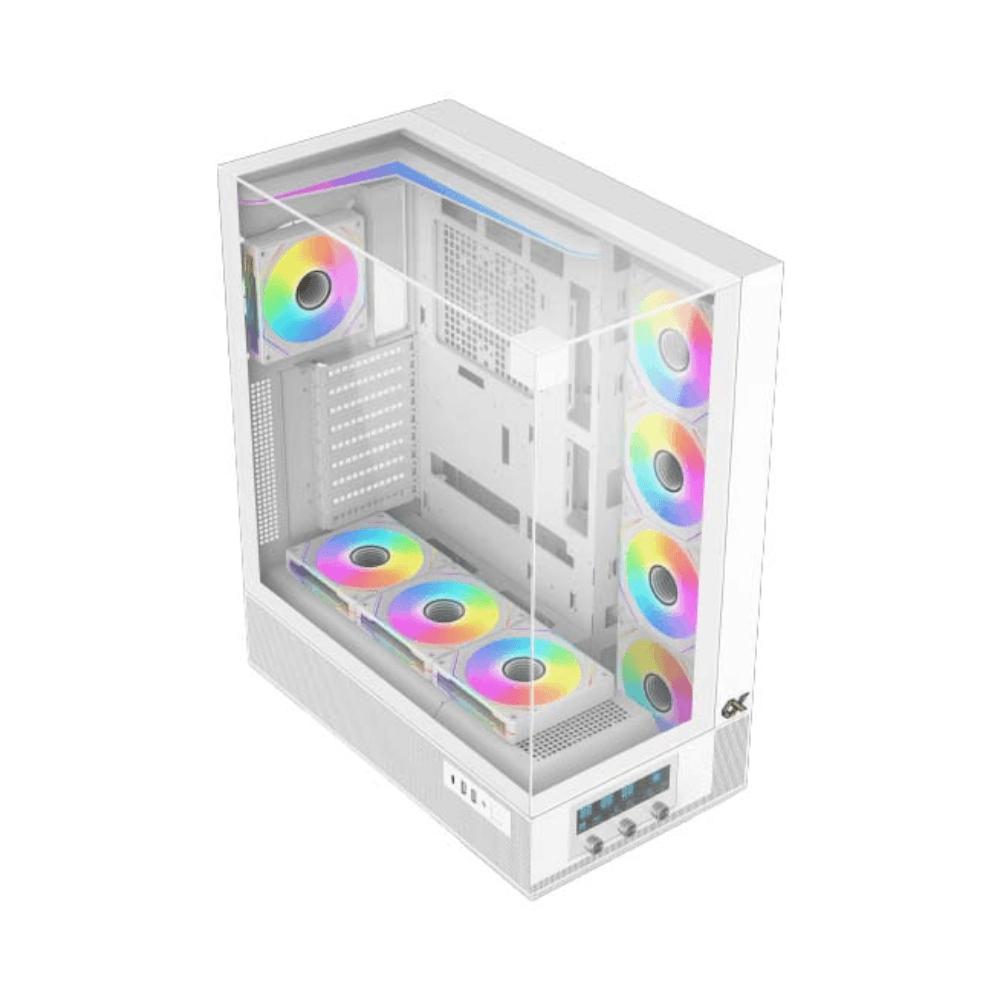

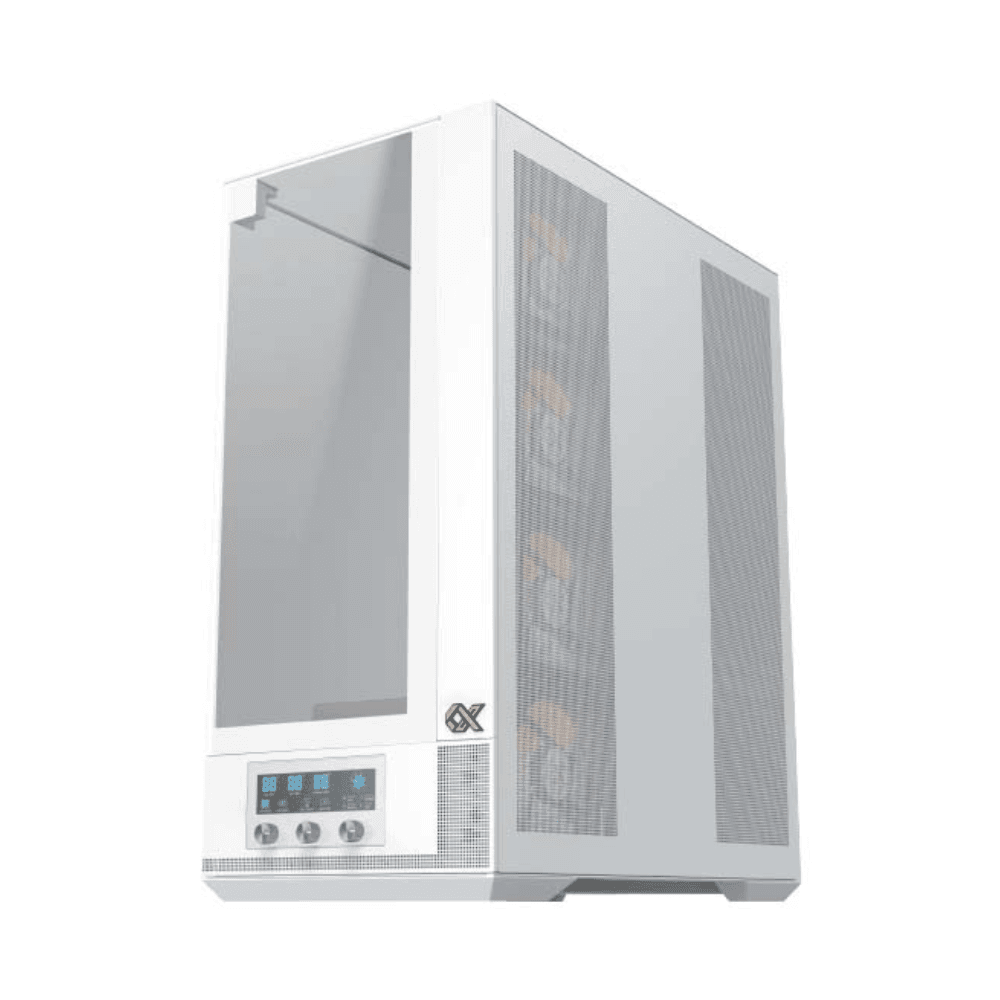

XIGMATEK VISION PRO ARCTIC – E-ATX Mid-Tower PC Case – White

Product Type: E-ATX Mid-Tower PC Case
Series: Vision Pro Arctic
Color: White
Material: Steel
SKU: EN45172

General

• Dimensions (L × W × H): 450 × 258 × 533 mm
• Case Type: Mid-Tower
• Power Supply Type: Standard PS2 ATX PSU
• Maximum PSU Length: 220 mm

Motherboard Compatibility

• E-ATX
• ATX: Supports Back-Plug Motherboards
• Micro-ATX
• Mini-ITX
• Maximum E-ATX Width: 290 mm

Component Clearance

• Maximum CPU Cooler Height: 180 mm
• Maximum GPU Length: 420 mm
• GPU Installation: Horizontal / Vertical

Cooling Support

Motherboard Side:

• 4 × 120 mm
• 3 × 140 mm

PSU Shroud:

• 3 × 120 mm

Rear:

• 1 × 120 mm
• 1 × 140 mm

SSD/HDD Mounting Bracket:

• 1 × 120 mm

Radiator Support

Motherboard Side:

• 240 / 280 / 360 / 420 / 480 mm
• E-ATX Motherboard Width ≤ 290 mm

Storage Support

Rear Motherboard Panel:

• 1 × 3.5″ HDD
• or 2 × 2.5″ SSD

SSD/HDD Mounting Flip Cover – Option A:

• 3 × 3.5″ HDD
• or 3 × 3.5″ HDD + 1 × 2.5″ SSD
• or 2 × 3.5″ HDD + 2 × 2.5″ SSD
• Without 3.5″ HDD or 120 mm Fan on the mounting bracket

SSD/HDD Mounting Flip Cover – Option B:

• 2 × 3.5″ HDD
• or 1 × 3.5″ HDD + 1 × 2.5″ SSD
• With 3.5″ HDD or 120 mm Fan on the mounting bracket

Expansion Slots

• Standard Expansion Slots: 9
• GPU Installation: Horizontal / Vertical

Included Fans

• 1 × G24A Arctic Fan
• 7 × G24A Arctic Reverse Fans
• Total: 8 Pre-Installed ARGB Fans
• ARGB LED Fan Control Panel: Included

Smart Fan Control

• LCD Display Panel: Included
• Fan Speed Control: 800 / 1200 / 1700 / 2200 RPM
• Fan Speed Levels: 4
• ARGB Lighting Control: Supported
• Motherboard ARGB Sync: Supported
• ARGB & PWM Hub: Included

I/O Panel

• USB 3.0: 2
• USB Type-C: 1
• HD Audio: 1
• Power Button: 1
• Reset Button: 1
