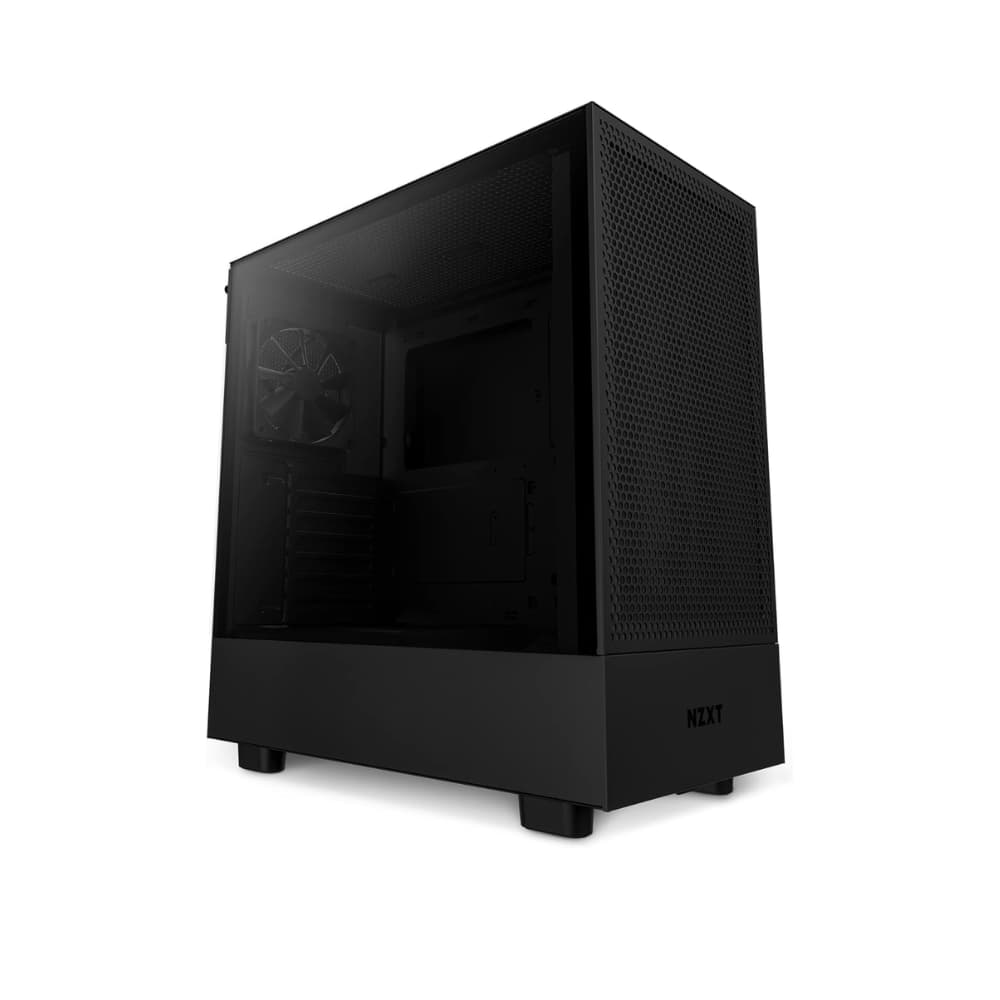

NZXT H5 FLOW ATX Mid-Tower Case – Black

Product Type: Compact ATX Mid-Tower PC Case
Series: H5 Flow (2022)
Color: Black
Model Number: CC-H51FB-01

General

• Enclosure Type: Compact Mid-Tower
• Case Material: SGCC Steel
• Side Panel: Dark Tinted Tempered Glass
• Dimensions (H × W × D): 464 × 227 × 446 mm
• Weight: 7.01 kg

Motherboard Compatibility

• ATX
• Micro-ATX
• Mini-ITX

Component Clearance

• Maximum CPU Cooler Height: 165 mm

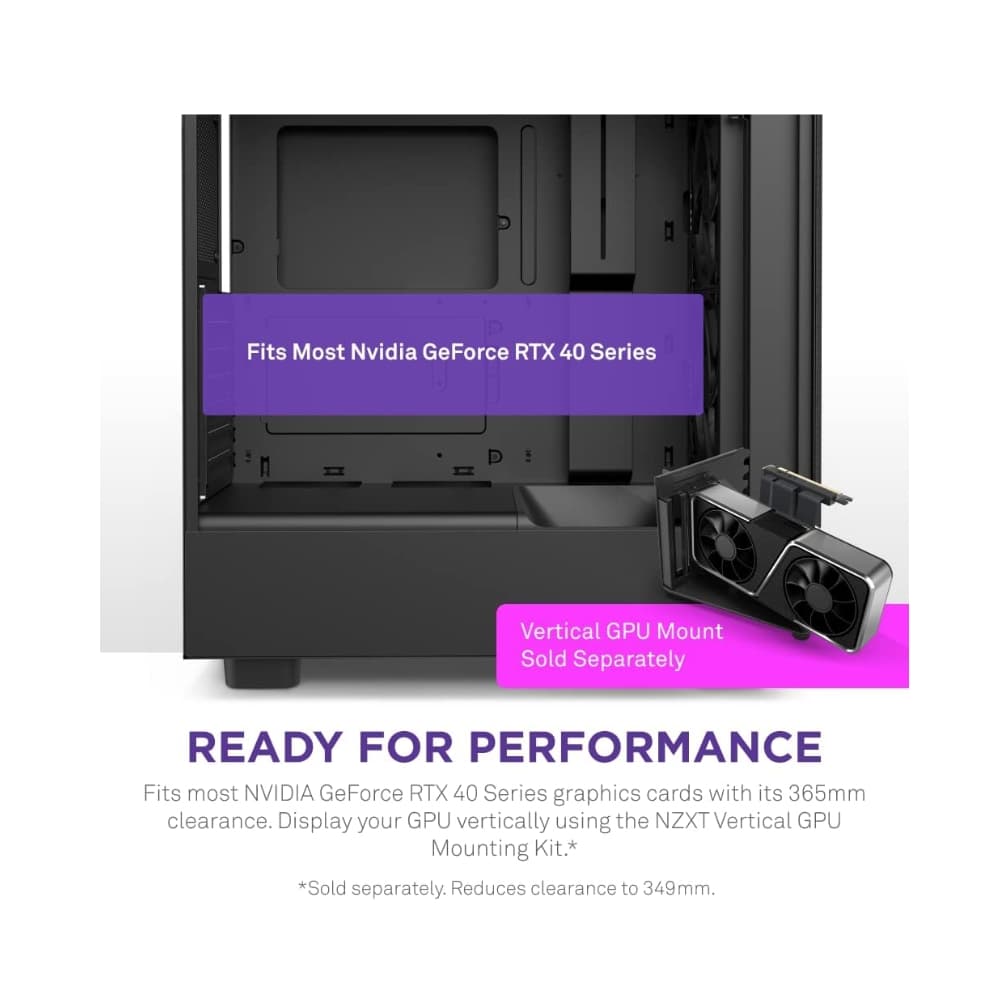

• Maximum GPU Length: 365 mm
• Front Radiator Clearance: 45 mm

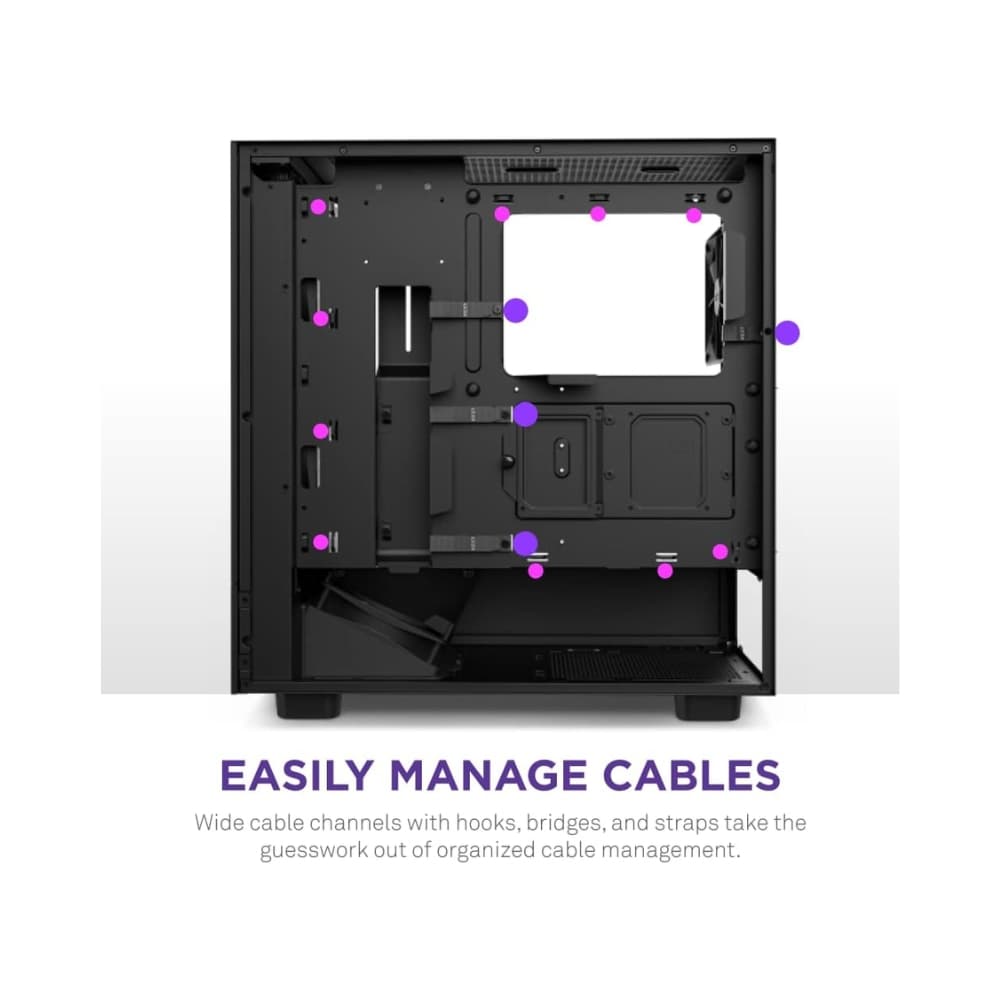

• Cable Management Clearance: Up to 23 mm

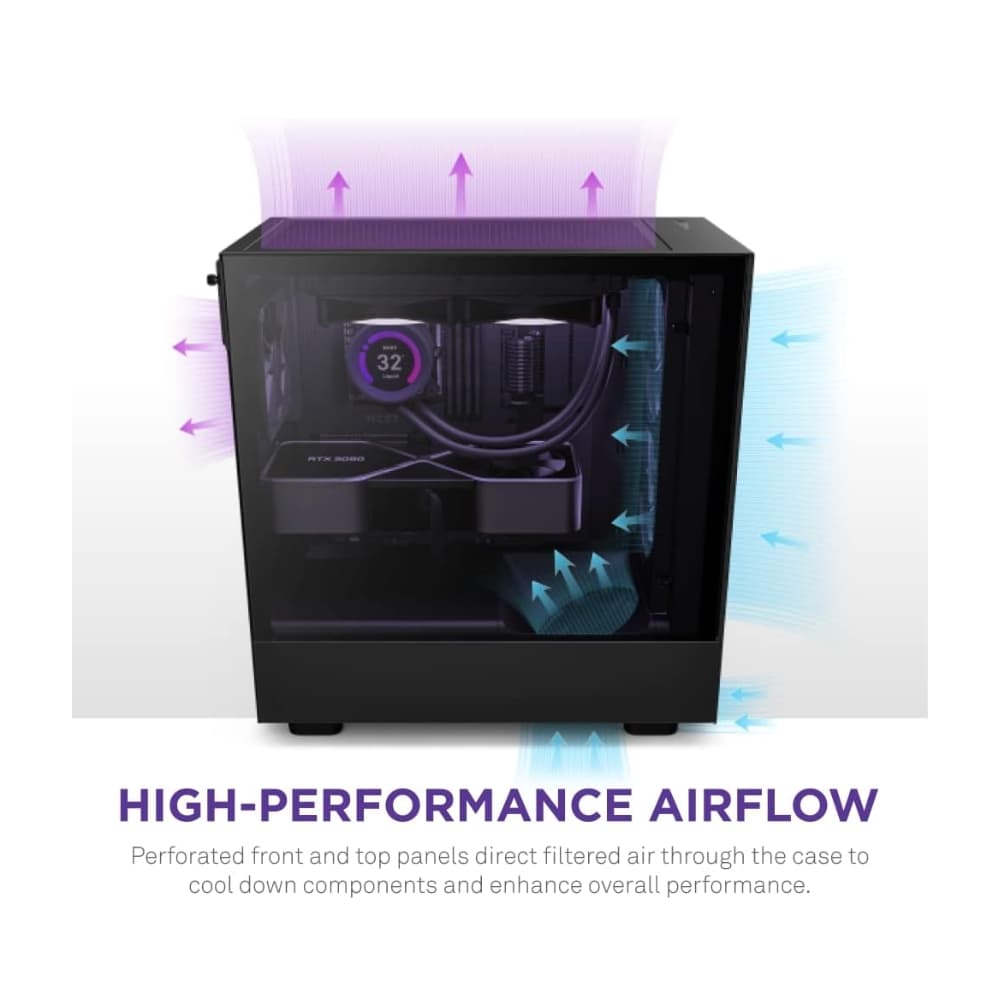

Cooling Support

Front:

• 2 × 120 mm
• 2 × 140 mm

Top:

• 2 × 120 mm

Rear:

• 1 × 120 mm

Bottom:

• 1 × 120 mm

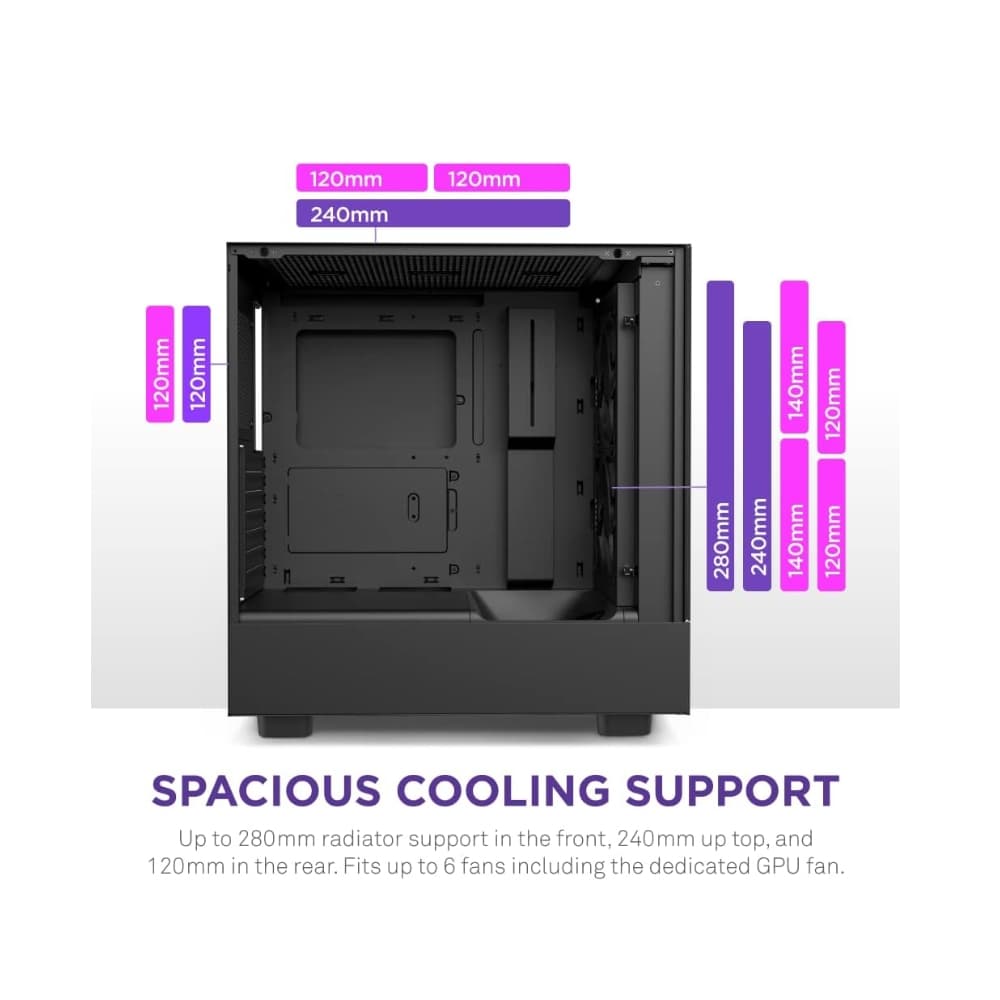

Radiator Support

• Front: Up to 280 mm
• Top: Up to 240 mm
• Rear: Up to 120 mm

Included Fans

F120Q Airflow – Case Version

• Quantity: 2
• Fan Size: 120 mm
• Fan Speed: 1,200 ± 240 RPM
• Airflow: 62.18 CFM
• Static Pressure: 1.05 mm-H₂O
• Noise Level: 25.1 dBA
• Connector: 3-Pin DC

Fan Configuration:

• 1 × Rear F120Q

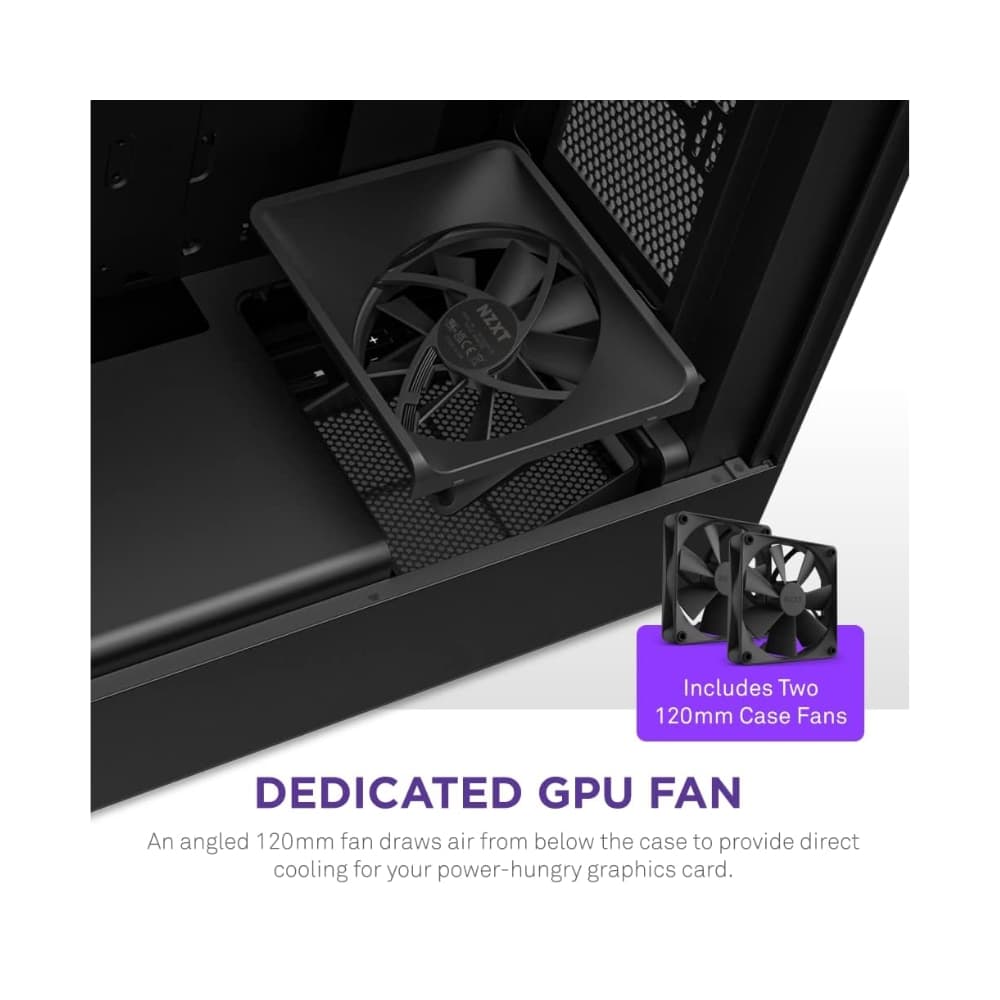

• 1 × Bottom F120Q angled toward the GPU

Front I/O

• USB 3.2 Gen 1 Type-A: 1
• USB 3.2 Gen 2×2 Type-C: 1
• 3.5 mm Headset Jack: 1

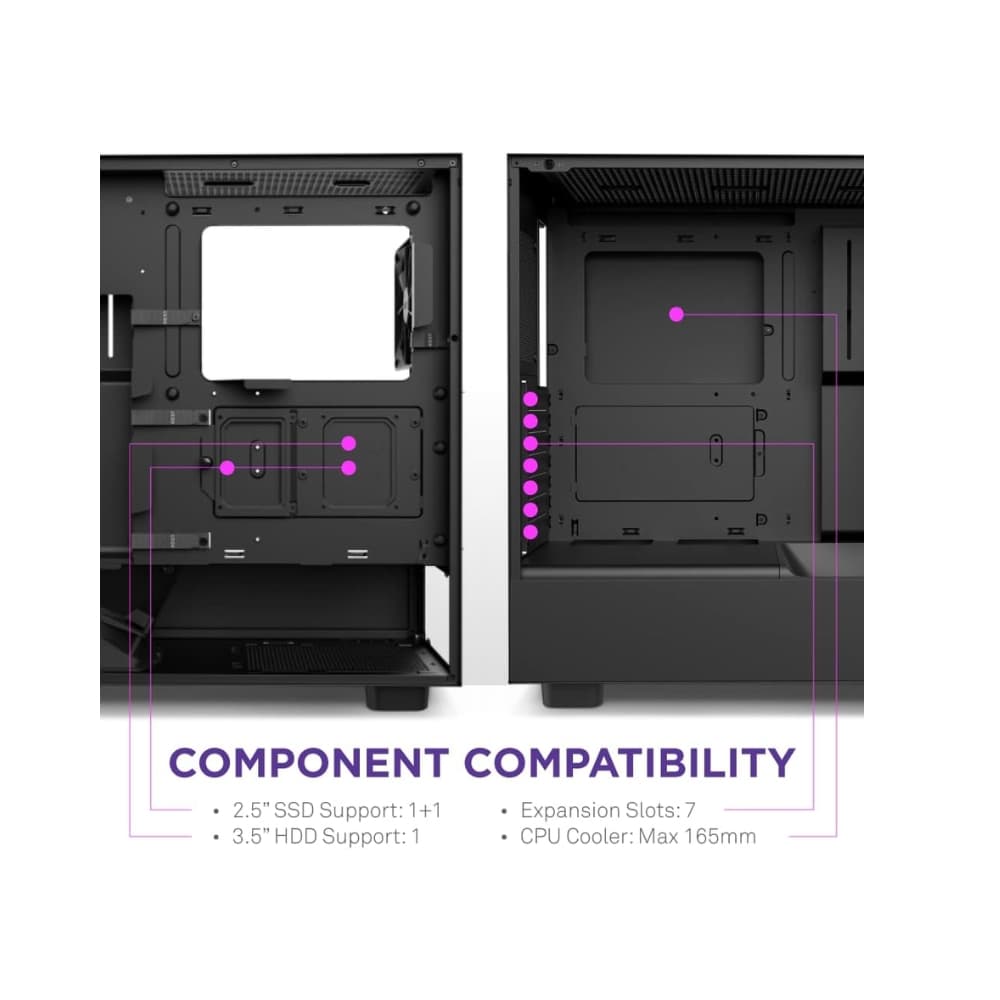

Expansion & Storage

• Standard Expansion Slots: 7
• Vertical Expansion Slots: 0
• 2.5″ Drive Bays: 2
• 3.5″ Drive Bays: 1
