NZXT H5 FLOW RGB EDITION ATX MID TOWER CASE-WHITE

Product Type: Mid-Tower PC Case
Series: NZXT H5 Flow (2022)
Model: H5 Flow
Color: White

---

General

Case Material: SGCC Steel & Ultra-Clear Tempered Glass

Case Type: Compact Mid-Tower

Motherboard Support

• ATX
• Micro-ATX
• Mini-ITX

---

Storage Support

Drive Bays

• 1 × 3.5″ HDD
• 2 × 2.5″ SSD

---

Expansion

Expansion Slots: 7

Vertical GPU Support: Compatible with NZXT Vertical GPU Mounting Kit

---

Front I/O

USB Ports

• 1 × USB 3.2 Gen 2 Type-C
• 1 × USB 3.2 Gen 1 Type-A

Audio

• 3.5mm Headset Jack

Controls

• Power Button

---

Cooling Support

Front

• 2 × 120mm Fans
• 2 × 140mm Fans

Top

• 2 × 120mm Fans

Rear

• 1 × 120mm Fan

Bottom

• 1 × 120mm Fan (Angled GPU Cooling)

---

Pre-Installed Fans

Rear

• 1 × F120Q Airflow Fan (Case Version)

Bottom

• 1 × F120Q Airflow Fan (Case Version)

---

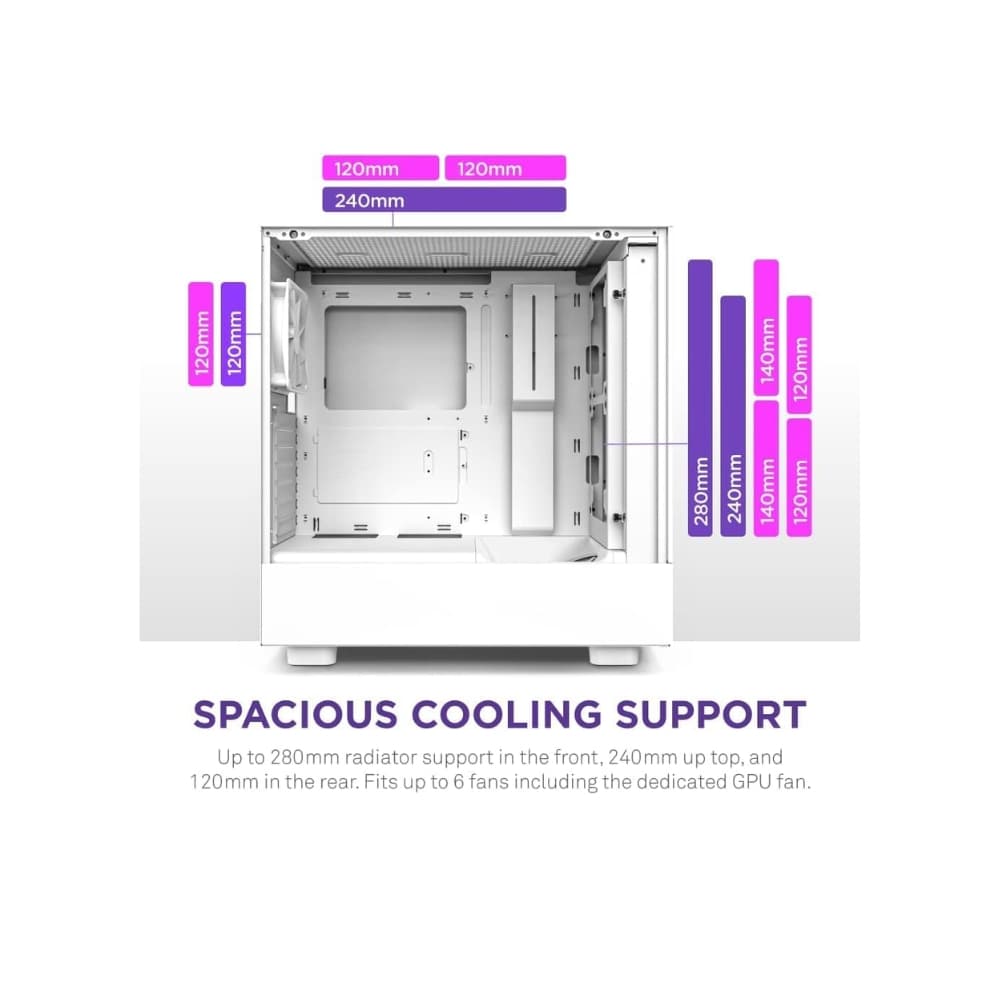

Radiator Support

Front

• Up to 280mm

Top

• Up to 240mm

Rear

• Up to 120mm

---

RGB Lighting

Lighting: None

Control: N/A

Software Support: N/A

---

Clearance

Maximum CPU Cooler Height: 165mm

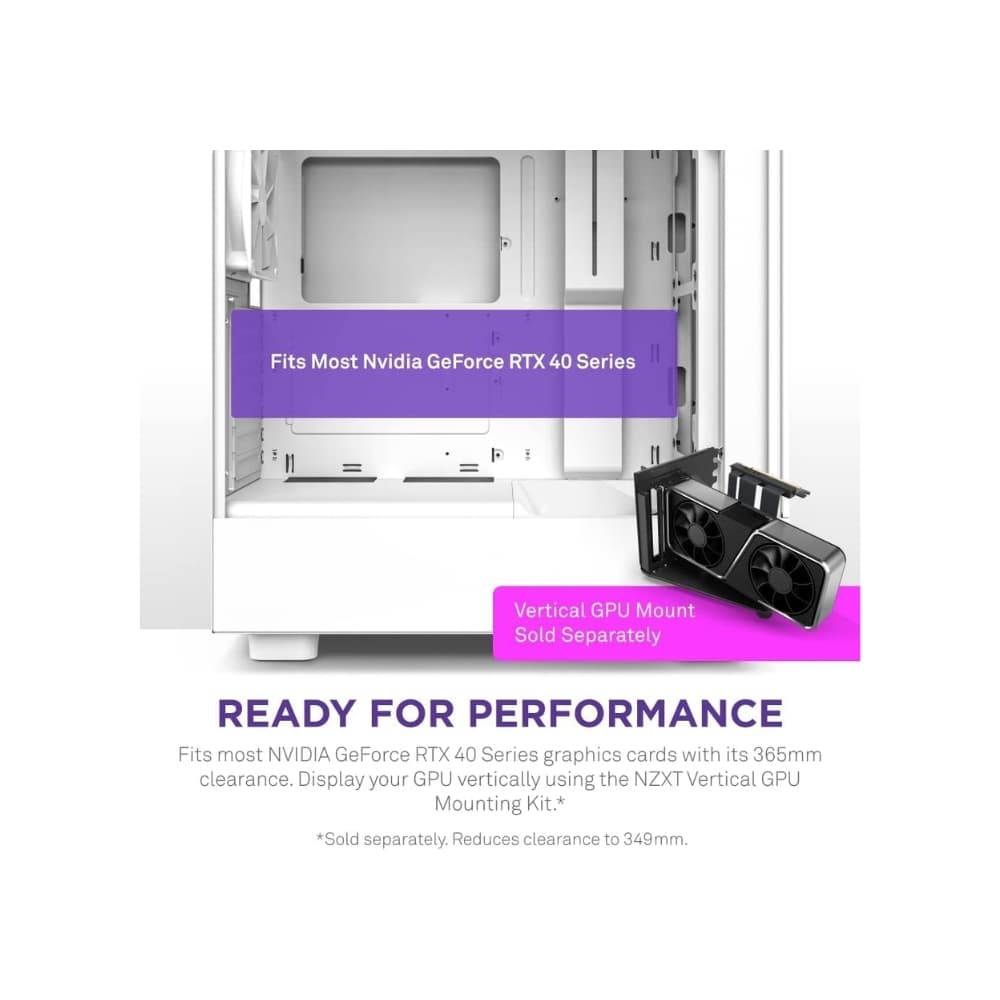

Maximum Graphics Card Length: 365mm

Maximum Power Supply Length: Standard ATX

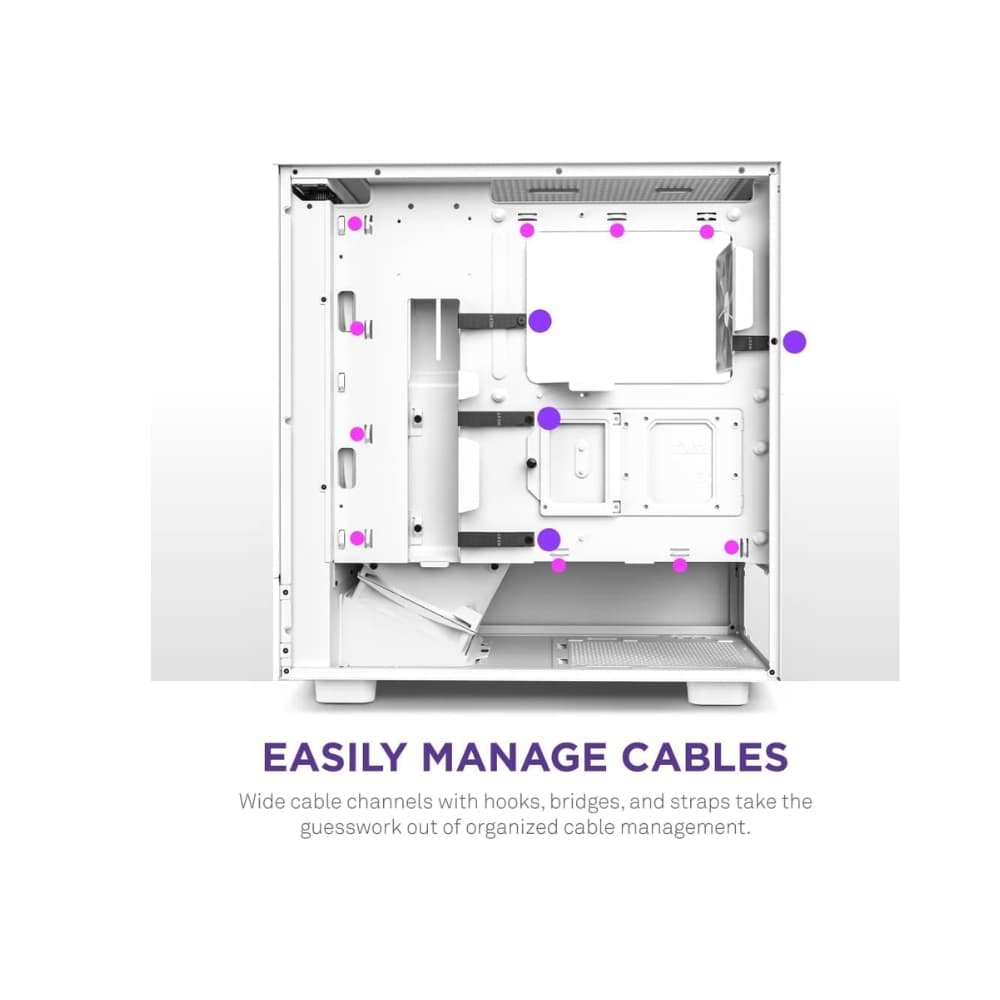

Cable Management Clearance: Up to 23mm

---

Dust Protection

Removable Dust Filters:

• Front
• Top
• Bottom

---

Dimensions & Weight

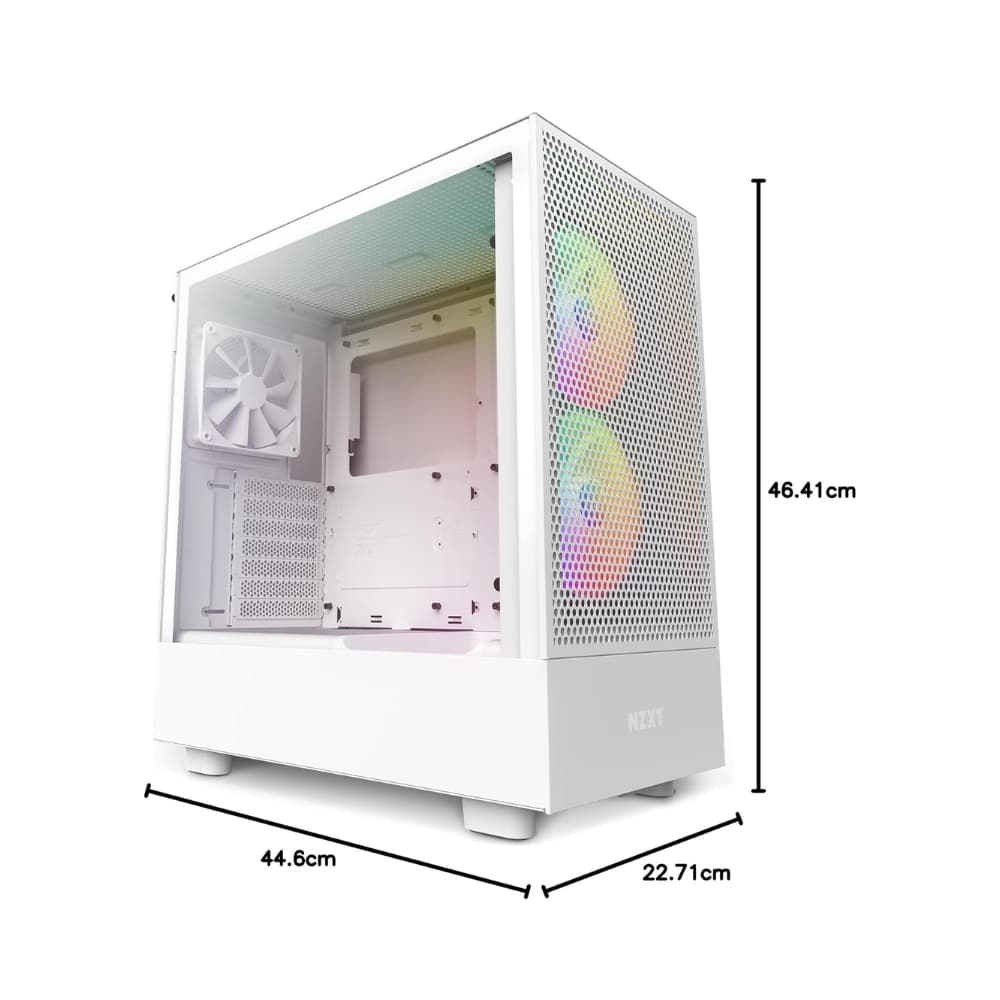

Dimensions (H × W × D): 464 × 227 × 446mm

Net Weight: 7.01kg

---

Package Contents

• NZXT H5 Flow (2022) White Case
• 2 × F120Q Airflow Fans (Rear & Bottom)
• Installation Accessories
• User Guide (NZXT)
