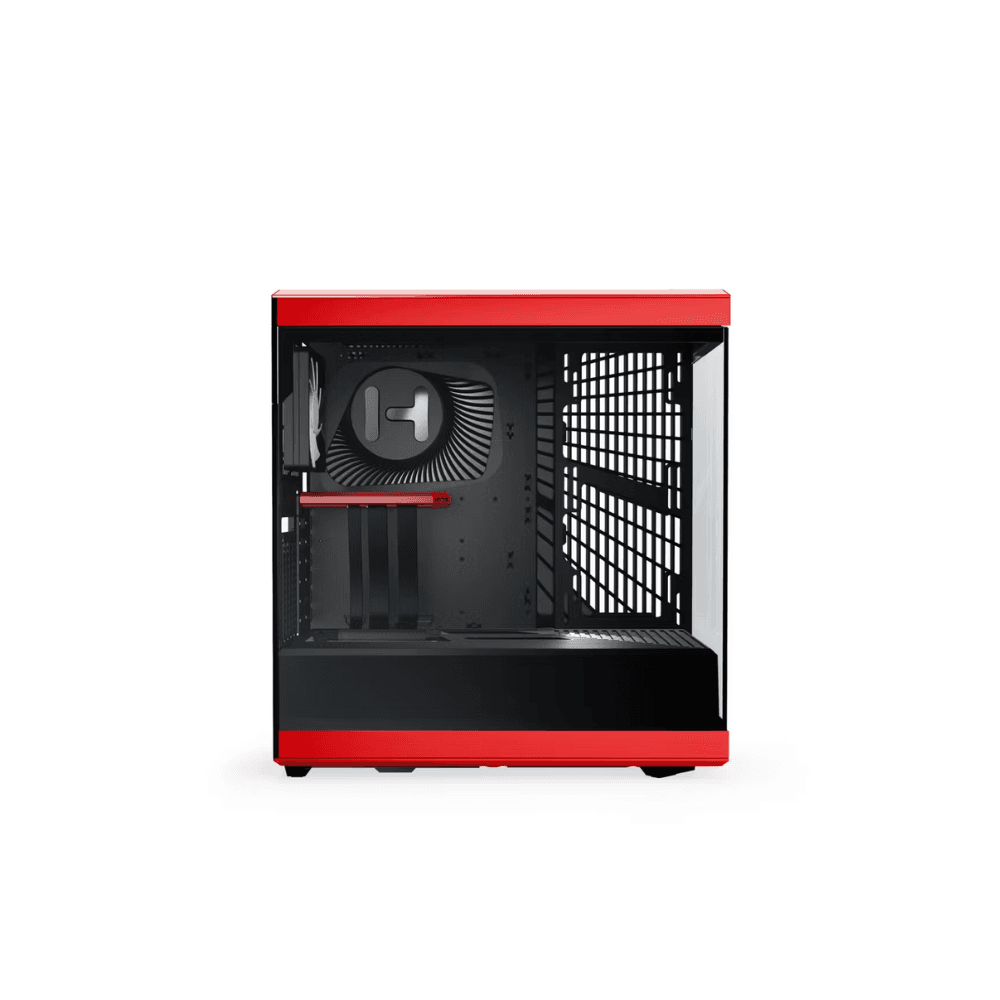

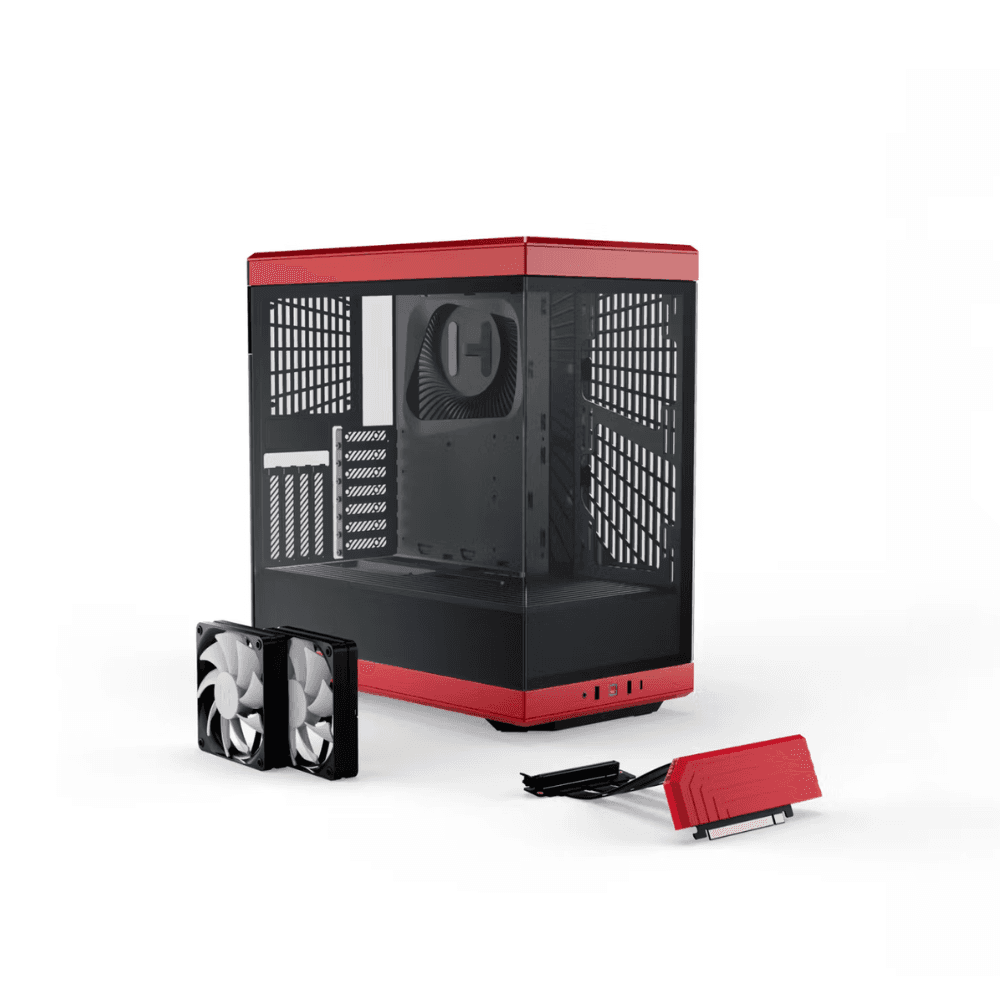

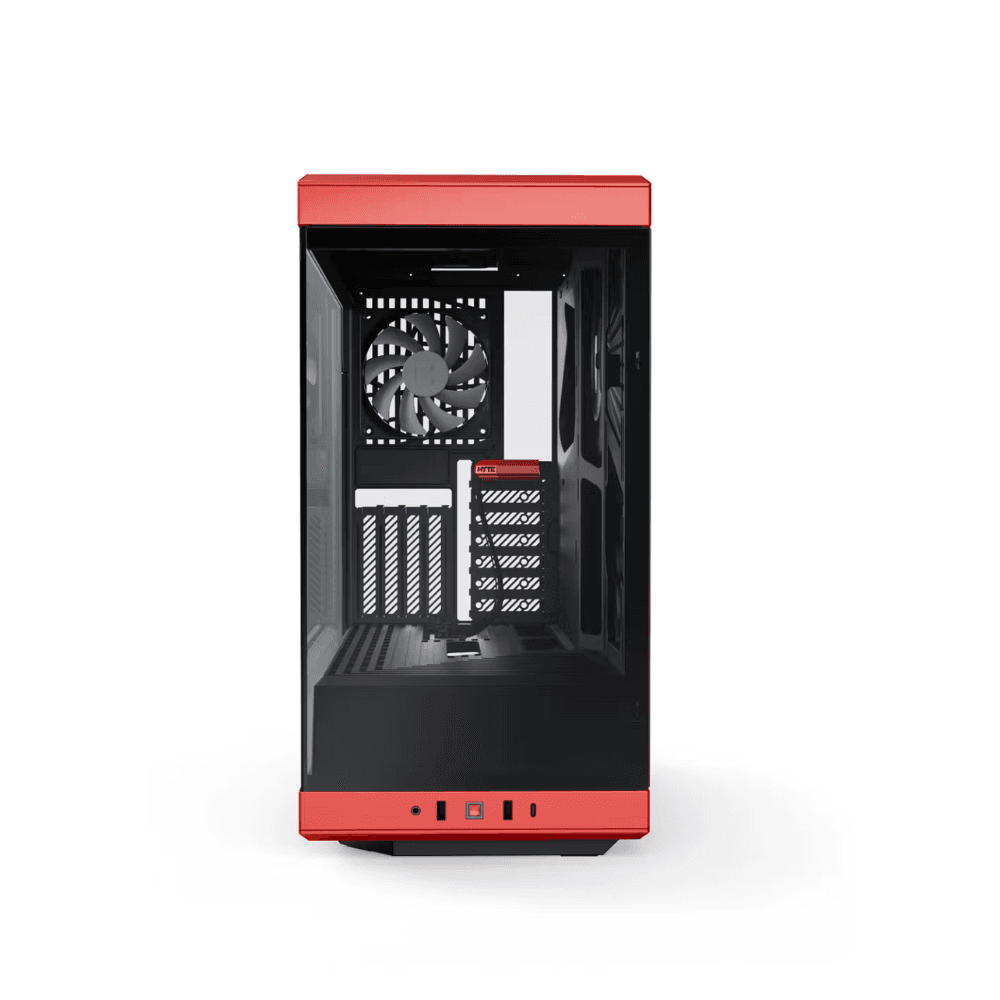

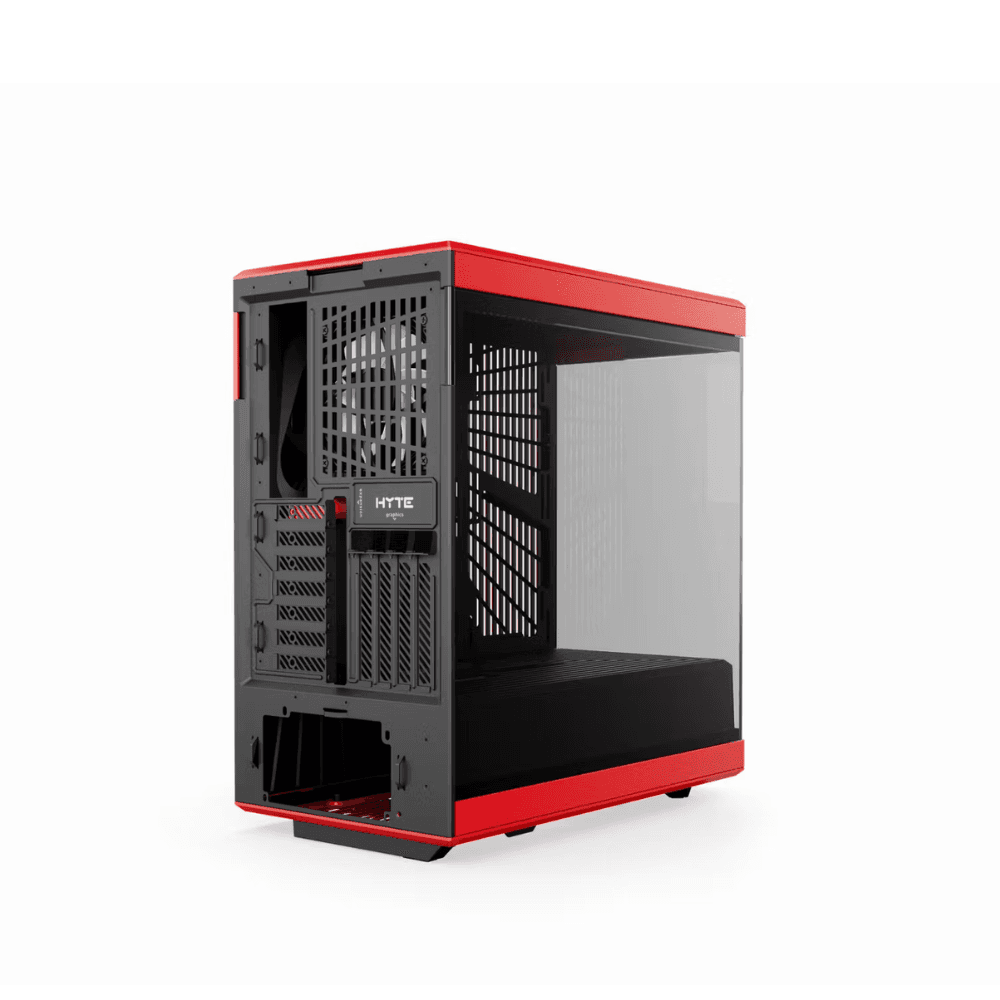

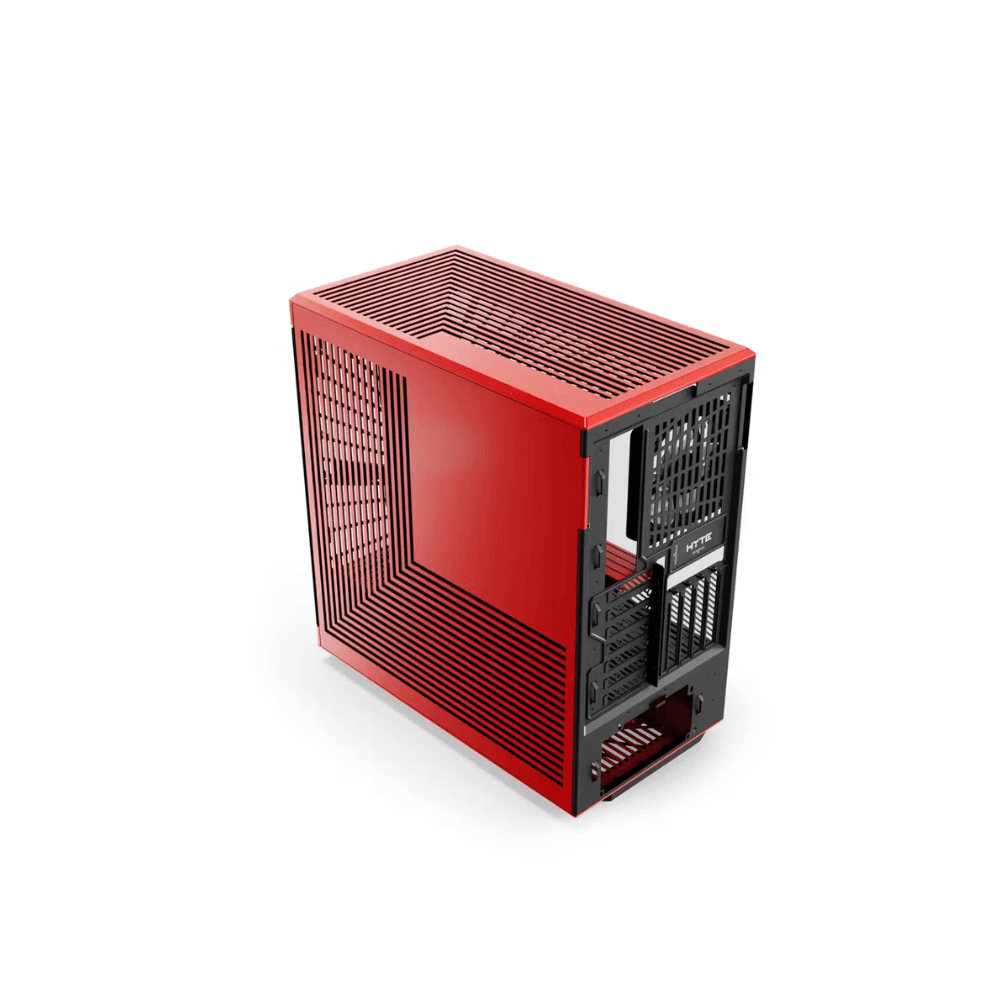

HYTE Y40 ATX MID TOWER CASE – RED

Description

Product Type: ATX Mid-Tower PC Case
Series: HYTE Y40
Model: Y40
Color: Red (Black Cherry)

General

Case Material: Steel, ABS Plastic & Tempered Glass

Side Panels: 2-Piece Panoramic Tempered Glass

Case Type: ATX Mid-Tower

Volume: 50 Liters

Motherboard Support:

• Mini-ITX

• Micro-ATX

• ATX (HYTE)

Storage Support

Drive Bays:

• 1 × 3.5″ HDD

• 2 × 2.5″ SSDs (HYTE)

Expansion

Expansion Slots:

• 4 × Full-Height Vertical

• 6 × Half-Height Expansion

Included Riser Cable:

• PCIe 4.0 x16 Vertical GPU Riser Cable Included (HYTE)

Front I/O

USB Ports:

• 1 × USB 3.2 Gen 2 Type-C

• 2 × USB 3.0 Type-A

Audio:

• 1 × 3.5mm Headset Combo Jack (HYTE)

Cooling Support

Top:

• 3 × 120mm Fans

Side:

• 2 × 120mm Fans

• 2 × 140mm Fans

Bottom:

• 1 × 120mm Fan

• 1 × 140mm Fan

Rear:

• 1 × 120mm Fan (HYTE)

Pre-Installed Fans

Bottom:

• 1 × 120mm Fan (1300 RPM)

Rear:

• 1 × 120mm Fan (1300 RPM) (HYTE)

Radiator Support

Top:

• 120mm

• 240mm

• 360mm

Side:

• 120mm

• 140mm

• 240mm

• 280mm (Up to 120mm Combined Thickness)

Rear:

• 120mm (HYTE)

Clearance

Maximum CPU Cooler Height: 183mm

Maximum Graphics Card Length: 422mm

Maximum Graphics Card Thickness: 94mm (80mm Recommended for Optimal Airflow)

Maximum Power Supply Length: 224mm (HYTE)

Cable Management

Design: Dual-Chamber Inspired Layout

Features:

• Integrated Cable Routing Channels

• PSU Shroud Cable Shelf

• Velcro Cable Straps (HYTE)

Dust Protection

Dust Filters:

• Top

• Side

• Bottom (×2) (HYTE)

Dimensions & Weight

Dimensions (H × W × D): 472 × 240 × 439mm

Volume: 50L (HYTE)
