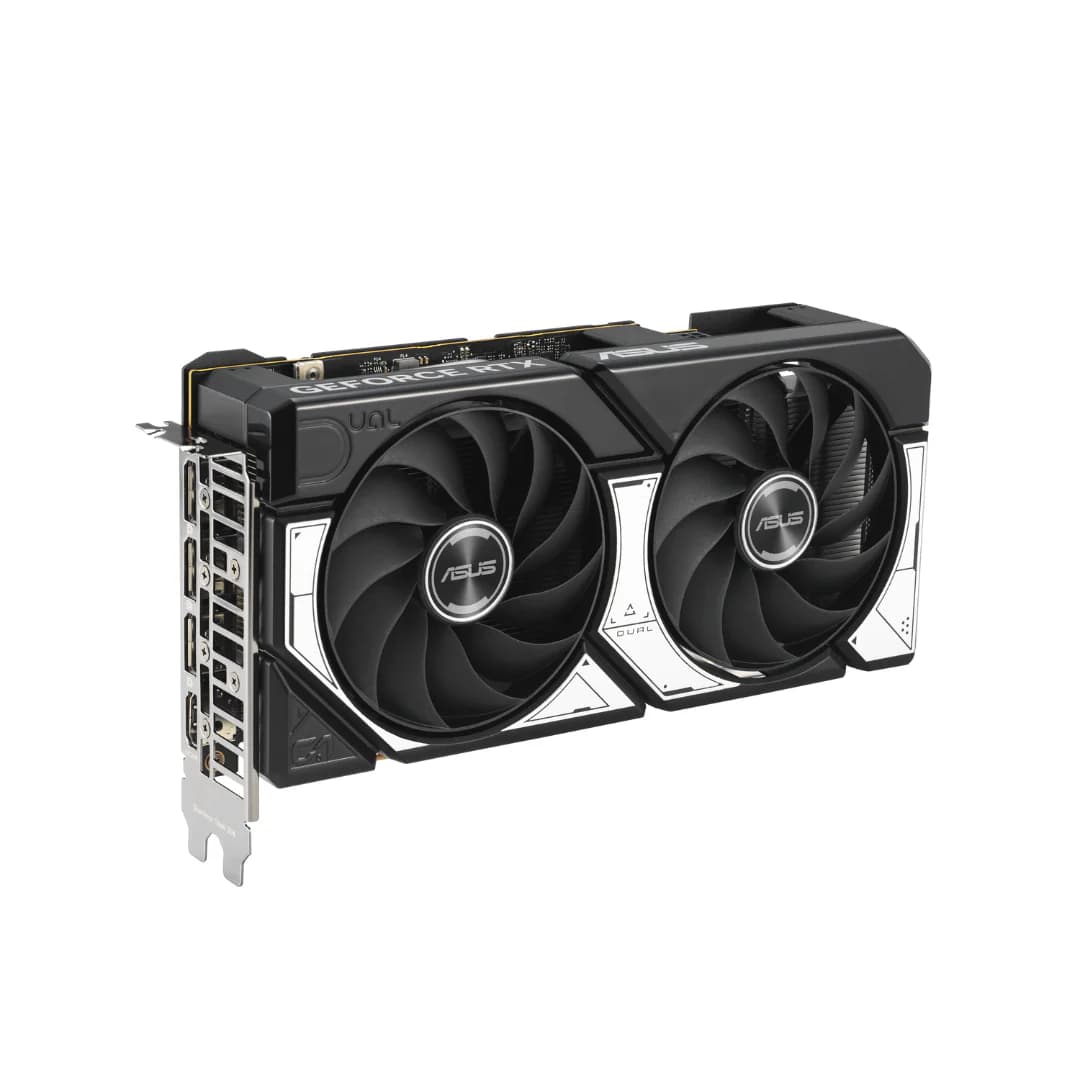

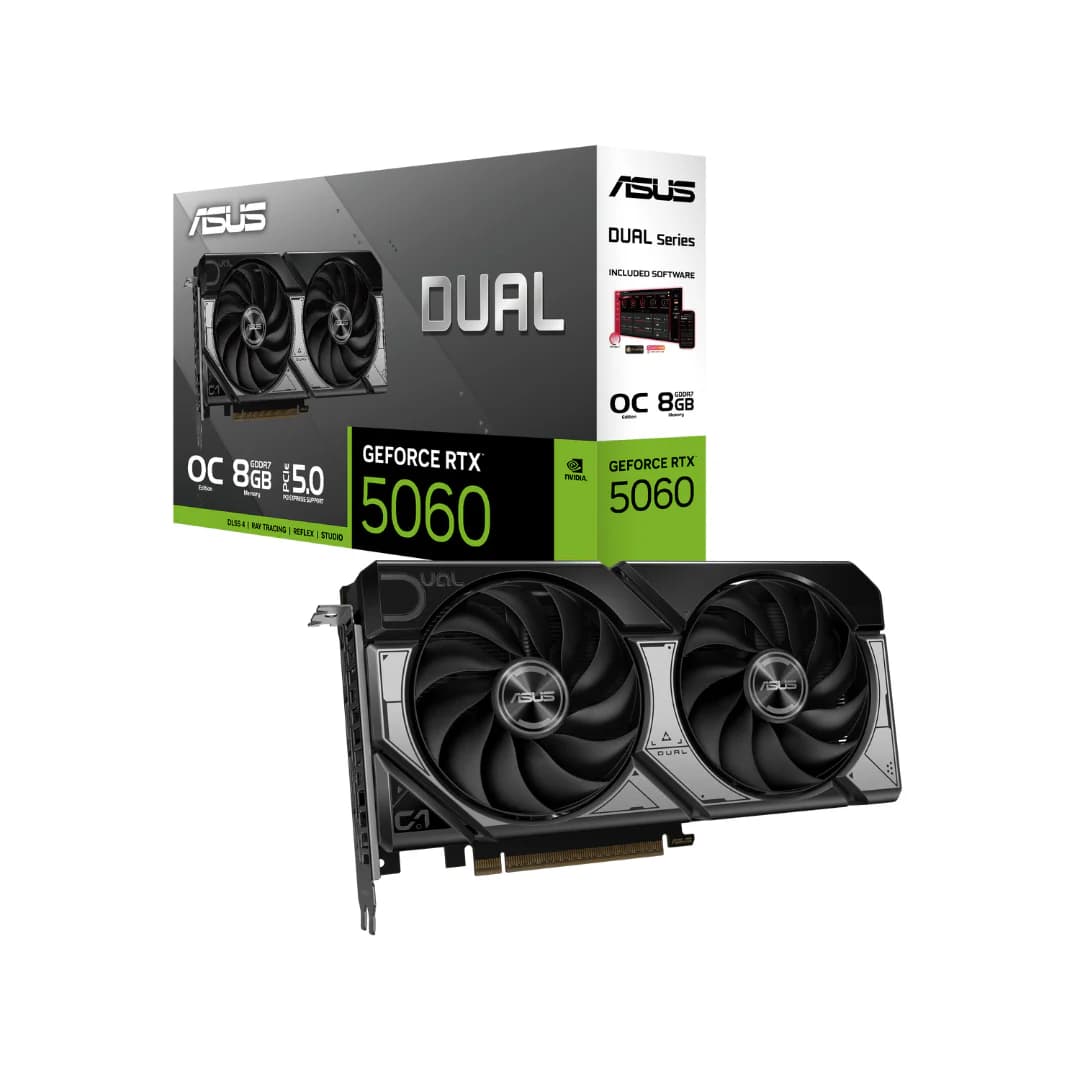

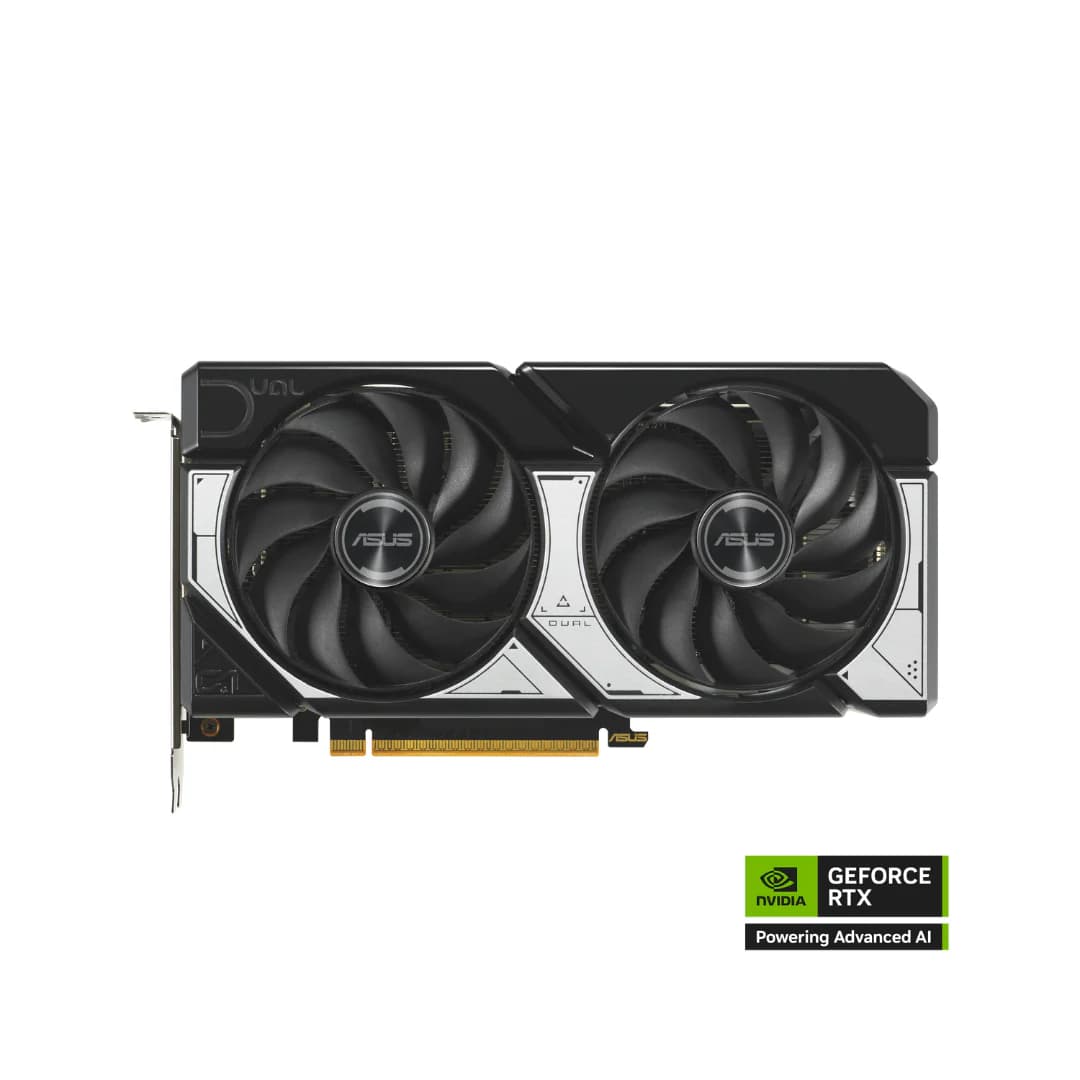

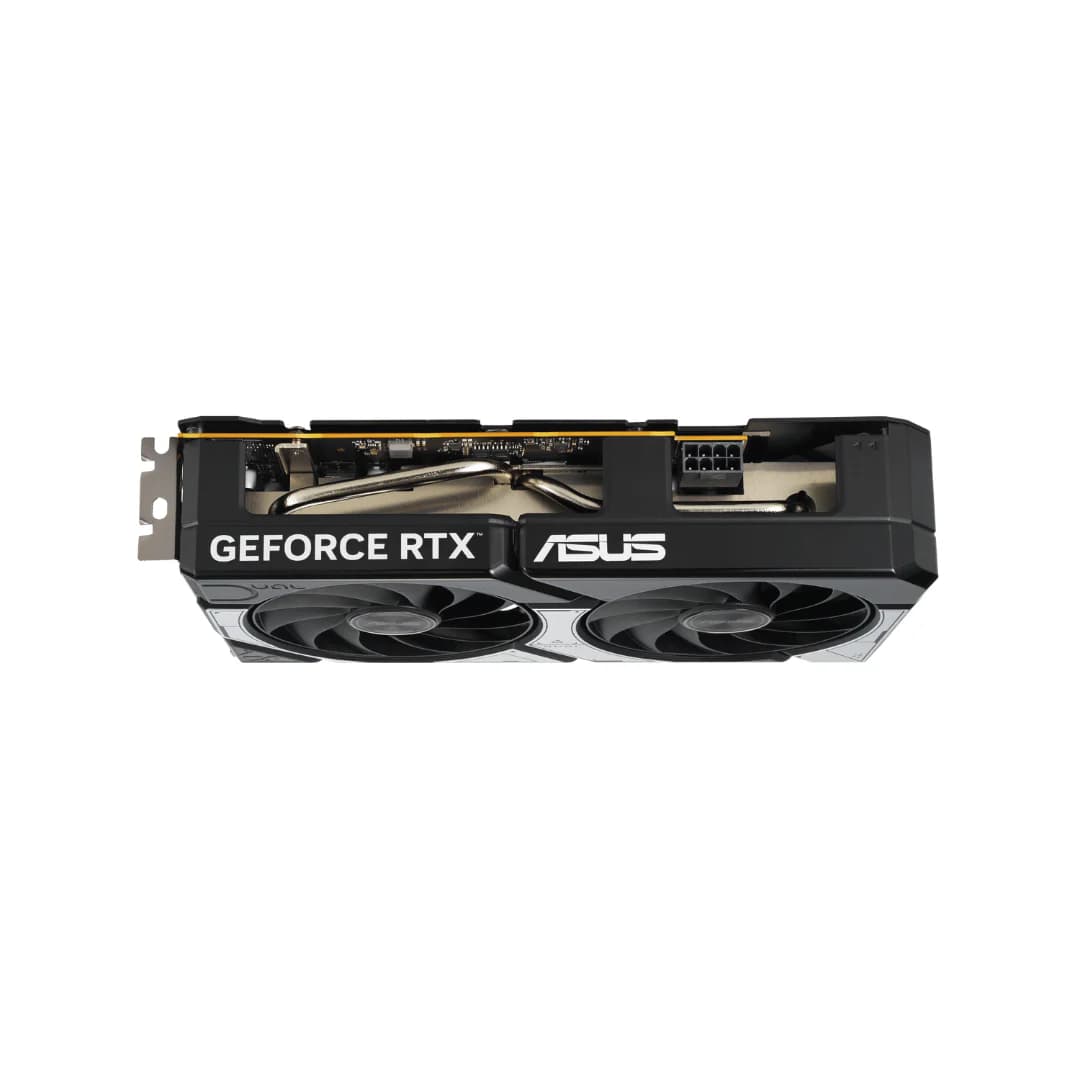

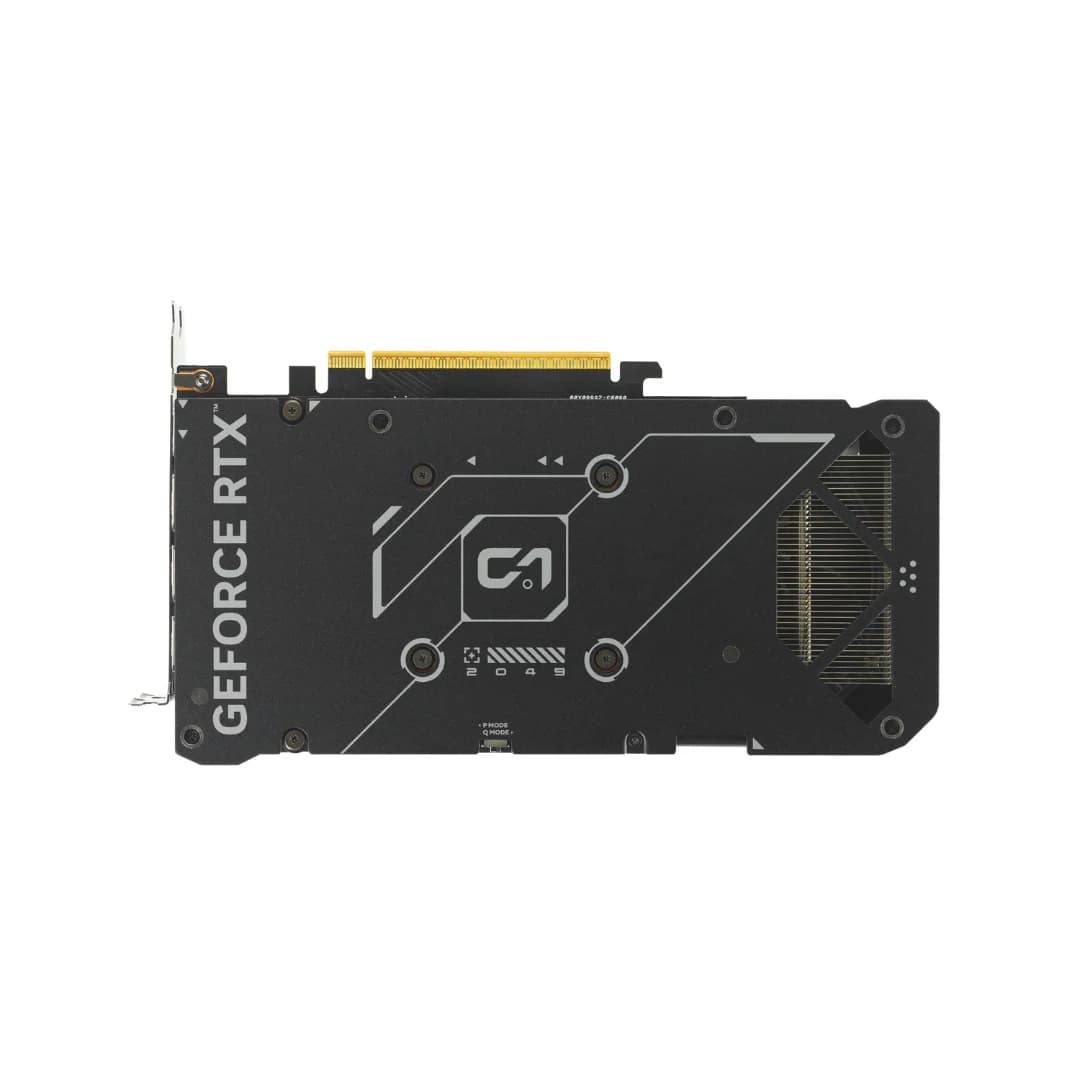

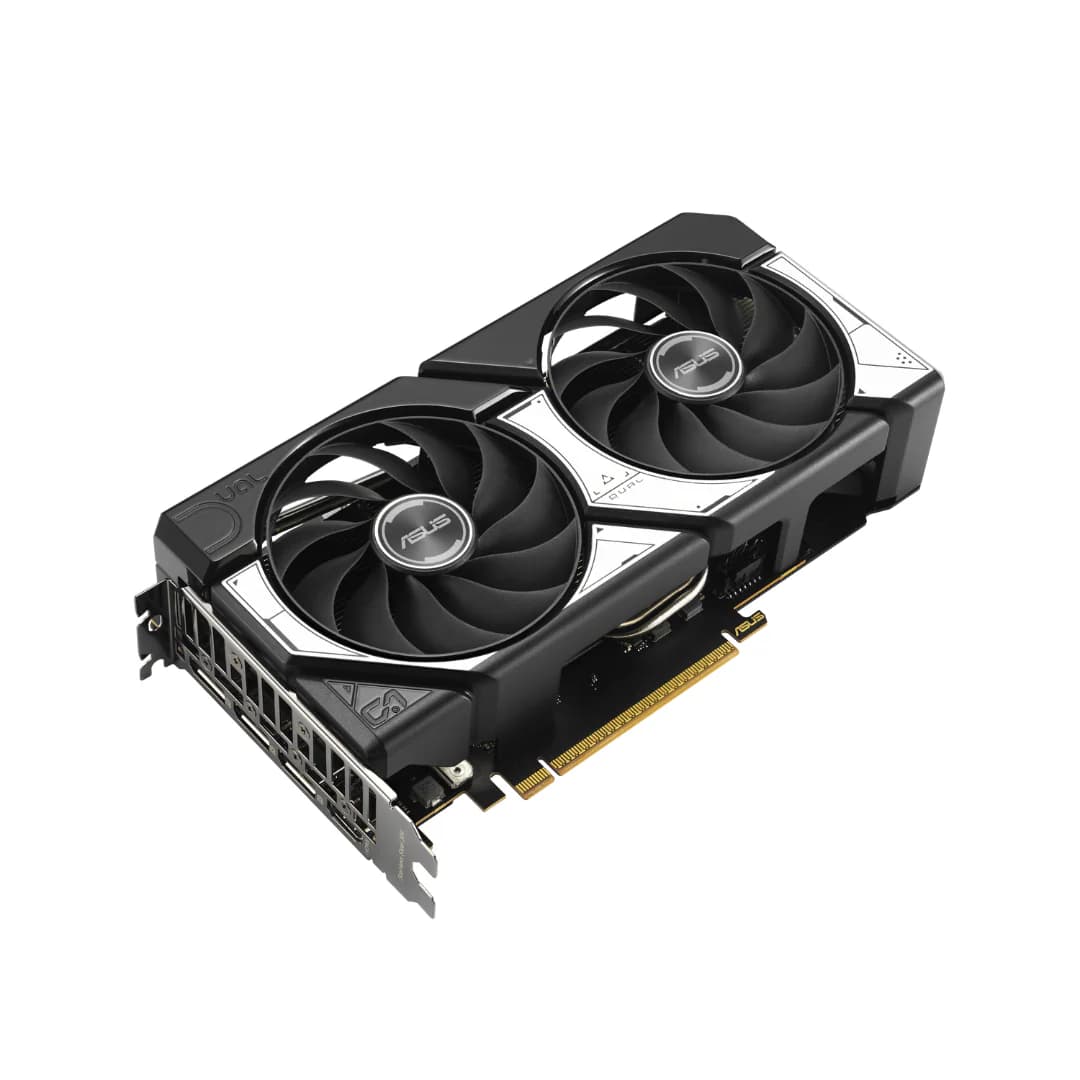

ASUS Dual GeForce RTX 5060, NVIDIA, , 8GB GDDR7, ,

Graphics Card Specification

• GPU Architecture: NVIDIA Blackwell 2.0 – GB206-250-A1

• CUDA Cores: 3840

• Ray Tracing Cores: 4th Gen RT Cores (×30)

• Tensor Cores: 5th Gen Tensor Cores (×120)

• Base Clock: 2280 MHz

• Boost Clock: 2535 MHz (OC Mode)

• Memory: 8GB GDDR7

• Memory Speed: 28 Gbps

• Memory Interface: 128-bit

• Memory Bandwidth: 448 GB/s

• Bus Interface: PCIe 5.0 x8

• Max Resolution: 7680 × 4320

• Display Outputs:

– 1 × HDMI 2.1b

– 3 × DisplayPort 2.1b

• DirectX / OpenGL / Vulkan:

– DirectX 12 Ultimate

– OpenGL 4.6

– Vulkan 1.4

• NVENC / NVDEC: 9th Gen / 6th Gen

• Cooling: Dual Axial-tech fans with 0dB technology

• Slot Design: 2.5-slot

• Dimensions: 228 × 123 × 50 mm

• Power Connector: 1 × 8-pin

• TDP: 145W

• Recommended PSU: 550W

• Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready & Studio Drivers
