Name: GIGABYTE B760 DS3H WF6E GEN5 LGA1700
Brand: GIGABYTE
SKU: FW 030664
Price: 240000 IQD
Availability: InStock

GIGABYTE B760 DS3H WF6E GEN5 LGA1700

(0 Reviews)

Brand: GIGABYTE

IQD 240,000

In Stock

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel® B760 Express Chipset
Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (4096×2304@60 Hz, DisplayPort 1.2, HDCP 2.3)
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Communication module	Intel® Wi-Fi 6E AX210, WIFI a/b/g/n/ac/ax (2.4/5/6 GHz), BLUETOOTH 5.3, 11ax 160MHz wireless standard
Expansion Slots	CPU: 1 x PCI Express x16 slot, PCIe 5.0 x16 (PCIEX16); Chipset: 4 x PCI Express x16 slots, PCIe 3.0 x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2) (M2A_CPU); Chipset: 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 4.0 x4/x2) (M2P_SB), 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: 1 x USB Type-C® port (back panel, USB 3.2 Gen 2×2), 1 x USB Type-C® header (USB 3.2 Gen 1, internal), 1 x USB 3.2 Gen 2 Type-A port (red, back panel), 2 x USB 3.2 Gen 1 ports (internal), 4 x USB 2.0/1.1 ports (back panel); Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports (internal)
Internal I/O Connectors	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C® header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header, 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper

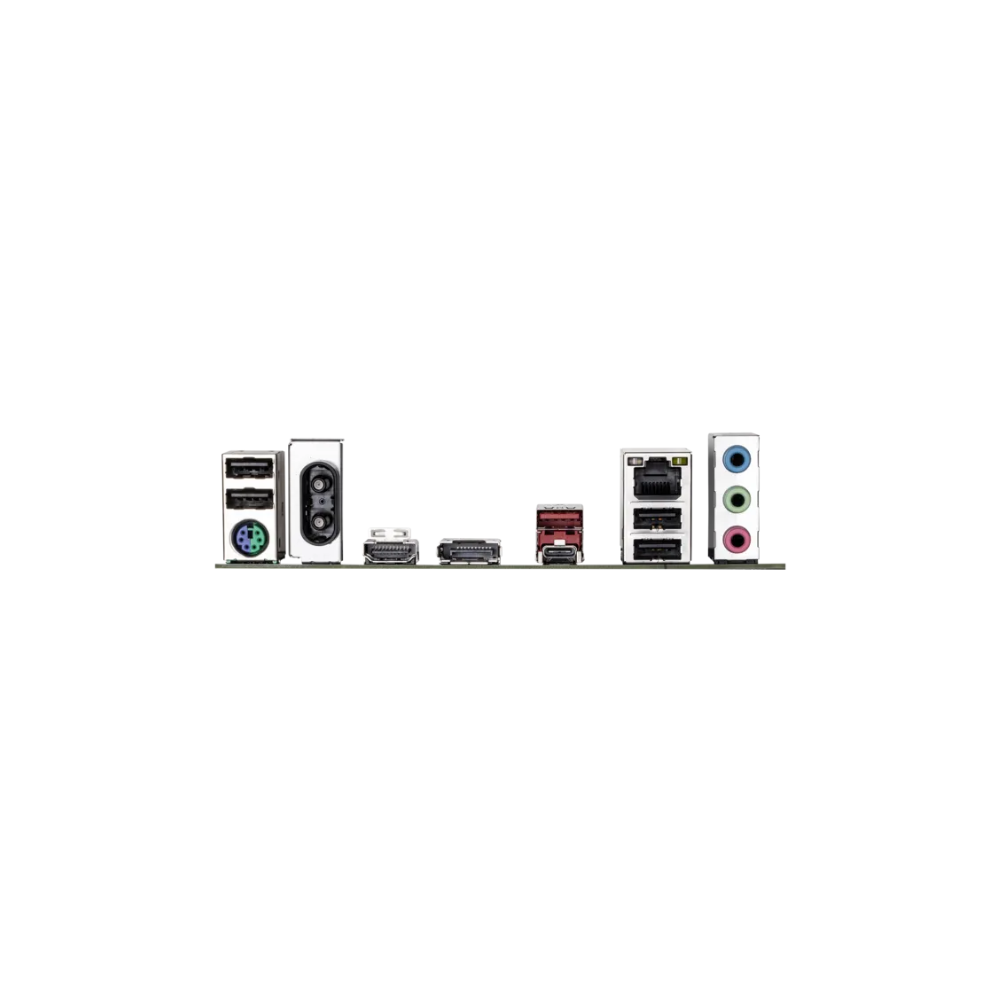

Back Panel Connectors	1 x PS/2 keyboard/mouse port, 2 x antenna connectors (2T2R), 1 x USB Type-C® port (USB 3.2 Gen 2×2), 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x DisplayPort, 1 x RJ-45 port, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS	1 x 128 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System	Support for Windows 11 64-bit, Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
