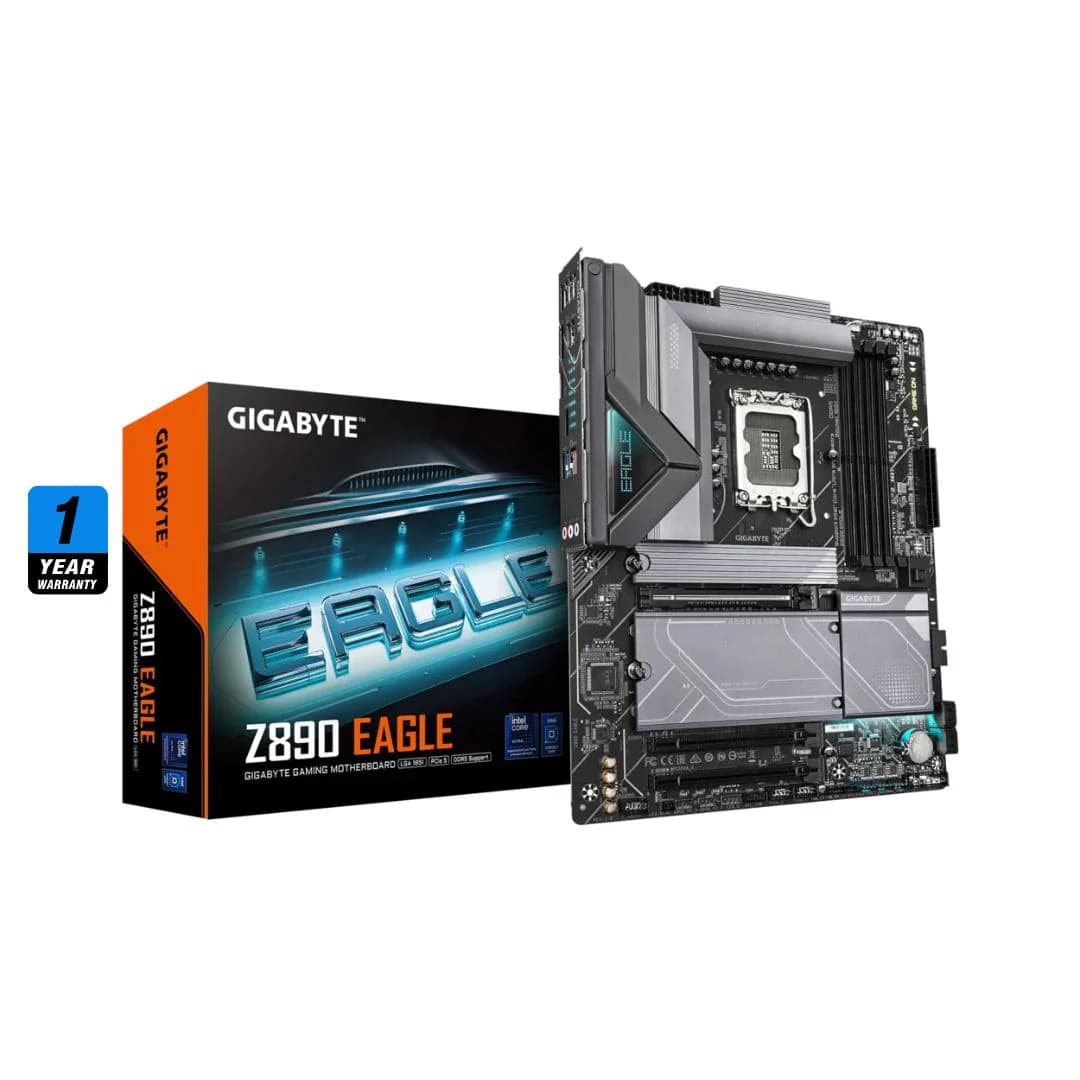

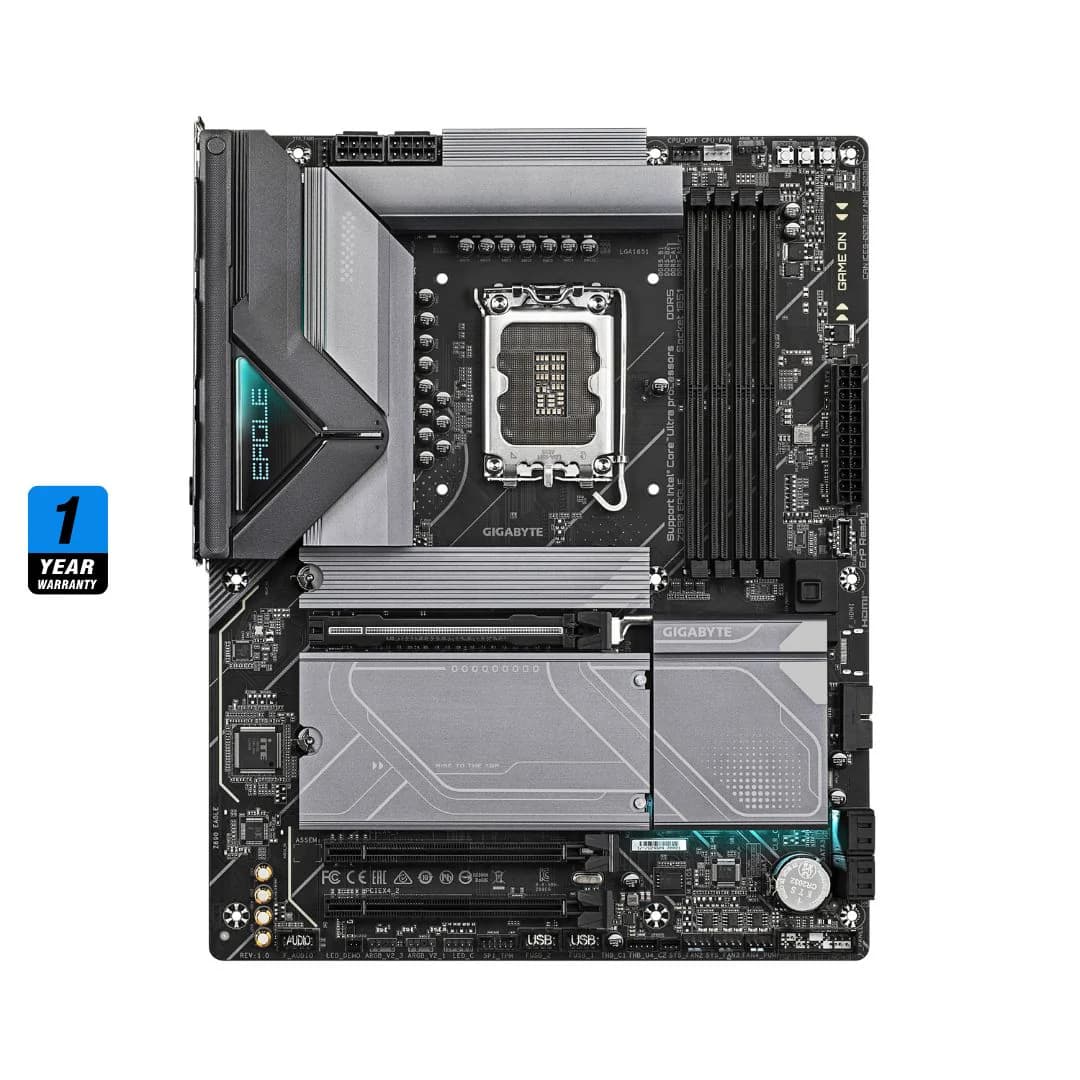

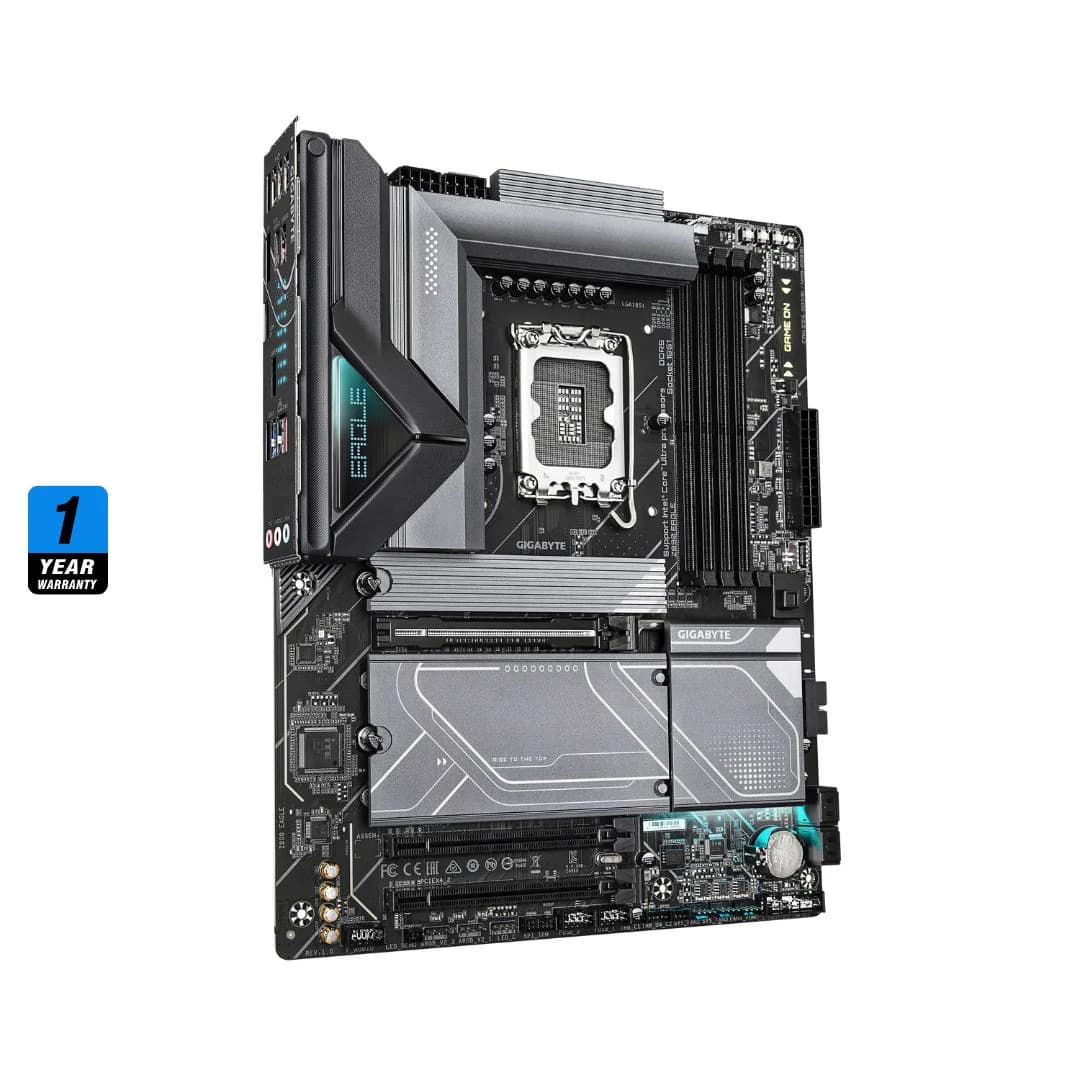

Name: Gigabyte Z890 EAGLE, Motherboard
Brand: GIGABYTE
SKU: GL 109075
Price: 385000 IQD
Availability: InStock

Storage	2 x M.2 (CPU) – PCIe 5.0 x4 & PCIe 4.0 x4; 2 x M.2 (Chipset) – PCIe 4.0 x4 & PCIe 4.0 x4 + SATA; 4 x SATA 6Gb/s; RAID 0/1/5/10 for NVMe and SATA
USB	Back Panel: 1 x USB4® Type-C®, 2 x USB 3.2 Gen2 Type-A, 3 x USB 3.2 Gen1, 4 x USB 2.0; Internal: 1 x USB-C Gen2, 1 x USB 3.2 Gen1 header, 2 x USB 2.0 headers (4 ports total)
Processor Support	LGA1851 socket, supports Intel® Core™ Ultra Processors
Chipset	Intel® Z890 Express
Memory Support	4 x DDR5 DIMM slots, up to 256GB; Supports up to 8800MT/s (OC); ECC (non-ECC mode), XMP supported; Dual channel architecture
Graphics Ports	1 x USB4® Type-C® – up to 3840x2160@144Hz; 1 x DisplayPort 2.1 – up to 3840x2160@144Hz; graphics support depends on CPU
Expansion Slots	1 x PCIe 5.0 x16; 2 x PCIe 4.0 x4 (from chipset)
Ethernet	Realtek® 2.5GbE LAN
Wireless & Bluetooth	None listed
Audio	Realtek® HD Audio, 7.1-channel, supports S/PDIF Out
Internal I/O Connectors	2 x 8-pin + 1 x 24-pin power; 4 x M.2, 4 x SATA; USB-C, USB 3.2 Gen1, USB 2.0; ARGB & RGB headers, TPM, power, reset, Q-Flash Plus, Thunderbolt add-in

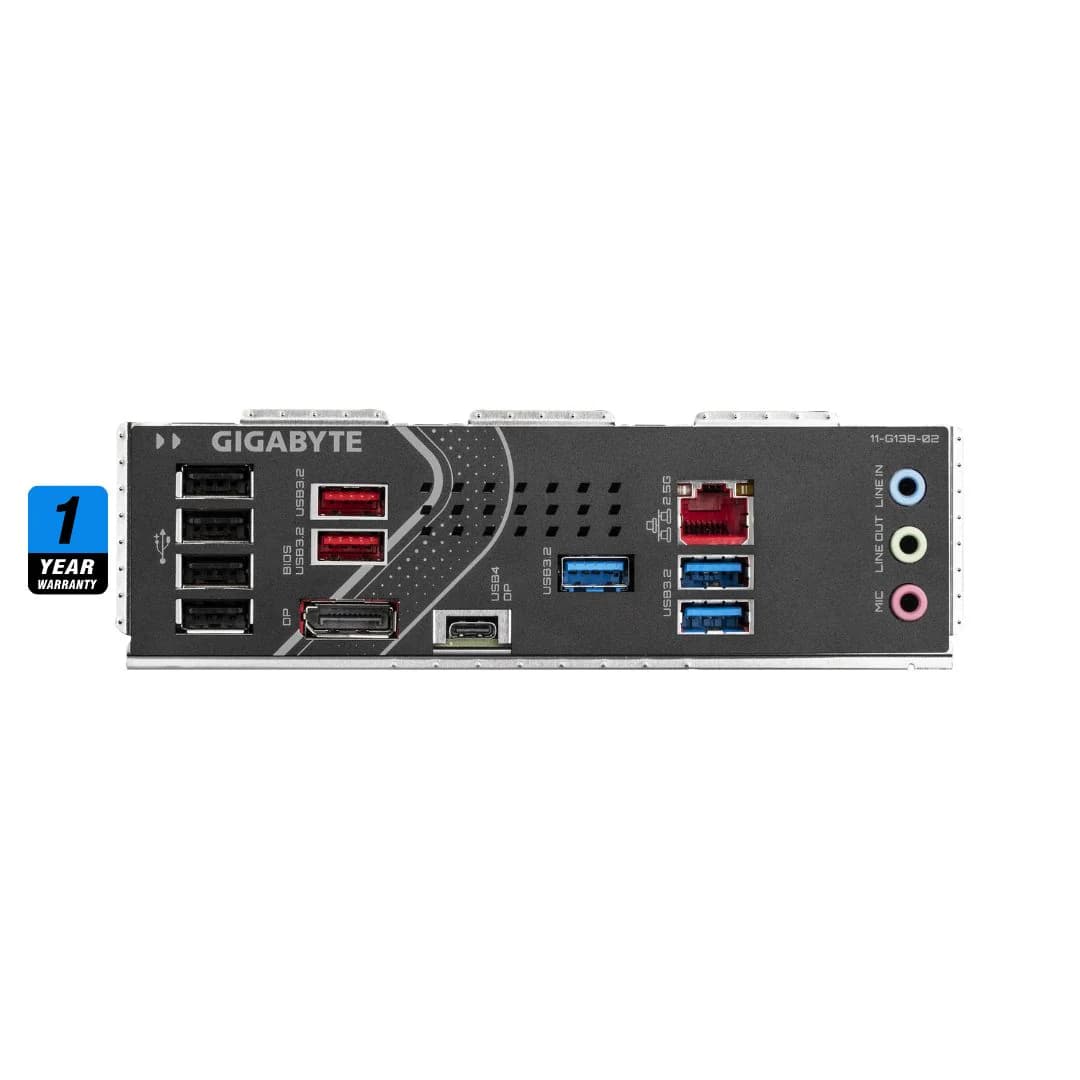

Back Panel I/O Ports	1 x USB4® Type-C®; 2 x USB 3.2 Gen2 Type-A; 3 x USB 3.2 Gen1; 4 x USB 2.0; 1 x DisplayPort; 1 x RJ-45; 2 x Antenna connectors; 3 x Audio jacks
Form Factor	ATX, 30.5cm x 24.4cm

Gigabyte Z890 EAGLE, Motherboard
