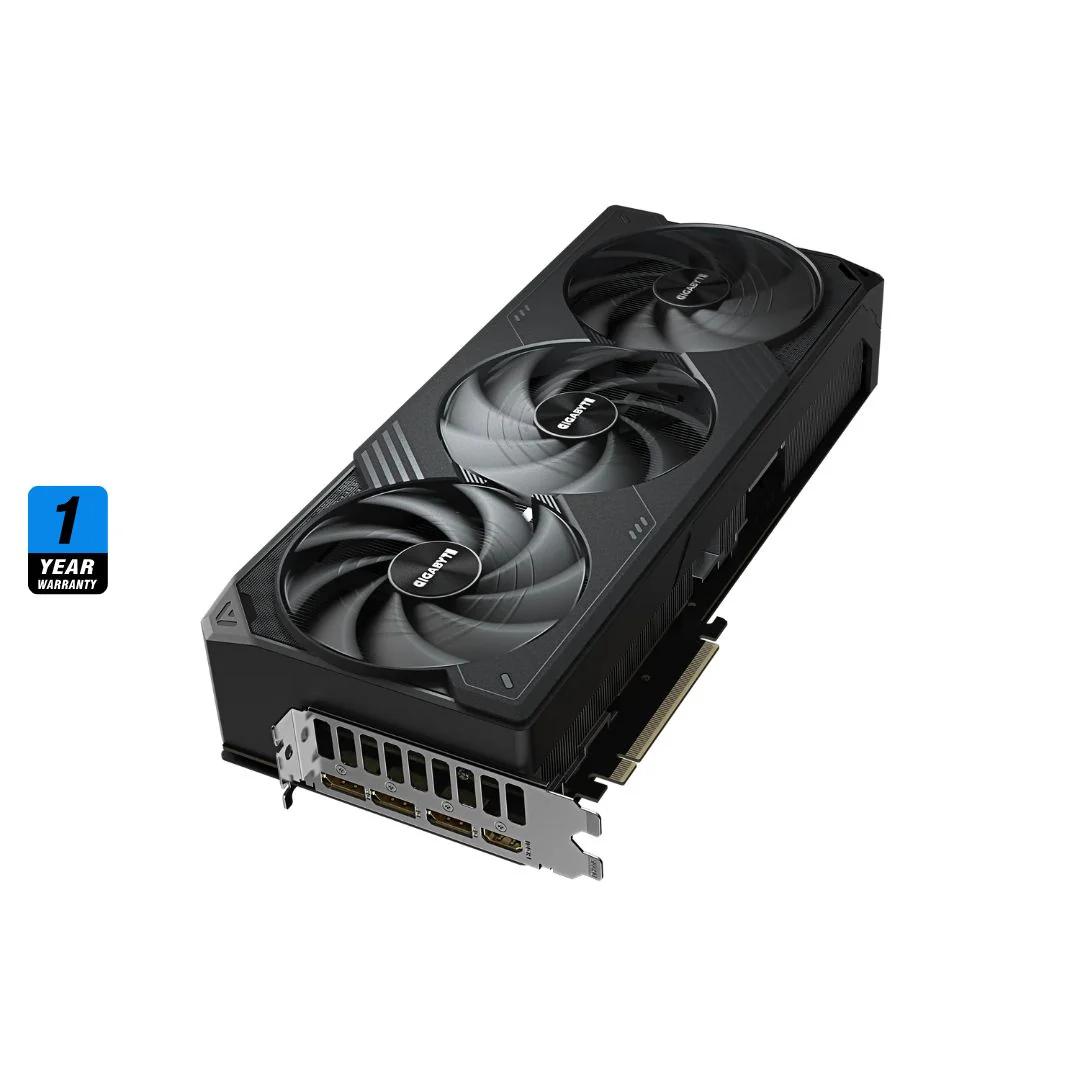

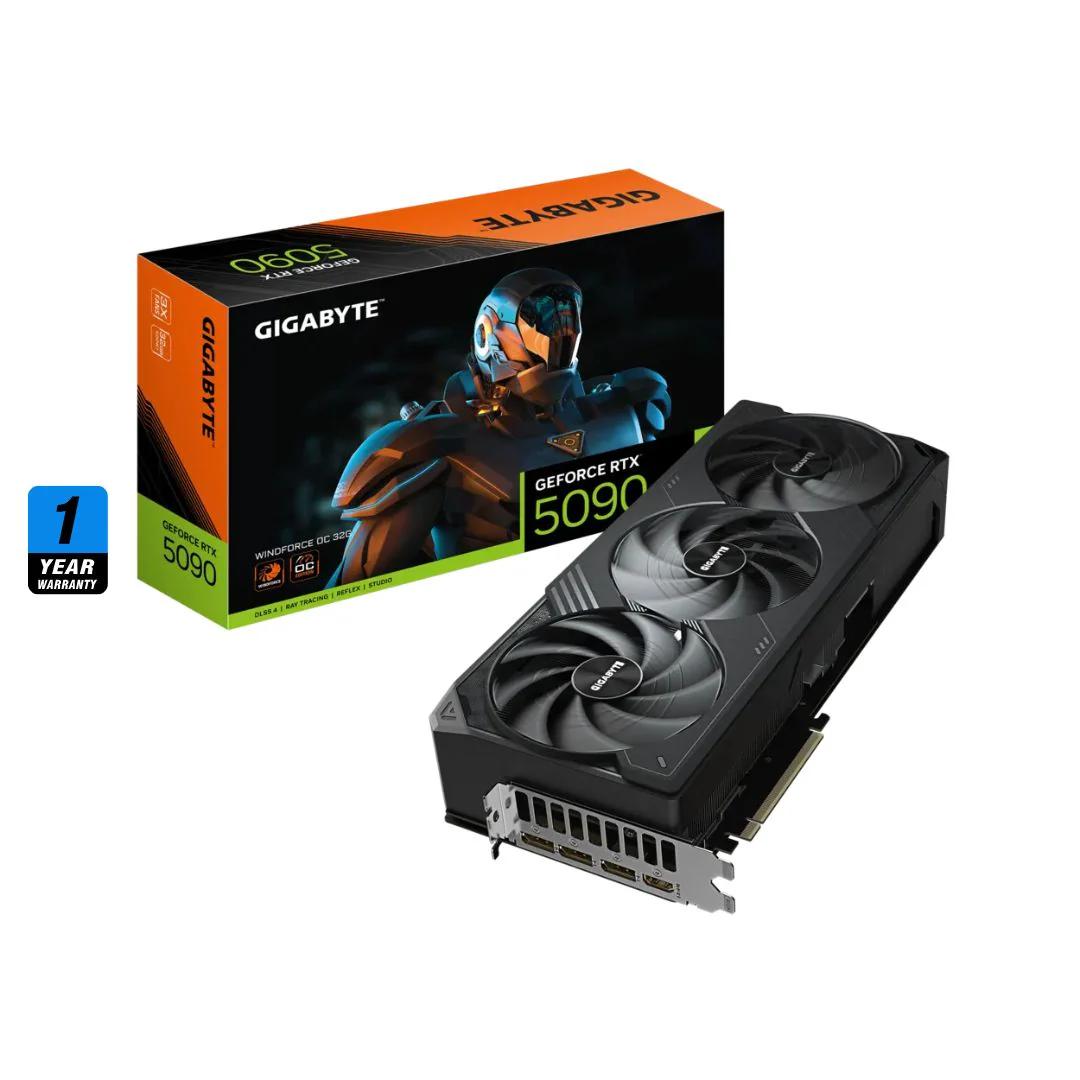

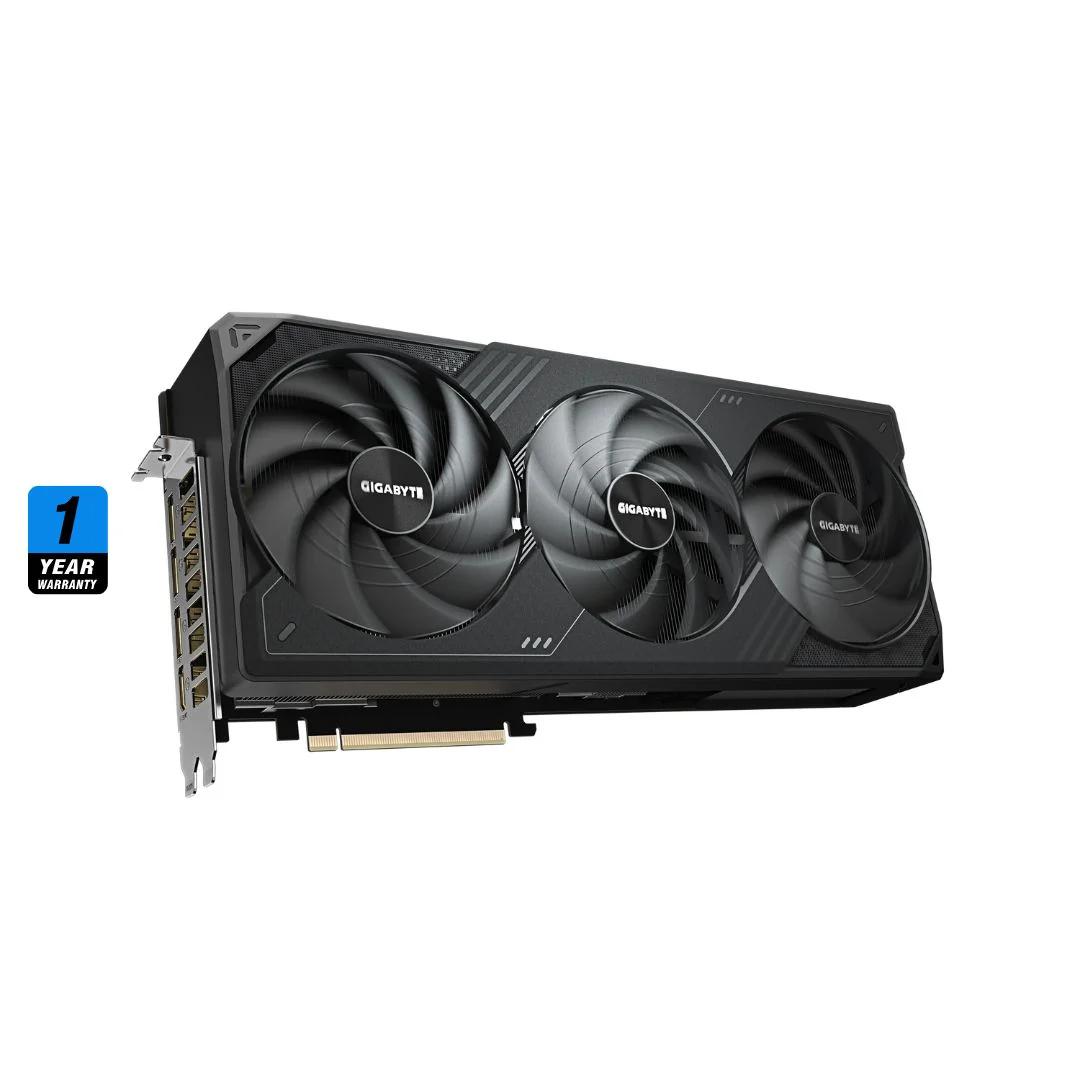

Gigabyte GeForce RTX™ 5090 WINDFORCE OC 32GB

Graphics Card – Gigabyte GeForce RTX 5090 WINDFORCE OC 32GB

GPU: NVIDIA GeForce RTX 5090

Architecture: Blackwell

Core Clock: 2467 MHz (Reference: 2407 MHz)

CUDA Cores: 21,760

Memory

• 32GB GDDR7

• 512-bit memory interface

• 1.79 TB/s memory bandwidth

• Memory Clock: 1750 MHz (28 Gbps effective)

Cooling System

• WINDFORCE triple-fan cooling

• Hawk fans + server-grade thermal gel

• Dual BIOS (Performance / Silent)

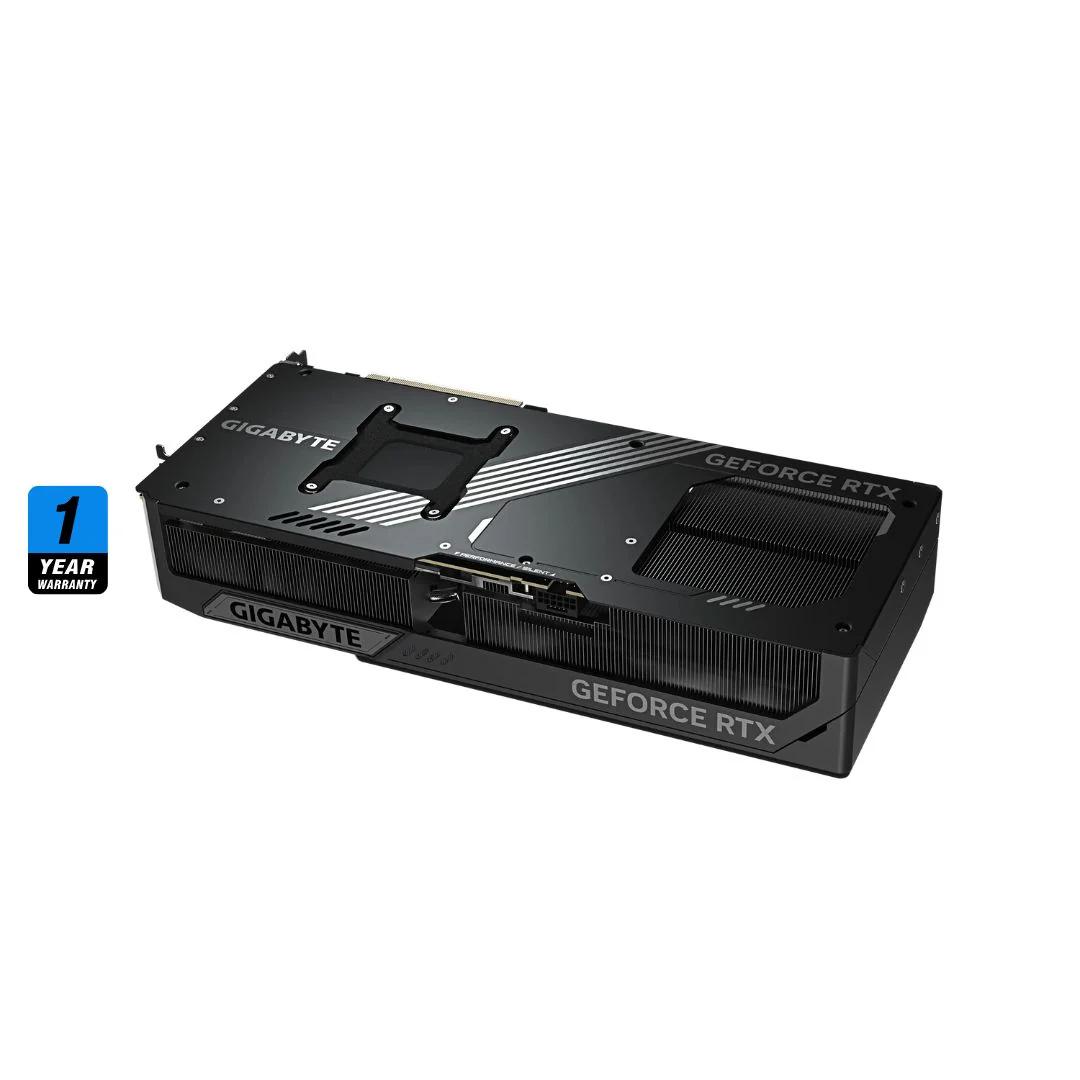

• Reinforced backplate + VGA support bracket

Display Outputs

• 3 x DisplayPort 2.1

• 1 x HDMI 2.1

Bus Interface

• PCIe 5.0 x16

Max Resolution

• 7680x4320 (8K UHD)

Features

• DLSS 4, Ray Tracing (4th Gen RT Cores)

• Tensor Cores (5th Gen)

• NVIDIA Reflex 2, ACE, Studio, Broadcast

• DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6

Power Requirements

• TDP: 575W

• Recommended PSU: 950W

• Power Connector: 1 x 16-pin

Form Factor

• Triple-slot

• Dimensions: 342 x 150 x 65 mm
