MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC Specifications

GPU Specifications

• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5070 Ti
• Interface: PCI Express® Gen 5 (Full x16 bandwidth)
• Core Clocks:
• Extreme Performance: 2580 MHz (MSI Center)
• Boost: 2572 MHz (GAMING & SILENT Mode)
• CUDA® Cores: 8960 Units

CPU Specifications

Memory Specifications

• Memory Speed: 28 Gbps
• Memory Size: 16GB GDDR7
• Memory Bus: 256-bit

Display & Connectivity

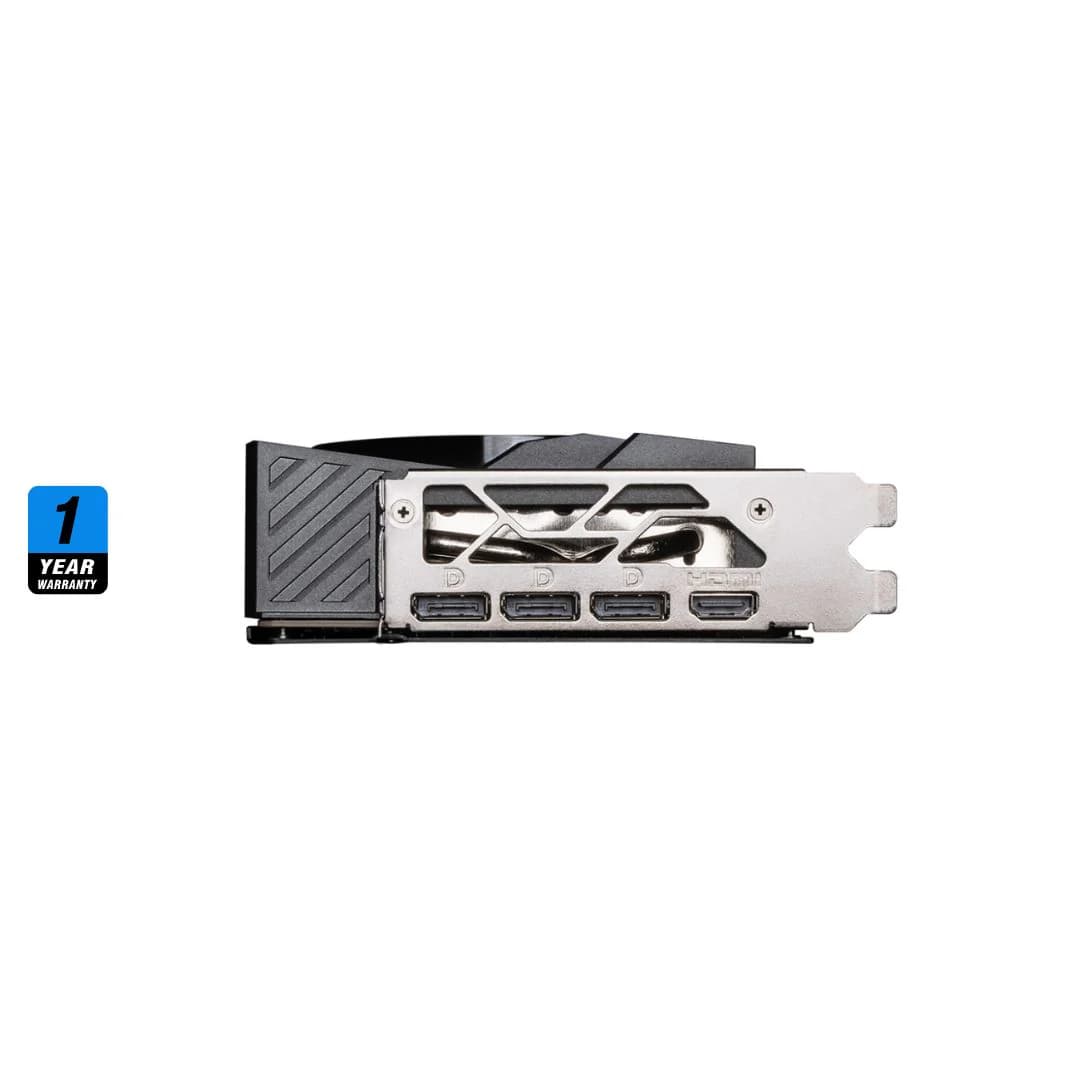

• Output:
• DisplayPort x 3 (v2.1b)
• HDMI™ x 1 (Supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR as per HDMI™ 2.1b)
• HDCP Support: Yes
• Maximum Displays: 4
• Digital Maximum Resolution: 7680 x 4320

Basic Information

• Marketing Name: GeForce RTX™ 5070 Ti 16G GAMING TRIO OC
• Model Name: G507T-16GTC

Power & Dimensions

• Power Consumption: 300W
• Power Connectors: 16-pin x1 (ATX 3.1 PSU recommended)
• Recommended PSU: 750W
• Card Dimensions (mm): 338 x 140 x 50 (2.7-slot)
• Weight:
• Card: 1296 g (1.3kg)
• Package: 1819 g (1.82kg)

Software & Technologies

• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• G-SYNC® Technology: Yes
