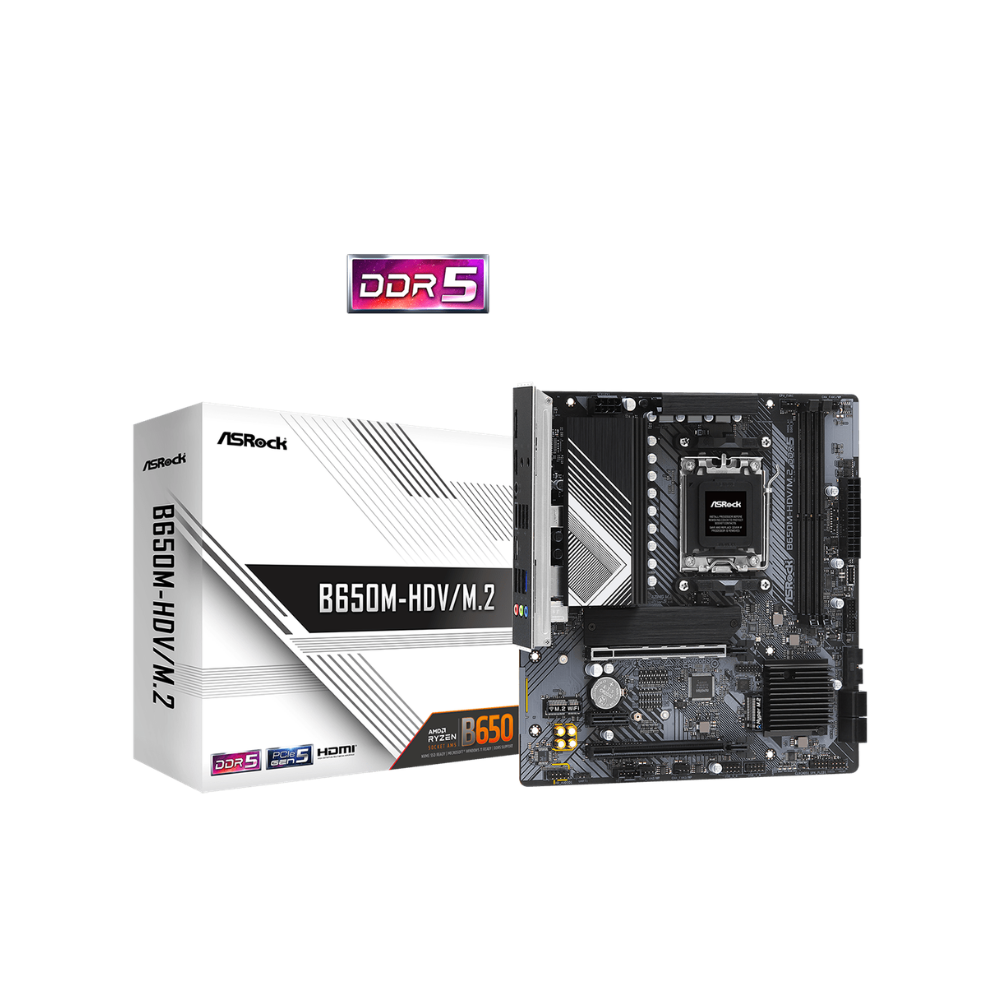

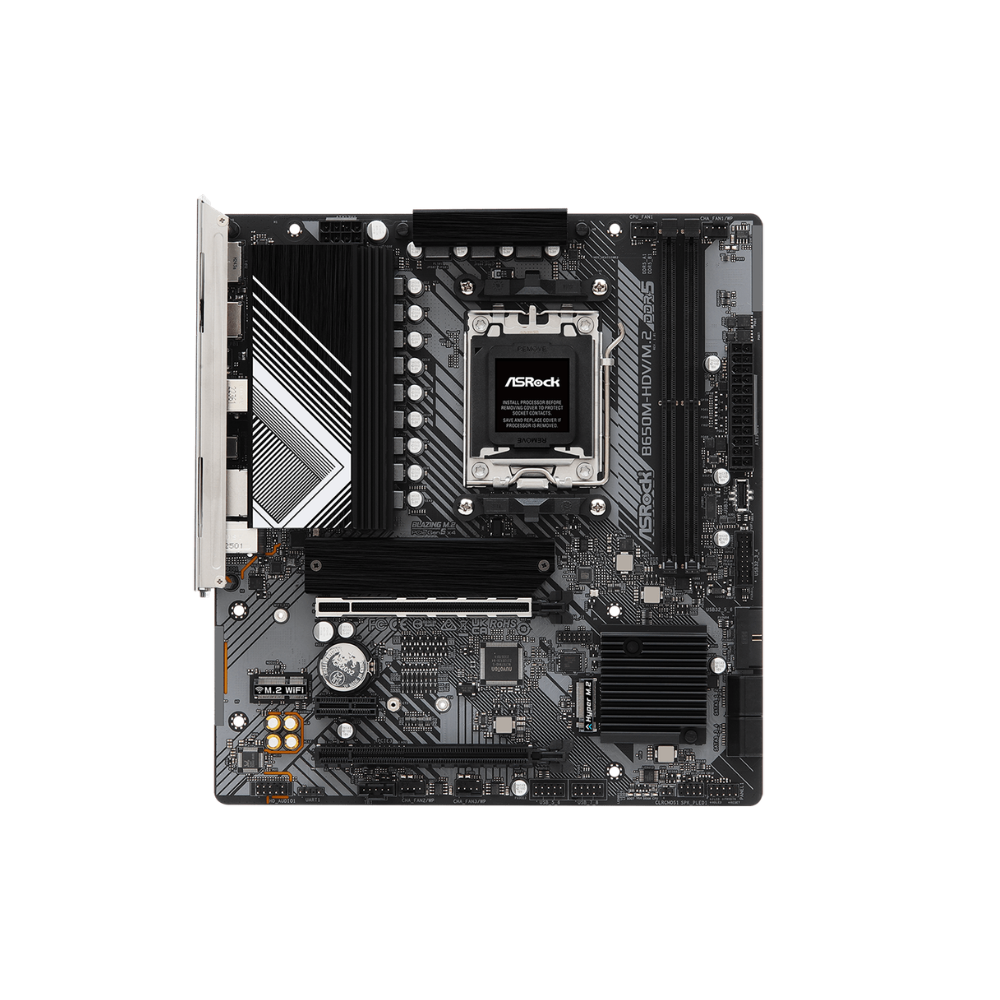

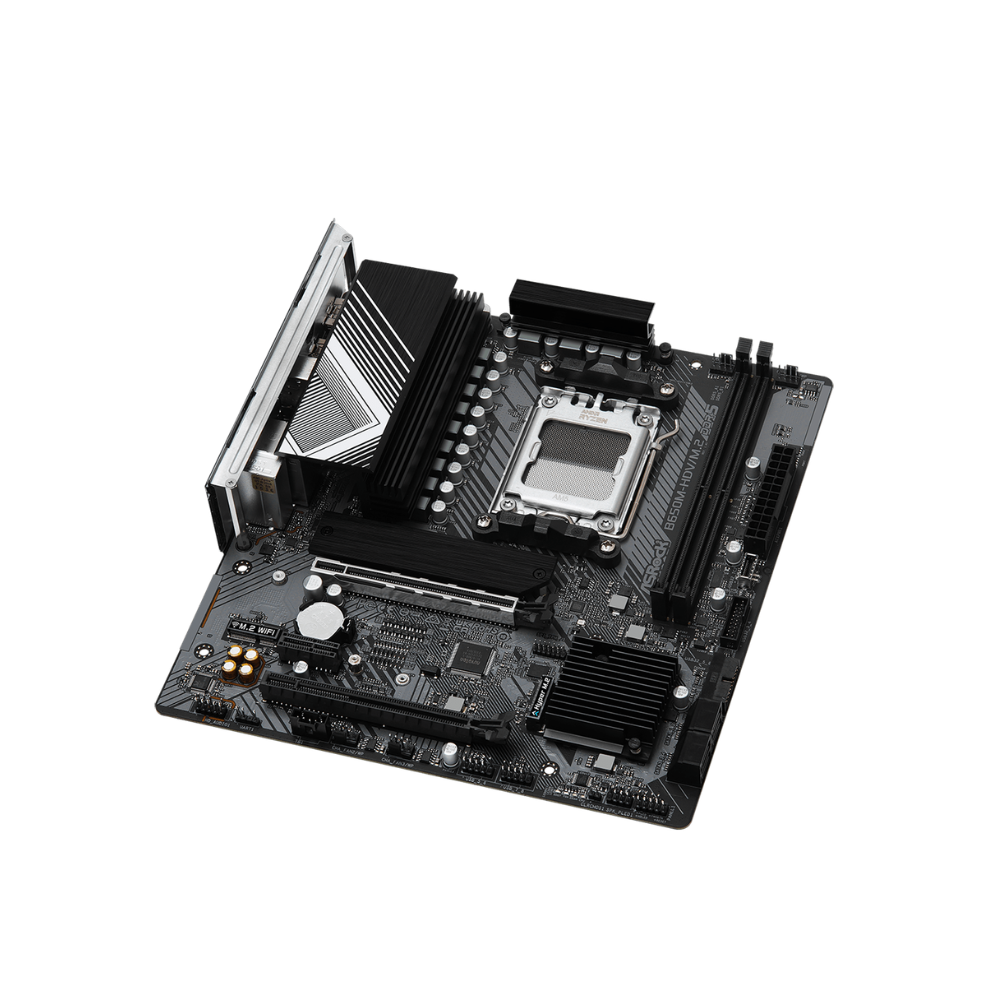

ASROCK B650M HDV/M.2 AM5
(0 Reviews)
Brand: ASRock
IQD 175,000
In Stock
1
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* (*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.) |
| Storage | CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, 4 x SATA3 6.0 Gb/s Connectors; *Supports NVMe SSD as boot disks |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Memory Technology; 2 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; Max. capacity of system memory: 128GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules; *Please refer to Memory Support List for more information. |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU); 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control |
| Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*, 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*; Chipset: 1 x PCIe 4.0 x1 Slot (PCIE2)*, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire™, 15μ Gold Contact in VGA PCIe Slot (PCIE1); *Supports NVMe SSD as boot disks |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* (*Requires additional M.2 NVMe expansion cards to support RAID 10) |
| USB | 1 x USB 3.2 Gen2 Type-C (Front); 1 x USB 3.2 Gen1 Type-C (Rear); 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front); 8 x USB 2.0 (4 Rear, 4 Front); *All USB ports support ESD Protection |
| Connector | 1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x CPU Fan Connector (4-pin)*; 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**; 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio Connector; 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2 Header; *CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1~3/WP support the fan power up to 2A (24W).CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Rear Panel I/O | 2 x Antenna Mounting Points; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x USB 3.2 Gen1 Type-C Port; 2 x USB 3.2 Gen1 Type-A Ports; 4 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x BIOS Flashback Button; HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software: ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software*; UEFI: ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash; *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories | 1 x User Manual; 2 x SATA Data Cables; 3 x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm; 2oz Copper PCB |
| Certifications | FCC, CE; ErP/EuP ready (ErP/EuP ready power supply is required) |
