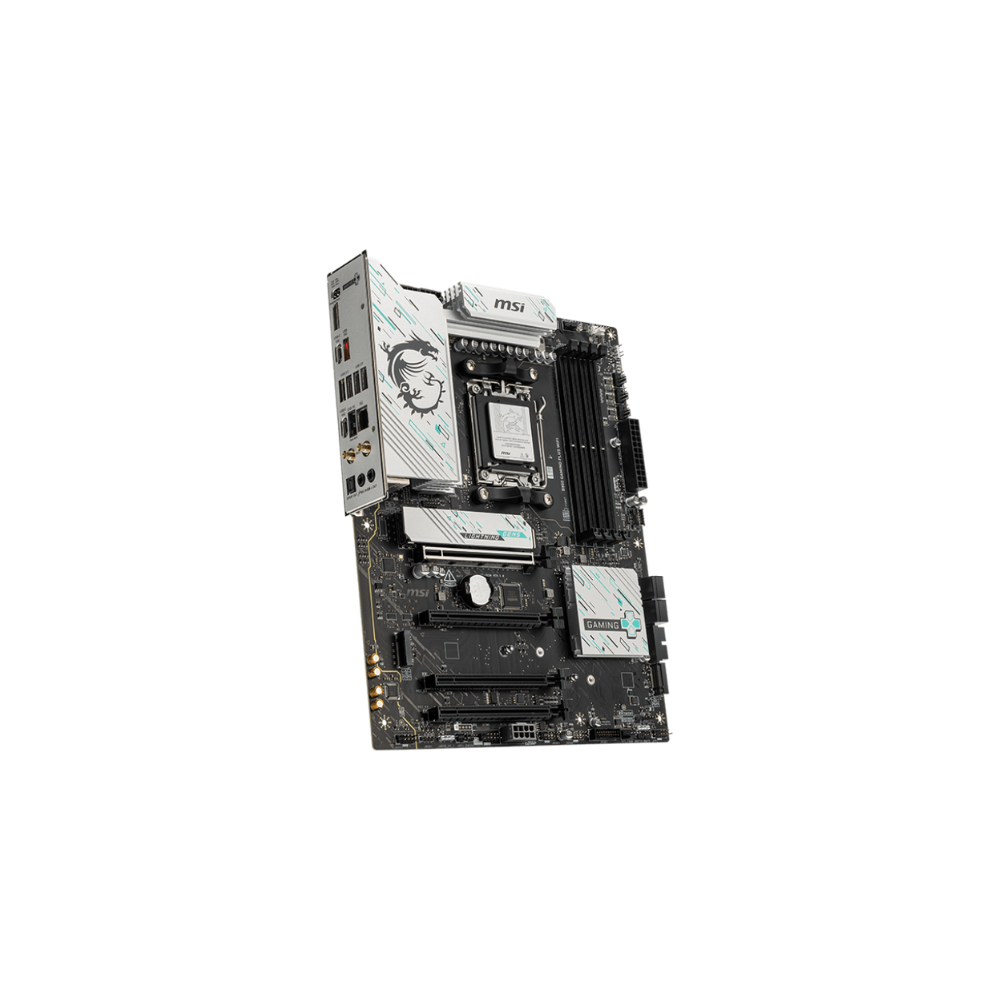

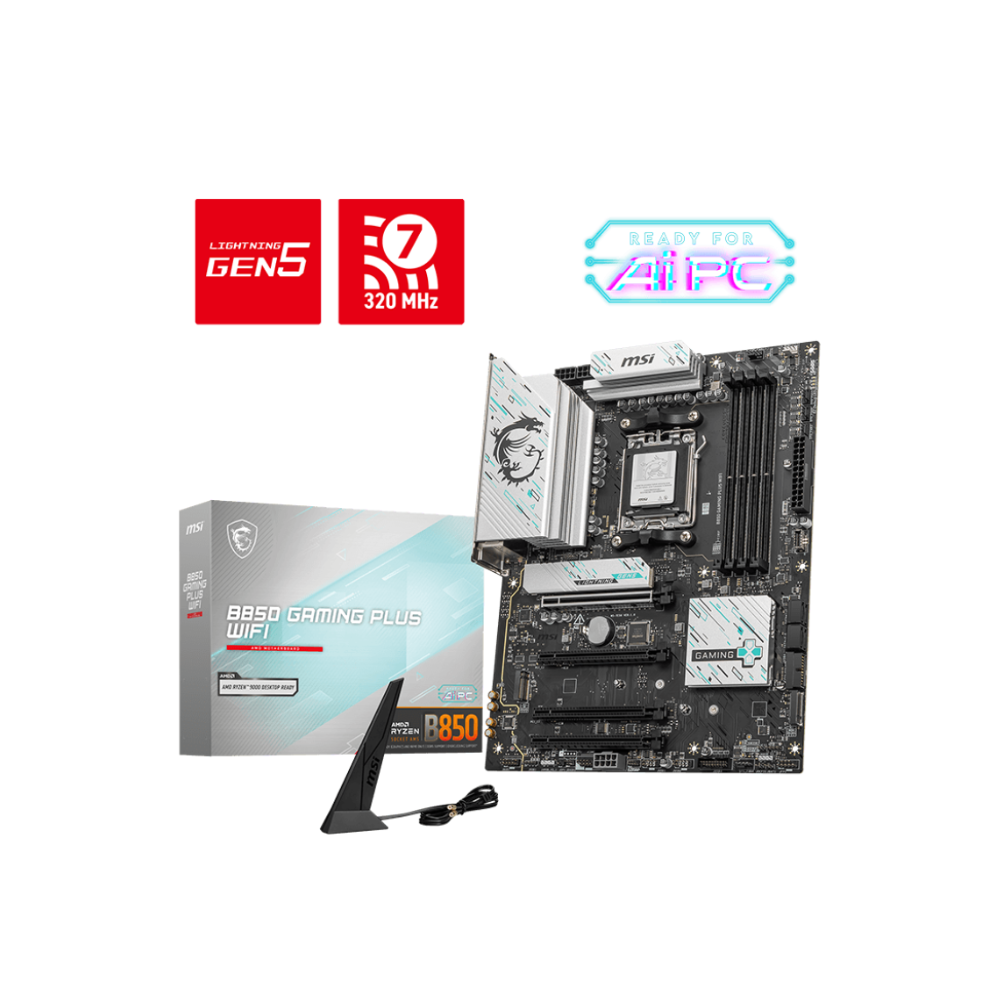

Name: MSI B850 GAMING PLUSE WIFI AM5
Brand: MSI
SKU: FW 030666
Price: 325000 IQD
Availability: InStock

MSI B850 GAMING PLUSE WIFI AM5

(0 Reviews)

Brand: MSI

IQD 325,000

In Stock

CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
Storage	3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices; 4x SATA 6G; M2_1 slot: Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); *Please refer to the manual for M.2 SSD heatsink restrictions.
Chipset	AMD B850
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode
Slot	4x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E1 slot: Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor); * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
Audio	Realtek® ALC897; 7.1-Channel High Definition Audio
RAID	Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

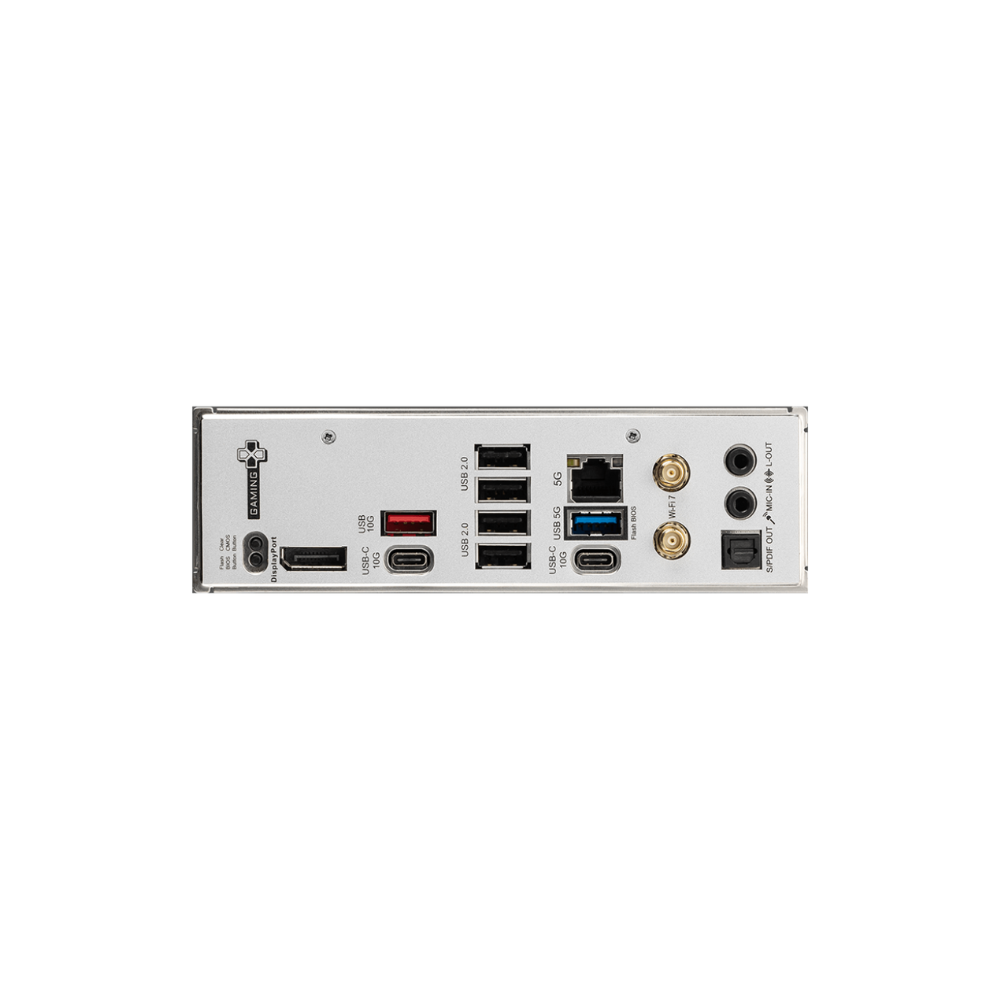

USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 1x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear)
LAN	Realtek® 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
Wireless Lan & Bluetooth	Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth® 5.4**, MLO, 4KQAM

Product Page

MSI B850 GAMING PLUSE WIFI AM5
