Name: ASUS PRIME B850 PLUS CSM AM5
Brand: ASUS
SKU: FW 030701
Price: 265000 IQD
Availability: InStock

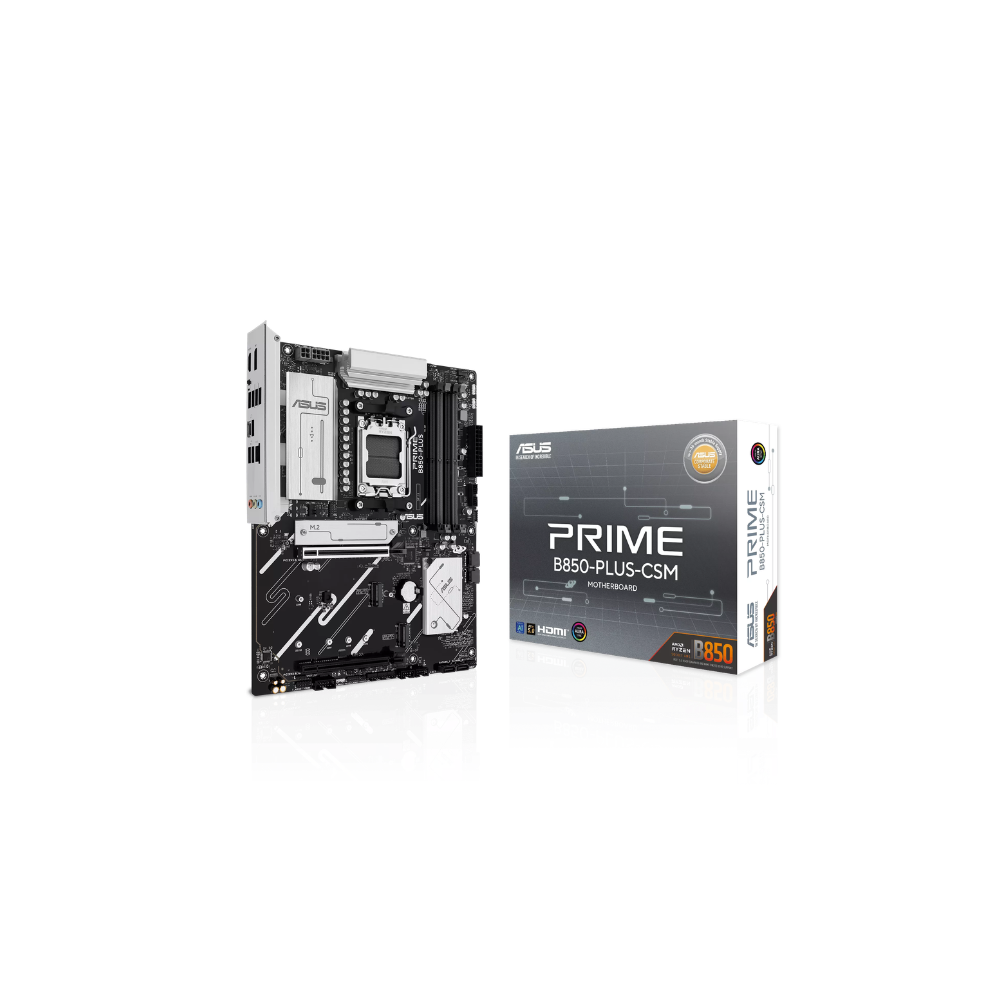

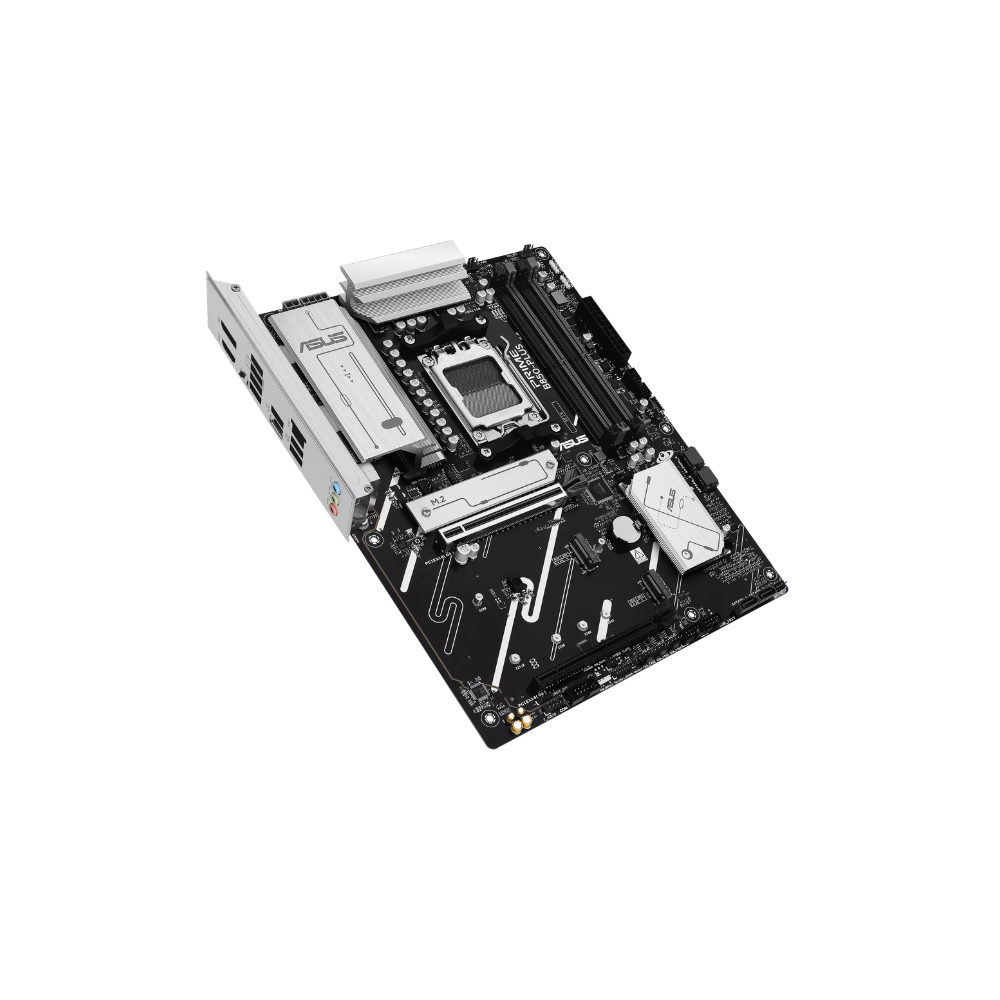

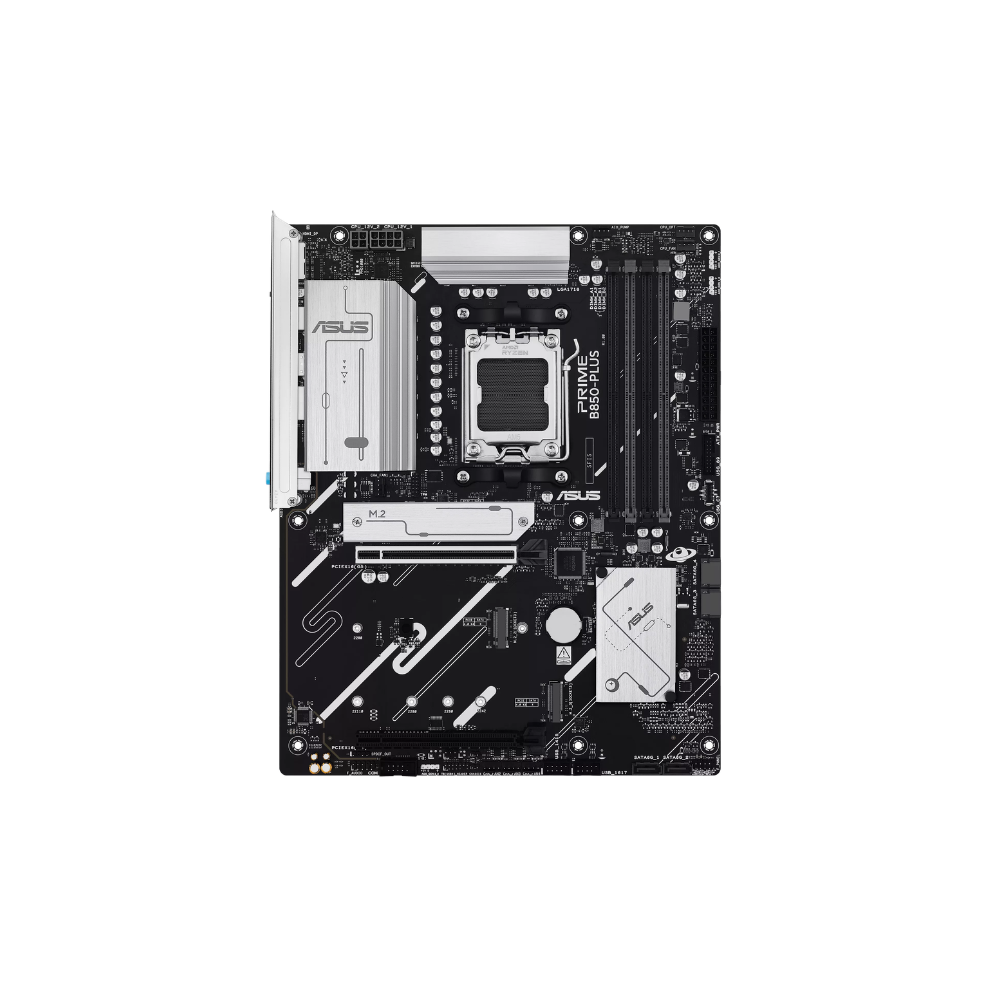

ASUS PRIME B850 PLUS CSM AM5

(0 Reviews)

Brand: ASUS

IQD 265,000

In Stock

CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors; Supports up to AMD 170W CPU; Refer to https://www.asus.com/support/download-center/ for CPU support list.
Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode); AMD B850 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports; Specifications vary by CPU types.; AMD RAIDXpert2 Technology; Ryzen™ 9000 Series Processors: RAID 0/1/5/10; Ryzen™ 8000 Series Processors: RAID 0/1; Ryzen™ 7000 Series Processors: RAID 0/1/10
OS	Windows® 11, Windows® 10 64-bit
Model	PRIME B850-PLUS-CSM
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5; Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP); Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort; 1 x HDMI™ port; Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; Supports max. 8K@30Hz as specified in DisplayPort 1.4.; * Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B850 Chipset; 1 x PCIe 4.0 x16 slot (support x4 mode); Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** Specifications vary by CPU types.; To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported
Ethernet	1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
USB	Rear USB (Total 8 ports); 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C®); 2 x USB 5Gbps ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	1 x USB 10Gbps port (1 x USB Type-C®); 3 x USB 10Gbps ports (3 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers; Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connectors, 1 x 4-pin +12V CPU Power connectors; Storage Related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports; USB: 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header, 1 x Thunderbolt™ (USB4®) header
Special Features	ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O; ASUS Q-Design: Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot; ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design; ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Pre-mounted I/O shield, SafeSlot; Aura Sync: Addressable RGB Gen 2 headers
Software Features	ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving), ASUS AI Advisor, ASUS Driver Hub, TurboV Core, ASUS CPU-Z, Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial); UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey)
Remote Management Features	IT Management software supported – ASUS Control Center Express(ACCE)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables: 2 x SATA 6Gb/s cables; Miscellaneous: 1 x M.2 rubber packages, 3 x Screw packages for M.2 SSD; Documentation: 1 x ACC Express Activation Key Card, 1 x Quick start guide
Form Factor	ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Product Page

ASUS PRIME B850 PLUS CSM AM5
