Name: ASROCK B860 LIGHTNING WIFI 1851 LGA
Brand: ASRock
SKU: FW 030675
Price: 365000 IQD
Availability: InStock

ASROCK B860 LIGHTNING WIFI 1851 LGA

(0 Reviews)

Brand: ASRock

IQD 365,000

In Stock

CPU	Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851); Supports Intel® Hybrid Technology; Supports Intel® Turbo Boost Max 3.0 Technology; Supports Intel® Thermal Velocity Boost (TVB); Supports Intel® Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration
Storage	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), type 2280, PCIe Gen5x4 (128 Gb/s); Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), type 2230/2242/2260/2280, PCIe Gen4x4 (64 Gb/s), 1 x Hyper M.2 Socket (M2_3, Key M), type 2280, PCIe Gen4x4 (64 Gb/s), 1 x M.2 Socket (M2_4, Key M), type 2280, PCIe Gen4x2 (32 Gb/s), 4 x SATA3 6.0 Gb/s Connectors; Supports Intel® Volume Management Device (VMD); Supports NVMe SSD as boot disks
OS	Microsoft Windows® 11 64-bit
Chipset	Intel® B860
Memory	Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC); Supports Clocked Unbuffered DIMM (CUDIMM); Max. capacity of system memory: 256GB; Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Intel® Xe LPG Graphics Architecture; 1 x HDMI 2.1 TMDS/FRL 8G Compatible (HDR, HDCP 2.3, up to 4K 120Hz); 1 x DisplayPort 1.4 with DSC (HDCP 2.3, up to 8K 60Hz / 5K 120Hz); 1 x Intel® Thunderbolt™ 4 (HDCP 2.3, up to 8K 60Hz / 5K 120Hz)
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); Impedance Sensing on Rear Out port; Individual PCB Layers for R/L Audio Channel; Nahimic Audio
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Killer E3100G; Supports Killer LAN Software; Supports Killer DoubleShot™ Pro
Wireless LAN	802.11axe Wi-Fi 6E Module; Supports IEEE 802.11a/b/g/n/ac/ax/axe; Supports Dual-Band 2×2 160MHz with extended 6GHz band support; 2 antennas (2 Transmit x 2 Receive diversity); Supports Bluetooth 5.3; Supports MU-MIMO; Supports Killer LAN Software; Supports Killer DoubleShot™ Pro
Slots	CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode, 1 x M.2 Socket (Key E), type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	CPU: 1 x Thunderbolt™ 4/USB4 Type-C (Rear); Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front), 2 x USB 3.2 Gen2 Type-A (Rear), 8 x USB 3.2 Gen1 (4 Rear, 4 Front), 7 x USB 2.0 (3 Rear, 4 Front)
Connector	1 x Thermistor Cable Header; 1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connector (4-pin); 5 x Chassis Fan Connectors (4-pin); 1 x AIO Pump Fan Connector (4-pin); 1 x 24 pin ATX Power Connector; 2 x 8 pin 12V Power Connectors; 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (4 ports); 2 x USB 3.2 Gen1 Headers (4 ports); 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

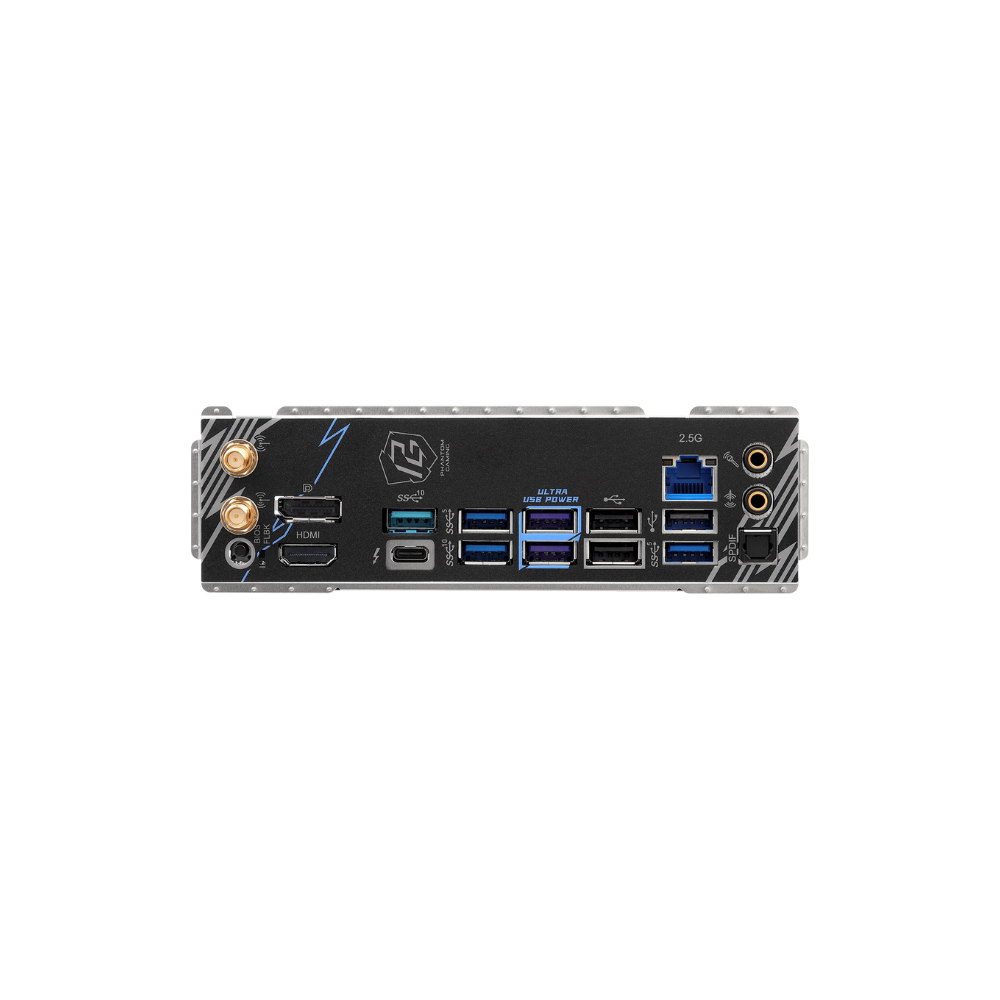

Rear Panel I/O	2 x Antenna Ports; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x Optical SPDIF Out Port; 1 x Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s); 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s); 4 x USB 3.2 Gen1 Ports; 3 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x BIOS Flashback Button; 1 x Line Out Jack; 1 x Microphone Input Jack
Software and UEFI	ASRock Motherboard Utility (Phantom Gaming Tuning); Killer Control Center; ASRock Polychrome SYNC; ASRock EZ Mode; ASRock Full HD UEFI; ASRock My Favorites in UEFI; ASRock Auto Driver Installer; ASRock Instant Flash
Accessories	2 x SATA Data Cables; 2 x ASRock WiFi 2.4/5/6 GHz Antennas; 1 x ARGB Splitter Cable; 1 x Thermistor Cable
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 2oz Copper PCB
Certifications	FCC, CE; ErP/EuP ready (ErP/EuP ready power supply required)

Product Page

ASROCK B860 LIGHTNING WIFI 1851 LGA
