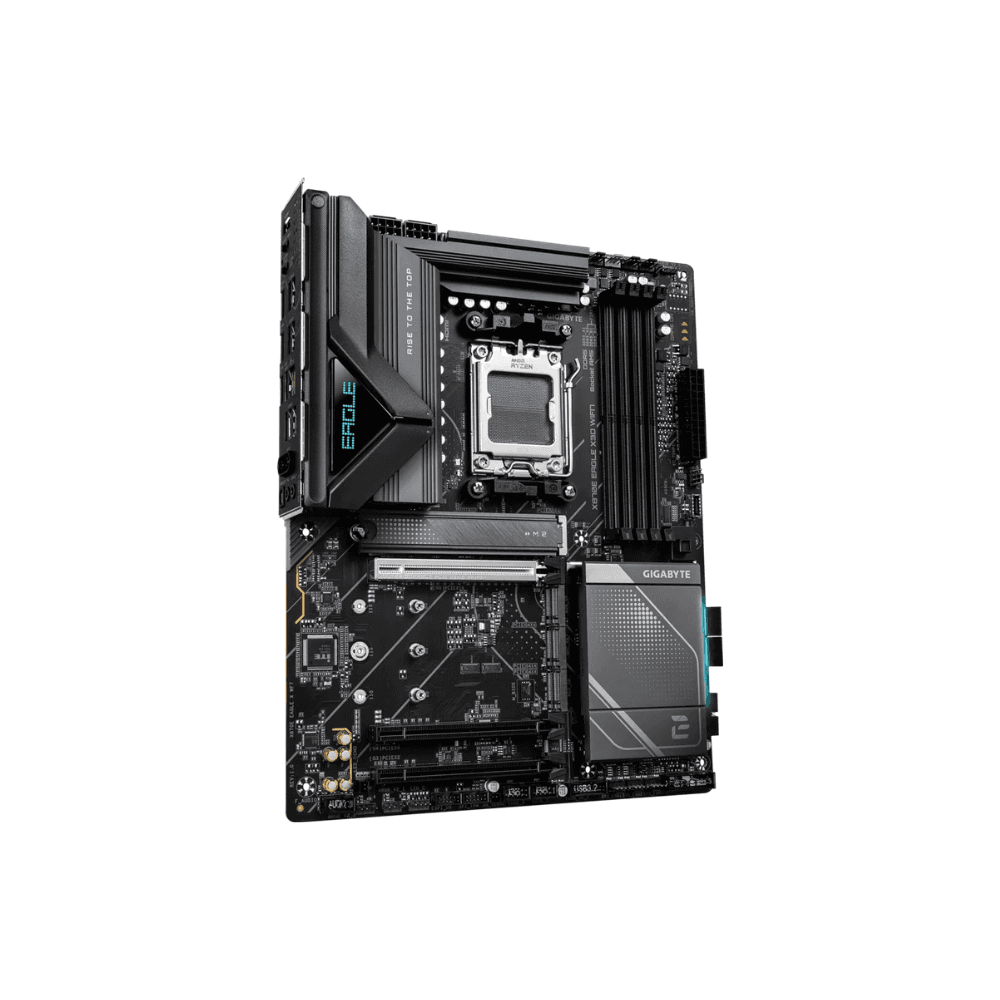

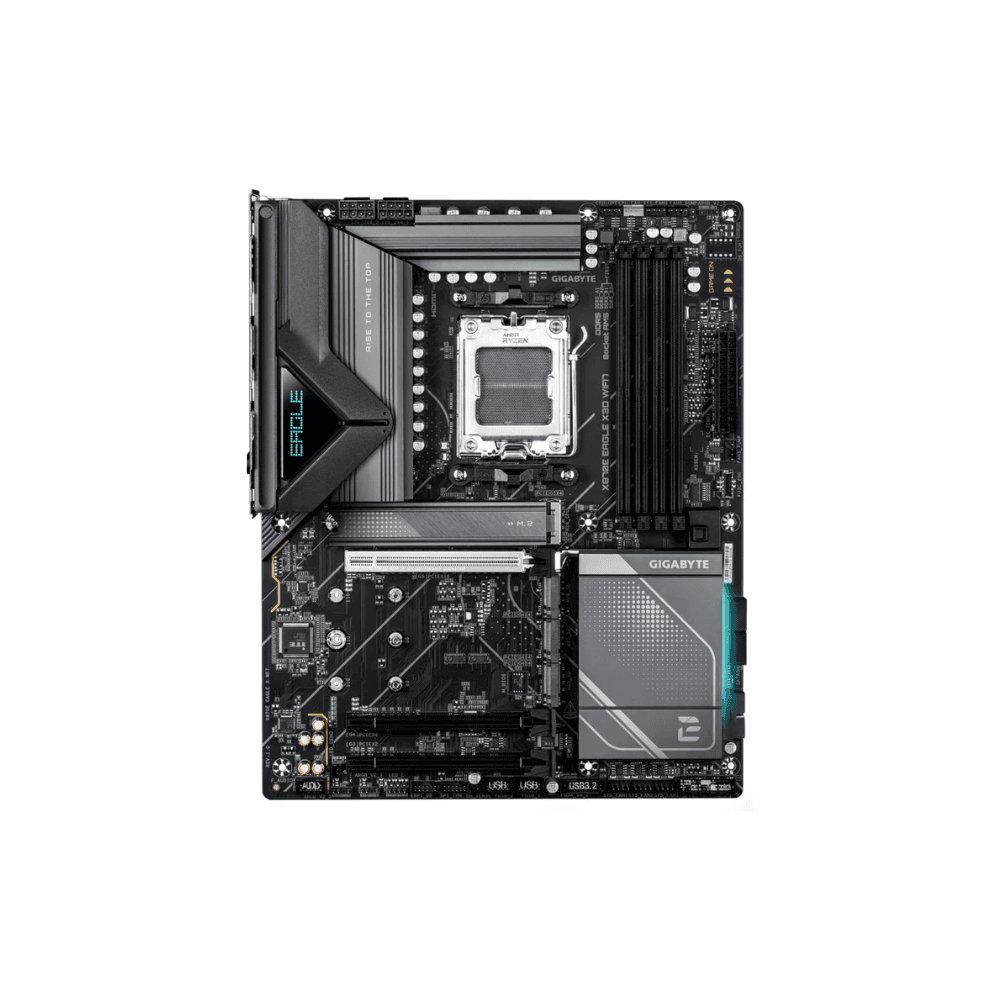

GIGABYTE X870E EAGLE X3D WIFI7- Motherboard

Key Specifications

• CPU Socket: AMD Socket AM5
• Chipset: AMD X870E
• Processor Support:
  • AMD Ryzen™ 9000 Series
  • AMD Ryzen™ 8000 Series
  • AMD Ryzen™ 7000 Series

Memory

• 4× DDR5 DIMM Slots
• Supports up to 256GB DDR5
• Memory speeds up to 9000 MT/s (Overclocked)
• Dual-Channel Architecture
• Supports AMD EXPO™ & Intel XMP

Expansion Slots

• 1× PCIe 5.0 x16 Slot
• 1× PCIe 4.0 x16 (x4 mode)

Storage

• 4× M.2 Slots
  • 1× PCIe 5.0 x4 NVMe
  • 3× PCIe 4.0 NVMe
• 4× SATA 6Gb/s Ports

Networking

• Wi-Fi 7 (Qualcomm QCNCM865)
• Bluetooth® 5.4
• Realtek® 5GbE LAN

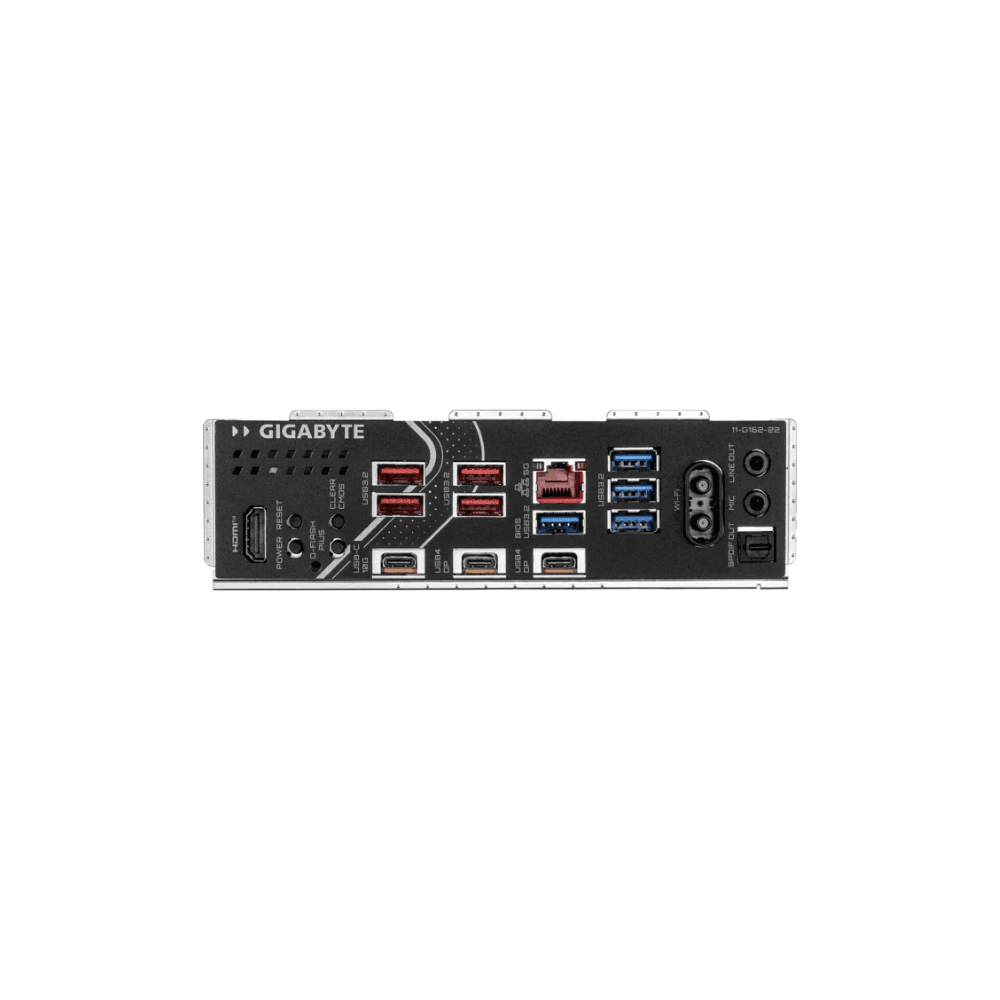

Graphics Outputs

• 2× USB4 Type-C® (DisplayPort Alt Mode)
• 1× HDMI 2.1
• Supports up to 4K 240Hz (DisplayPort via USB4) and 4K 60Hz (HDMI) (depending on CPU graphics)

USB Connectivity

• 2× USB4 Type-C® (40Gbps)
• USB 3.2 Gen 2
• USB 3.2 Gen 1
• USB 2.0

Audio

• Realtek® ALC1220 High Definition Audio
• 7.1-Channel HD Audio
• Optical S/PDIF Out

Cooling & DIY Features

• Advanced VRM Heatsinks
• M.2 Thermal Guards
• Smart Fan 6
• EZ-Latch Design for M.2 & PCIe
• Q-Flash Plus
• Debug LEDs

Power Design

• 14+2+2 Twin Digital VRM
• 8-Layer PCB
• 2X Copper PCB
• Premium Chokes & Capacitors

Special Features

• X3D Turbo Mode 2.0
• D5 Bionic Corsa Memory Optimization
• PCIe 5.0 Graphics & Storage
• Ultra Durable Components
• AI Performance Optimization

Operating System

• Windows 11 64-bit

Form Factor

• ATX
• Dimensions: 30.5 × 24.4 cm

Source: Official GIGABYTE Specifications.
