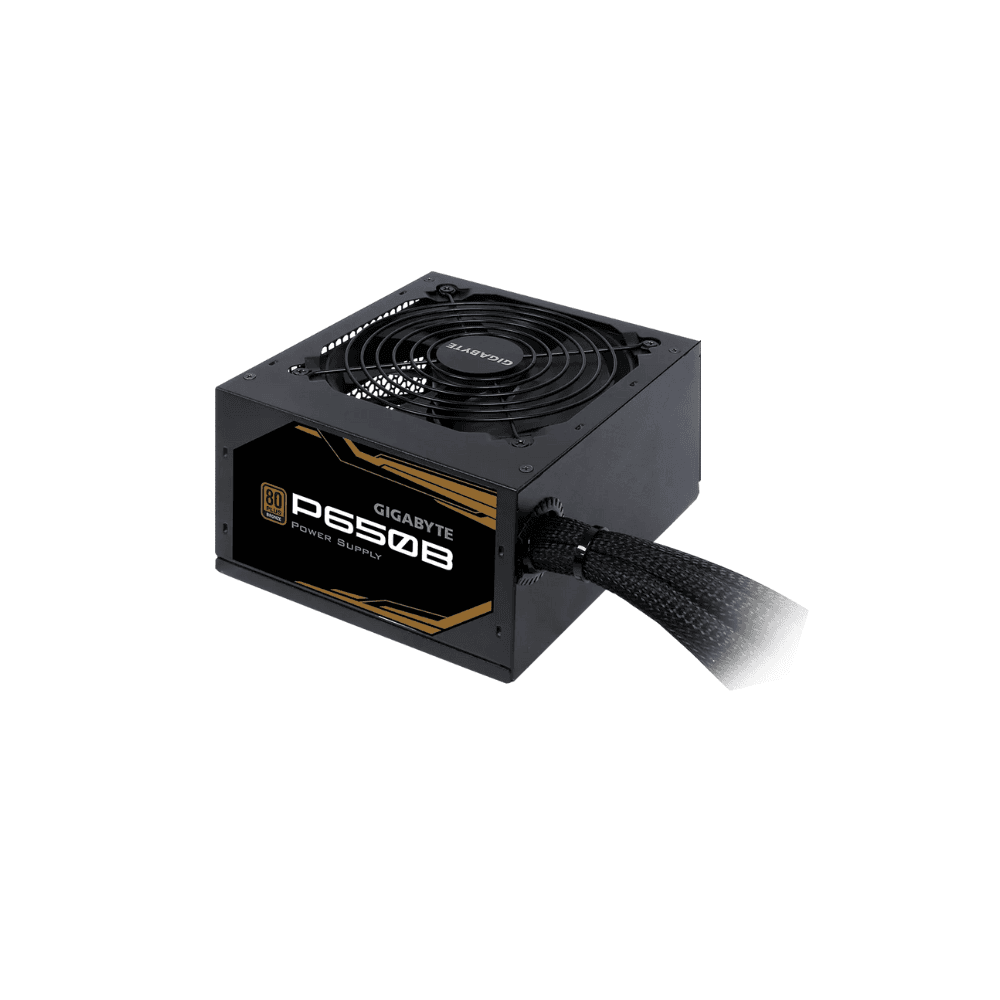

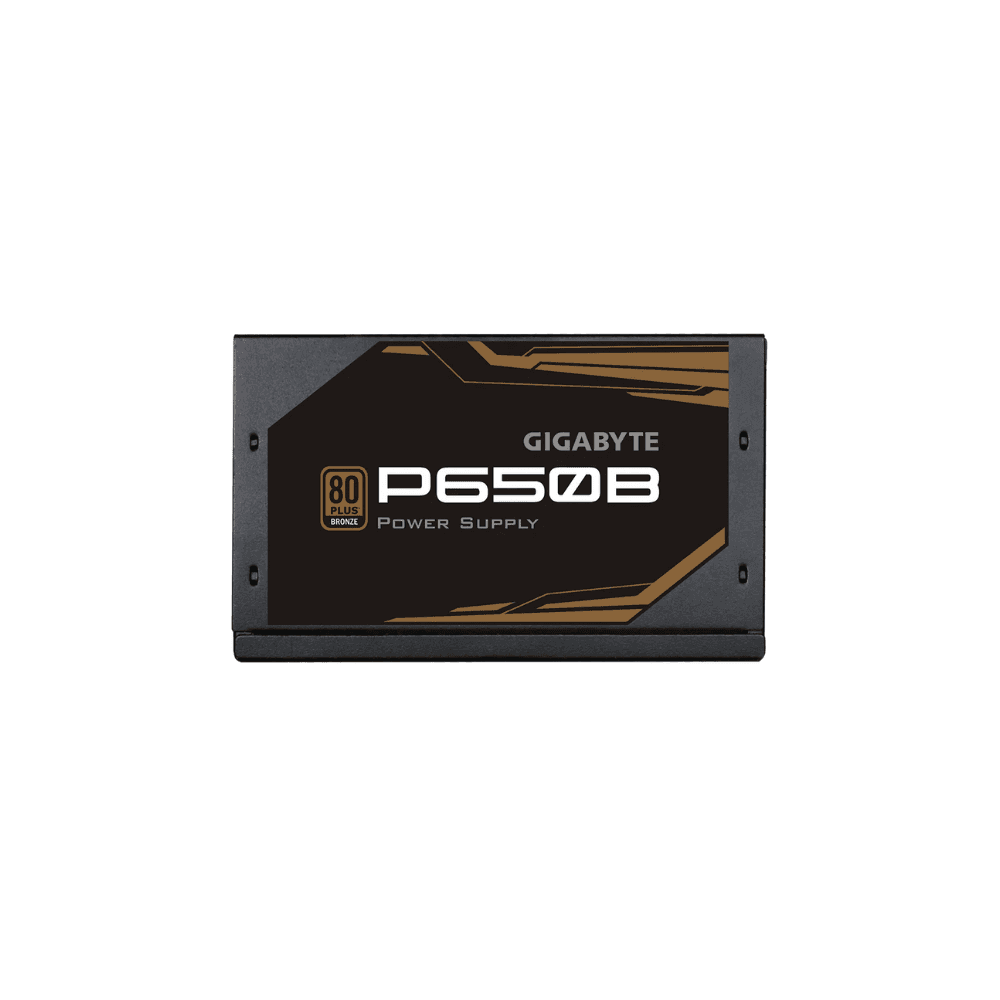

GIGABYTE P650B 650W 80+PLUS BRONZE BLACK Power Supply

Key Specifications

• Power Output: 650W

• Efficiency Certification: 80 PLUS® Bronze

• Form Factor: ATX

• ATX Standard: ATX 12V v2.31

• PCIe Support: PCIe 6+2 Pin

• 12V-2×6 Connector: Not Included

• Modular Design: Non-Modular

• Cooling Fan: 120mm Hydraulic Bearing (HYB) Fan

• Input Voltage: 100-240V AC

• PFC Type: Active PFC (>0.9 Typical)

• 12V Rail: Single +12V Rail

• Capacitors: 100% Japanese Capacitors

• Efficiency: Up to 85% at Typical Load

• MTBF: >100,000 Hours

• Protection Features: OPP, UVP, OVP, SCP, OCP

• ErP Compliance: ErP LOT6 2013

• Color: Black

• Dimensions: 150 × 140 × 86 mm

• Warranty: 3 Years*

Connector Configuration

• 1 × 20+4-Pin ATX/MB

• 1 × 4+4-Pin EPS/CPU

• 4 × PCIe 6+2 Pin

• 6 × SATA

• 3 × 4-Pin Peripheral (Molex)

• 1 × 4-Pin Floppy

* Warranty: 3 years, subject to adjustment according to the sales region
