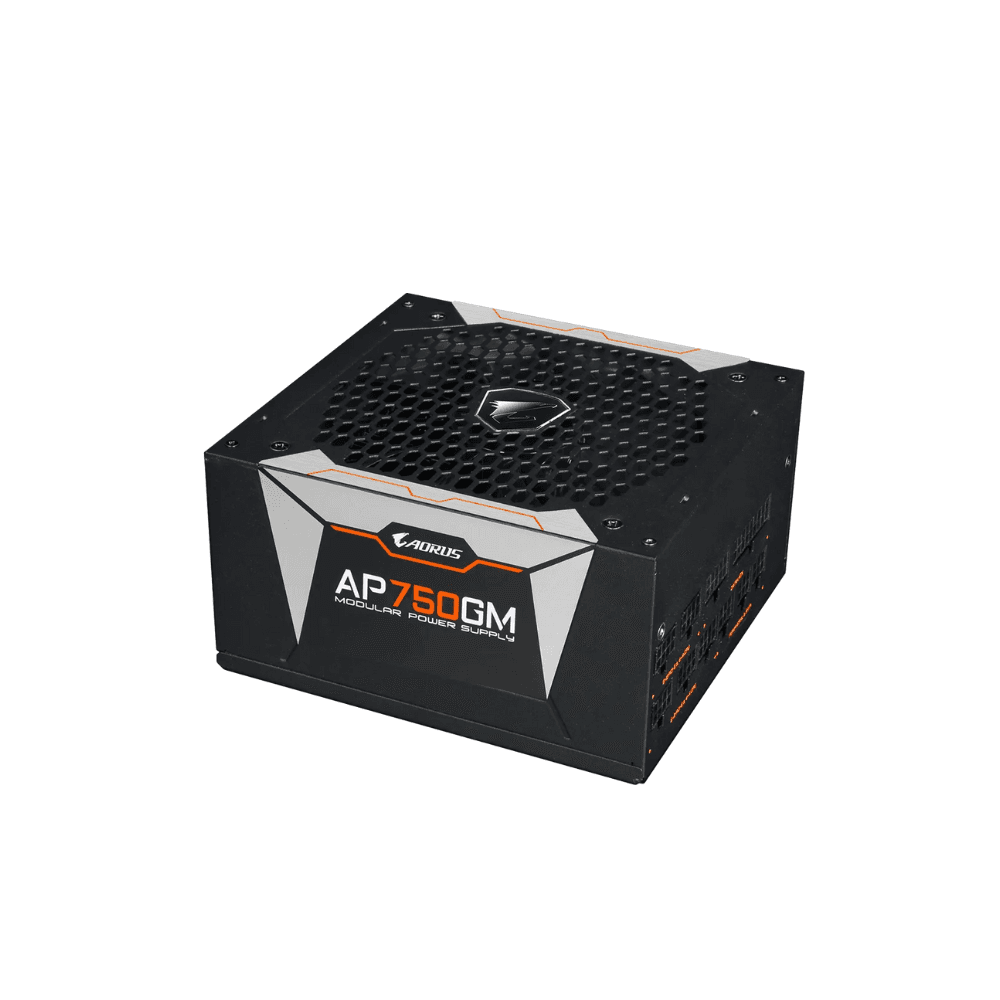

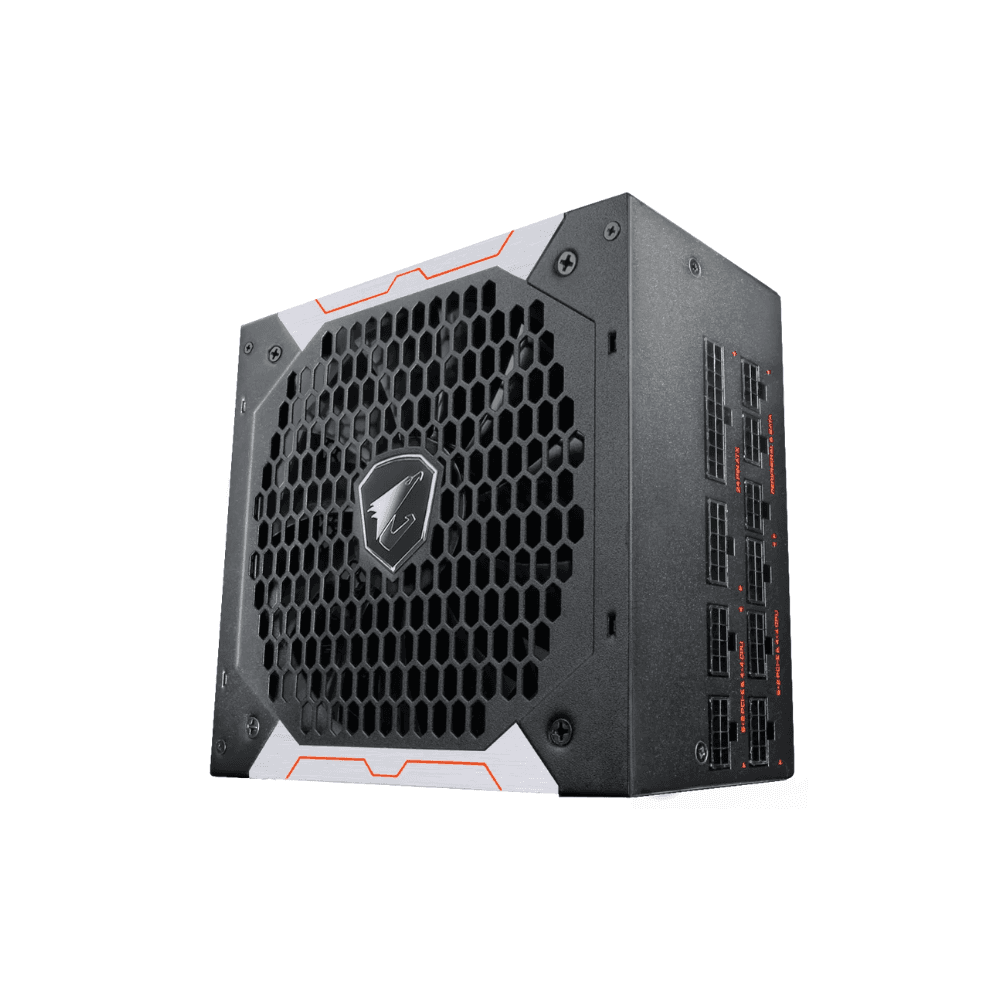

GIGABYTE AORUS P750W 750W 80+PLUS GOLD BLACK Power Supply

Key Specifications

• Power Output: 750W

• Efficiency Certification: 80 PLUS® Gold

• Form Factor: ATX

• ATX Standard: ATX 12V v2.31

• PCIe Support: PCIe 6+2 Pin

• 12V-2×6 Connector: Not Included

• Modular Design: Fully Modular

• Cooling Fan: 135mm Double Ball Bearing Fan

• Fan Feature: Smart Fan with Fan Stop Function

• Input Voltage: 100-240V AC

• PFC Type: Active PFC (>0.9 Typical)

• 12V Rail: Single +12V Rail

• Capacitors: 100% Japanese Capacitors

• Efficiency: 90% at Typical Load

• MTBF: >100,000 Hours

• Protection Features: OVP, OPP, SCP, UVP, OCP, OTP

• Power Good Signal: 100-150ms

• Hold Up Time: >16ms at Full Load (115V)

• Cable Type: Flat, All Black

• Color: Black

• Dimensions: 150 × 160 × 86 mm

• Warranty: 1 Years

Connector Configuration

• 1 × 20+4-Pin ATX/MB

• 2 × 4+4-Pin EPS/CPU

• 4 × PCIe 6+2 Pin

• 6 × SATA

• 5 × 4-Pin Peripheral (Molex)

• 2 × 4-Pin Floppy
