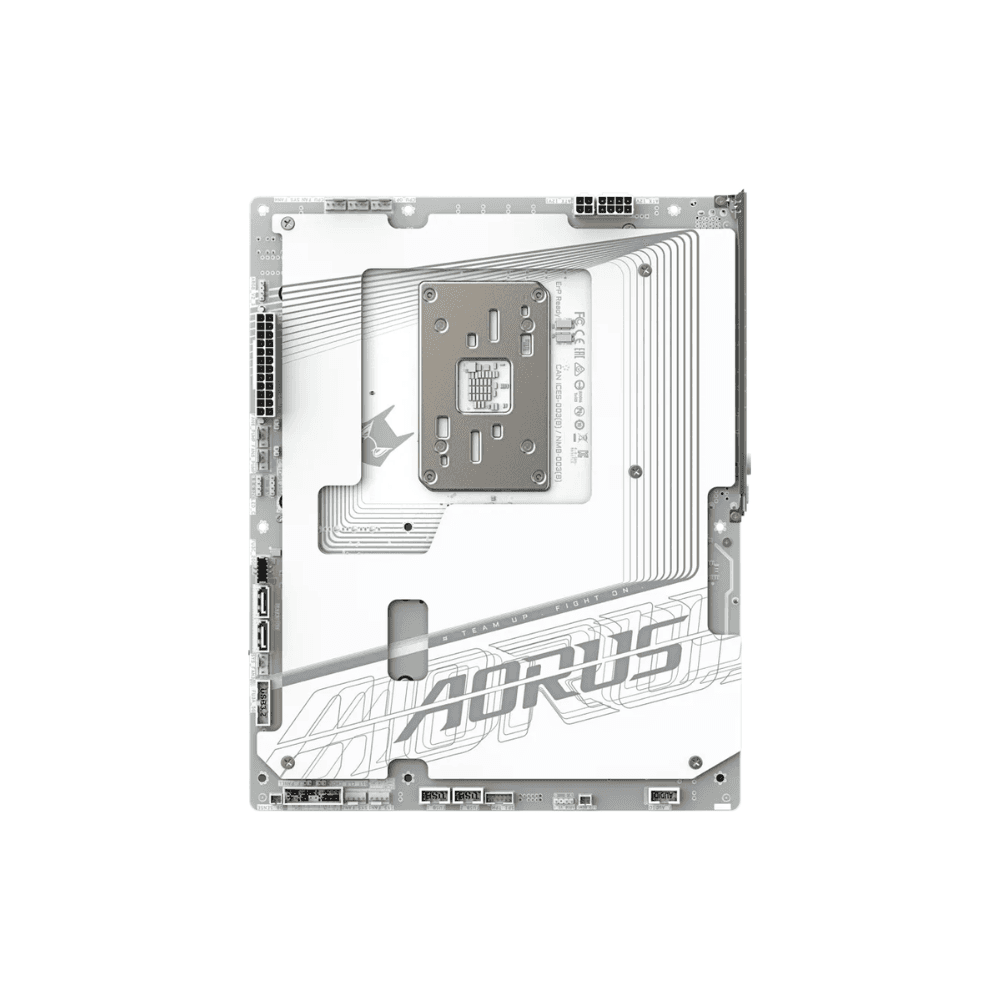

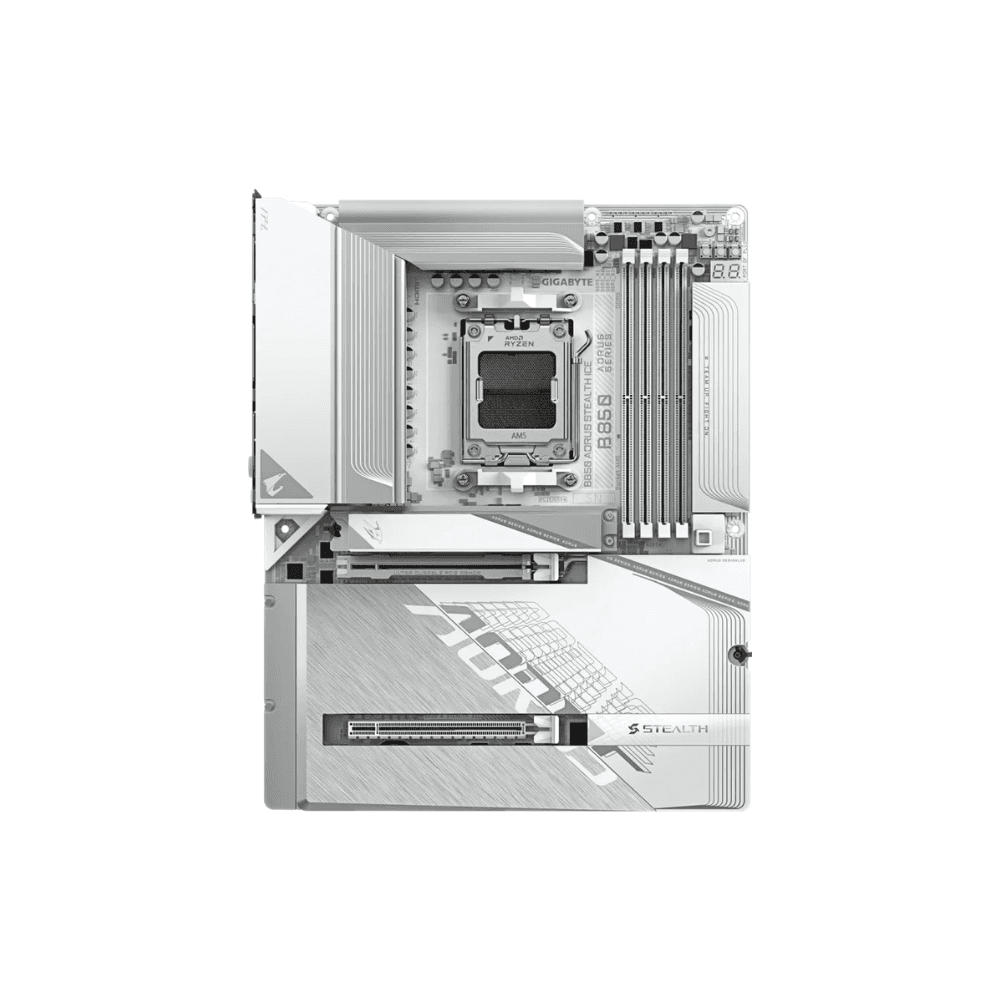

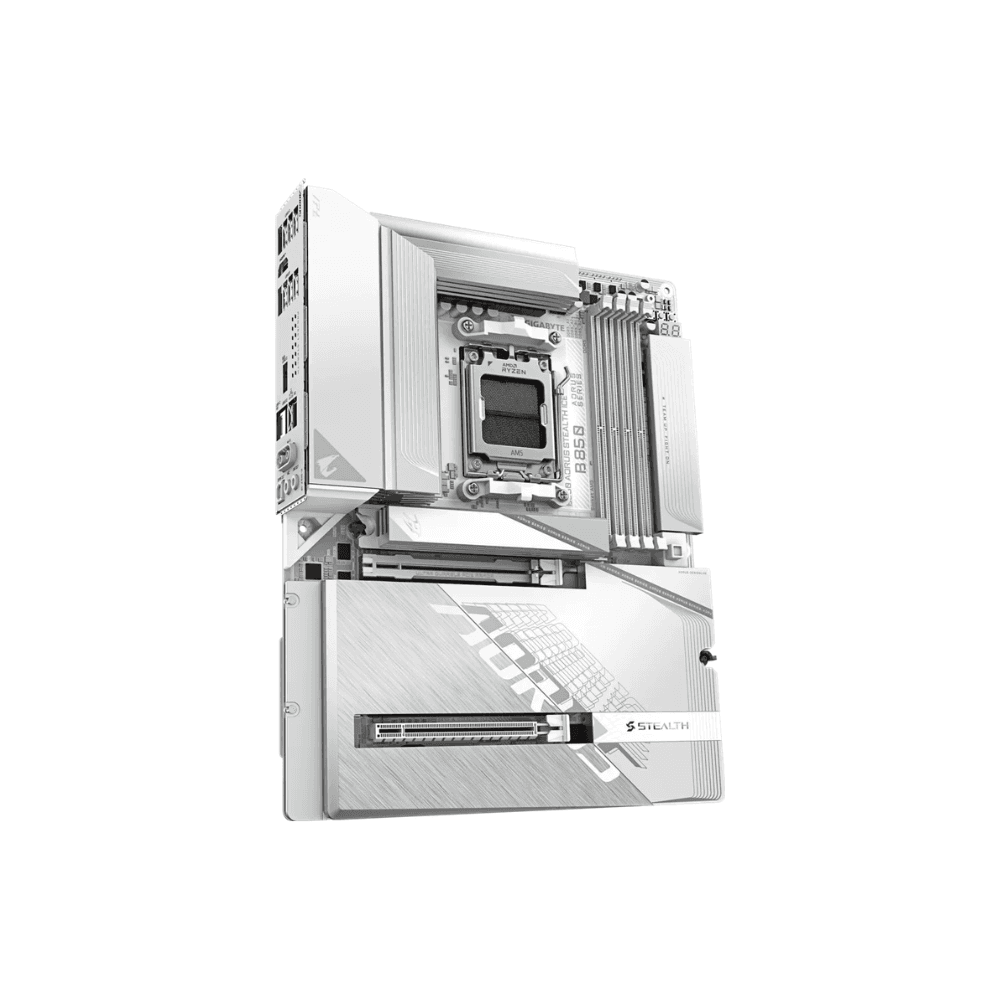

GIGABYTE B850 AORUS STEALTH ICE

CPU

• CPU Socket: AMD Socket AM5
• Supported Processors: AMD Ryzen™ 9000 Series
• AMD Ryzen™ 8000 Series
• AMD Ryzen™ 7000 Series

Memory

• Memory Type: DDR5
• Memory Slots: 4 × DDR5 DIMM
• Maximum Memory: Up to 256GB
• Maximum Capacity per DIMM: 64GB
• Memory Architecture: Dual Channel
• Supported Speed: DDR5 4800–5200 MT/s
• Overclocked Speeds: Up to DDR5 8200 MT/s (O.C.)
• Memory Support: Non-ECC Un-buffered DIMM
• Supported Profiles: AMD EXPO™ / Intel® XMP

Graphics

• Integrated Graphics: AMD Radeon™ Graphics support
• Display Output: 1 × HDMI
• Maximum Resolution: 4096 × 2160 @ 60Hz
• HDMI Version: HDMI 2.1
• Features: HDCP 2.3, HDR

Expansion Slots

• 1 × PCIe 5.0 x16 slot from CPU
• Supports PCIe 5.0 x16 with Ryzen 9000/7000 Series processors
• Supports PCIe 4.0 x8 with Ryzen 8000 Phoenix 1 processors
• Supports PCIe 4.0 x4 with Ryzen 8000 Phoenix 2 processors
• 1 × PCIe 4.0 x16 slot running at x4
• PCIEX4 slot shares bandwidth with M2D_SB

Storage

• 4 × M.2 connectors
• 2 × PCIe 5.0 M.2 slots
• 2 × PCIe 4.0 M.2 slots
• M.2 Socket 3, M Key
• Supports 22110 / 2280 SSDs
• 2 × SATA 6Gb/s connectors

Networking

• LAN: Realtek® 5GbE LAN
• LAN Speeds: 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
• Wireless: Realtek® Wi-Fi 7 RTL8922AE
• Wi-Fi: 2.4GHz / 5GHz / 6GHz
• Bluetooth: 5.4
• Wireless Standard: 802.11be
• Channel Width: Up to 160MHz

USB Connectivity

Rear I/O:

• 1 × USB Type-C® – USB 3.2 Gen 2
• 2 × USB 3.2 Gen 2 Type-A
• 4 × USB 3.2 Gen 1
• 4 × USB 2.0/1.1

Internal USB:

• 1 × USB Type-C® – USB 3.2 Gen 2×2
• 2 × USB 3.2 Gen 1
• 4 × USB 2.0/1.1

Internal I/O

• 1 × 24-pin ATX Main Power Connector
• 1 × 8-pin ATX 12V Power Connector
• 1 × 4-pin ATX 12V Power Connector
• 1 × CPU Fan Header
• 1 × CPU Fan / Water Cooling Pump Header
• 4 × System Fan Headers
• 2 × System Fan / Water Cooling Pump Headers
• 3 × Addressable RGB Gen2 LED Headers
• 1 × RGB LED Header
• 4 × M.2 Connectors
• 2 × SATA 6Gb/s Connectors
• 1 × Front Panel Header
• 1 × Front Panel Audio Header
• 1 × USB Type-C® Header
• 1 × USB 3.2 Gen 1 Header
• 2 × USB 2.0/1.1 Headers
• 1 × Noise Detection Header
• 1 × TPM Header
• 2 × Temperature Sensor Headers
• 1 × Clear CMOS Jumper

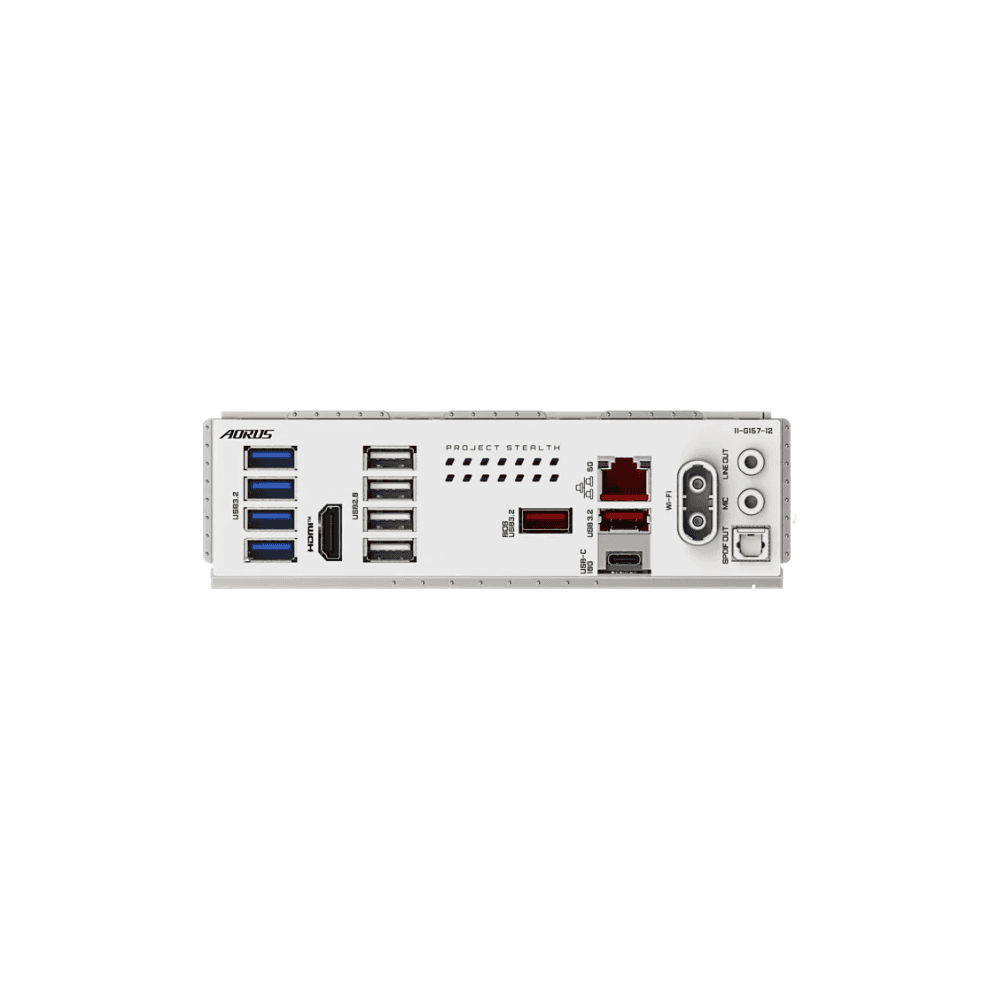

Rear Panel I/O

• 1 × HDMI

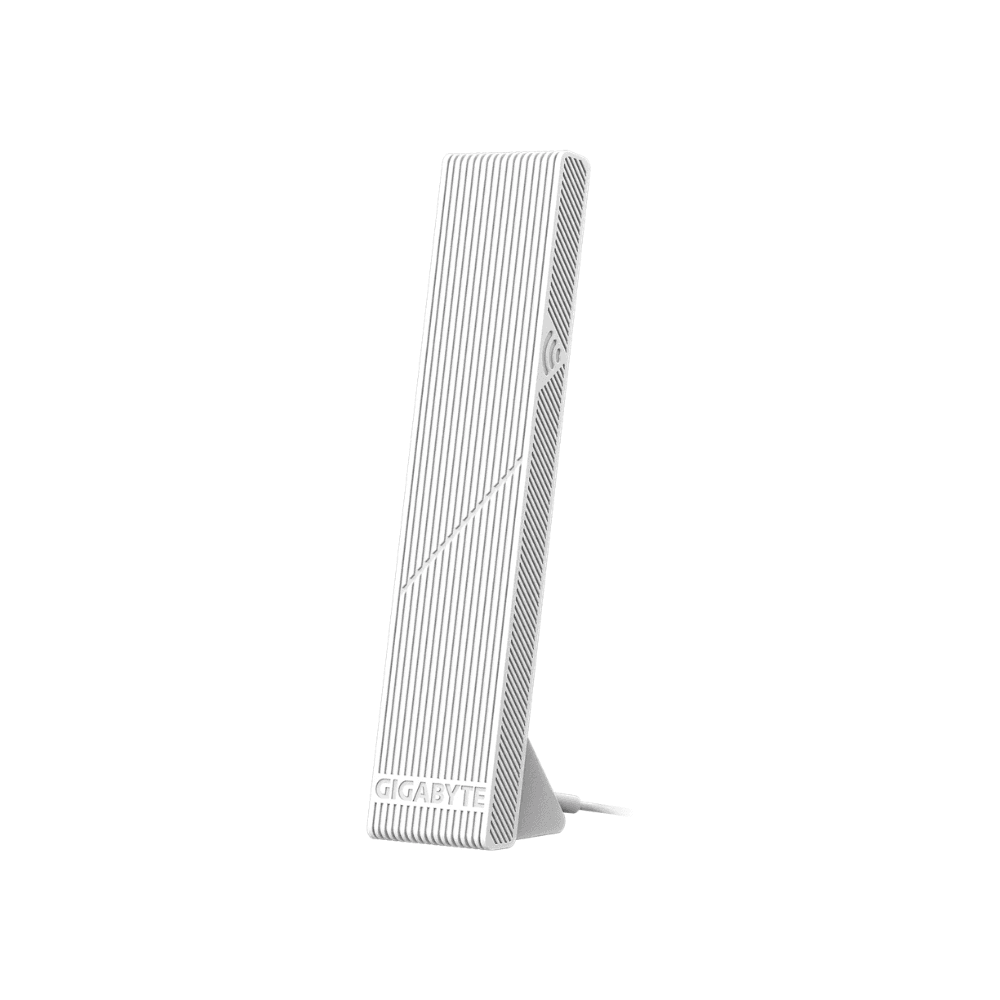

• 2 × Wi-Fi Antenna Connectors
• 1 × USB Type-C®
• 2 × USB 3.2 Gen 2 Type-A
• 4 × USB 3.2 Gen 1
• 4 × USB 2.0/1.1
• 1 × RJ-45 LAN
• 1 × Optical S/PDIF Out
• 2 × Audio Jacks

BIOS & Features

• BIOS: AMI UEFI BIOS
• BIOS Flash Memory: 512 Mbit
• Q-Flash
• Q-Flash Plus
• Smart Backup
• GIGABYTE Control Center (GCC)
• Hardware Monitoring
• Voltage Detection
• Temperature Detection
• Fan Speed Detection
• Water Cooling Flow Rate Detection
• Fan Fail Warning
• Fan Speed Control

Operating System

• Windows 11 64-bit
