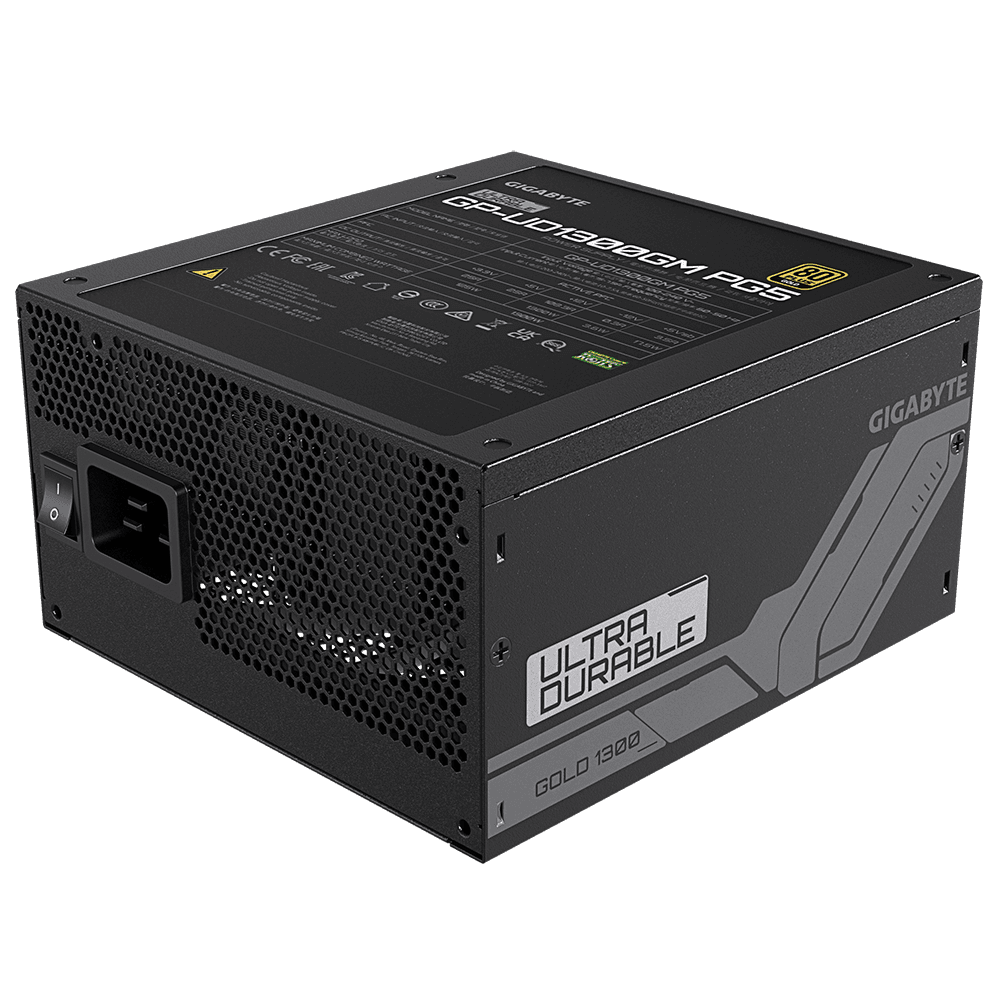

GIGABYTE UD1300M 80+PLUS GOLD BLACK Power Supply

Key Specifications

• Power Output: 1300W

• Efficiency Certification: 80 PLUS® Gold

• Form Factor: ATX

• ATX Standard: ATX 3.1

• PCIe Support: PCIe 5.1 Ready

• 12V-2×6 Connector: Included, up to 600W

• Modular Design: Fully Modular

• Cooling Fan: 140mm Double Ball Bearing Fan

• Fan Mode: Fan Stop Below 20% Load

• Input Voltage: 100-240V AC

• PFC Type: Active PFC (>0.9 Typical)

• 12V Rail: Single +12V Rail

• Efficiency: 90% at Typical Load

• Capacitors: Main Japanese Capacitors

• MTBF: >100,000 Hours

• Protection Features: OVP, OPP, SCP, UVP, OCP, OTP

• Power Good Signal: 100-150ms

• Hold Up Time: >16ms

• Cable Type: Flat, All Black

• Color: Black

• Dimensions: 150 × 160 × 86 mm

• Warranty: 10 Years

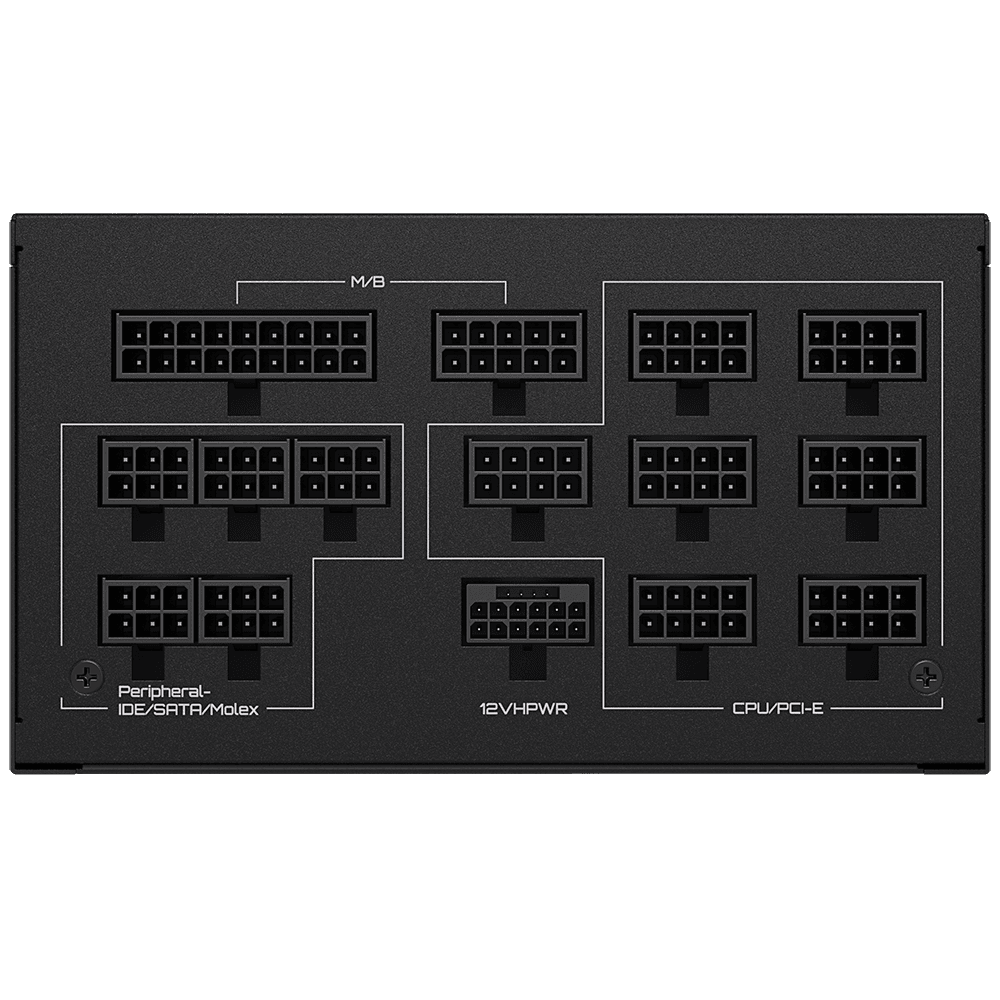

Connector Configuration

• 1 × 20+4-Pin ATX/MB

• 2 × 4+4-Pin EPS/CPU

• 1 × 12V-2×6 (PCIe 5.1)

• 8 × PCIe 6+2 Pin

• 12 × SATA

• 6 × 4-Pin Peripheral (Molex)

• 2 × 4-Pin Floppy
