Product Image 1

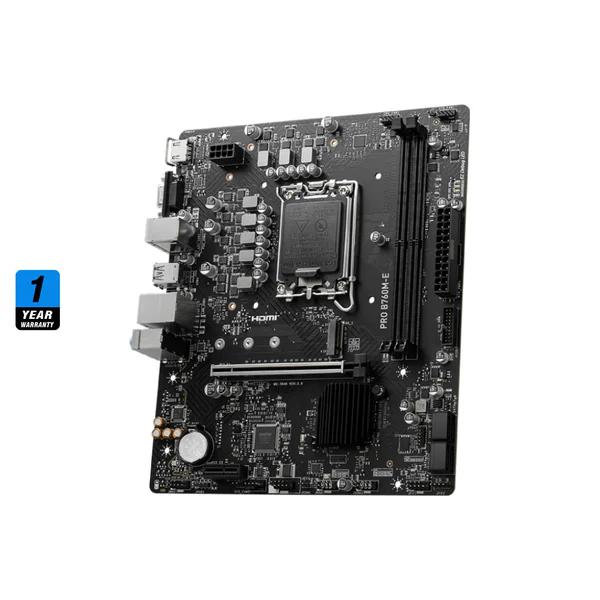

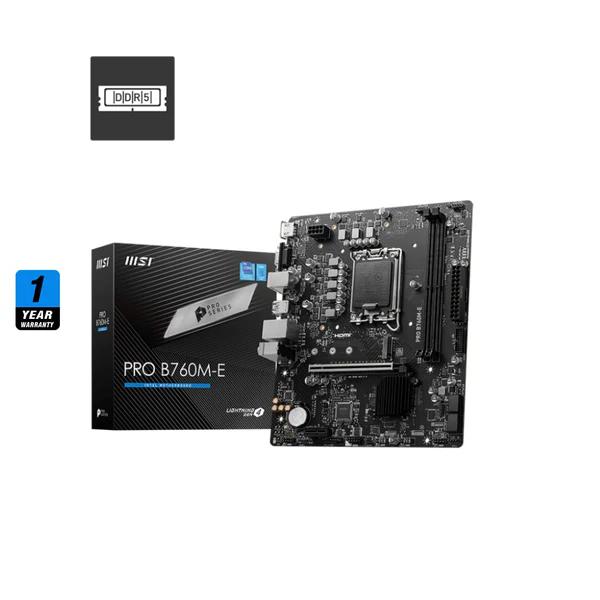

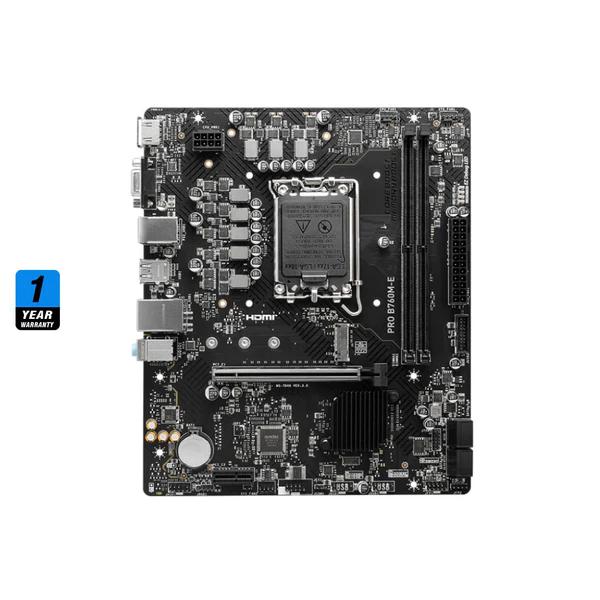

MSI PRO B760M-E D5 , Motherboard

(0 Reviews)

Brand: MSI

IQD 160,000

In Stock

1

Motherboard Specification

• Model: MSI PRO B760M-E D5

• Chipset: Intel B760

• Socket: LGA1700 – Supports Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors

• Form Factor: Micro-ATX

• Memory Support:

– 2 × DDR5 DIMM slots

– Up to 96GB, up to 6400+ MHz (OC)

– Dual Channel, XMP profiles supported

• Graphics Outputs: 1 × HDMI 1.4 (4K@30Hz), 1 × VGA

• Audio: 7.1 Channel HD Audio – Realtek ALC897

• Expansion Slots:

– 1 × PCIe 4.0 x16 (Steel Armor)

– 1 × PCIe 3.0 x1

• Storage:

– 1 × M.2 Gen4 x4 (64Gbps)

– 4 × SATA III (6Gbps)

– RAID 0/1/5/10 support

• Networking: Realtek RTL8111H Gigabit LAN

• USB Ports:

– Rear: 4 × USB 3.2 Gen1 Type-A, 4 × USB 2.0

– Internal: USB 3.2 Gen1 header, USB 2.0 headers

• Cooling & Features:

– Passive chipset heatsink

– 1 × CPU fan header, 1 × system fan header

– EZ Debug LEDs for troubleshooting

– Frozr AI Cooling with automatic fan curve adjustment

• RGB: 1 × RGB header (12V)

• OS Support: Windows 11 / Windows 10 64-bit
