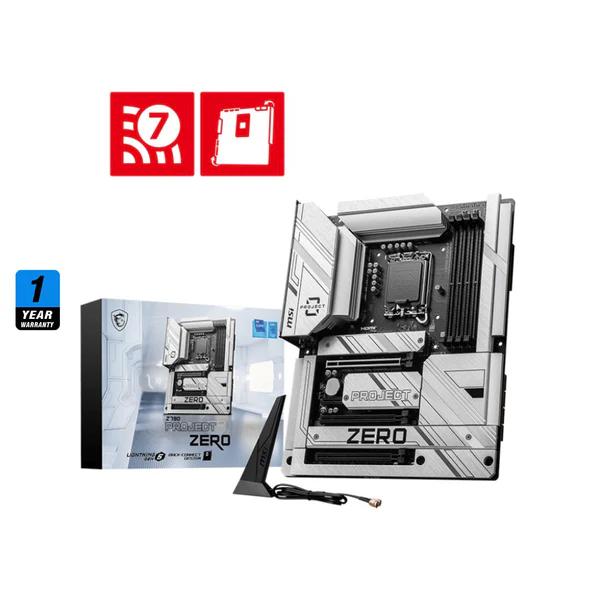

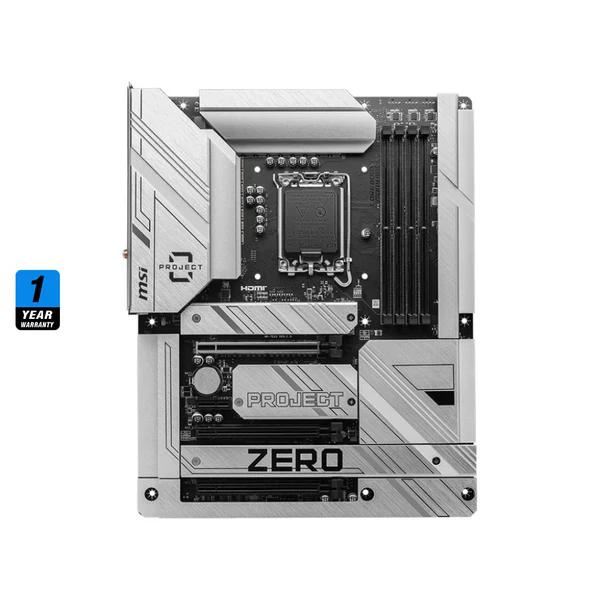

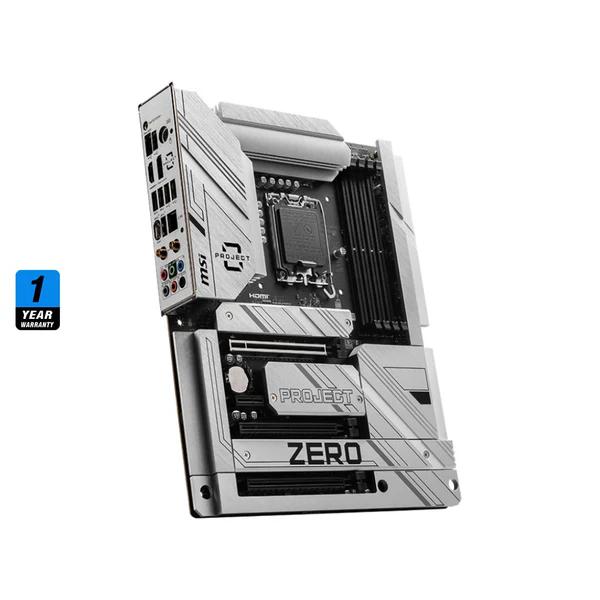

MSI Z790 PROJECT ZERO, Motherboard (BTF)

Motherboard Specification

• Chipset: Intel Z790

• Socket: LGA1700 – Supports Intel 14th / 13th / 12th Gen Core processors

• Form Factor: ATX (Back-to-The-Future layout)

• Memory Support: 4 x DDR5 DIMM slots, up to 192GB, up to 7200+ MT/s (OC), Dual Channel, Intel XMP 3.0

• Graphics Outputs: 1 x HDMI 2.1

• Audio: Realtek ALC4080 – 7.1 Channel HD Audio, S/PDIF out

• Expansion Slots:

– 1 x PCIe 5.0 x16

– 1 x PCIe 4.0 x4

– 2 x PCIe 3.0 x1

• Storage:

– 4 x M.2 (1 x PCIe 5.0, 3 x PCIe 4.0/SATA)

– 4 x SATA III

– RAID 0/1/5/10 support

• Networking:

– Realtek 2.5GbE LAN

– Intel Wi-Fi 7

– Bluetooth 5.4

• USB Ports:

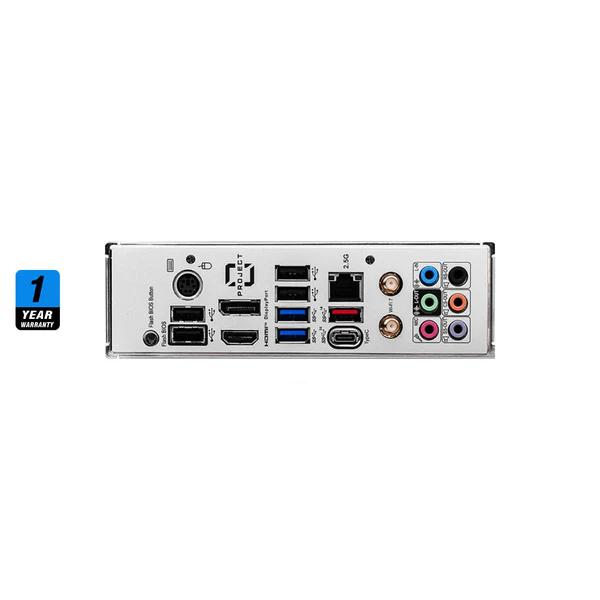

– Rear: USB 2.0, USB 5Gbps, USB 10Gbps, USB 20Gbps Type-C

– Internal: USB 2.0, USB 5Gbps, USB 20Gbps Type-C header

• Cooling & Features:

– Extended heatsinks, 7W/mK MOSFET thermal pads

– M.2 Shield Frozr

– EZ PCIe Clip II, Debug LED

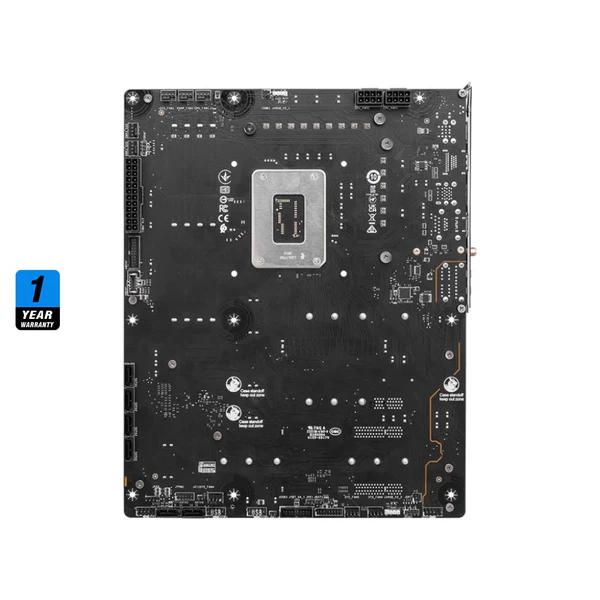

– Back-connect design for hidden cable routing

• OS Support: Windows 11 / Windows 10 64-bit
