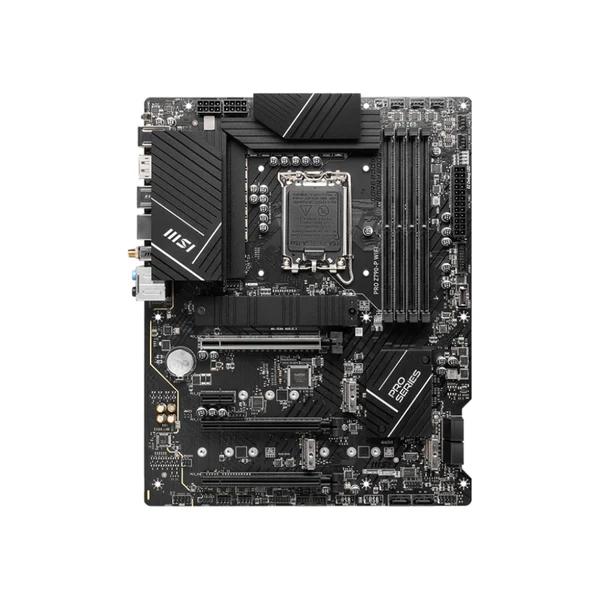

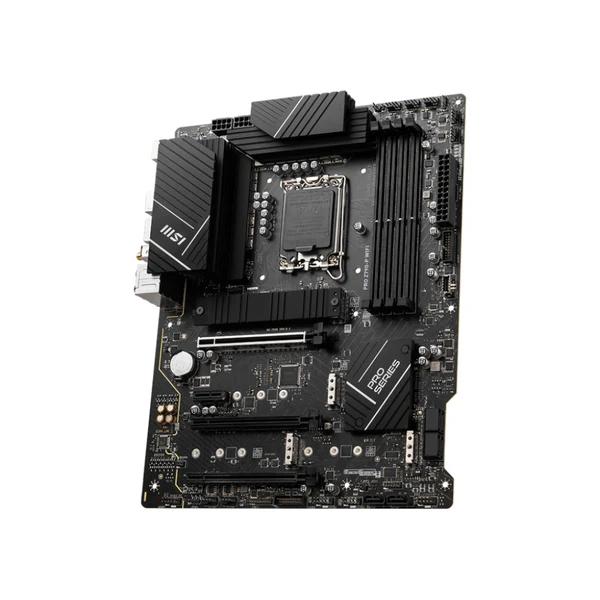

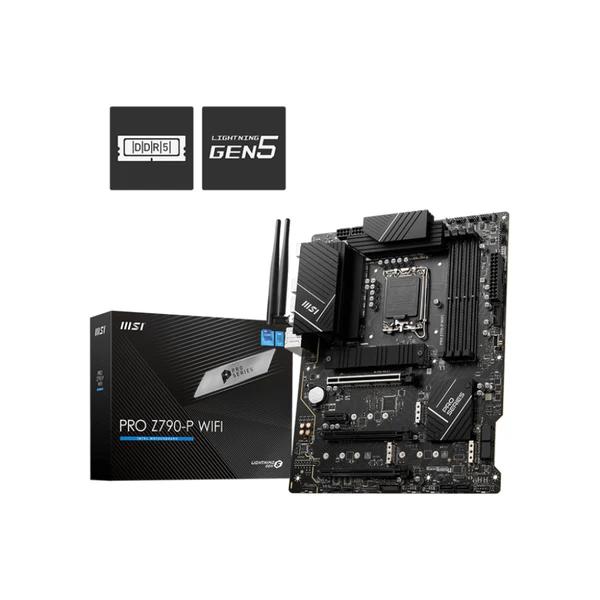

MSI PRO Z790-P DDR5 WIFI , Motherboard

Motherboard Specification

Model: PRO Z790-P WIFI

Processor Support: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron®

Chipset: Intel® Z790

Memory Support: 4x DDR5 up to 256GB, up to 7000+ MHz (OC), Dual-Channel, non-ECC, un-buffered, Intel® XMP 3.0

Graphics Ports: 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)

Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1, 1x PCIe 3.0 x1

Storage: 4x M.2 (PCIe 4.0 / SATA), 6x SATA 6Gb/s

Ethernet: Intel® 2.5Gb LAN

Wireless & Bluetooth: Intel® Wi-Fi 6E (2.4/5/6GHz), Bluetooth® 5.3

USB: Rear: 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps (Type-A), 1x USB 20Gbps (Type-C) | Front: 4x USB 2.0, 4x USB 5Gbps, 1x USB 10Gbps (Type-C)

Audio: Realtek® ALC897, 7.1 HD Audio

Internal I/O Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JDASH, 2x JARGB_V2, 1x JRGB, 1x TPM, USB headers: 4x USB 2.0, 4x USB 5Gbps, 1x USB 10Gbps (Type-C)

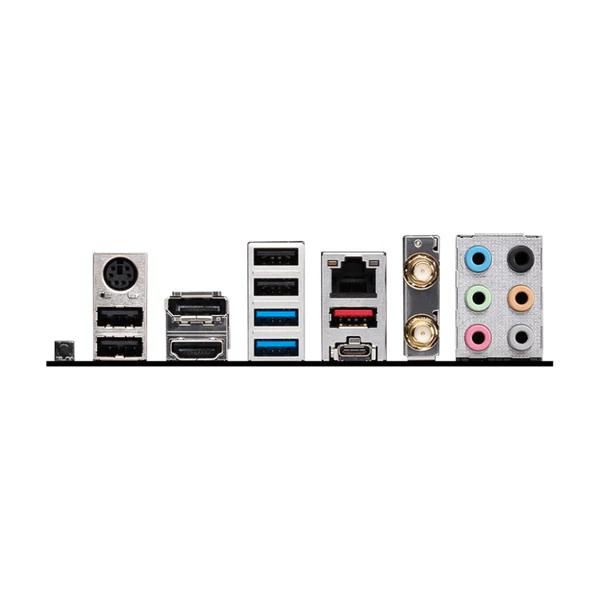

Back Panel I/O Ports: 1x DisplayPort, 1x HDMI™, 1x 2.5G LAN, 4x USB 2.0, 2x USB 5Gbps (Type-A), 1x USB 10Gbps (Type-A), 1x USB 20Gbps (Type-C), Audio connectors, Wi-Fi antenna, Flash BIOS button, Keyboard/Mouse

Form Factor: ATX
