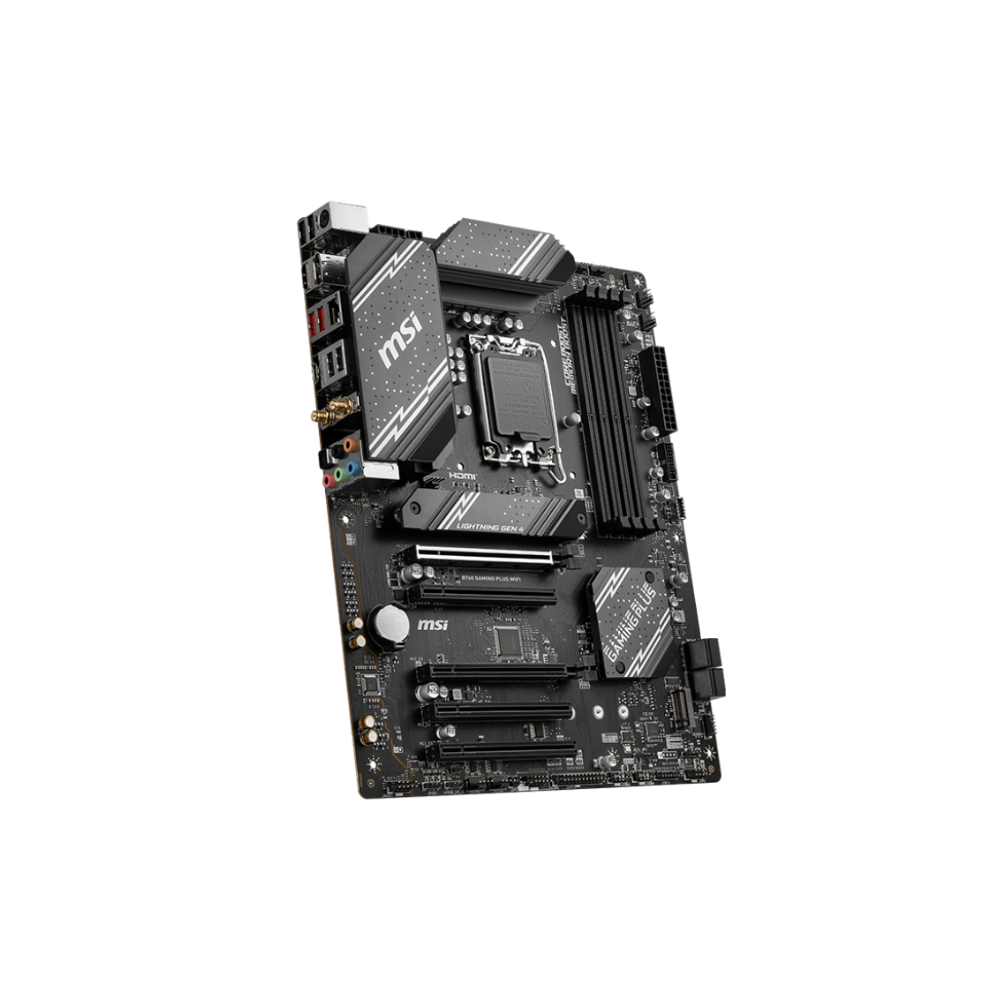

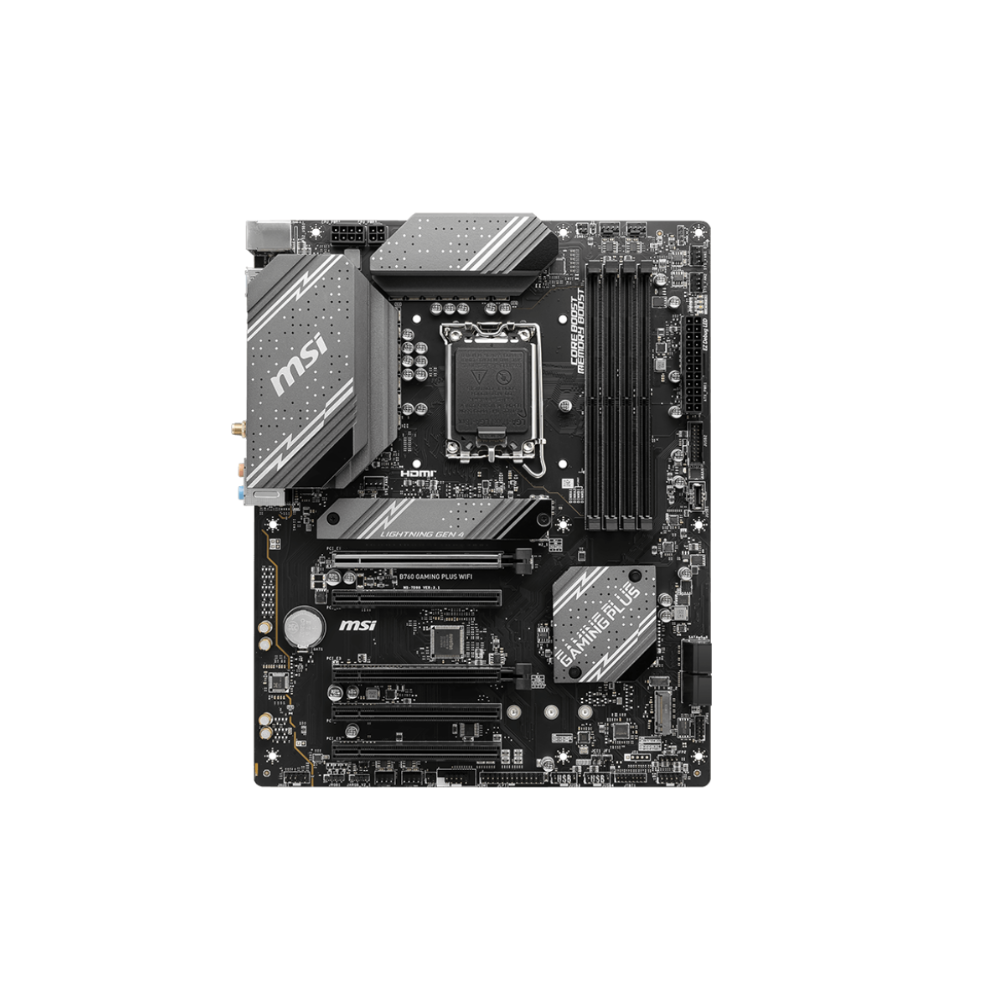

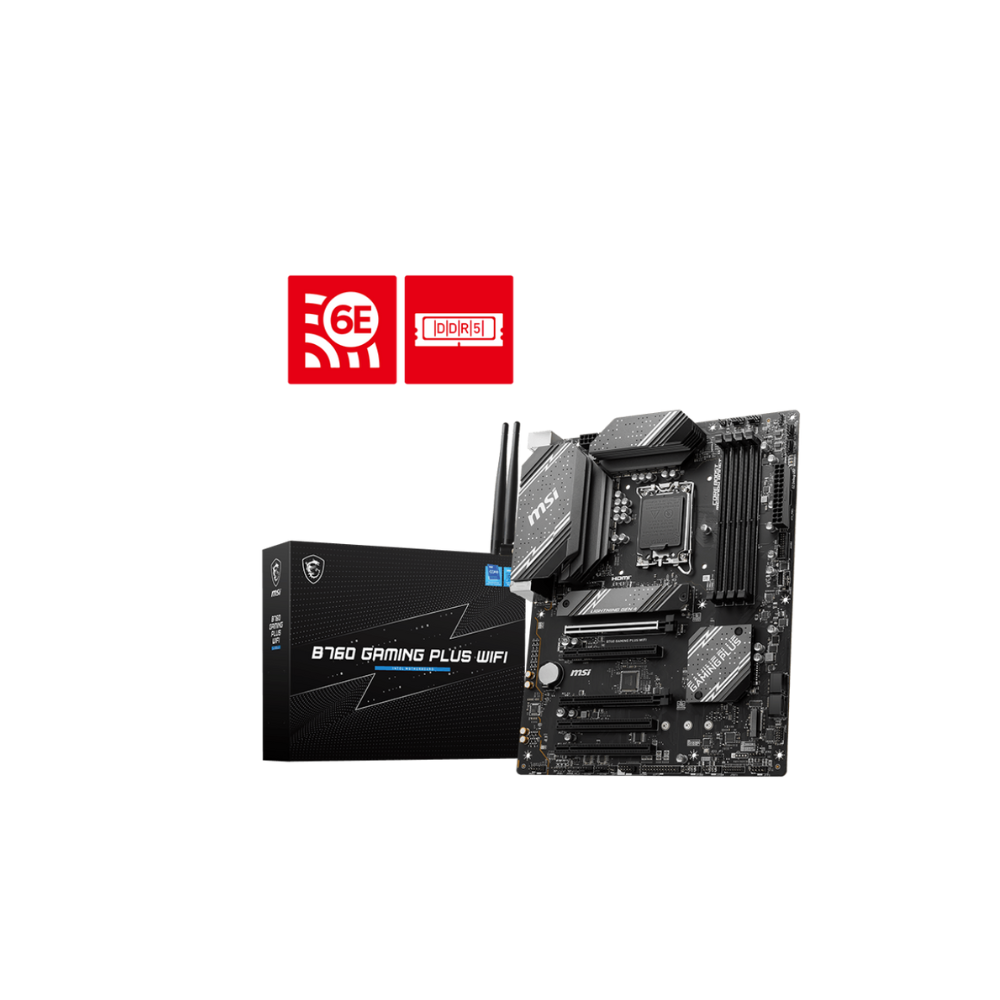

Name: MSI GAMING PLUS B760 WIFI 1700 LGA
Brand: MSI
SKU: FW 030607
Price: 265000 IQD
Availability: InStock

MSI GAMING PLUS B760 WIFI 1700 LGA

(0 Reviews)

Brand: MSI

IQD 265,000

In Stock

CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700
Chipset	INTEL B760
Memory	4x DDR5, Maximum Memory Capacity 256GB; Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: 1DPC 1R up to 6800+ MHz, 1DPC 2R up to 6400+ MHz, 2DPC 1R up to 6000+ MHz, 2DPC 2R up to 5600+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™, Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz; 1x DisplayPort, Support DP 1.4, maximum resolution of 4K 60Hz (available only on processors featuring integrated graphics)
Slot	5x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
Storage	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G (SATA8 unavailable when installing M.2 SATA SSD in the M2_2 slot)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

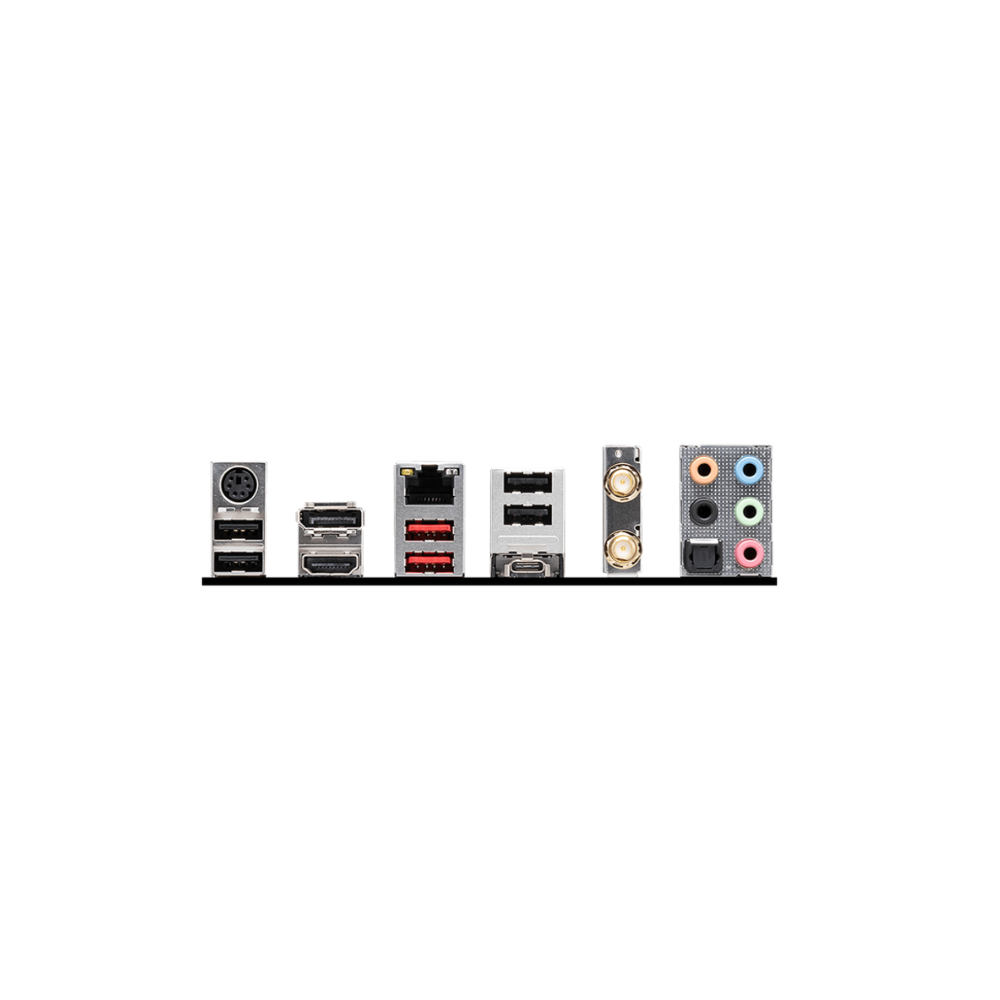

USB	4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 2x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports
Wireless Lan & Bluetooth	Intel® Wi-Fi 6E, wireless module pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/b/g/n/ac/ax; Supports Bluetooth® 5.3, FIPS, FISMA
Led Feature	4x EZ Debug LED

Product Page

MSI GAMING PLUS B760 WIFI 1700 LGA
