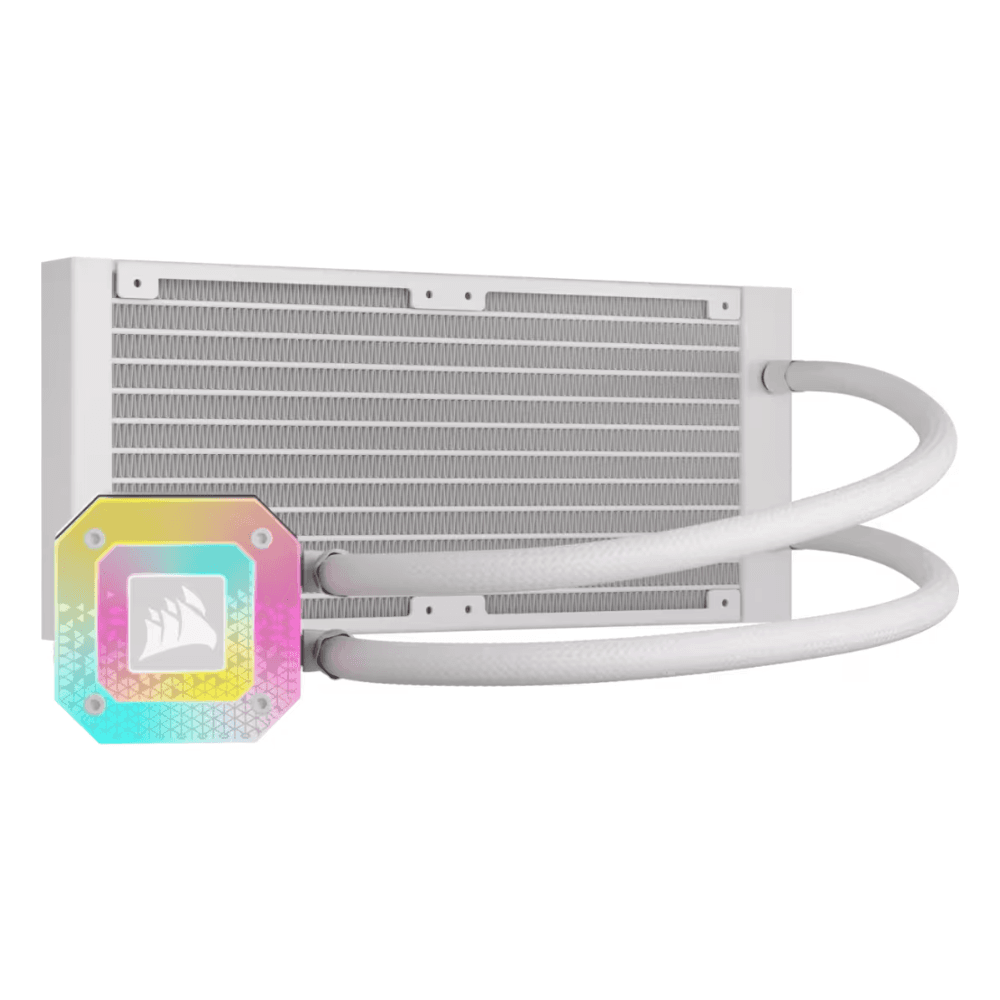

CORSAIR iCUE H100i ELITE CAPELLIX 240mm – White

Product Type: All-in-One (AIO) Liquid CPU Cooler
Series: iCUE ELITE CAPELLIX
Radiator Size: 240mm
Color: White
SKU: CW-9060050-WW

Radiator

• Radiator Dimensions: 277 × 120 × 27 mm

• Radiator Material: Aluminum

• Tubing Material: White Sleeved Low-Permeation Rubber

• Tubing Length: 380 mm

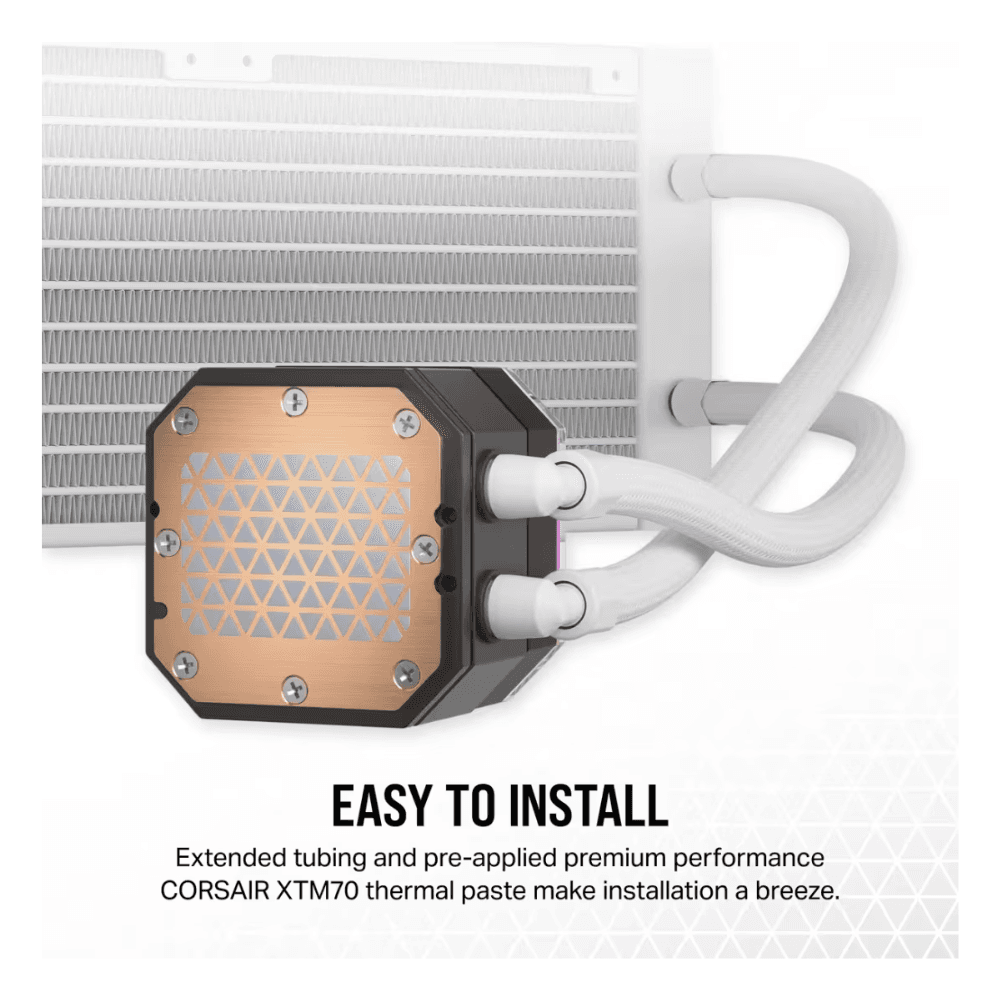

Pump & Cold Plate

• Pump Type: Centrifugal Pump

• Pump Flow Rate: Up to 0.82 L/min

• Pump Noise Level: <20 dBA

• Cold Plate Material: Copper

• Cold Plate Dimensions: 56 × 56 mm

• Cold Plate Design: Split-Flow Copper Cold Plate

• Microfins: 128 Micro-Skived Fins per Inch

• Pump Control: PWM

Cooling Fans

• Fan Model: CORSAIR ML RGB Series

• Fan Configuration: 2 × 120mm Fans

• Fan Dimensions: 120 × 25 mm

• Fan Speed: Up to 2400 RPM

• Airflow: Up to 75 CFM

• Static Pressure: 4.2 mm-H₂O

• Noise Level: 10–37 dBA

• Control Type: PWM

• Bearing Type: Magnetic Levitation Bearing

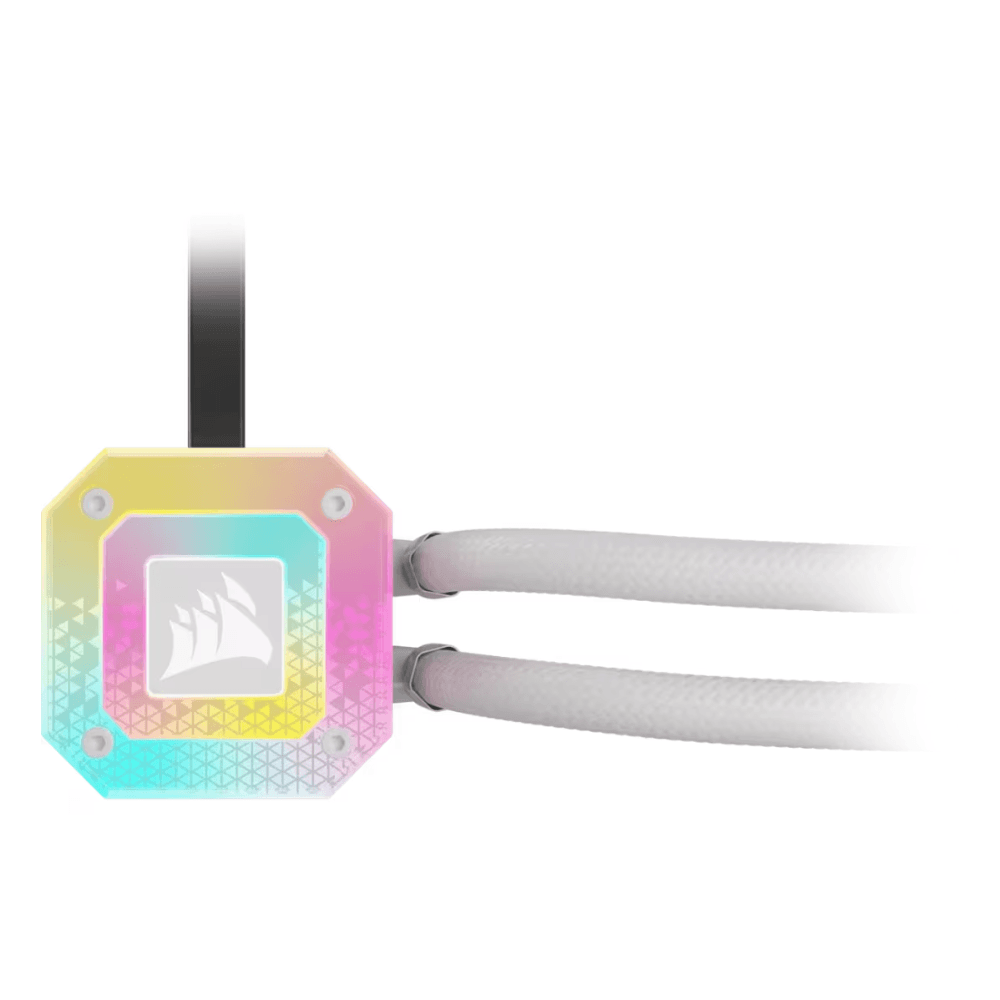

RGB Lighting

• Lighting: CAPELLIX RGB

• Pump Head LEDs: 33 Individually Addressable CAPELLIX RGB LEDs

• Fan LEDs: 8 RGB LEDs per Fan

• Software Support: CORSAIR iCUE

• Controller: iCUE Commander CORE Included

• Lighting Customization: Fully Customizable RGB Effects

Features

• High-performance 240mm liquid CPU cooling

• Advanced CAPELLIX RGB pump head

• Split-flow copper cold plate

• High-density 128 micro-skived fins per inch

• Two ML RGB White Series PWM fans

• Magnetic Levitation Bearing technology

• Zero RPM cooling mode

• Real-time CPU and coolant temperature monitoring

• Modular tool-free mounting system

• Two interchangeable pump caps included

• Pre-applied thermal compound

Compatibility

• Intel: LGA 1700 / LGA 1200 / LGA 1150 / LGA 1151 / LGA 1155 / LGA 1156 / LGA 1366 / LGA 2011 / LGA 2066

• AMD: AM5 / AM4 / sTRX4 / sTR4

Package Contents

• 1 × iCUE H100i ELITE CAPELLIX White CPU Cooler

• 1 × iCUE Commander CORE Controller

• 2 × ML RGB White Series PWM 120mm Fans

• Mounting Kit for Modern Intel & AMD CPU Sockets

• Fan & Radiator Mounting Screws

• Pre-Applied Thermal Compound

• Quick Start Guide

Dimensions & Weight

• Product Dimensions: 277 × 125 × 119.6 mm

• Weight: 2.097 kg
