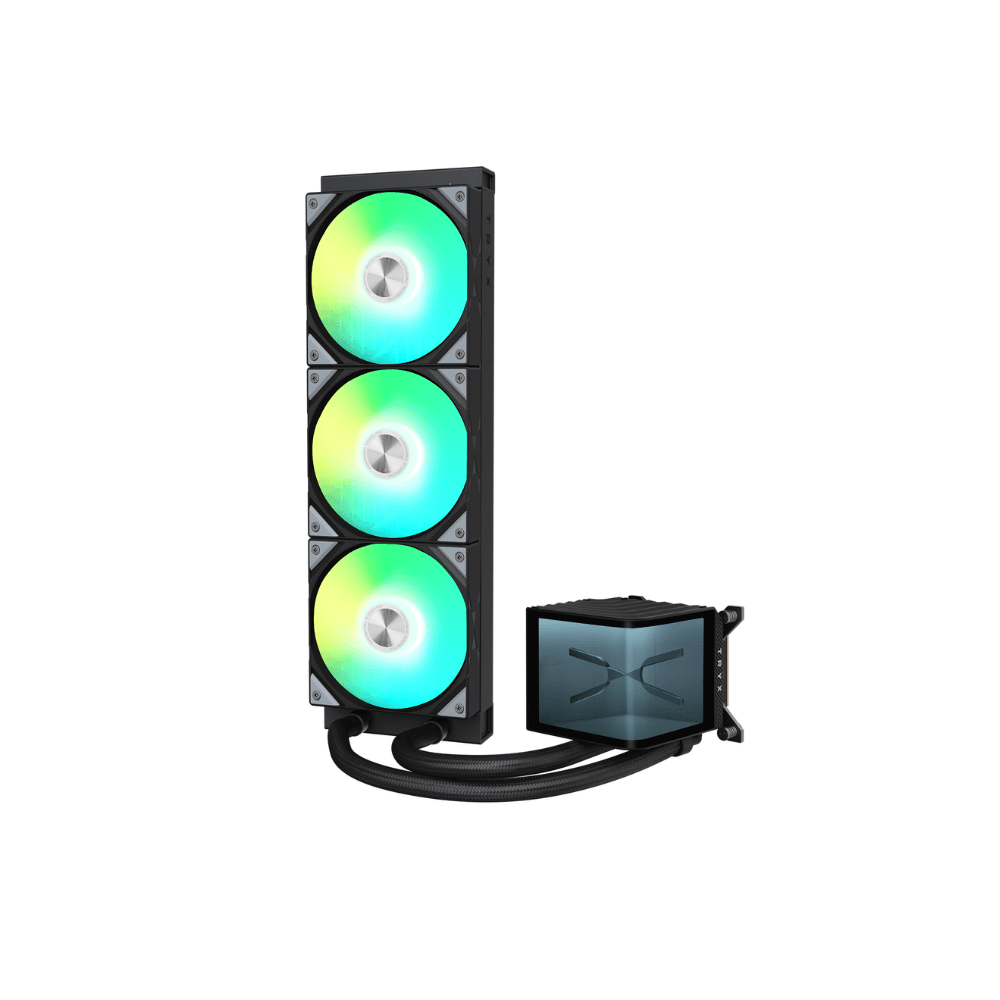

TRYX PANORAMA 360mm ARGB BLACK

Description

Product Type: All-in-One (AIO) Liquid CPU Cooler
Series: TRYX PANORAMA ARGB
Radiator Size: 360mm
Color: Black

AMOLED Display

Display Type: 6.67-inch Curved AMOLED Display
Visible Area: 6.5-inch L-Shaped Panoramic Screen
Display Resolution: 2240 × 1080 (2K)
Pixel Density: 372 PPI
Refresh Rate: 60Hz
Brightness: 400 cd/m²
Contrast Ratio: 1,000,000:1
Viewing Angle: Ultra-Wide
Display Functions: Real-Time System Monitoring, Custom Images, GIFs, MP4 Videos & Split-Screen Display
Software: KANALI Software Hub (tryx.com)

Pump

Pump Design: ASETEK Gen8 V2 Water Pump
Pump Speed: 800 – 3,600 RPM (±10%)
Pump Noise Level: 25.3 dBA
Pump Dimensions: 118 × 92 × 92mm
Cold Plate: Enlarged 30mm Copper Cold Plate with High-Density Fin Array
VRM Cooling: Integrated VRM Cooling Fan (tryx.com)

Radiator

Radiator Size: 360mm
Radiator Material: Aluminum
Radiator Dimensions: 399.5 × 120 × 30mm
Tube Length: 400mm
Tube Design: 40% Wider Tubing for Improved Coolant Flow
Cooling Capacity: Up to 320W TDP (tryx.com)

Cooling Fans

Fan Configuration: 3 × 120mm ARGB PWM Fans
Fan Dimensions: 120 × 120 × 25mm
Fan Speed: 500 – 1,850 RPM (±10%)
Airflow: Up to 65.64 CFM per Fan
Static Pressure: Up to 2.49 mmAq
Noise Level: Up to 28.87 dBA
Bearing Type: Fluid Dynamic Bearing (FDB)
Lighting: Gen2 Addressable RGB (8 LEDs per Fan) (tryx.com)

RGB Lighting

Lighting: ARGB Gen2
Software Support: KANALI Software Hub
Synchronization: Compatible with Standard 5V ARGB Motherboard Headers

Features

• Premium 360mm all-in-one liquid CPU cooler

• World’s first 6.67-inch curved AMOLED L-shaped display

• Stunning 2K (2240 × 1080) panoramic screen with 372 PPI

• Split-screen mode for displaying different content simultaneously

• Supports custom images, GIFs, MP4 videos, and real-time hardware monitoring

• ASETEK Gen8 V2 pump for exceptional cooling performance

• Enlarged 30mm copper cold plate with high-density fin structure

• Integrated VRM cooling fan for improved motherboard power-stage cooling

• 40% wider tubing for higher coolant flow and faster heat transfer

• Three high-performance 120mm ARGB PWM fans with Fluid Dynamic Bearings

• Gen2 ARGB lighting with 8 LEDs per fan

• Premium anti-glare tempered glass display with full-lamination technology

• Includes TRYX a-01 high-performance thermal paste

• Optimized for gaming, AI workloads, content creation, and enthusiast PC builds (tryx.com)

Compatibility

Intel: LGA 1851, LGA 1700, LGA 1200, LGA 115X

AMD: AM5, AM4 (tryx.com)

Warranty

Cooler Warranty: 6 Years
Display Warranty: 2 Years
