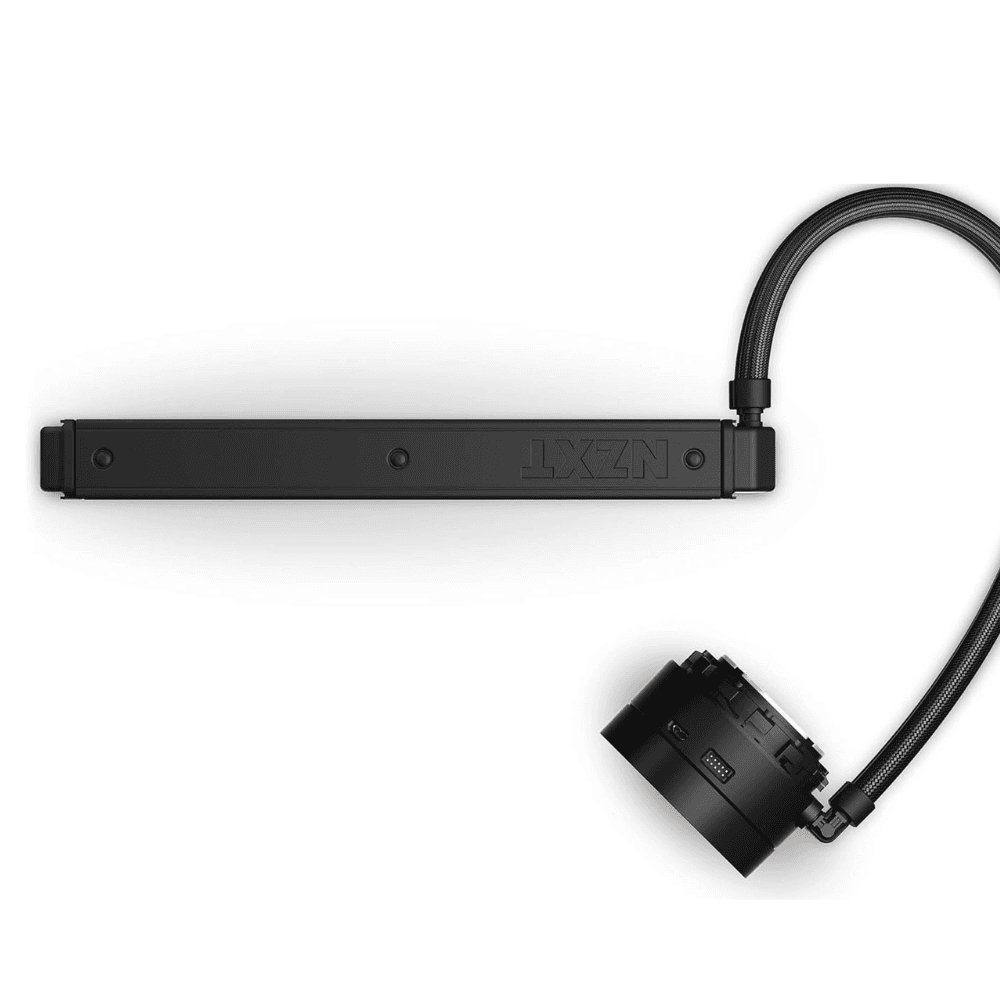

NZXT KARKEN Z63 280mm BLACK

Description

Product Type: All-in-One (AIO) Liquid CPU Cooler
Series: NZXT Kraken Z63
Radiator Size: 280mm
Model: RL-KRZ63-01
Color: Black

LCD Display

Display Type: 2.36-inch LCD Display
Display Resolution: 320 × 320 Pixels
Brightness: 650 cd/m²
Color Depth: 24-Bit True Color
Display Functions: Real-Time System Monitoring, Custom Images, GIFs & Personalized Content
Software: NZXT CAM

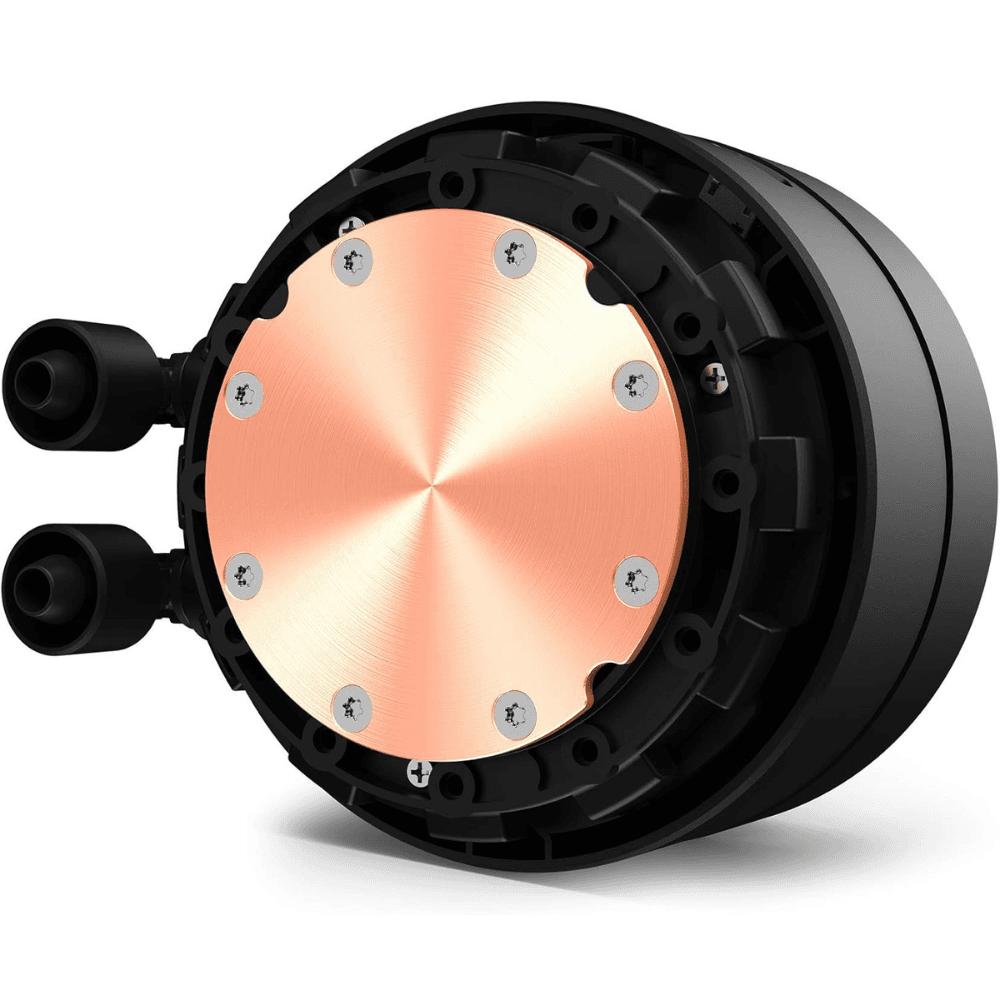

Pump

Pump Design: 7th Generation Asetek Pump
Pump Speed: 800 – 2,800 RPM (±300 RPM)
Pump Control: PWM
Cold Plate Material: Copper
Pump Housing: Rotatable LCD Display

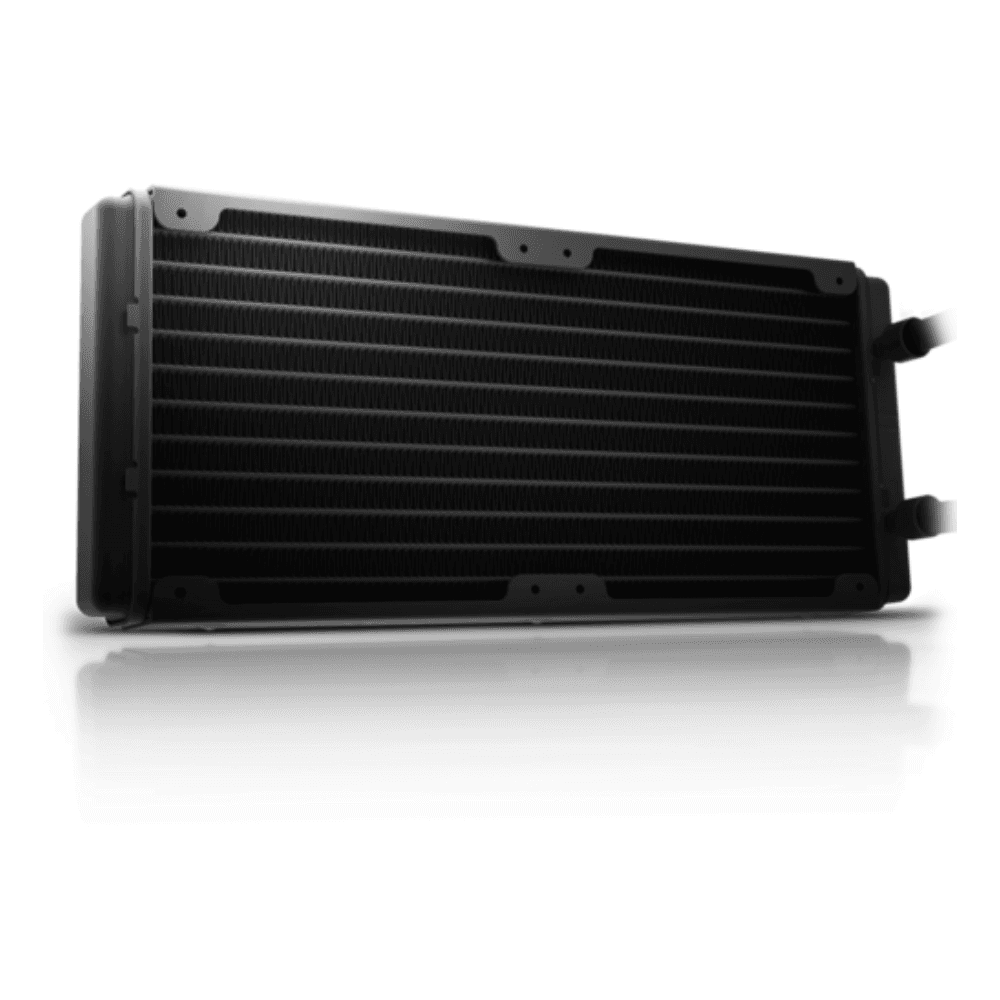

Radiator

Radiator Size: 280mm
Radiator Material: Aluminum
Radiator Dimensions: 315 × 143 × 30mm
Tube Length: 400mm
Tube Material: Rubber with Nylon Braided Sleeve

Cooling Fans

Fan Configuration: 2 × 140mm Aer P Fans
Fan Speed: 500 – 1,800 RPM (±300 RPM) per Fan
Airflow: Up to 98.17 CFM per Fan
Static Pressure: Up to 2.71 mmH₂O per Fan
Noise Level: 21 – 38 dBA per Fan
Bearing Type: Fluid Dynamic Bearing (FDB)
Connector: 4-Pin PWM

RGB Lighting

Lighting: Customizable LCD Display (No Integrated ARGB Fans)
Software Support: NZXT CAM
Additional RGB Connector: 1 × NZXT 4-Pin RGB Header (via Breakout Cable)

Features

• Premium 280mm all-in-one liquid CPU cooler

• 2.36-inch customizable LCD display with 320 × 320 resolution

• Real-time system monitoring through NZXT CAM

• Supports custom images, GIFs, and personalized content on the LCD

• 7th Generation Asetek pump for powerful and quiet cooling

• Rotatable pump housing for optimal display orientation

• High-performance copper cold plate for efficient heat transfer

• 280mm aluminum radiator with dual 140mm Aer P PWM fans

• Fluid Dynamic Bearing fans provide quiet operation and long-lasting durability

• Reinforced nylon-braided tubing for enhanced reliability

• Intelligent CAM software control for cooling profiles and monitoring

• Designed for gaming, overclocking, and high-performance desktop systems

Compatibility

Intel: LGA 115X, LGA 1200, LGA 1700, LGA 1851, LGA 2011, LGA 2066

AMD: AM4, AM5, TR4, sTRX4 (Threadripper bracket sold separately)

Warranty

Warranty: 6 Years
