TRYX TURRIS 620 CPU Air Cooler Black

Product Information

• Product Type: CPU Air Cooler
• Product Model: TURRIS 620
• MPN: H-T620N-DM2M-G0K
• Cooling Solution: Dual-Tower Heatsink
• Color: Black
• Thermal Capacity: 280W TDP
• CPU Cooler Clearance: 165 mm
• Net Weight: 1.85 kg

Heatsink

• Heatsink Dimensions: 127.5 × 135 × 159 mm
• Overall Cooler Dimensions: 165 × 135 × 165 mm
• Heat Pipes: 6 × 6 mm Copper Heat Pipes
• Heatsink Design: Dual-Tower
• Base: Nickel-Plated Micro-Convex Copper Base
• Soldering Technology: Void-Free Reflow Soldering
• Thermal Capacity: 280W TDP

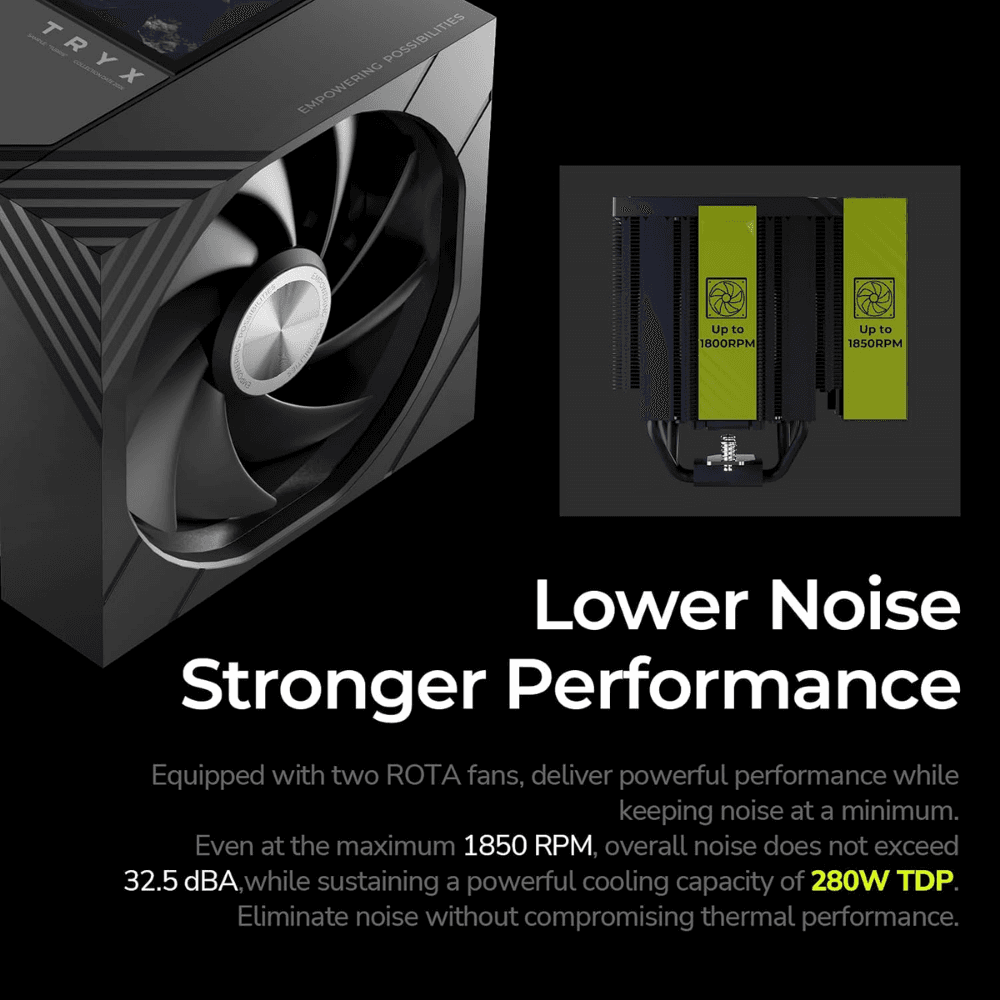

Cooling Fan

• Fan Quantity: 2 × ROTA Fans
• Fan Dimensions: 120 × 120 × 25 mm
• Fan Speed: 500–1850 RPM ±10%
• Airflow: 66.32 CFM
• Static Pressure: 2.1 mmAq
• Fan Noise: 27.42 dBA
• Overall Noise: Up to 32.5 dBA
• Bearing Type: Fluid Dynamic Bearing (FDB)
• Fan Connector: 4-Pin PWM
• Rated Voltage: 12V
• Rated Current: 0.1A
• Power Consumption: 1.2W

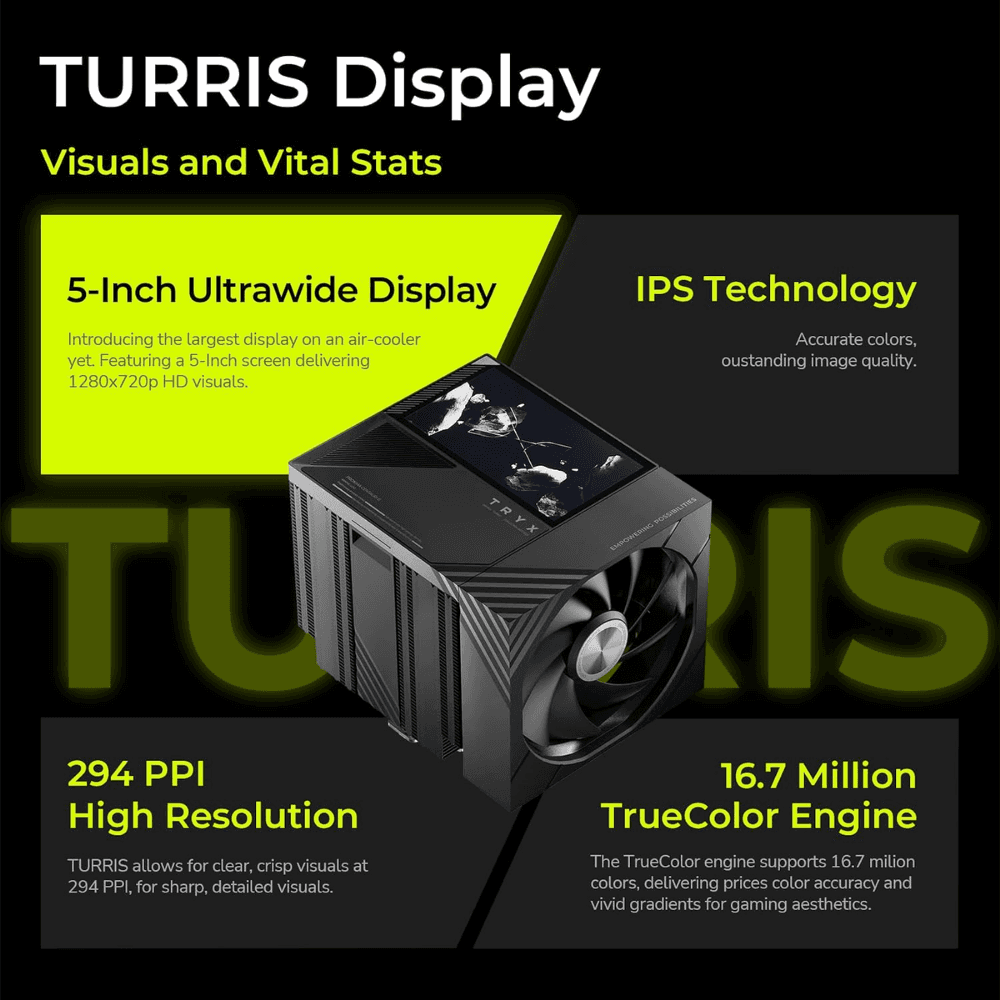

Display

• Display Type: IPS
• Screen Size: 5.0 Inch
• Resolution: 1280 × 720 (720p)
• Pixel Density: 294 PPI
• Refresh Rate: 60 Hz
• Brightness: 500 nits
• Mounting: Magnetic

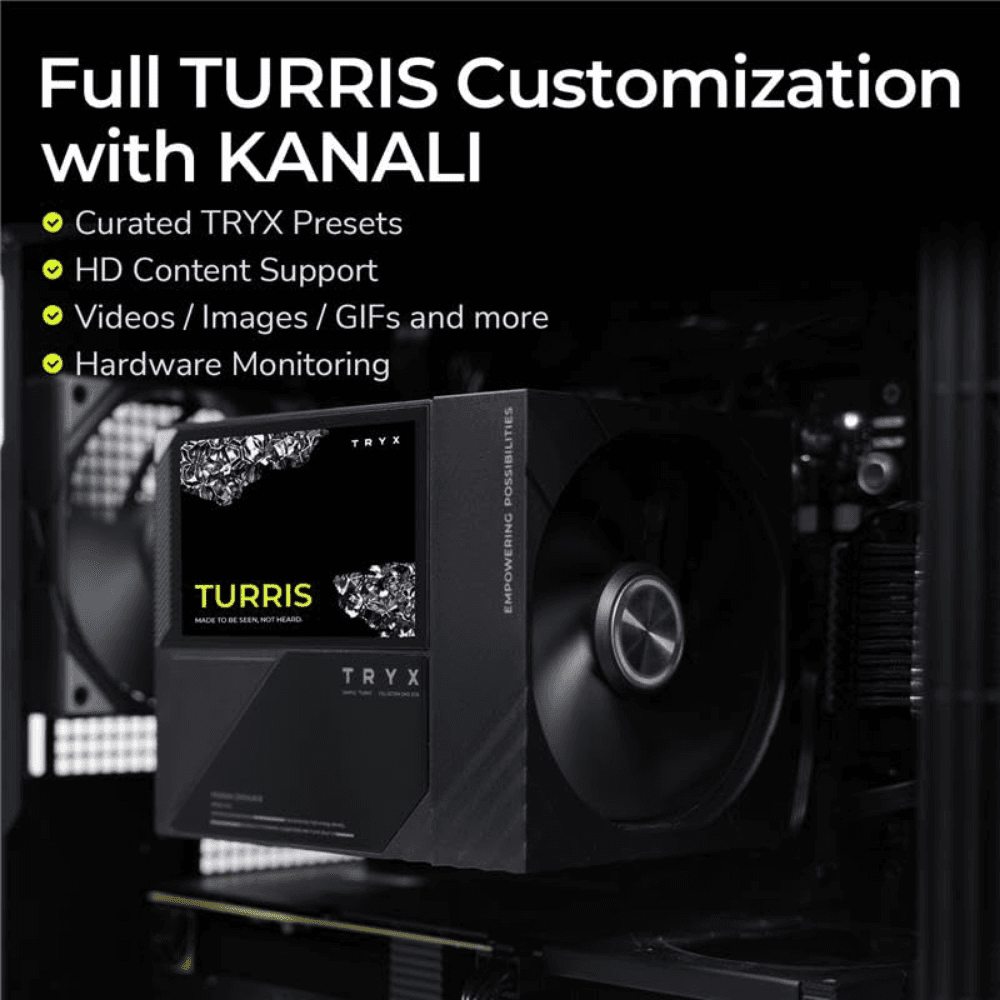

• Software Support: TRYX KANALI
• Content Support: Custom GIFs, Images, Videos and Real-Time System Monitoring
• Maximum Media File Size: Up to 500 MB

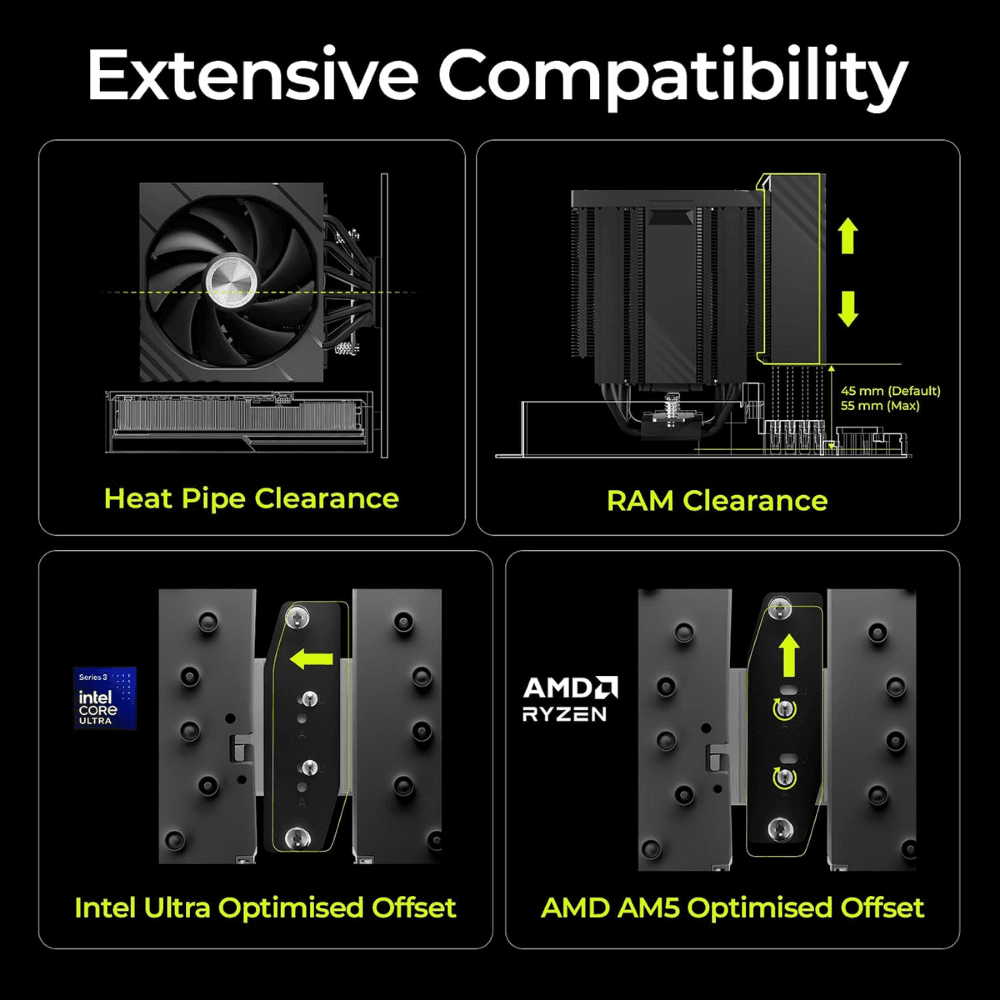

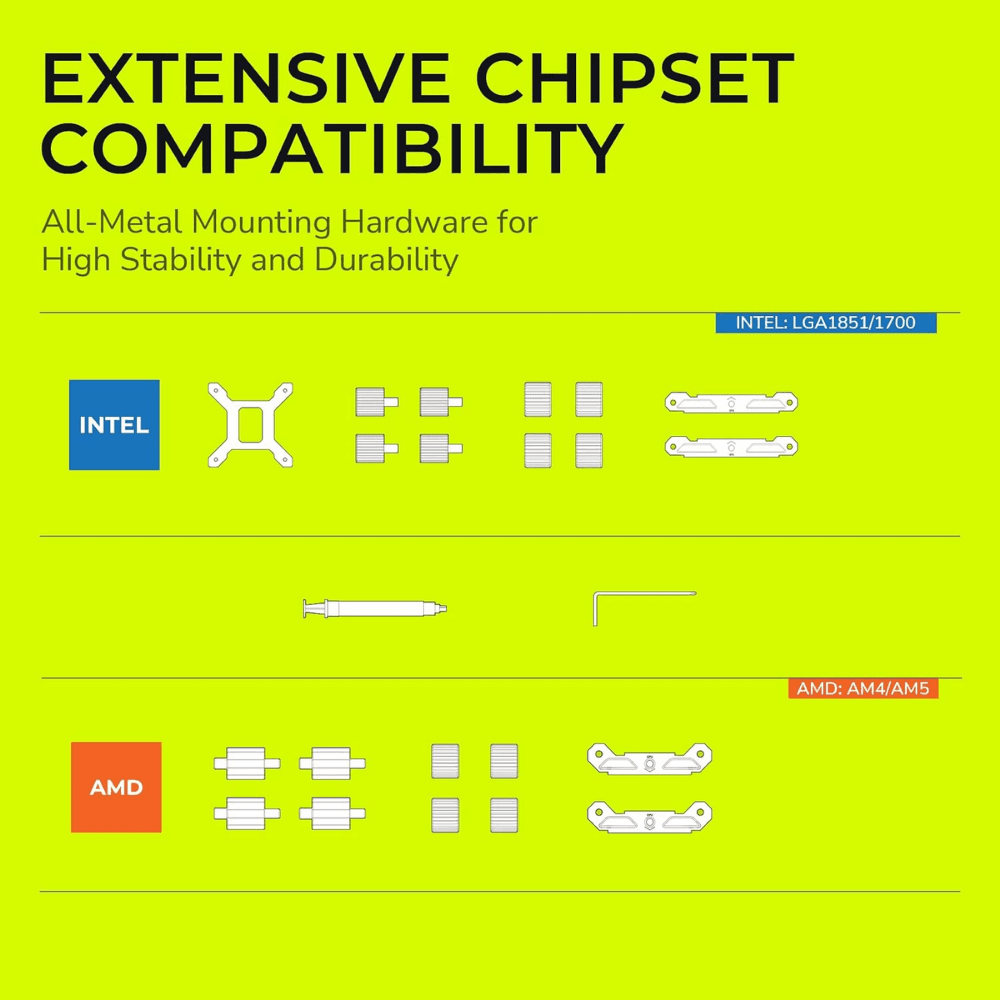

Compatibility

• Intel: LGA 1851 / LGA 1700
• AMD: AM5 / AM4
• CPU Cooler Clearance: 165 mm
• RAM Clearance: Up to 55 mm

Features

• Dual-tower high-performance heatsink design
• 280W TDP thermal capacity
• Six 6mm copper heat pipes
• Nickel-plated micro-convex copper base
• Void-free reflow soldering technology
• 5.0-inch HD IPS customizable display
• 1280 × 720 display resolution
• 60Hz refresh rate
• Real-time CPU and GPU monitoring
• Custom GIF, image and video playback
• TRYX KANALI software support
• Rail-mounted ROTA fans
• Low-noise cooling performance
• Heat-pipe offset design for improved GPU compatibility
• 55mm RAM clearance
