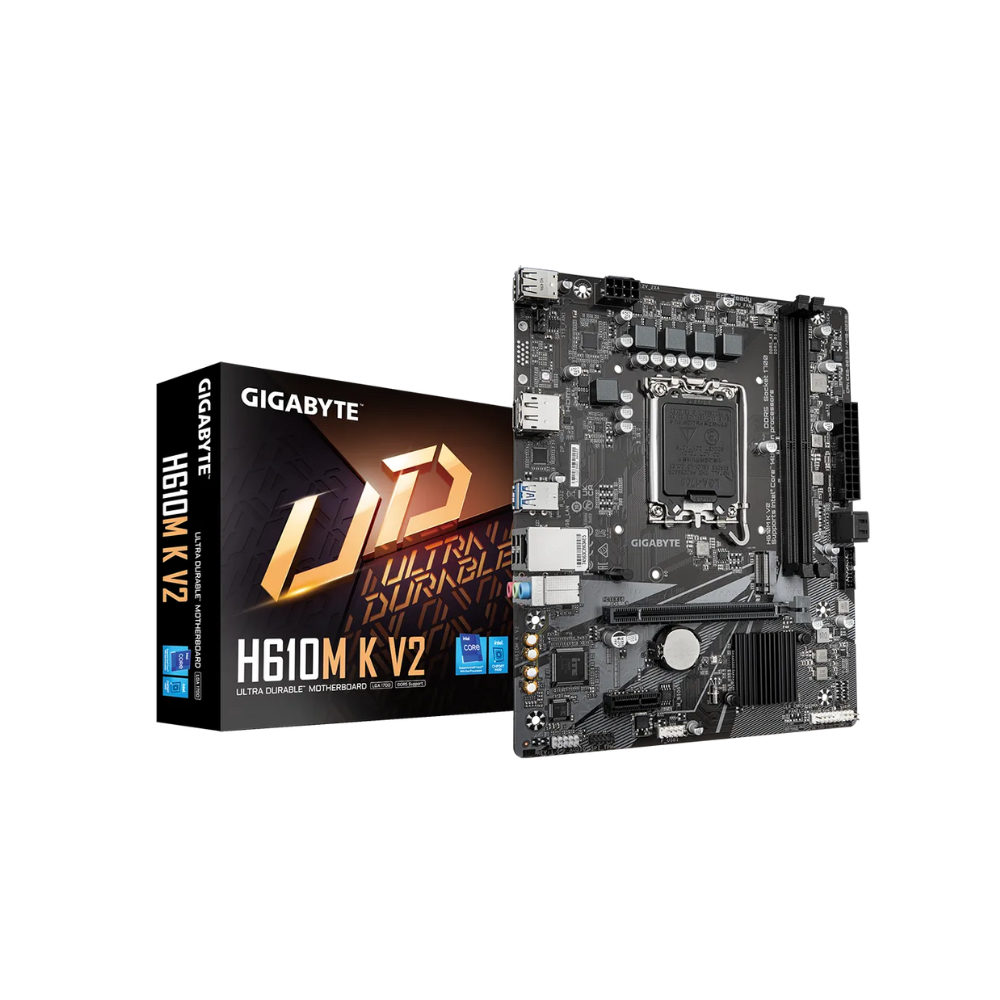

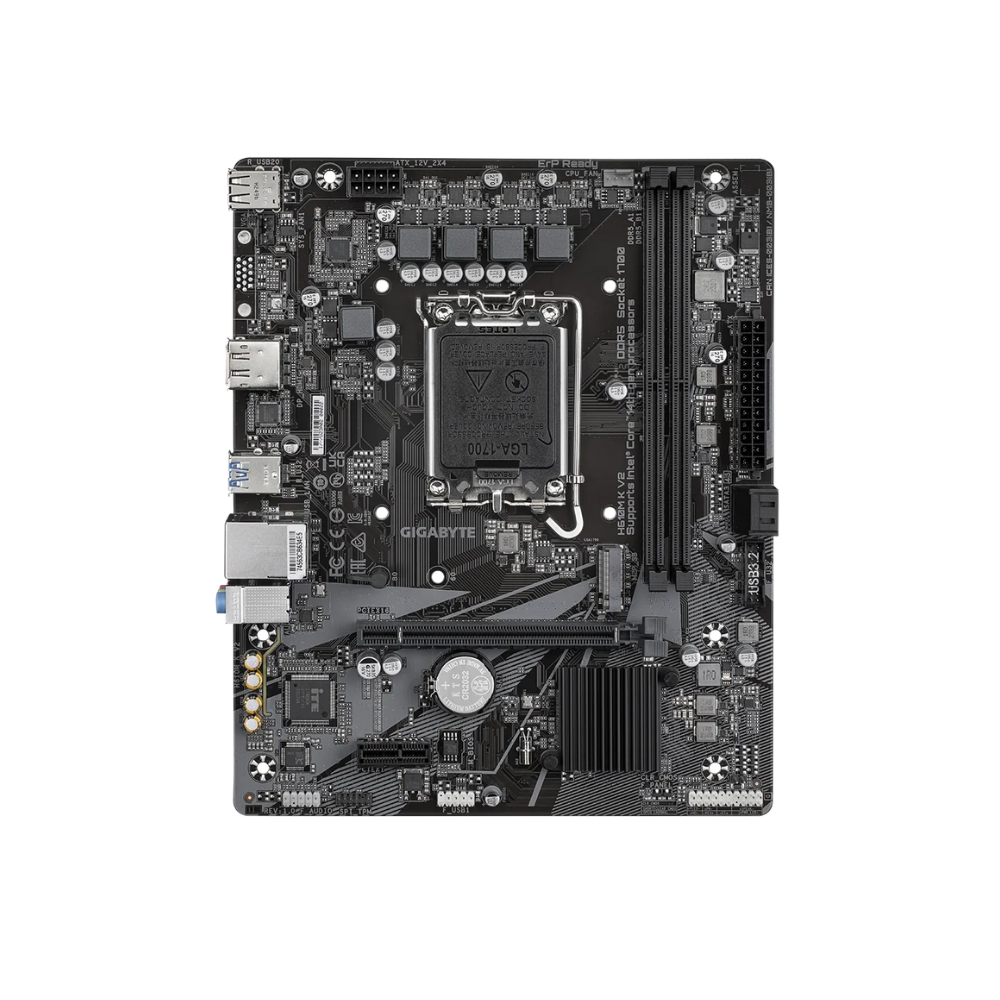

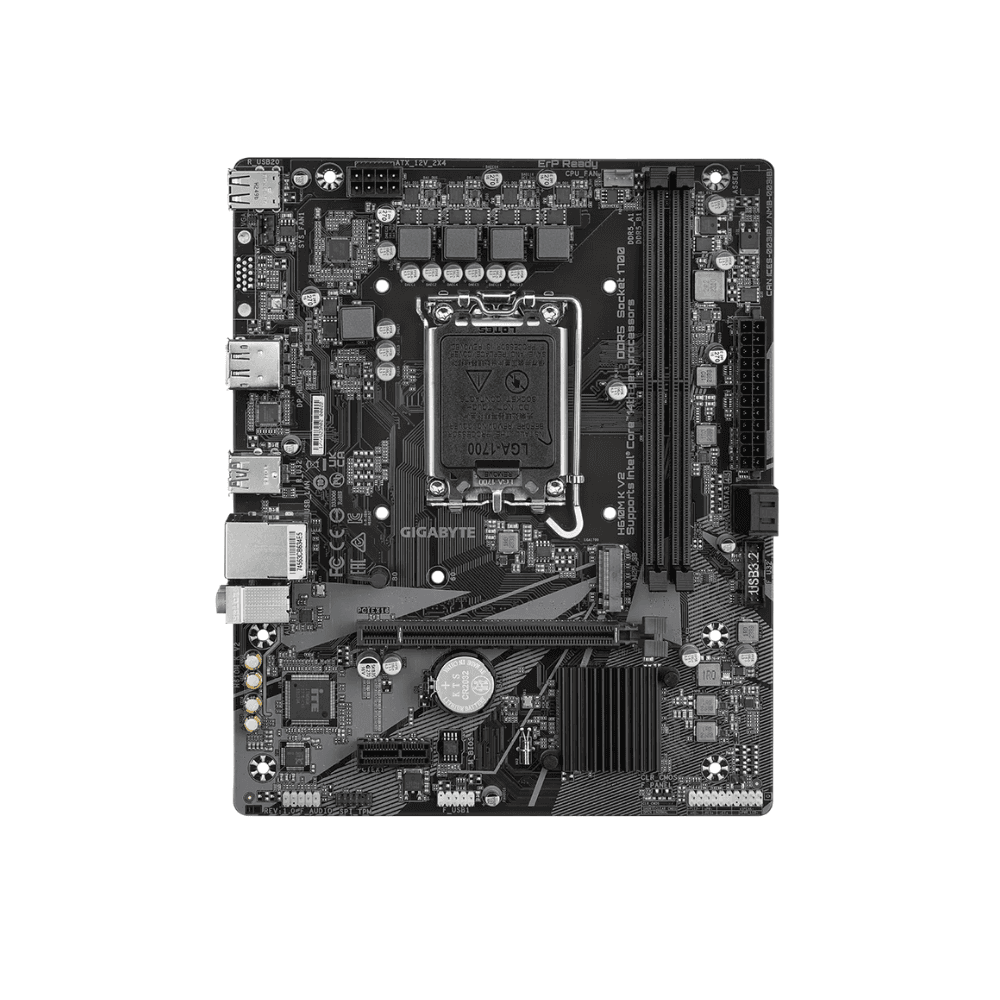

Name: GIGABYTE H610M K V2 INTEL
Brand: GIGABYTE
SKU: FW 030645
Price: 120000 IQD
Availability: InStock

GIGABYTE H610M K V2 INTEL

(0 Reviews)

Brand: GIGABYTE

IQD 120,000

In Stock

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU
Chipset	Intel® H610 Express Chipset
Memory	14th and 13th Generation Intel® Core™ i9/i7 Processors: Support for DDR5 5600/5200/4800/4400 MT/s memory modules; 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: Support for DDR5 4800/4400 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (4096×2304@60 Hz, DisplayPort 1.2, HDCP 2.3)
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, PCIe 4.0 x16; Chipset: 1 x PCI Express x1 slot, PCIe 3.0 x1
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260, PCIe 3.0 x4/x2), 2 x SATA 6Gb/s connectors
USB	Chipset: 4 x USB 3.2 Gen 1 ports (2 back panel, 2 internal), 6 x USB 2.0/1.1 ports (4 back panel, 2 internal)
Internal I/O Connectors	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3 connector, 2 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module header, 1 x Clear CMOS jumper

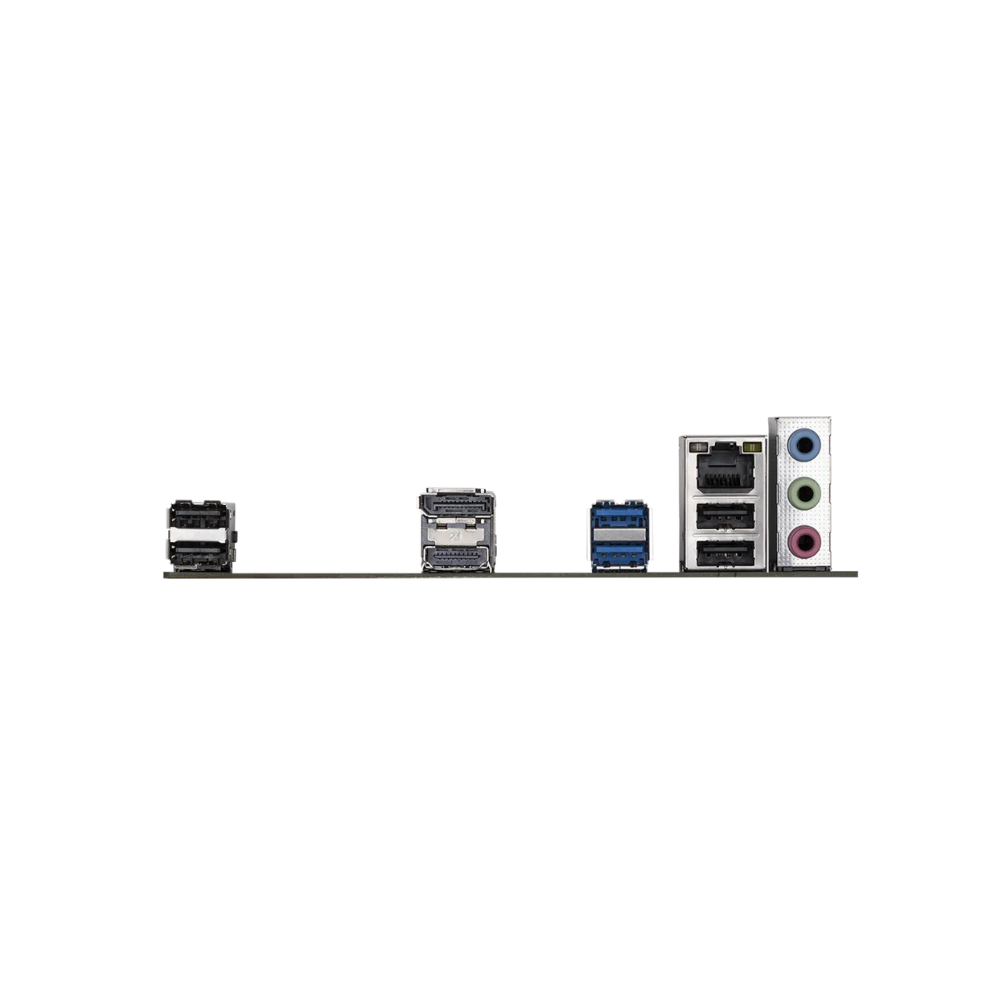

Back Panel Connectors	1 x HDMI port, 1 x DisplayPort, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS	1 x 128 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center (@BIOS, EasyTune, Smart Backup, System Information Viewer), Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System	Support for Windows 11 64-bit, Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.6cm x 18.5cm
