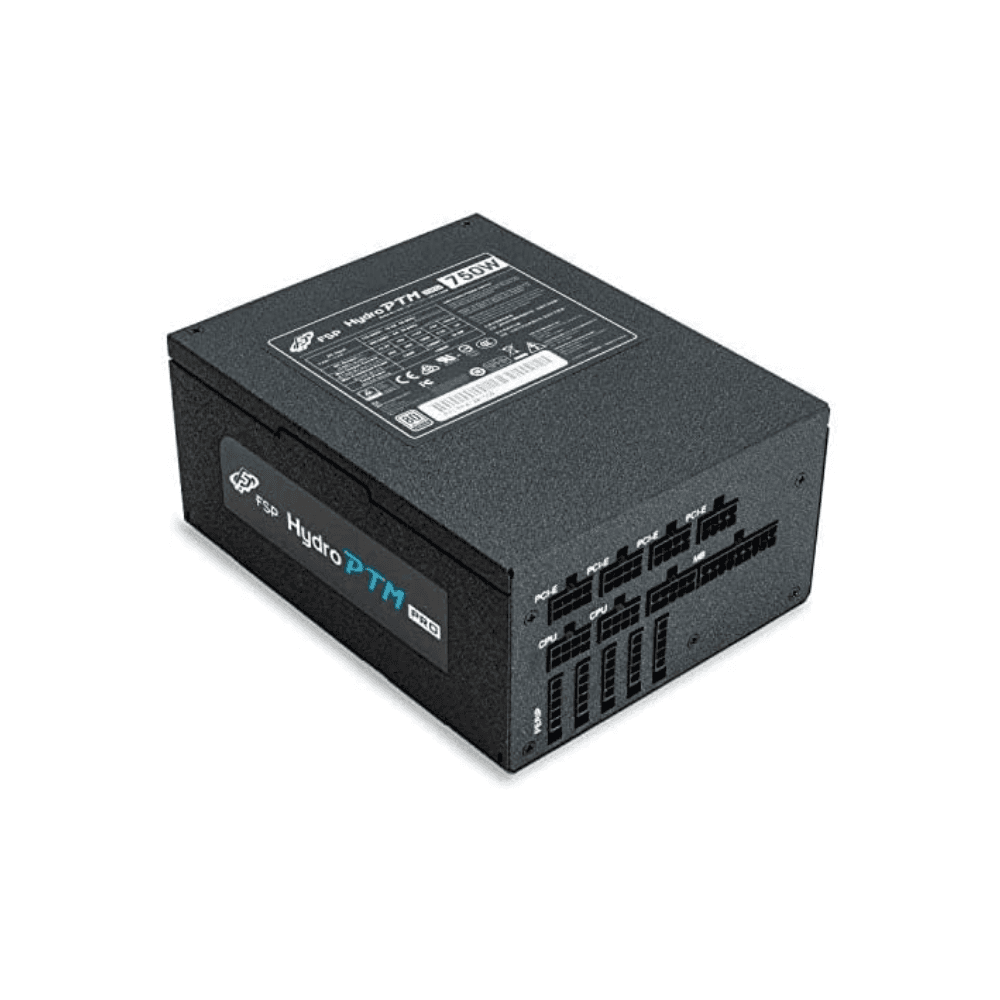

FSP Hydro PTM PRO 750M 750W 80+PLUS PLATINUM BLACK Power Supply

Key Specifications

• Power Output: 750W

• Efficiency Certification: 80 PLUS® Platinum

• Form Factor: ATX

• ATX Standard: ATX 12V V2.52

• PCIe Support: PCIe 6+2 Pin

• 12V-2×6 Connector: Not Included

• Modular Design: Fully Modular

• Cooling Fan: 135mm Fluid Dynamic Bearing (FDB) Fan

• Fan Mode: ECO / 0dBA Mode

• Input Voltage: 100-240V AC

• PFC Type: Active PFC

• 12V Rail: Single +12V Rail

• +12V Output: 62.5A / 750W

• Efficiency: ≥92% at Typical Load

• Capacitors: Full Japanese Electrolytic Capacitors

• Topology: LLC Full-Bridge + DC-DC

• Protection Features: OCP, OVP, SCP, OPP, OTP, UVP

• Conformal Coating: Yes

• Color: Black

• Dimensions: 150 × 170 × 86 mm

• Warranty: 10 Years

Connector Configuration

• 1 × 20+4-Pin ATX

• 2 × 4+4-Pin EPS/CPU

• 6 × PCIe 6+2 Pin

• 14 × SATA

• 5 × Peripheral (Molex)

• 1 × Floppy
