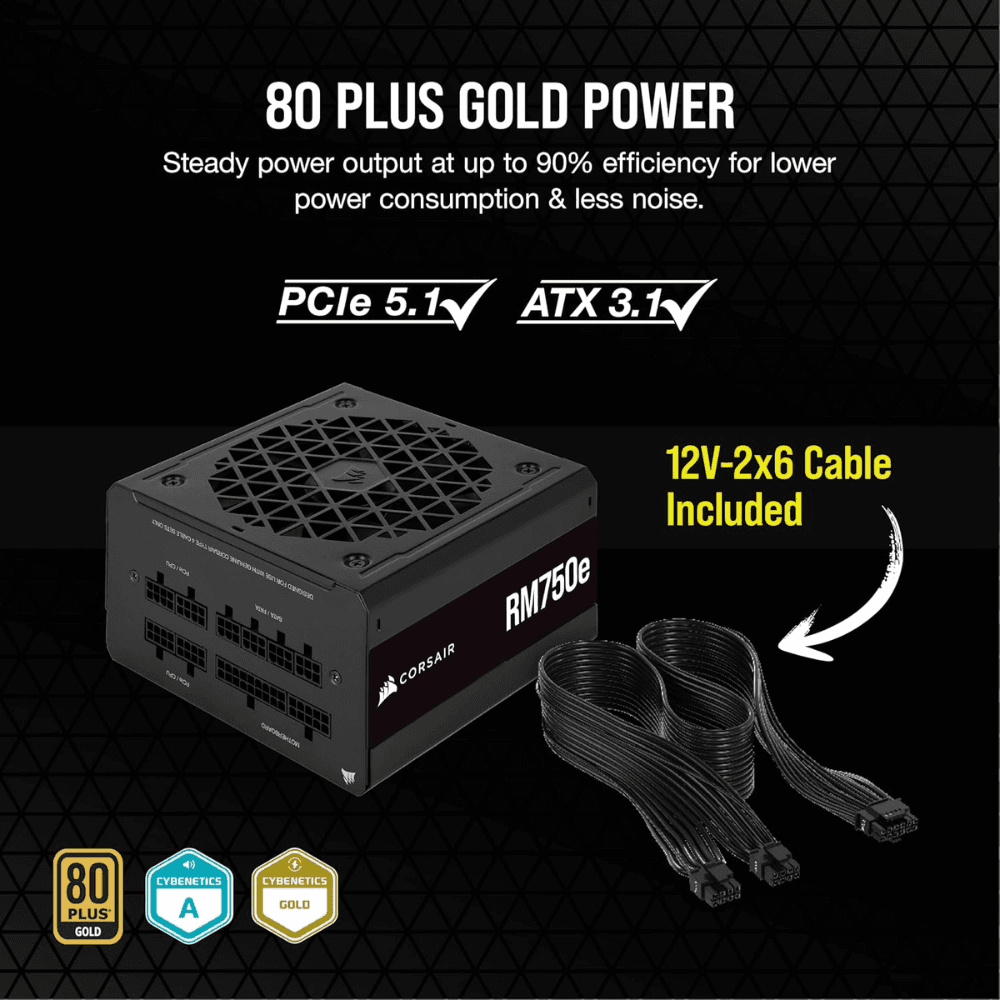

CORSAIR RM750E 750W 80+PLUS GOLD BLACK Power Supply

Key Specifications

• Power Output: 750W

• Efficiency Certification: 80 PLUS® Gold

• Form Factor: ATX

• ATX Standard: ATX 12V v2.53

• PCIe Support: PCIe 6+2 Pin

• 12V-2×6 Connector: Not Included

• Modular Design: Fully Modular

• Cooling Fan: 120mm Rifle Bearing Fan

• Fan Mode: Zero RPM Mode

• Input Voltage: 100-240V AC

• PFC Type: Active PFC

• 12V Rail: Single +12V Rail

• +12V Output: 62.5A / 750W

• Efficiency: Up to 90%

• Modern Standby: Supported

• MTBF: 100,000 Hours

• Protection Features: OVP, UVP, OPP, SCP, OCP, OTP

• Cable Type: Type 4

• Color: Black

• Dimensions: 140 × 150 × 86 mm

• Weight: 2.564 kg

• Warranty: 7 Years

Connector Configuration

• 1 × 24-Pin ATX

• 2 × 4+4-Pin EPS/CPU

• 3 × PCIe 6+2 Pin

• 7 × SATA

• 4 × Peripheral (PATA/Molex)
