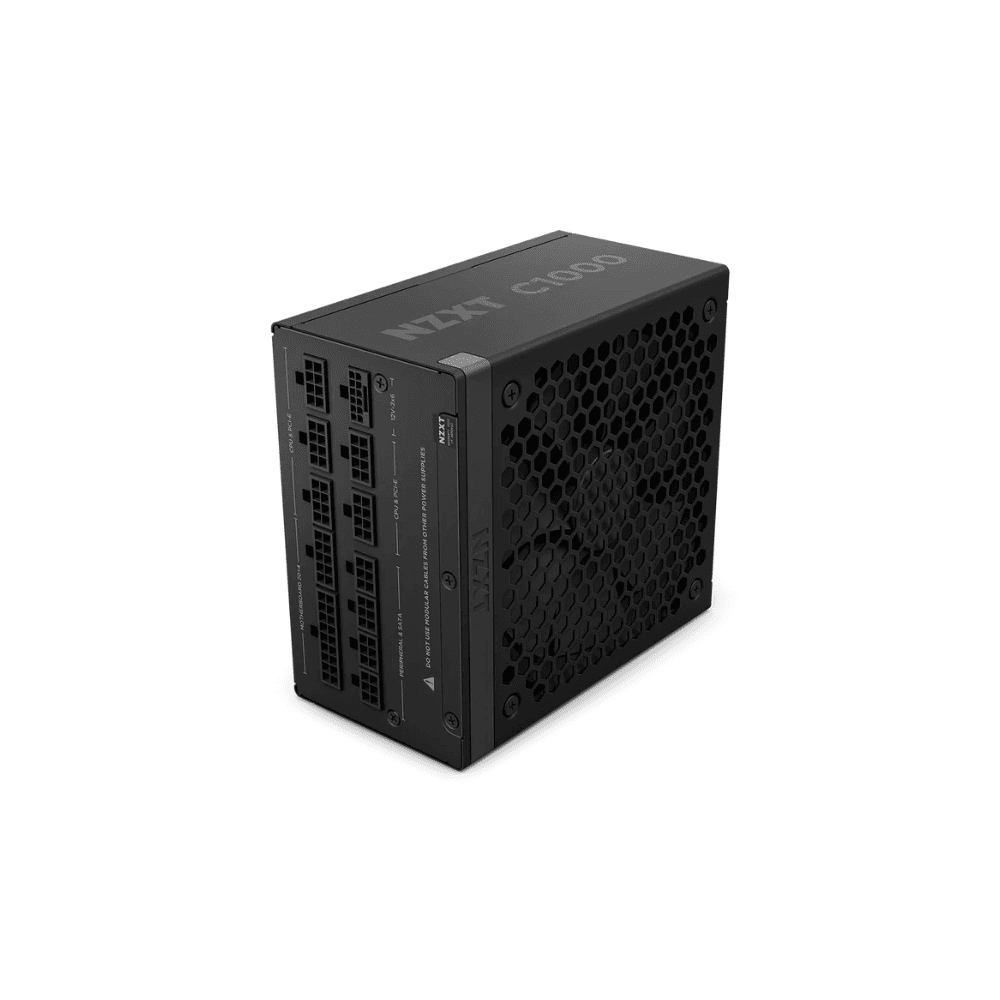

NZXT C1000 Gold ATX 3.1 – 1000W 80 PLUS Gold Fully Modular PSU

Power Output

• 1000W Continuous Power
• 12V Output: 83.3A / 1000W
• 3.3V + 5V Output: 22A / 120W
• 5VSB: 3A / 15W

Efficiency

• 80 PLUS Gold Certified
• Up to 91.9% Efficiency at 50% Load
• Active Power Factor Correction (PFC) up to 0.99

Form Factor

• ATX
• ATX 3.1 / EPS12V v2.92 Compliant
• Fully Modular Design
• Compact 150 × 86 × 160 mm Dimensions
• Black Finish

GPU Support

• 16-Pin (12+4) 12V-2×6 PCIe Connector
• Supports up to 600W for compatible NVIDIA® GeForce RTX™ 50 Series graphics cards
• 3 × 6+2-Pin PCIe Power Cables

Cooling

• 135mm Fluid Dynamic Bearing (FDB) Fan
• Zero Fan Mode below 50% load
• Maximum Fan Speed: 2300 ±10% RPM
• Maximum Airflow: 93.02 CFM
• Maximum Noise: 44.5 dBA

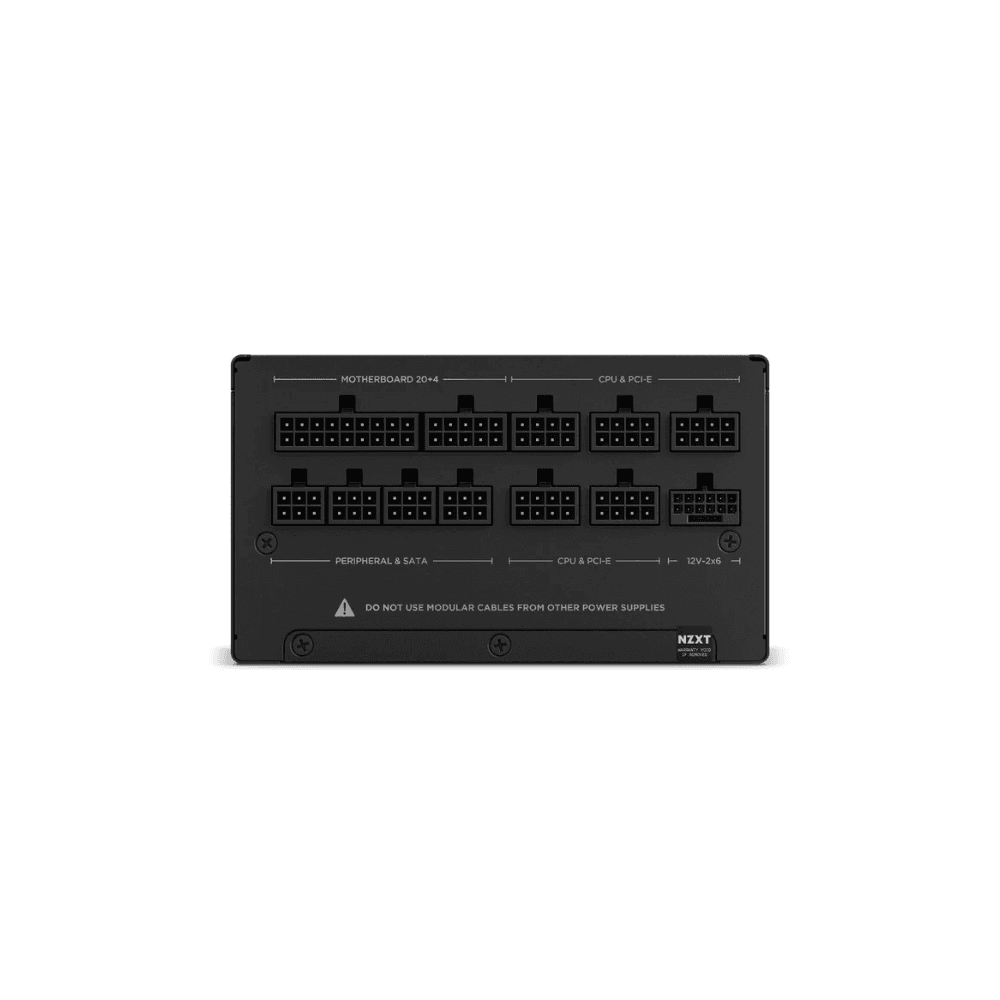

Connectors

• 1 × 24-Pin ATX
• 1 × 4+4-Pin CPU
• 1 × 8-Pin CPU
• 3 × 6+2-Pin PCIe
• 1 × 16-Pin (12+4) 12V-2×6 PCIe
• SATA & Peripheral Power Connectors

Protection Features

• Over Voltage Protection (OVP)
• Under Voltage Protection (UVP)
• Short Circuit Protection (SCP)
• Over Temperature Protection (OTP)
• Over Power Protection (OPP)
• Over Current Protection (OCP)

Build Quality

• 100% Premium Japanese Capacitors
• Designed for stable power delivery and reduced ripple noise
• High-quality construction with rigorous product testing

Input

• 100–240V AC
• 13A, 50–60Hz
• 200–240V AC: 6.5A, 50–60Hz

Warranty

• 10-Year Limited Warranty

Model

• C1000 Gold ATX 3.1
• Black: PA-0G2BB Series

Key Features

• 1000W 80 PLUS Gold Power Supply
• ATX 3.1 Compliant
• Fully Modular Cabling
• 12V-2×6 PCIe Connector for Next-Generation GPUs
• Zero Fan Mode for Silent Operation
• Premium Japanese Capacitors
• Compact ATX Form Factor
