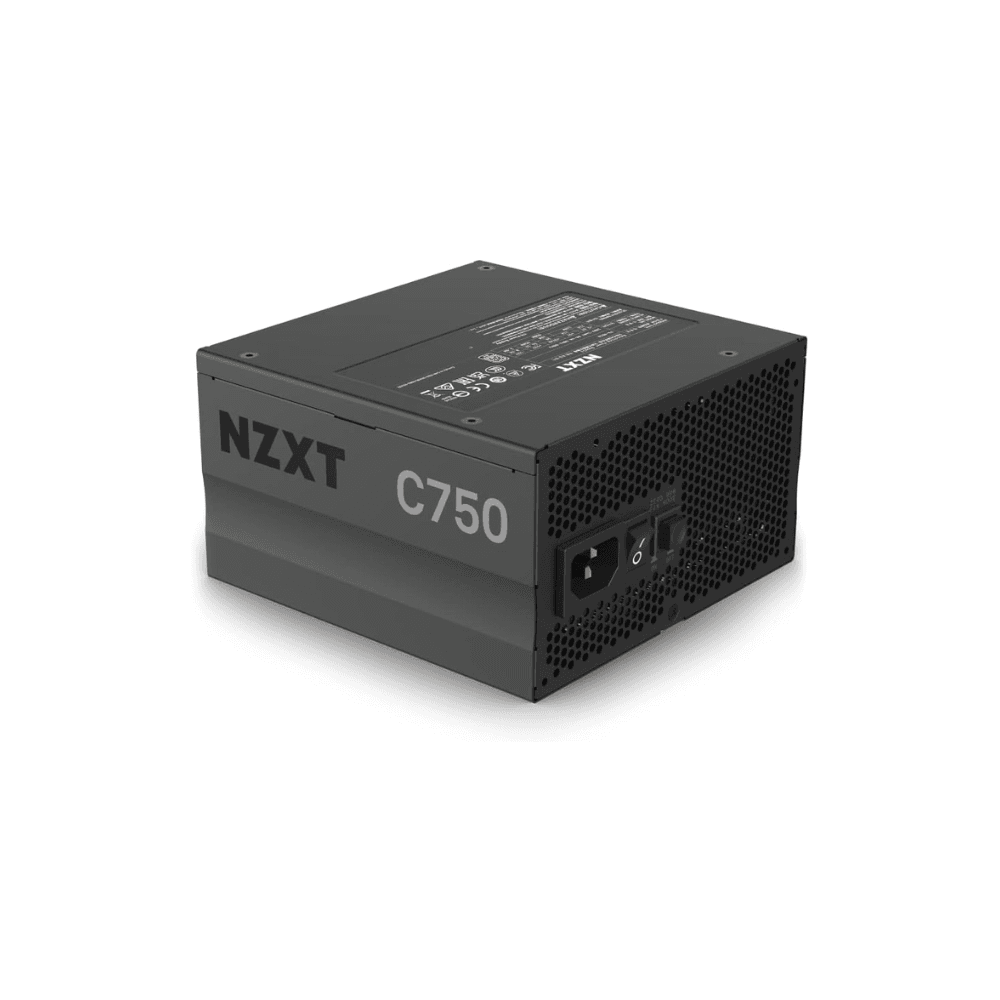

NZXT C750 750W 80+PLUS GOLD BLACK Power Supply

Key Specifications

• Power Output: 750W

• Efficiency Certification: 80 PLUS® Gold

• Form Factor: ATX

• ATX Standard: ATX12V v2.52

• PCIe Support: PCIe 6+2 Pin

• 12V-2×6 Connector: Not Included

• Modular Design: Fully Modular

• Cooling Fan: 135mm Fluid Dynamic Bearing (FDB) Fan

• Input Voltage: 100-240V AC

• PFC Type: Active PFC

• Power Factor: 0.96

• 12V Rail: Single +12V Rail

• +12V Output: 62.5A / 750W

• Efficiency: Up to 90.5% at 50% Load

• Fan Mode: Zero RPM Mode

• MTBF: 100,000 Hours

• Operating Temperature: 0-50°C

• Protection Features: OVP, UVP, OPP, SCP, OTP, OCP

• Cable Type: Fully Modular

• Color: Black

• Dimensions: 150 × 150 × 86 mm

• Warranty: 1 Year

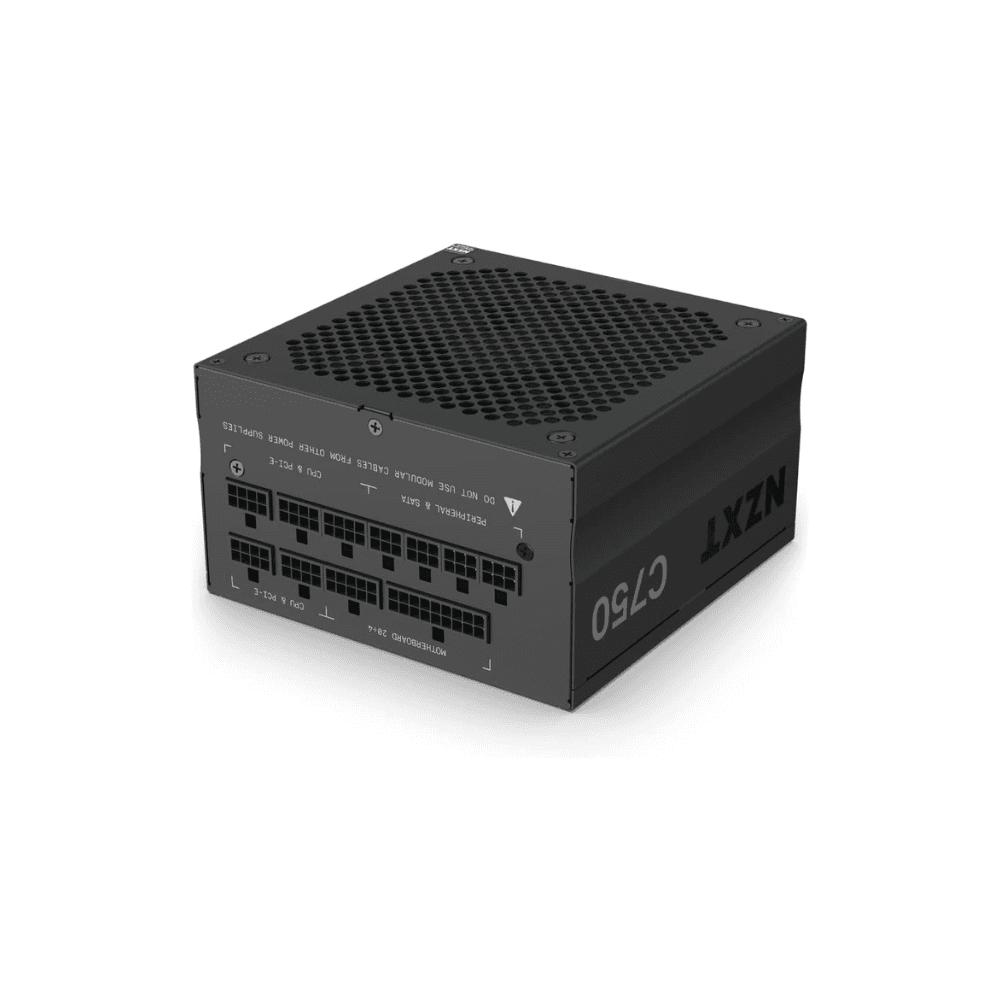

Connector Configuration

• 1 × 24-Pin ATX

• 2 × 4+4-Pin EPS/CPU

• 4 × PCIe 6+2 Pin

• 8 × SATA

• 3 × Peripheral (Molex)
