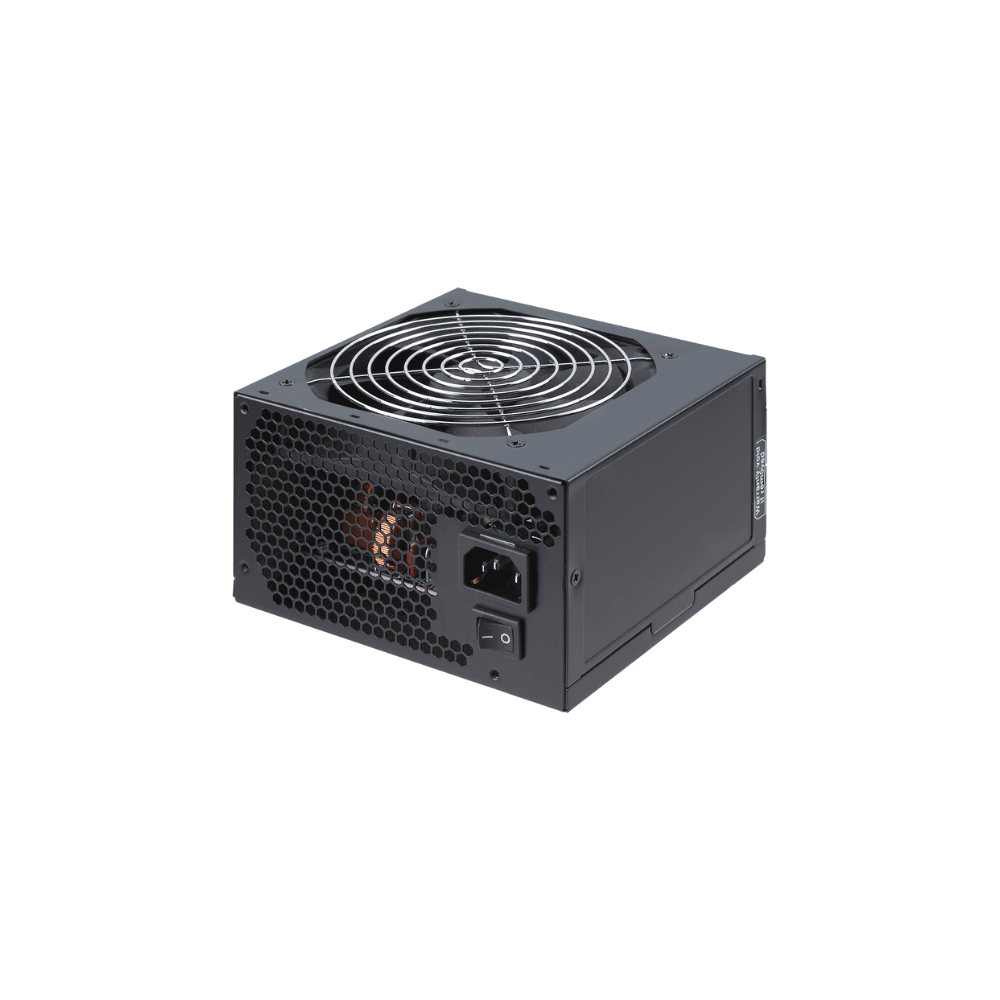

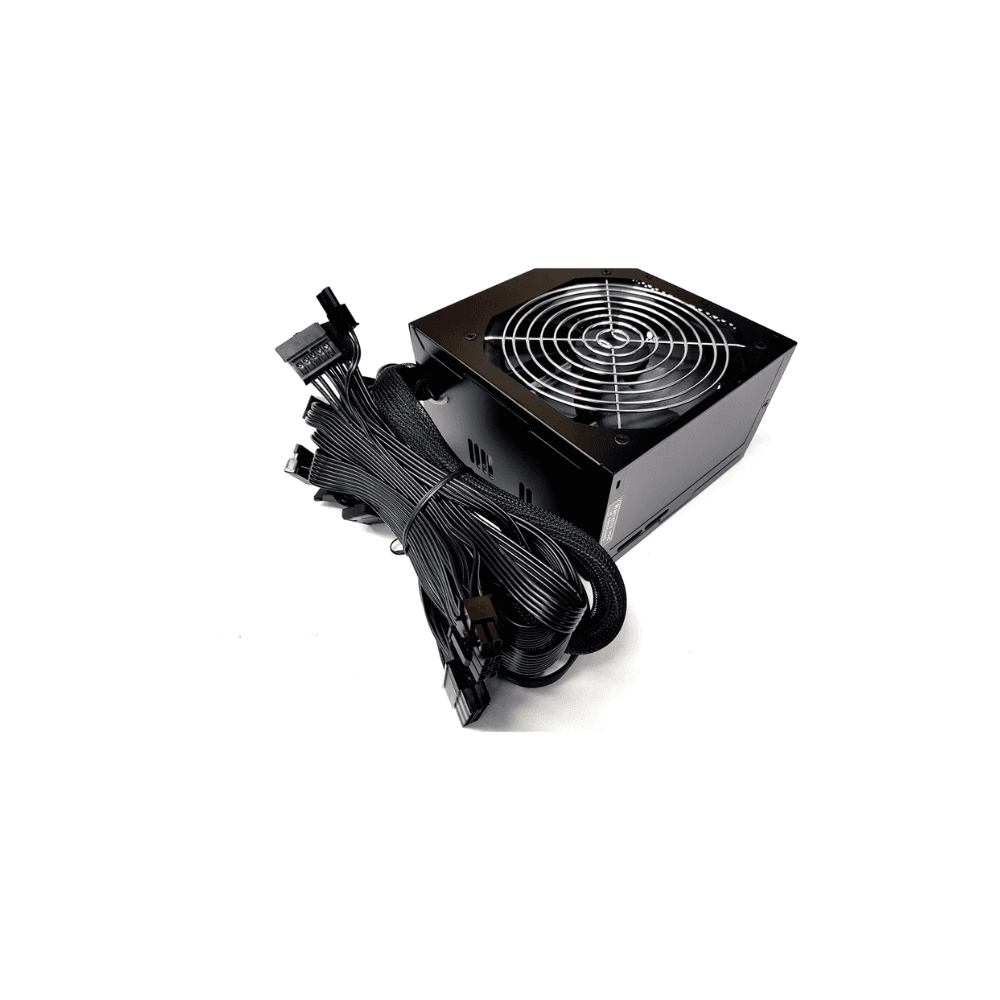

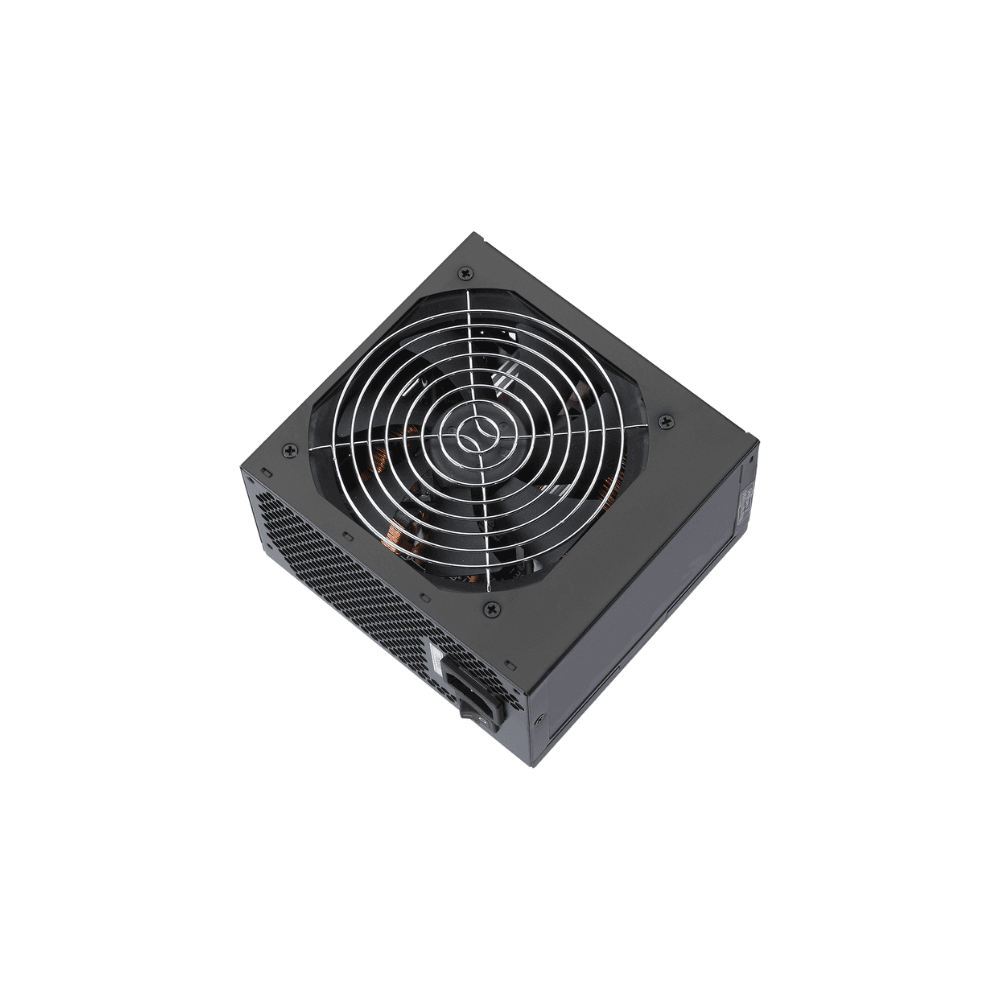

FSP HYPER K 700W 80+PLUS BLACK Power Supply

Key Specifications

• Power Output: 700W
• Efficiency Certification: 80 PLUS® 230V EU Bronze
• Form Factor: ATX
• ATX Standard: ATX 12V v2.4
• EPS Standard: EPS 12V v2.92
• PCIe Support: PCIe 6+2 Pin
• 12V-2×6 Connector: Not Included
• Modular Design: Non-Modular
• Cooling Fan: 120mm Sleeved Fan
• Input Voltage: 200-240V AC
• PFC Type: Active PFC
• Power Factor: ≥0.9
• 12V Rail: Single +12V Rail
• +12V Output: 53A / 636W
• Efficiency: ≥85% at Typical Load
• Operating Temperature: 0-40°C
• Noise Level: <19 dBA @ 50% Load
• Protection Features: OCP, OVP, SCP
• Cable Type: Black Ribbon Cables
• Color: Black
• Dimensions: 150 × 140 × 86 mm
• Weight: 1.752 kg

Connector Configuration

• 1 × 20+4-Pin ATX
• 1 × 4+4-Pin EPS/CPU
• 1 × 8-Pin EPS/CPU
• 4 × PCIe 6+2 Pin
• 8 × SATA
• 2 × Peripheral (Molex)
• 1 × Floppy
